DXS12MKII

This speaker is a good quality subwoofer for smaller events - we love the ability to change the high pass filter, set in cardioid mode, and quickly and easily invert polarity when needed.

From the Manufacturer:

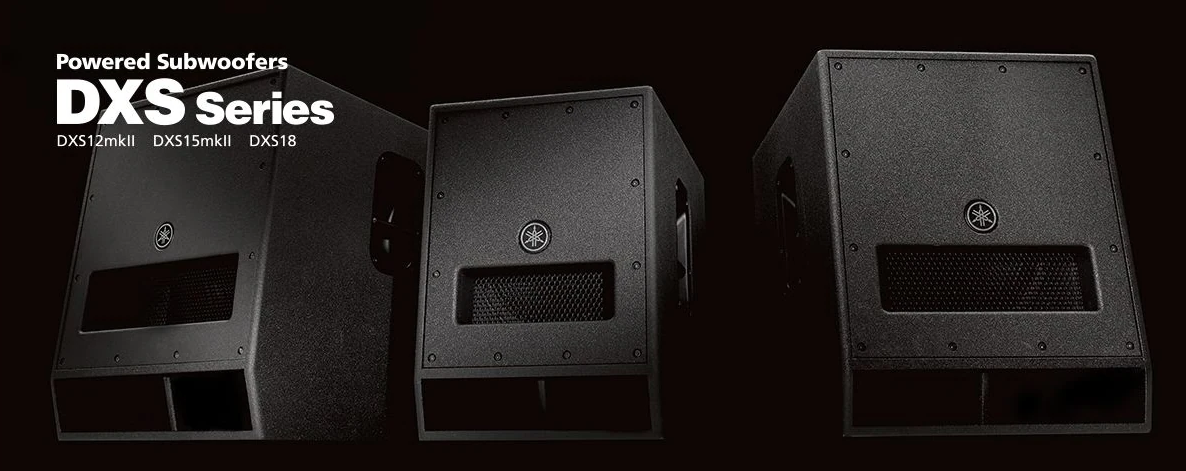

If you like your bass prominent and powerful, DXS Series high-output, powered subwoofers will ensure your bottom-heavy audio is heard loud and clear. Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy plywood band-pass enclosure, DXS subwoofers are capable of delivering up to an impressive 1020W of distortion-free power with supreme clarity. The lineup features the acclaimed DXS18 and recently upgraded versions of the 15” and 12” models, the DXS15mkII and DXS12mkII, which have adopted technologies and features from the DXS18 for an added professional edge and boost in performance.

All feature Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with Yamaha's vast lineup of full-range speakers, and reliable management of your bottom end. We've worked tirelessly to develop subwoofers with this level of versatility, dependability, and power because for Yamaha, great bass is serious business. Make it your business too.

Specifications:

• 12" powered subwoofer, Band-pass type

• Frequency range (-10dB):  42 Hz - 150 Hz

• Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)

• I/O connectors

• 2(THROUGH or HPF POST) INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT)

• Processors

• D-XSUB: BOOST, XTD LF, NORMAL

• Power requirements

• 100V - 240V, 50Hz/60Hz

• Power consumption

• 60W

• Flying and mounting hardware

• Bottom x 2 (Fit for M8 x 15 mm eyebolts)

• Pole socket

• 35mm (Bottom x 1)

• Dimensions

• W: 308mm (12")

• H: 493mm (19 6/8")

• D: 289mm (12 2/8")

• Weight

• 10.5 kg (23.2 lbs)
