DZR315-D

The Yamaha DZR315-D is a powerful Dante-equipped loudspeaker, ideal for use in a front of house main PA.

From the Manufacturer:

Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction— the new DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.

The culmination of all Yamaha’s accrued sound reinforcement, acoustics, and signal processing technology expertise—particularly with the introduction of our Dante-enabled models—DZR represents Yamaha’s first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.

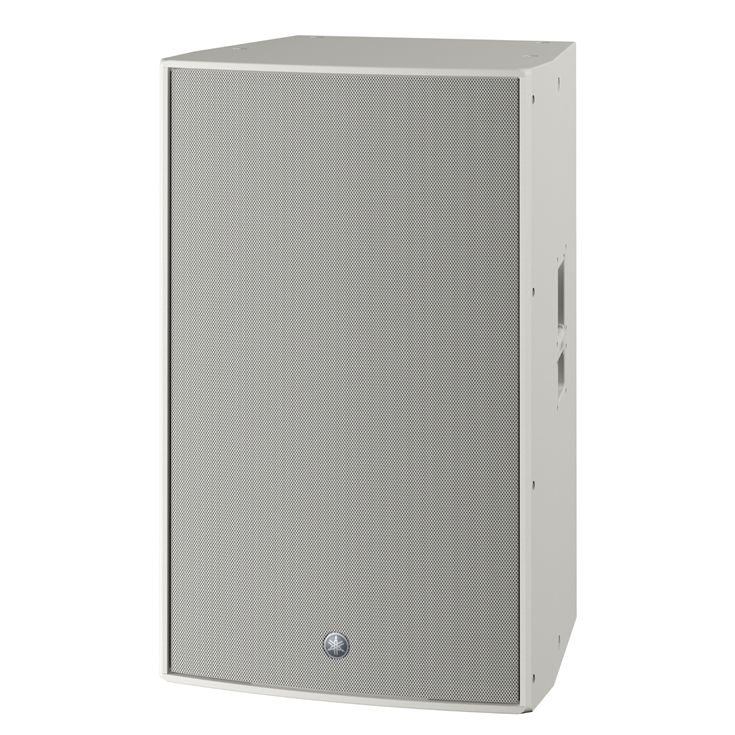

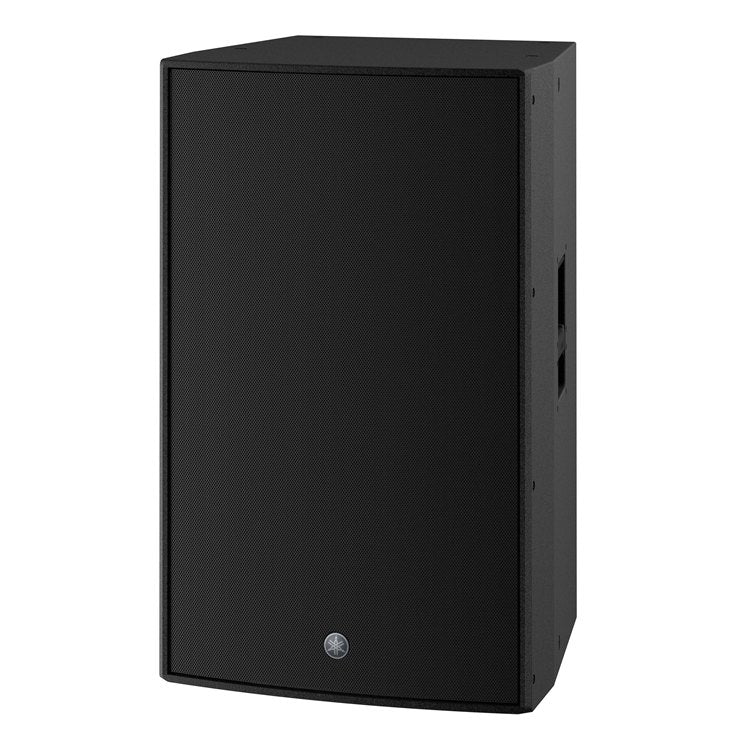

The fact that speakers must sound good goes without saying, but in permanent installations they have to look good and match the interior of the venue, too. Yamaha DZR Series Speakers and DXS XLF subwoofers are available in black or white.

Features:

The DZR315-D is a Dante-equipped three-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

Specifications:

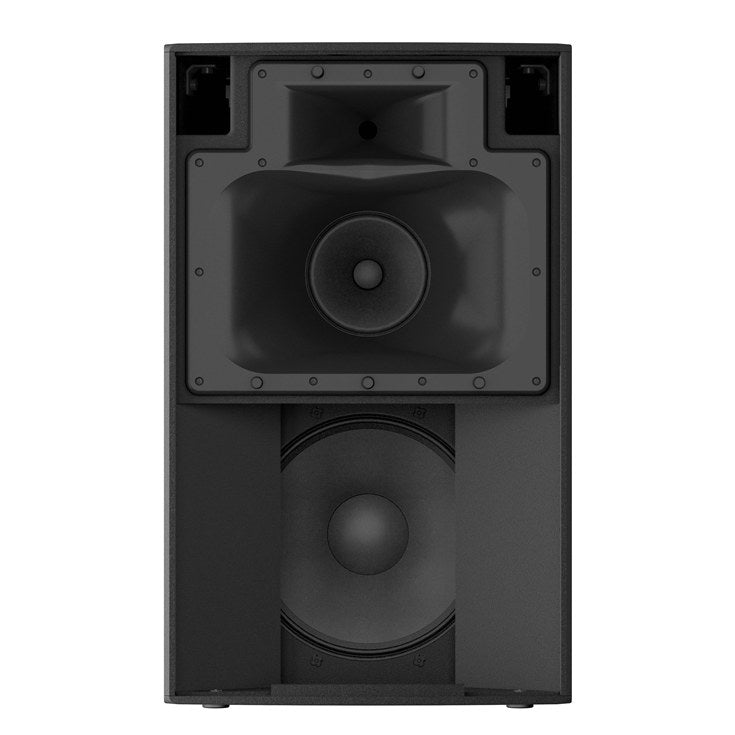

• 3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15" LF
• Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
• High power 2000W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• D-Contour and highly reliable protection circuits
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DZR315)
• Durable Black or White finish
