Description

Caret Down

We have all been waiting for the day when LED-based beam moving heads become a reality, and that day is here!  This model from Mega-Lite is really bright and has the added FX ring, making for a really great, multipurpose beam fixture for mid-size shows!

From the Manufacturer:

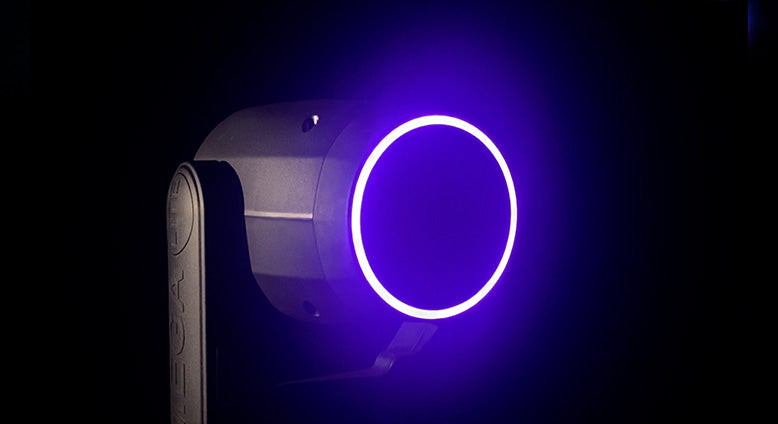

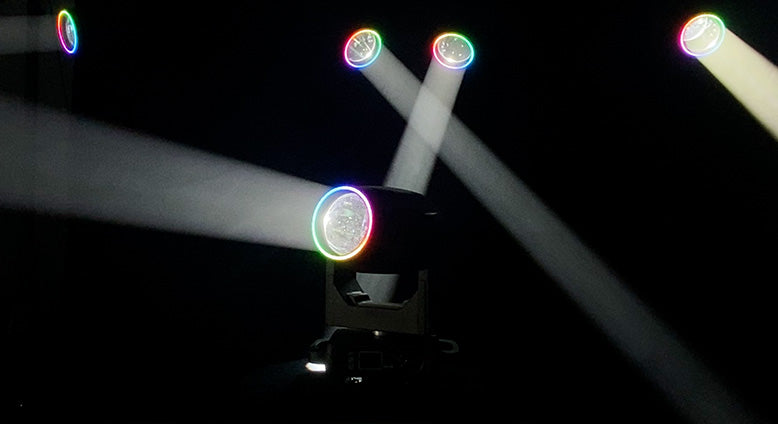

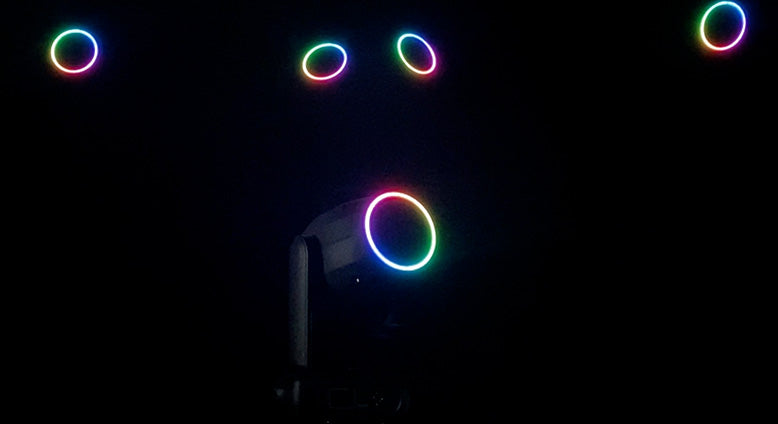

The EB1 features 1 X Appotronics 200W LED that offers a large aperture and  4 bi-directional colors (+open) that can produce bright colorful combinations. The 1° beam angle creates piercing projections, ideal for mid to large applications. In addition, the moving head provides 48 SMD 3535 LEDs on the outer FX ring. The RGB halo has 16 RGB segments of control that add a unique bright halo effect. The segments can be broken up or used in unison to create a smooth gradient look.

With a compact and lightweight design, the EB1 offers multiple features that allow lighting designers to expand their creativity. It includes 12 fixed + open static gobos and an 8-facet indexing prism that further enhances the beam and gobo effects. In addition, it has a 0.3-20 per second strobe, one frost filter, and linear focus to create a soft or sharp projection.

From the GEAR Pro's:

 This is a really great looking fixture.  Because MEGA was able to keep the beam angle at 1°, it looks bright and carries far.  By far, the biggest issue with older LED-based beam fixtures is that they often didn't go tighter than 3°, and while it may not look like much, it's a big difference in terms of the intensity of the beam.

In the Box:

  • (1) EB1
  • (2) Quick Release Clamp Mounts (Clamps sold separately)
  • (1) Power Cable

Features:

  • Light Source: 1 x 200W LED + 48 SMD3535 LEDs on the ring
  • Color Temperature: 8313K
  • CRI: 71
  • Beam Angle: 1°
  • Refresh Rate: 50/60Hz
  • Strobe: 0.3-20 PER SECOND
  • Color: 14 bi-directional colors + Open
  • Gobo: 12 fixed + Open
  • Effects: 8 Facet Prism, Frost Filter, Ring Light Control, Macros
  • Control Protocol: DMX, RDM
  • Operating Modes: 22 Ch/70Ch
  • IP Grade: IP20



Tech Specs

Optics:

Light Source Type: LED

Light Source Wattage: 200w

Minimum Beam Angle: 1.0°

Maximum Beam Angle: 1.0°

Control

DMX Channel Modes: 22/70

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: Yes

Physical:

Length: 21.75 in

Width: 15 in

Height: 9.5 in

Weight: 35 lb

Electrical

Voltage Range: 100-240

Maximum Wattage: 295w

Power Cable Connector - Fixture Side: powerCON

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 1 Year
