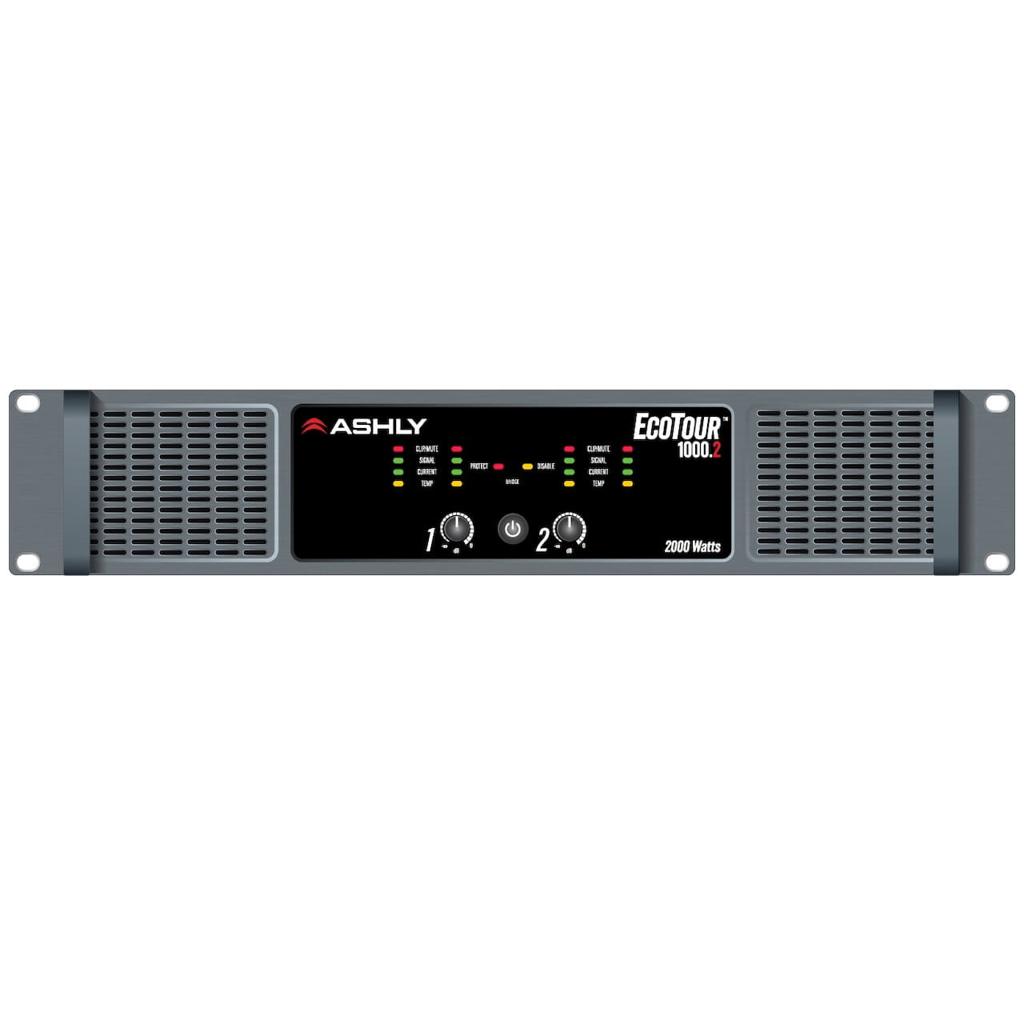

EcoTour 1000.2

The Ashly EcoTour™ 1000.2 is a professional two-channel Class-D power amplifier designed for touring, live sound reinforcement, and permanent audio installations. Delivering up to 1,000 watts per channel into 2-ohm or 4-ohm loads, it combines high-efficiency amplification, flexible loudspeaker connectivity, selectable gain settings, and built-in protection features in a compact 2U rackmount chassis.

From The Manufacturer:

The Ashly EcoTour™ series is designed to provide efficient, reliable amplification for demanding professional audio environments. Using D-MAX Class-D technology, Dynamic Power Factor Correction, and the SailFlow cooling system, the series is engineered to deliver high output while managing power consumption and operating temperatures.

The EcoTour 1000.2 features two amplifier channels, support for low-impedance loudspeakers and compatible 70 V and 100 V systems, selectable input gain, and individual channel controls for high-pass filtering and clip limiting. Its rackmount design makes it suitable for touring systems and permanent installations.

Key Features:

1. Two-channel professional power amplifier.

2. High-efficiency D-MAX Class-D amplifier technology.

3. Delivers up to 1,000 W per channel into 2 Ω or 4 Ω loads.

4. Delivers 500 W per channel into 8 Ω loads.

5. Bridged operation providing up to 2,000 W.

6. Supports compatible 70 V and 100 V constant-voltage loudspeaker systems.

7. Dynamic Power Factor Correction (DPFC).

8. Selectable input gain settings for each channel.

9. Adjustable front-panel level controls with disable options.

10. Switchable 80 Hz high-pass filter per channel.

11. Switchable clip limiter per channel.

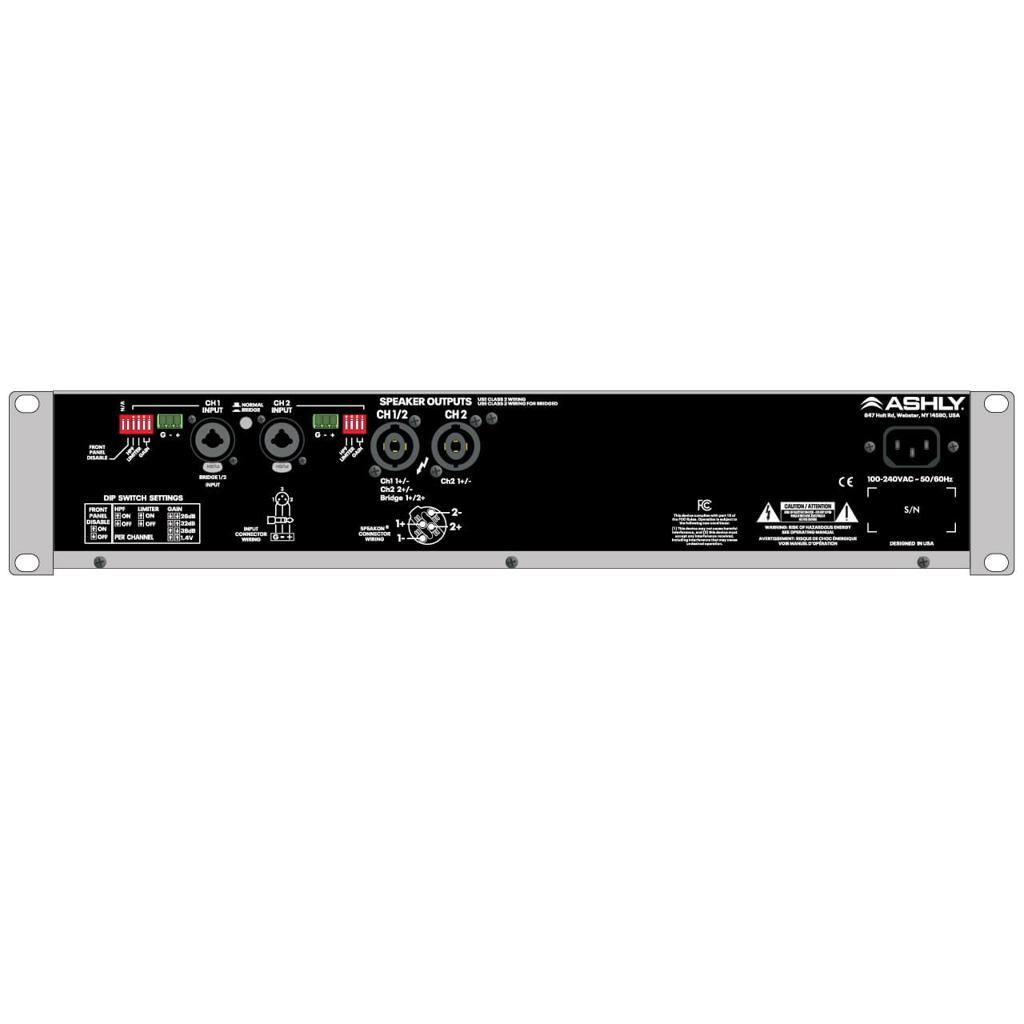

12. Balanced XLR and ¼-inch TRS combo inputs.

13. Additional Euroblock input connections.

14. Neutrik speakON loudspeaker outputs.

15. Temperature-controlled fan cooling with SailFlow airflow design.

16. Front-panel indicators for signal, clipping, temperature, current, protection, and operating status.

17. Compact 2U rackmount construction.

18. Five-year manufacturer warranty, subject to applicable terms.

Specifications:

• Brand: Ashly

• Product Series: EcoTour™

• Model: 1000.2

• Product Type: Professional power amplifier

• Amplifier Class: Class D

• Number of Channels: 2

• Output Power at 2 Ω: 2 × 1,000 W

• Output Power at 4 Ω: 2 × 1,000 W

• Output Power at 8 Ω: 2 × 500 W

• Bridged Output at 4 Ω: 2,000 W

• Bridged Output at 8 Ω: 2,000 W

• 70 V Operation: Up to 1,000 W in the specified configuration

• 100 V Operation: Up to 2,000 W in the specified bridged configuration

• Frequency Response: 20 Hz–20 kHz, ±0.05 dB

• Input Impedance: 10 kΩ

• Maximum Input Level: +21 dBu

• Signal-to-Noise Ratio: Greater than 101 dB, unweighted

• THD+N: Less than 0.5% under the manufacturer's stated test conditions

• Damping Factor: Greater than 250 at 8 Ω, below 1 kHz

• Input Connectors: XLR/¼-inch TRS combo connectors and 3.5 mm Euroblock

• Output Connectors: Neutrik speakON

• Input Gain Settings: 26 dB, 32 dB, 38 dB, or 1.4 V sensitivity

• High-Pass Filter: Switchable 80 Hz, second-order filter per channel

• Clip Limiter: Switchable per channel

• Cooling: Continuously variable, temperature-controlled fan

• Rack Format: 2U

• Dimensions (W × H × D): 19 × 3.5 × 16.1 in (483 × 89 × 409 mm)

• Unit Weight: 15.5 lb (7.04 kg)

• Shipping Weight: 19.5 lb (8.85 kg)

Included Accessories:

• Ashly EcoTour™ 1000.2 power amplifier.

• AC power cable.

• Two input block connectors, as listed by the retailer.

Applications:

• Live sound reinforcement.

• Touring PA systems.

• Houses of worship.

• Theatres and performance venues.

• Concert halls and auditoriums.

• Conference centres.

• Commercial audio installations.

• Driving passive full-range loudspeakers and subwoofers.

• Distributed audio systems using compatible 70 V or 100 V loudspeakers.

• Professional sound systems requiring two channels of high-power amplification.

Included Accessories:

The manufacturer's product documentation confirms a detachable AC power connection. Retailer listings specify a power cable and two input block connectors. Confirm the exact package contents with the supplier.

Accessories (Not Included):

• Passive loudspeakers and subwoofers.

• XLR or ¼-inch audio signal cables.

• speakON loudspeaker cables.

• Equipment rack and rack hardware.

• External DSP processors or loudspeaker management systems, where required.

• Network or control equipment, where required by the wider installation.

Size:

• Width: 19 in (483 mm)

• Height: 3.5 in (89 mm)

• Depth: 16.1 in (409 mm)

• Rack Height: 2U

Weight:

• Unit Weight: 15.5 lb (7.04 kg)

• Shipping Weight: 19.5 lb (8.85 kg)

Electrical/Thermal:

• Nominal Input Voltage: 100–240 V AC

• Frequency: 50–60 Hz

• Operating Voltage Range: 70–270 V AC

• Power Supply: Switching power supply with active power-factor correction

• Power Consumption at One-Eighth Power: Approximately 335 W at 120 V AC, with both channels driven under the manufacturer's specified test conditions

• Cooling: Temperature-controlled fan system

• Protection Features: Inrush-current, over-temperature, output DC, output over-power, and AC mains protection

• Operating Temperature: 32–120°F (0–49°C), non-condensing

• Power Connection: Detachable AC power cable; the supplied plug may vary by region.
