Elecktron BAR FX

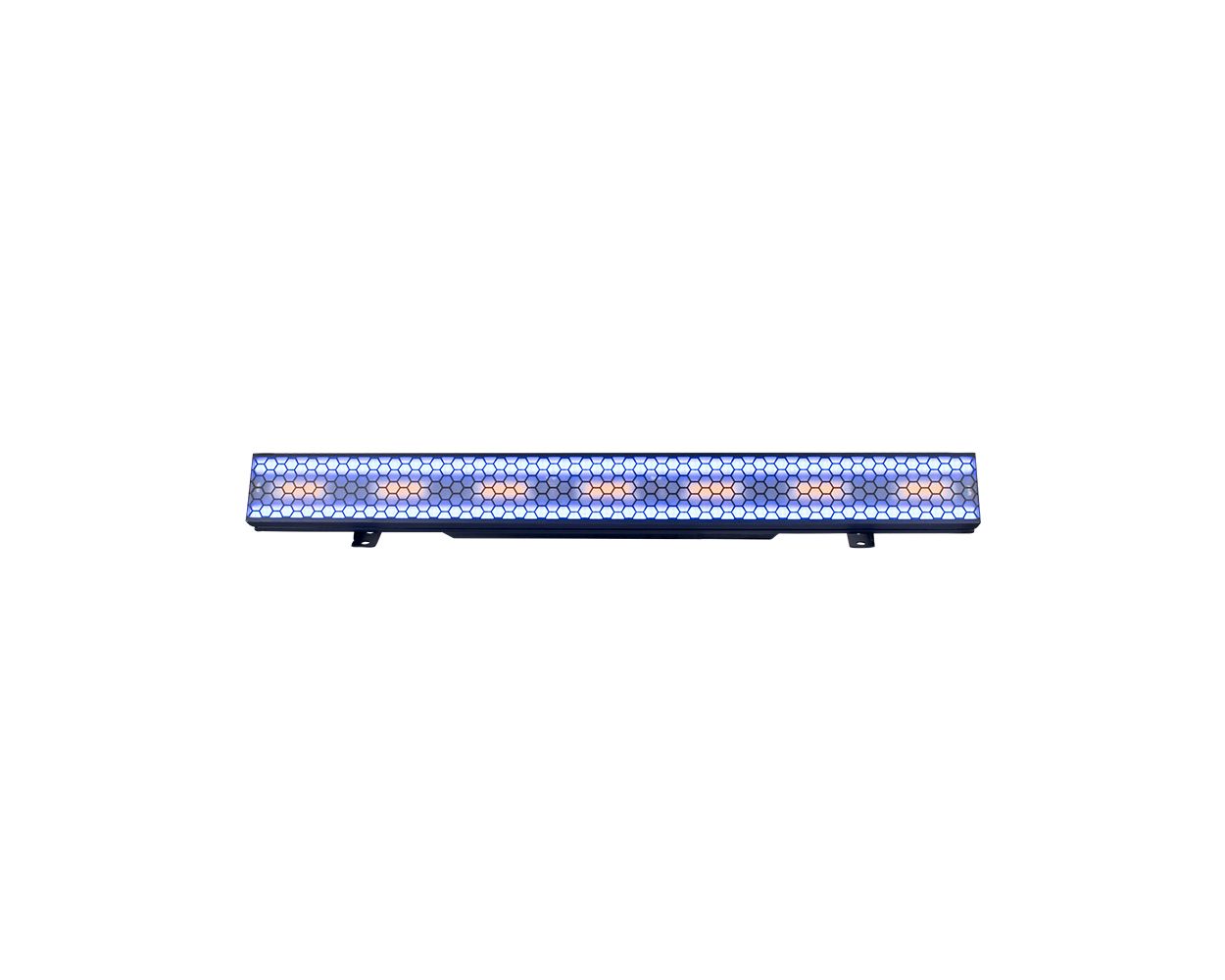

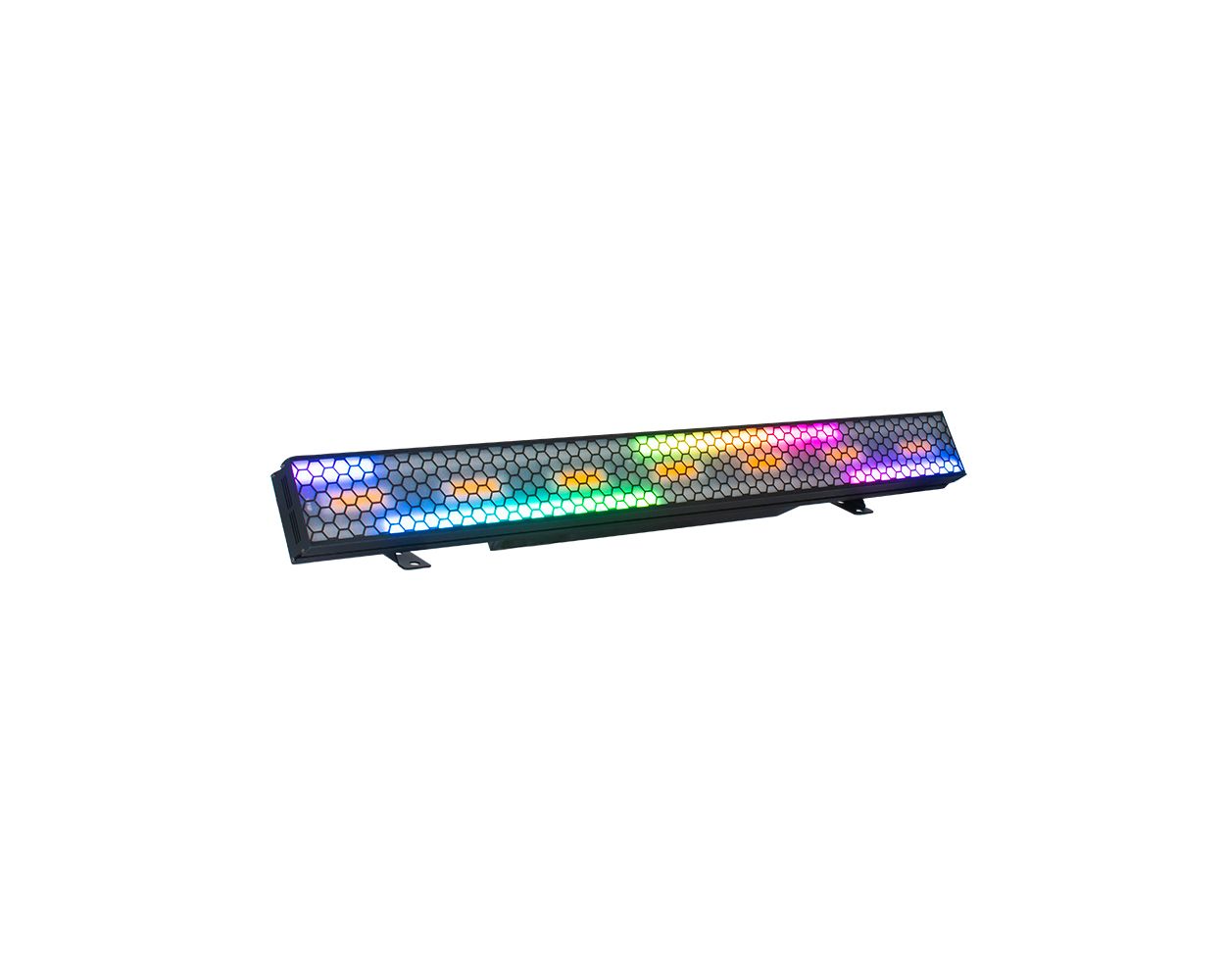

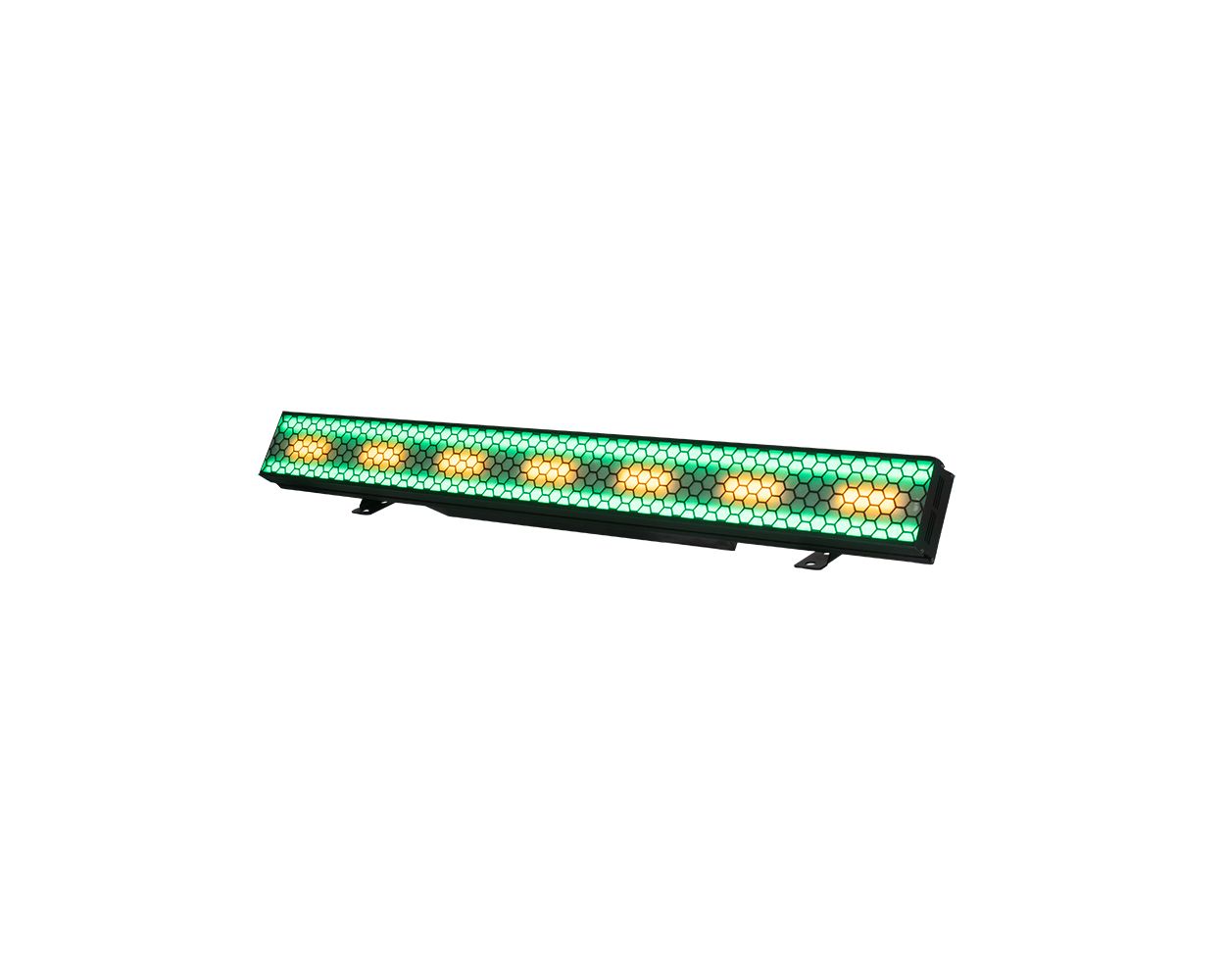

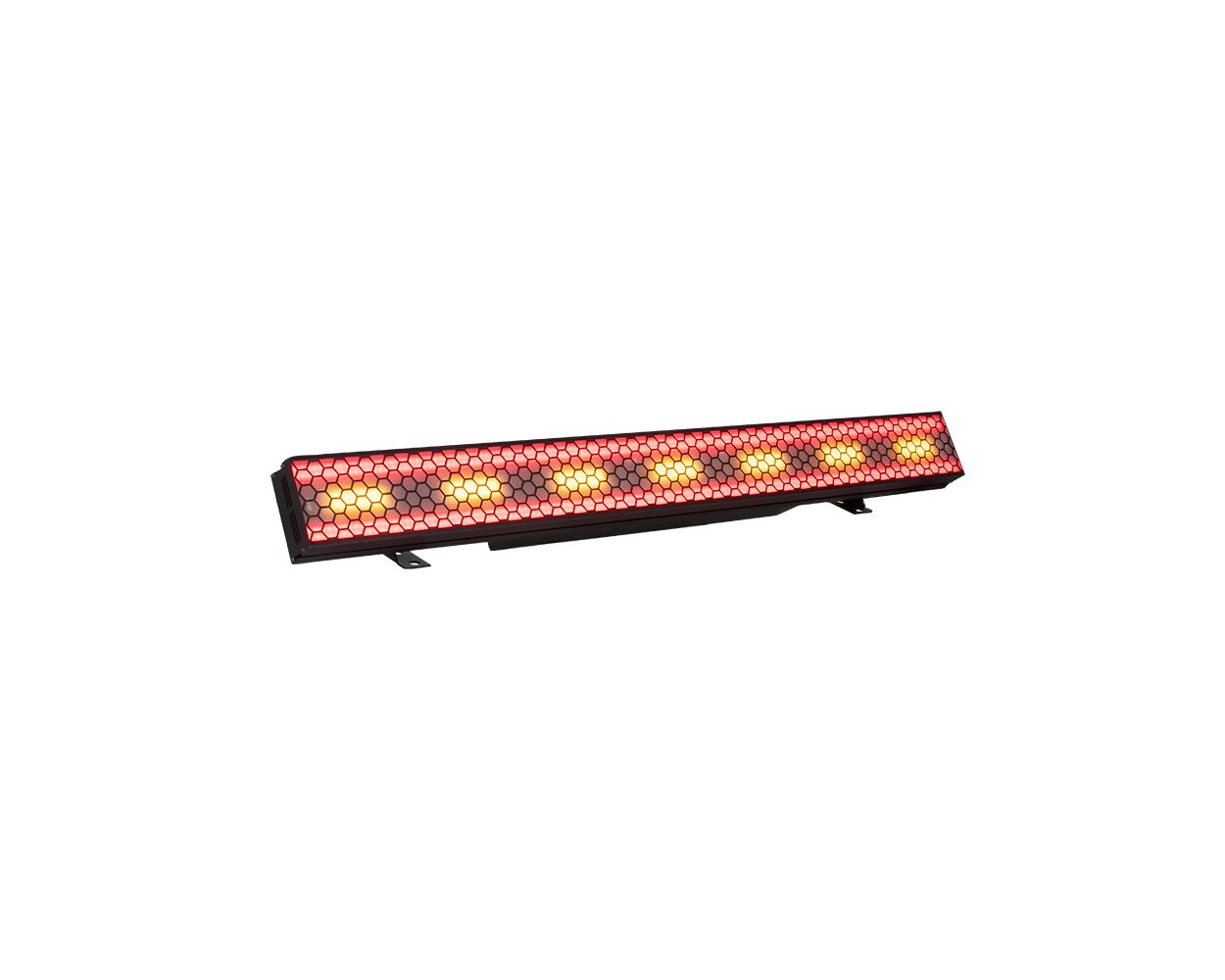

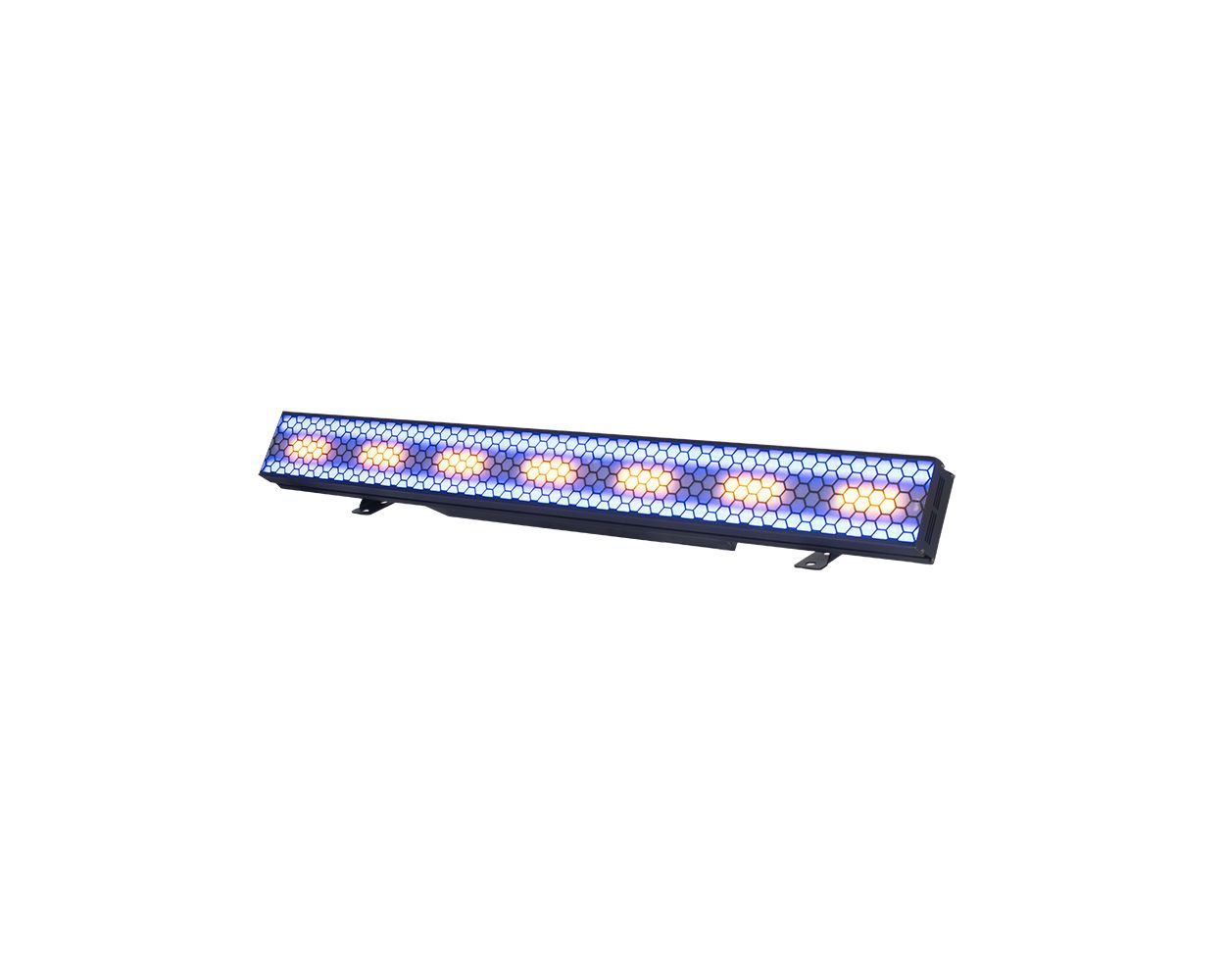

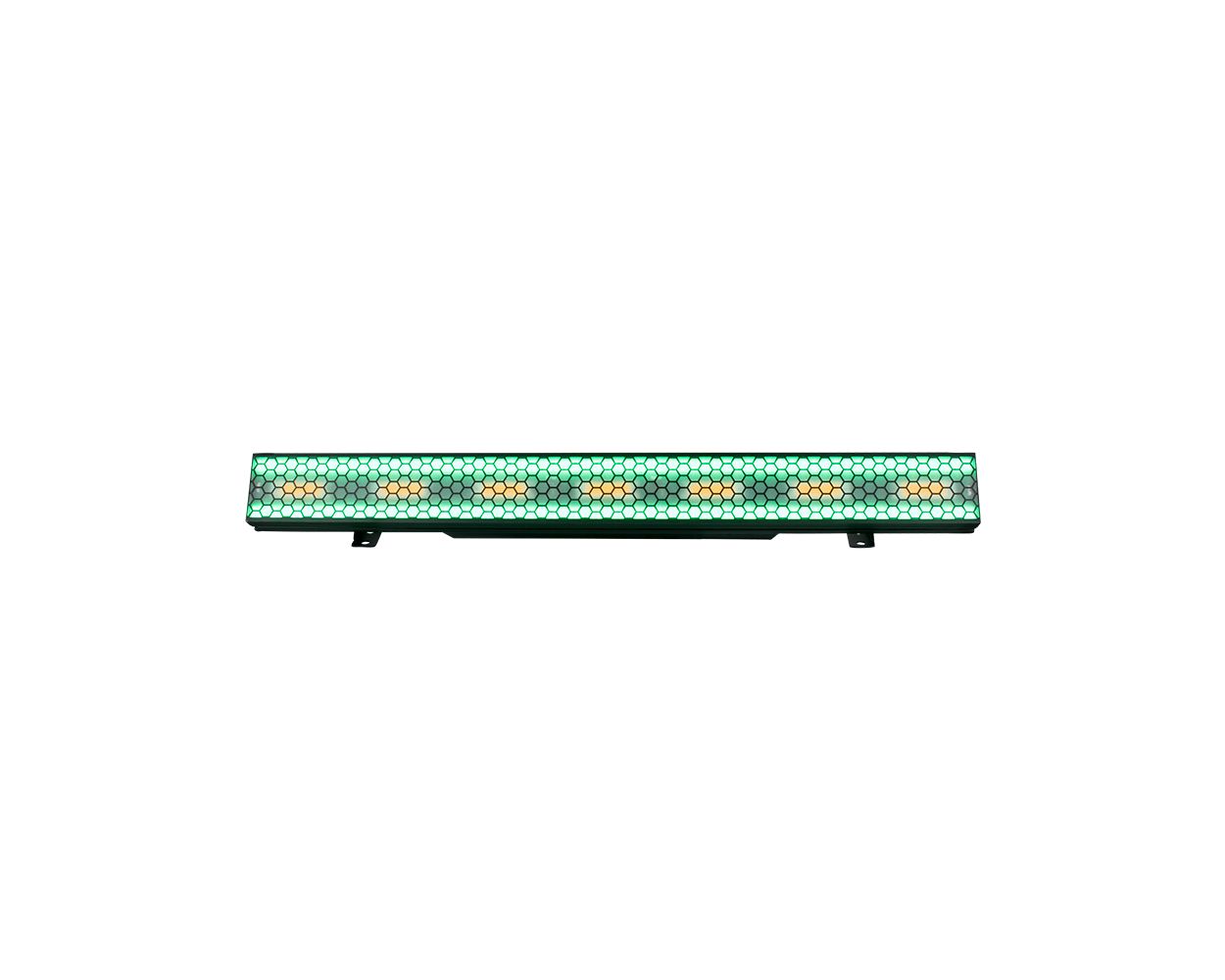

The Elecktron BAR FX is a 1-meter strobe or blinder type fixture. It is a great fixture for creating amazing eye candy.

From the Manufacturer:

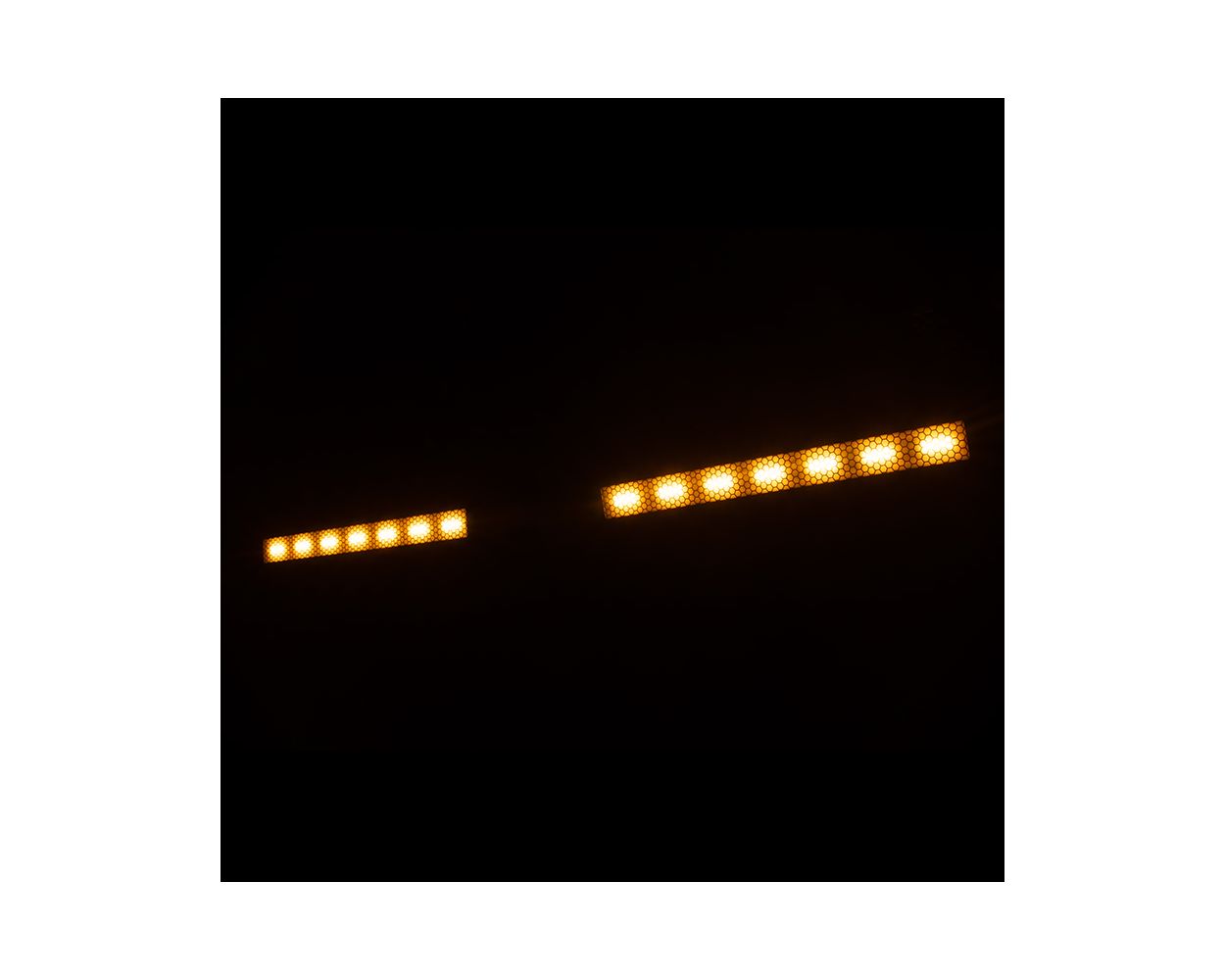

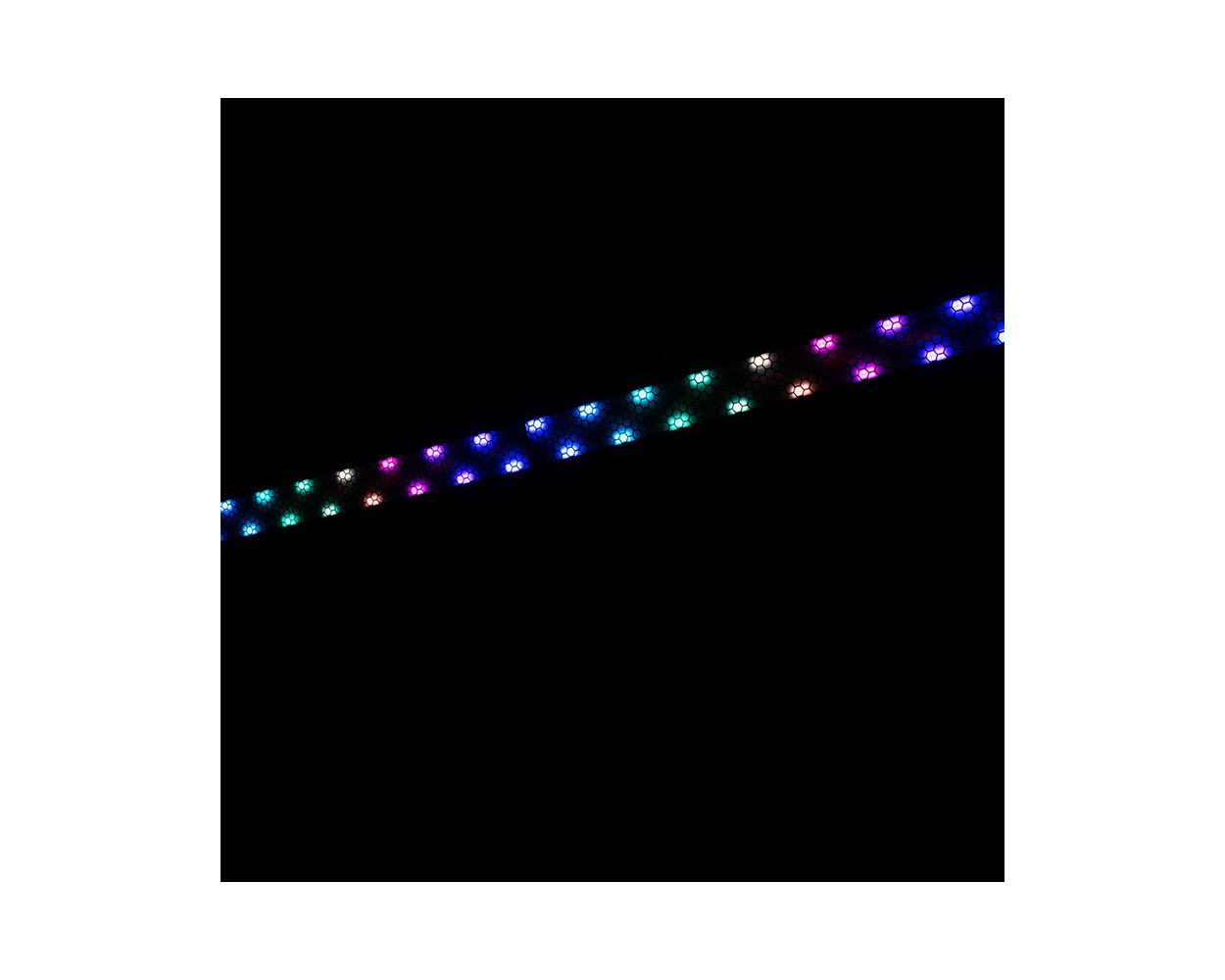

The Eliminator Lighting Elektron Bar FX is a 1-meter strobe and blinder that combines power and versatility. Featuring seven 40W amber LEDs (1800K) for brilliant blinder effects and 528 RGB SMD LEDs for vibrant color chases, it delivers stunning visual impact. With multiple DMX channel modes and various control options, this fixture empowers you to create dynamic lighting designs for any venue or mobile production.

Specifications:

• Light Source:

• 7 x 40W 1800K (Amber) LEDs + 528 x RGB (0.5W, 5050 SMD) LEDs

• 50,000 Hour Average LED Life

• Features:

• 7 x Amber LED Zones

• 66 x RGB LED Zones

• 60 Built-In Programs with Speed control

• 2 x mounting brackets

• Control:

• Control Protocols: DMX512, Primary/Secondary & Sound Active

• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)

• 0-100% Smooth Dimming

• Shutter: 0-20 "Strobe" Flashes per second

• Refresh Rate: 900Hz - 25kHz

• With Wired Digital Communication Network

• Display: Digital (with 4 buttons)

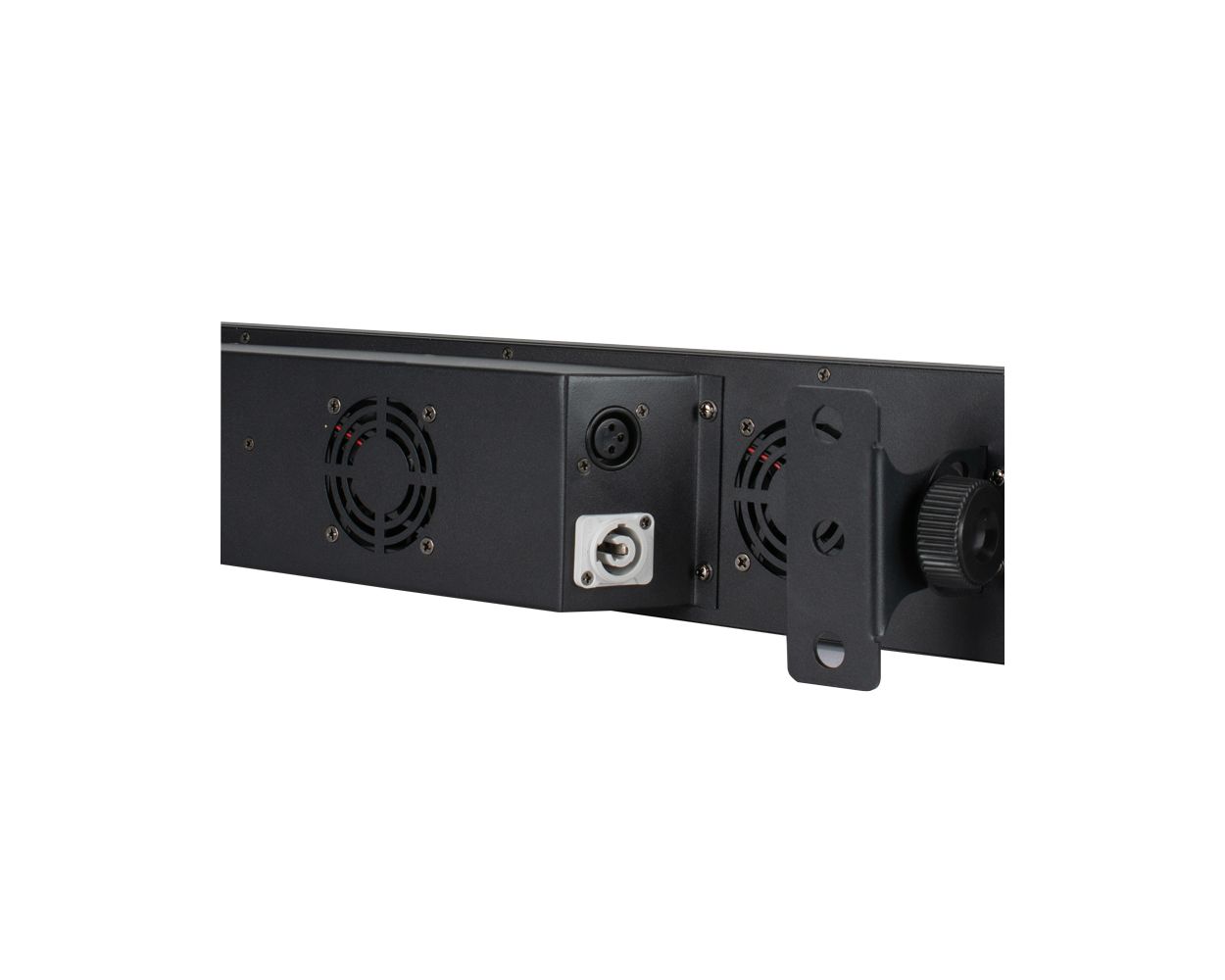

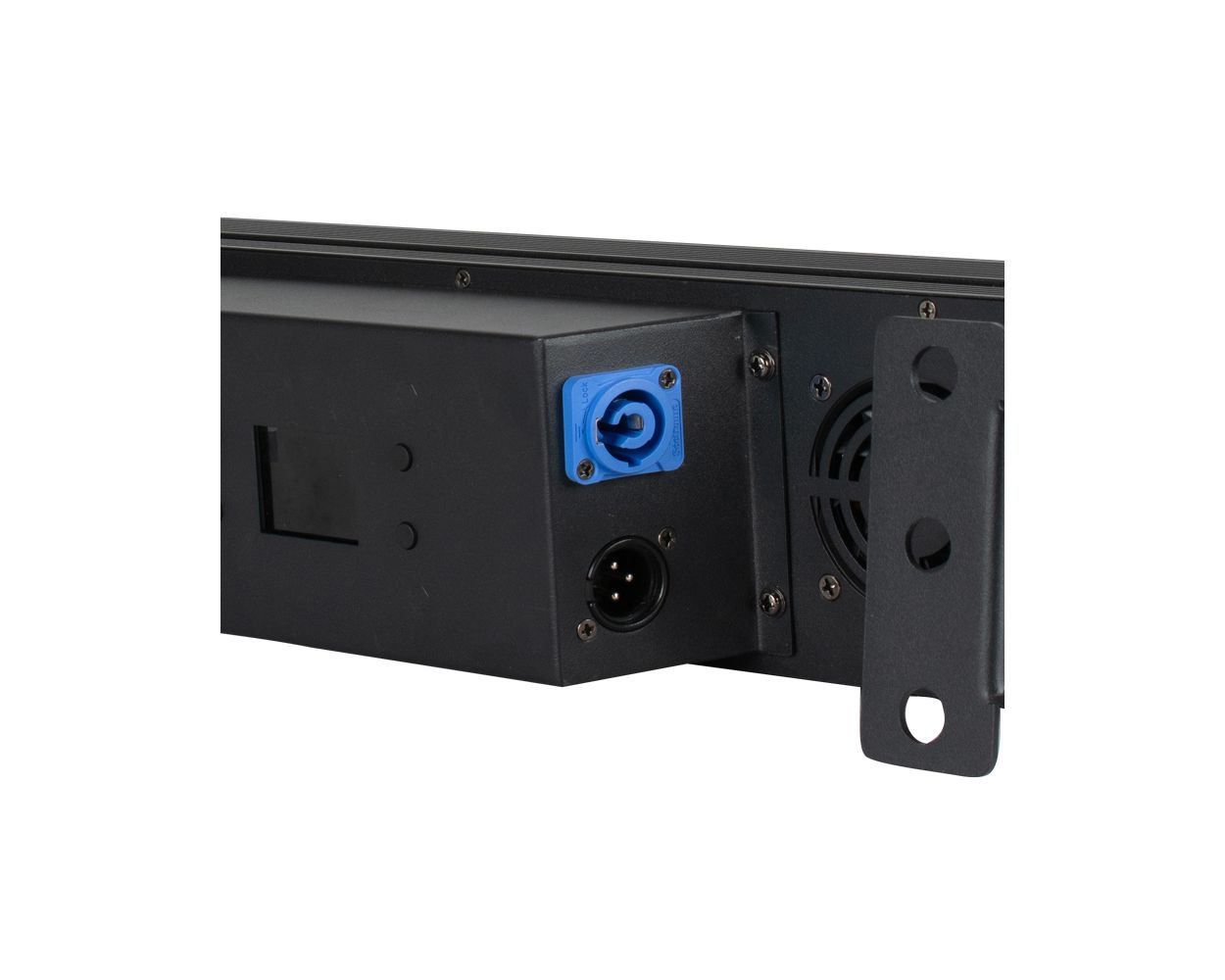

• Connections:

• Data: IP20-rated locking 3-pin DMX In/Out

• Power: IP20 Locking Power In/Out

• Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)

• Max Power Consumption: 300W @120V

• Max Power Link: 7pcs @120V, 14pcs @230V

• Fuse Protected: T5A/250V Glass Fuse (5*20MM)

• Dimensions / Weight:

• Length: 39.5" (1000mm)

• Width: 4” (100mm)

• Height: 4.75” (118mm)

• Weight: 10.75 lbs. (4.8 kg)

• What’s Included:

• 1 x IP20 Locking Power Cable

• Approvals and Ratings:

• CE (Pending)

• cETLus (Pending)

• IP20
