ELM Extreme Edition (8192U)

The ENTTEC ELM 2025 – Extreme Edition (8192U) is a top-tier license for ENTTEC LED Mapper, unlocking 8,192 universes of DMX512 output — enough to control up to 1,398,101 RGB or 1,048,576 RGBW LEDs — for the most demanding large-scale pixel mapping installations.

From the Manufacturer

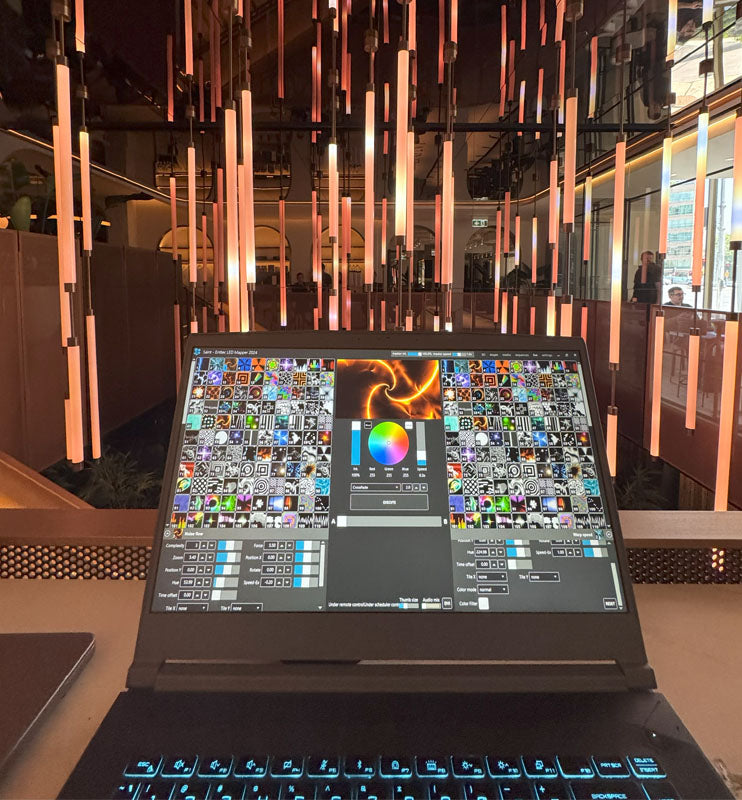

ENTTEC LED Mapper (ELM) is the award-winning, intuitive, and powerful 2D and 3D LED pixel mapping software solution trusted by lighting designers and installers worldwide. The Extreme Edition unlocks the full ceiling of ELM's output capacity: 8,192 universes of DMX512, making it the definitive choice for media façades, large architectural installations, and complex live event productions where universe count is no longer a constraint. ELM runs on Windows and supports live video, pre-rendered content, and over 100 built-in generative effects — including audio-reactive Eye Candy effects — all mappable across pixel strips, dots, and fixtures in any 2D or 3D configuration.

ELM 2025 introduces multilingual support (English, French, and Chinese), Open Sound to Light (OS2L) protocol integration with VirtualDJ, DXF CAD file import for automatic LED strip mapping, automatic Art-Net backup takeover, an OSC monitor for troubleshooting, and a significantly refreshed UI across the Live, Media, and Stage panels. Licenses are stackable — purchase additional licenses and combine them on the same computer to increase universe capacity. Each license allows three activations, and if you need to move to a new machine, activations can be managed through your ENTTEC account. ELM 2025 can be downloaded and trialed for free with limited universes and a periodic output pause.

Features

• 8,192-universe license — control up to 1,398,101 RGB LEDs or 1,048,576 RGBW LEDs from a single computer
• Full 2D and 3D LED pixel mapping with vector-based, scalable, and freely repositionable objects
• Over 100 built-in generative effects, including audio-reactive Eye Candy effects with 8 audio input channels and ASIO support
• Supports HD video playback, SPOUT live video input, and NewTek NDI v4.5 network video streams
• Art-Net, sACN, and KiNet output protocol support
• Remote control via DMX, OSC, and HTTP APIs; optional iOS/iPadOS control via TouchOSC
• ArtSync and sACN Sync for tear-free synchronized playback across multiple nodes and pixel controllers
• Automatic Art-Net backup takeover — designate primary and backup computers; backup assumes control if primary drops off the network
• DXF CAD file import for automatic LED strip mapping from architectural drawings
• Open Sound to Light (OS2L) protocol support for VirtualDJ integration
• Scheduler for automated, unattended playback
• Built-in 2D visualizer with image background support for installation fidelity
• LED snapshot export (PNG) for use as content guides by motion designers
• Stackable licenses — combine multiple licenses on the same computer for increased universe capacity
• 3 activations per license; activation managed via ENTTEC account portal
• Multilingual UI: English, French, and Chinese
• OSC monitor for real-time troubleshooting of incoming OSC messages
• Supports RGB, RGBW, RGBA, RGBAW/RGBWA, White, and 16-bit pixel protocols including ENTTEC SPXL-16
• Windows 10 / 11 compatible (Windows only; remote control available via iOS/iPadOS using third-party apps)
• Free trial available — download and evaluate with limited universes and periodic output pauses
• Recommended use: Large-scale architectural LED installations, media façades, entertainment venues, live event production, any installation requiring maximum universe capacity

Specifications

License

• Edition: Extreme
• Universe Count: 8,192 universes
• Max. DMX Channels: 4,194,304
• Max. RGB LEDs: 1,398,101
• Max. RGBW LEDs: 1,048,576
• Activations per License: 3
• License Type: Stackable (multiple licenses combinable on one computer)

Output Protocols

• eDMX Output: Art-Net, sACN, KiNet
• Sync: ArtSync, sACN Sync

Control & Integration

• Remote Control: DMX, OSC, HTTP API
• OS2L: VirtualDJ integration via Open Sound to Light protocol
• iOS/iPadOS: Remote control via TouchOSC (third-party)
• CAD Import: DXF file import for automatic strip mapping
• Video Input: SPOUT, NewTek NDI v4.5
• Audio: 8 input channels, per-channel frequency and volume control, ASIO support

System Requirements

• Operating System: Windows 7 or later (Windows 10 / 11 recommended)
• Recommended CPU: Quad core 3.5 GHz
• Recommended RAM: 8 GB
• Recommended GPU: NVIDIA GeForce 900 series or NVIDIA 10 series or better
• Recommended Storage: SSD
• Minimum CPU: Dual core 2 GHz
• Minimum RAM: 2 GB
• Minimum GPU: NVIDIA GeForce 600 series or Intel HD Graphics 5500 (released after 2013, OpenGL 3.3 support required)
