EMU Hardware Interface

Want to use ENTTEC's EMU software?  Every EMU DMX Hardware interface will now include 3 years of EMU Premium software at no additional cost.

From The Manufacturer:

A leading pioneer in entertainment lighting control technology for over 25 years, ENTTEC have worked alongside top musicians to bring you a state-of-the-art hardware interface, designed to bring your live performances to life, using EMU software — which comes free when you buy this hardware interface.

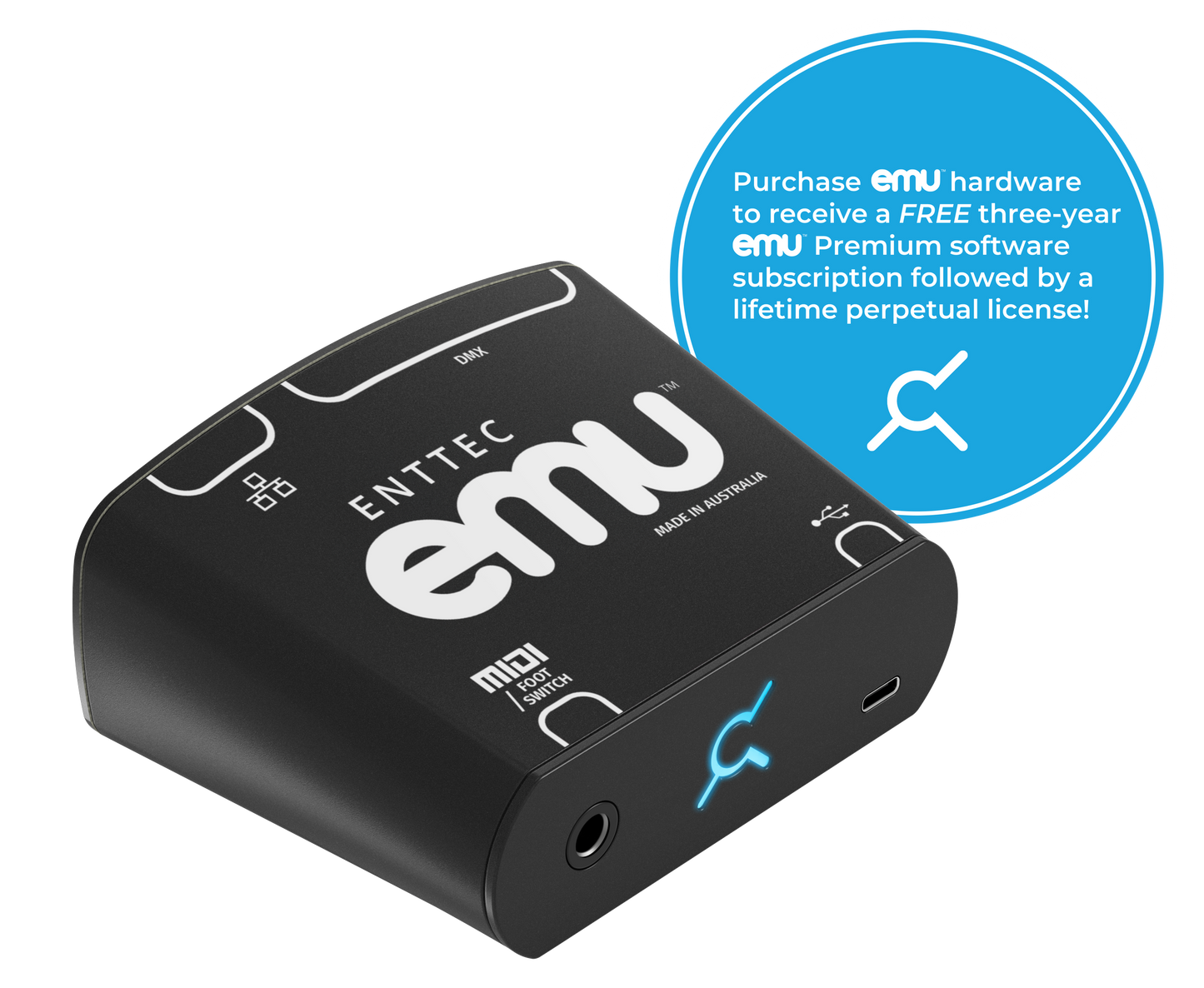

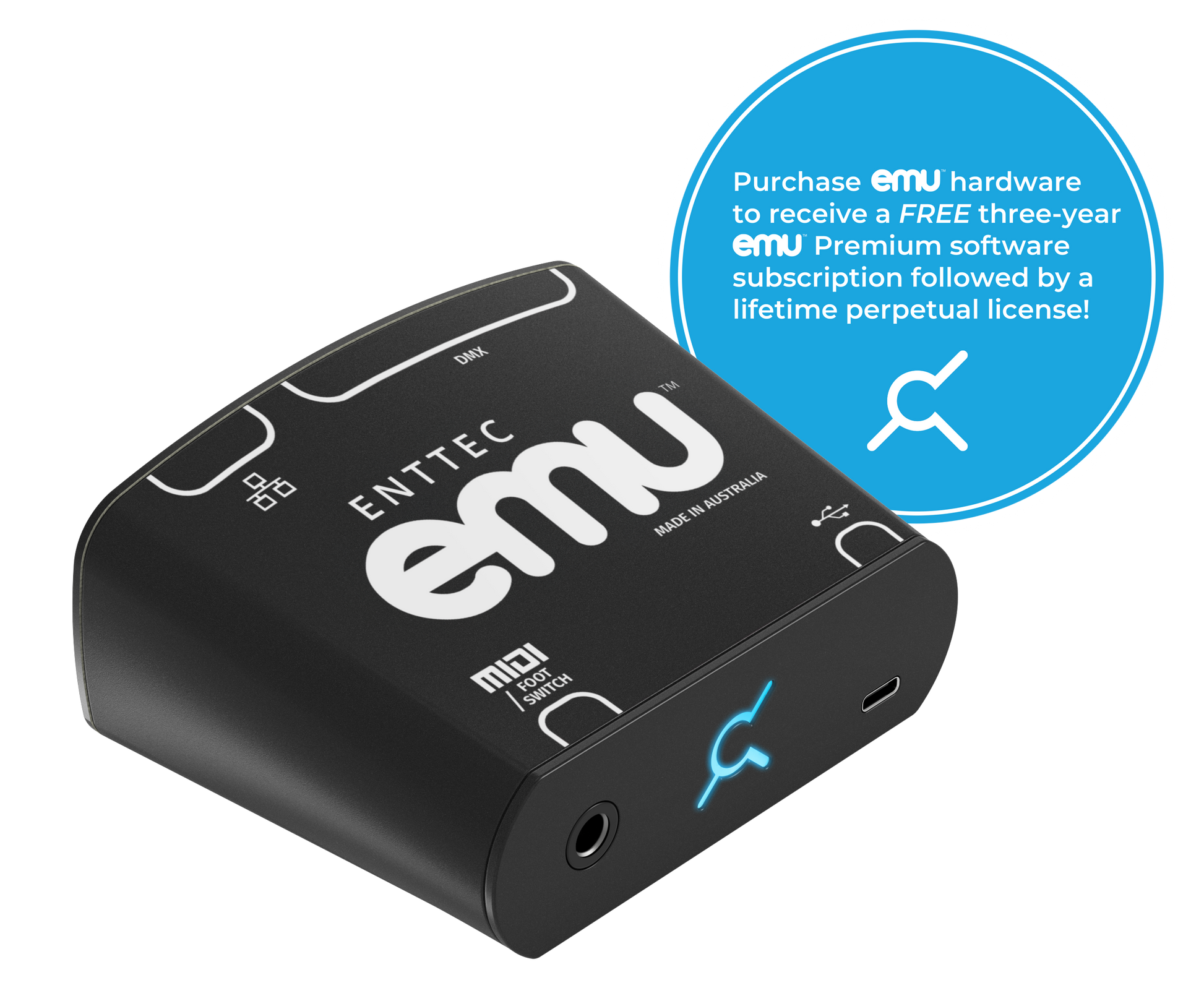

The EMU hardware interface provides musicians, DJs and audio professionals the perfect, robust and portable solution for seamless integration with our popular EMU audio-to-light software.

Offering flexible lighting outputs – one full universe (512 channels) of DMX output via XLR ports, or up to 8 universes (4096 channels) via an Ethernet port* – EMU hardware makes real-time control a breeze with a footswitch or MIDI, enabling direct triggers during performances.

NEW Features:

• NOW Includes 3 years of EMU Premium software
• Full 32 universe EMU Premium features unlocked immediately including MIDI Learn, VST3 integration, BPM detection, and audio reactive triggers
• No activation codes or redemption process required. Activation occurs automatically on first use

• After the 3 year Premium period ends, the software converts into a perpetual license and continues working with no interruption
• The previous 30% discounted EMU Premium renewal pricing structure is no longer applicable under this updated licensing model

Specifications

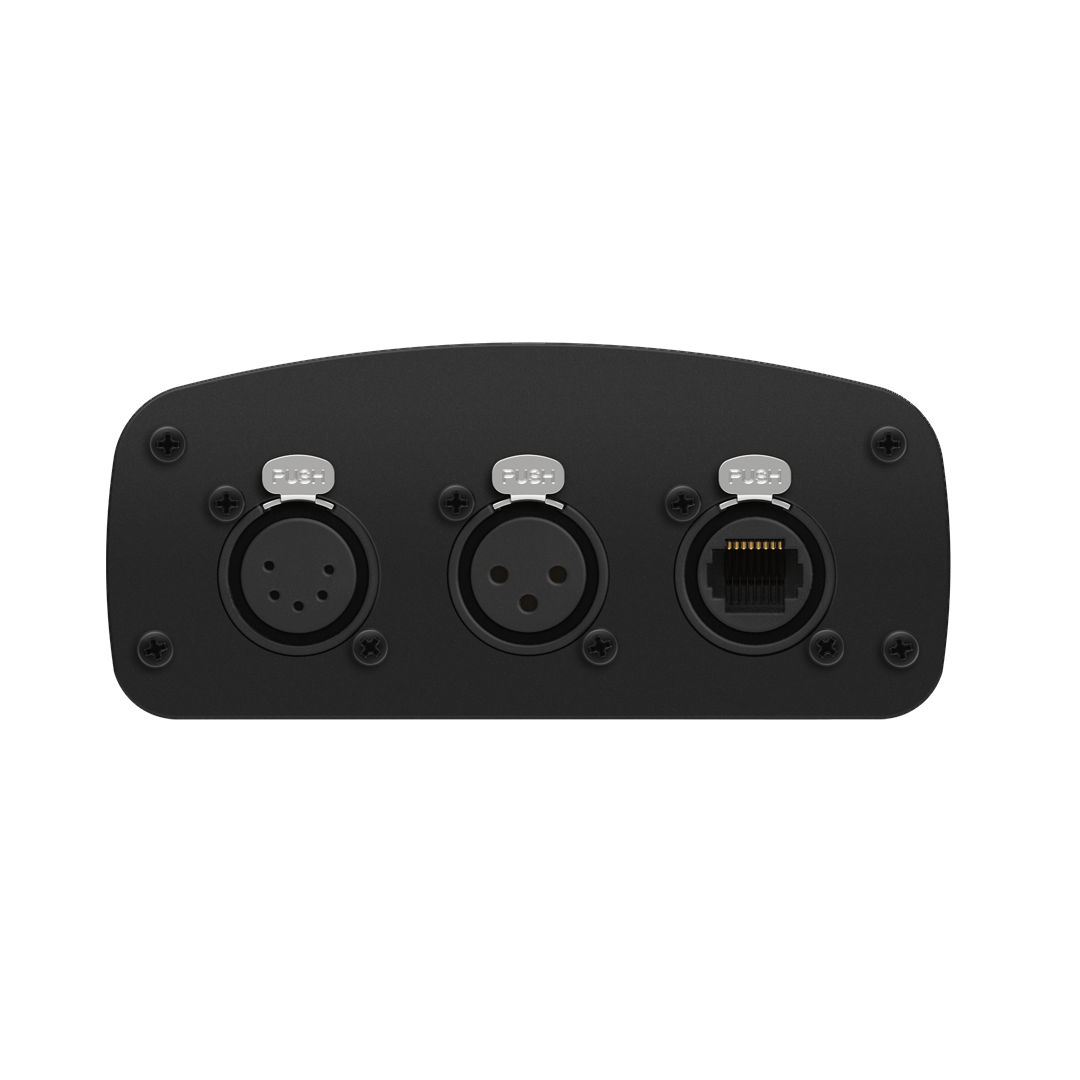

• Connectors

  • 1 x USB Type C (Power & Data)

  • 1 x EtherCon RJ45 (Ethernet)

  • 1 x 3-Pin XLR (DMX)

  • 1 x 5-Pin XLR (DMX)

  • 1 x ¼” TRS Jack (Footswitch/MIDI)

• IP rating

  • IP20

• LED indicators

  • Illuminated EMU logo

• Power input

  • 5V DC via USB Type-C

• Max. power draw

  • 1.38W

• Max. current

  • 0.27A

• Device configuration and data input

  • EMU software

• Network speed

  • 10/100Base-T

• Art-Net output

  • EMU software license

• DMX output

  • 1U (512 Channels) DMX

• Max. refresh rate

  • 44 frames per second (fps)

• Cooling method

  • Convection

• Environmental operating temperature

  • 0°C to 50°C / 32°F to 122°F

• Environmental operating humidity

  • 5 to 95% (non-condensing)

• Body material

  • ABS plastic

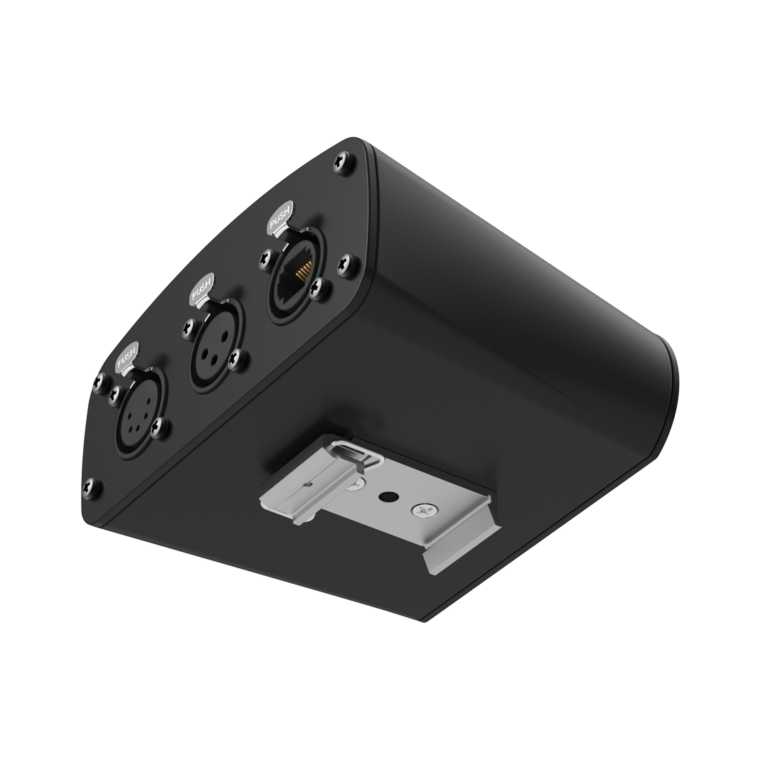

• Mounting

  • TS35 DIN rail mount

• Unit dimensions

  • 116mm x 87mm x 52mm

• Unit weight

  • 0.14kg / 0.31lbs

• Shipping dimensions

  • 235mm x 160mm x 68mm

• Shipping weight

  • 0.28kg / 0.62lbs

• Warranty

  • 3-year return to base manufacturer warranty

• Compliance

  • RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
