Encore DBX

The ADJ Encore DBX dynamic effect fixture is designed to create striking visual effects at stage productions, theaters, corporate events, and other live performances.

From the Manufacturer:

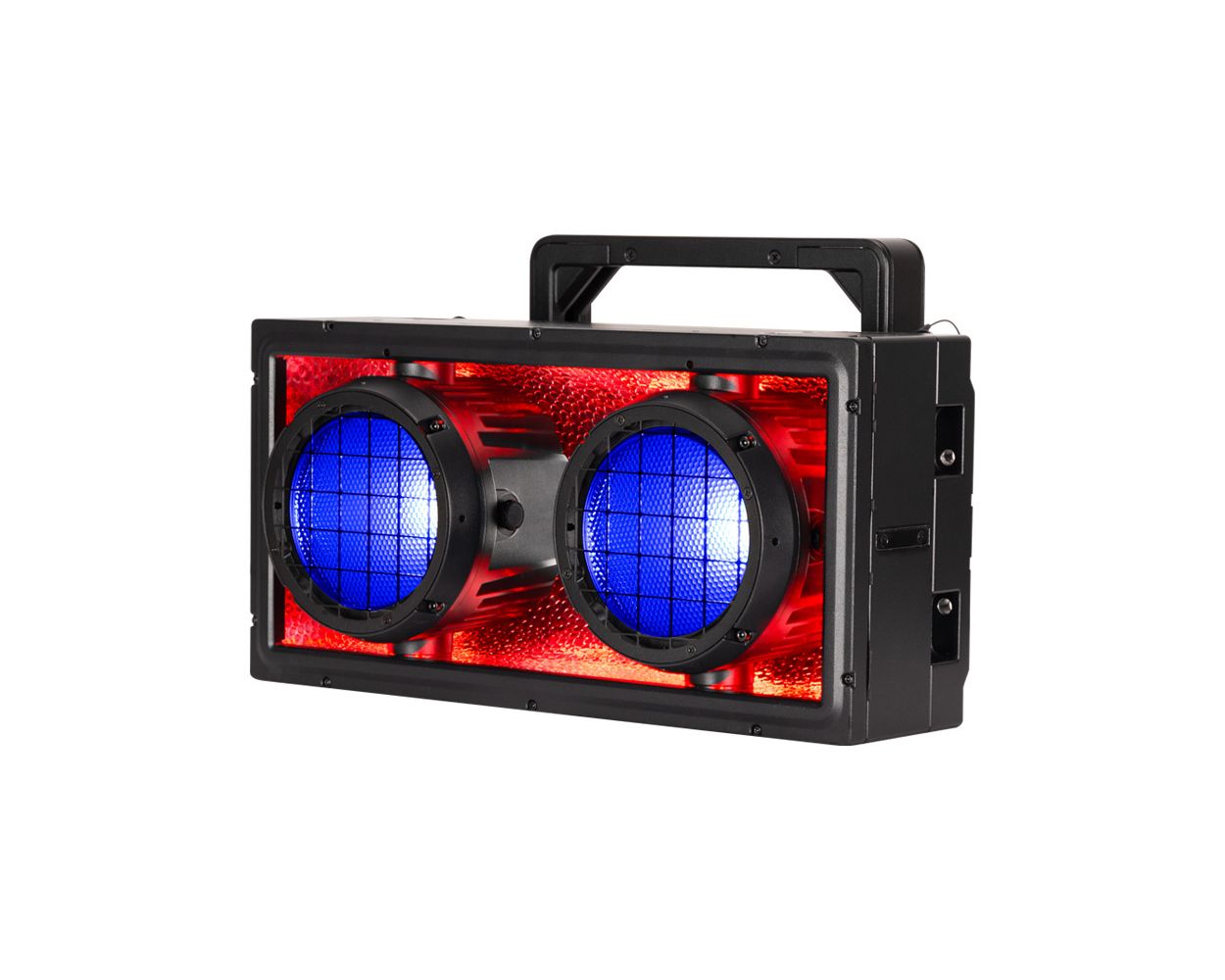

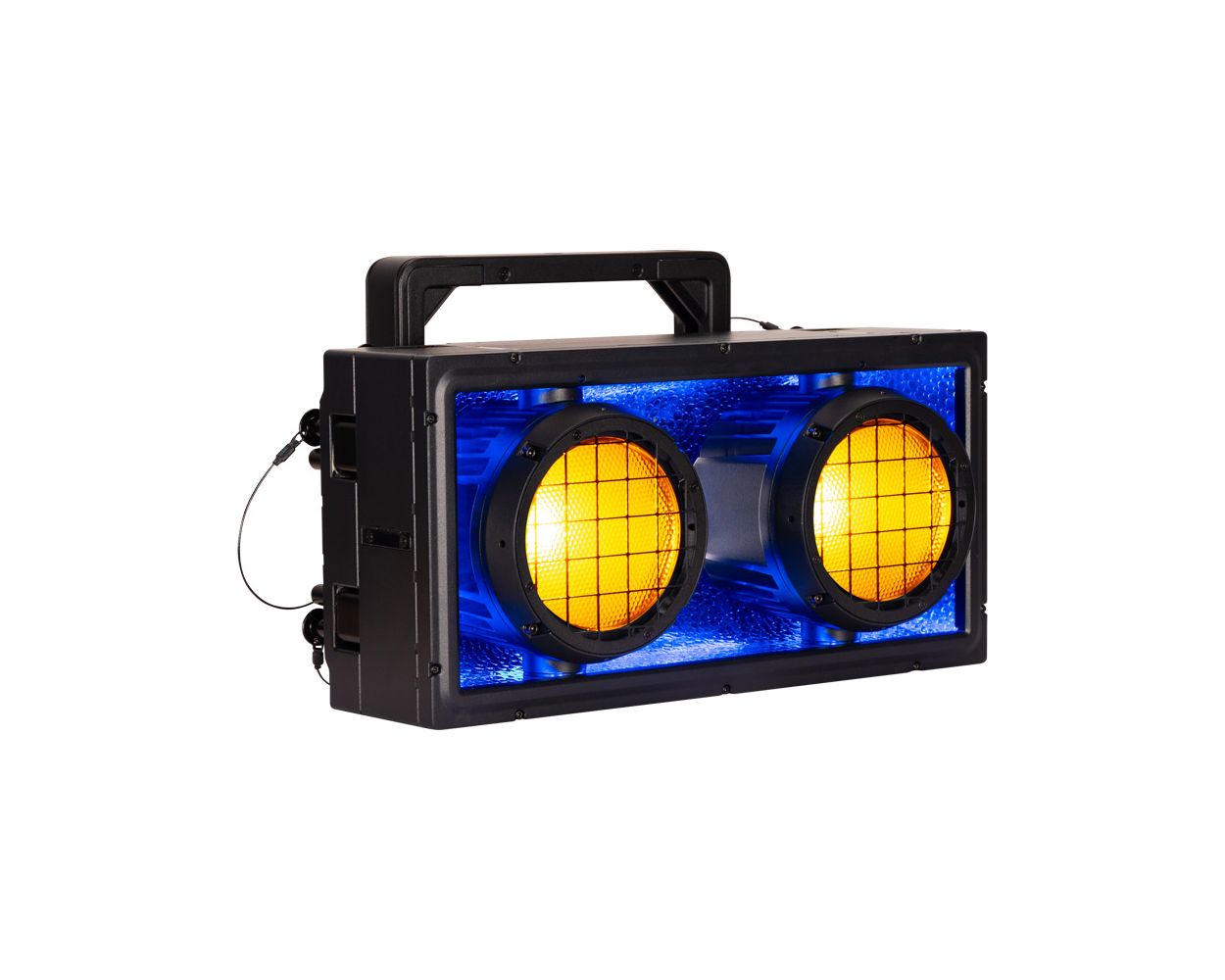

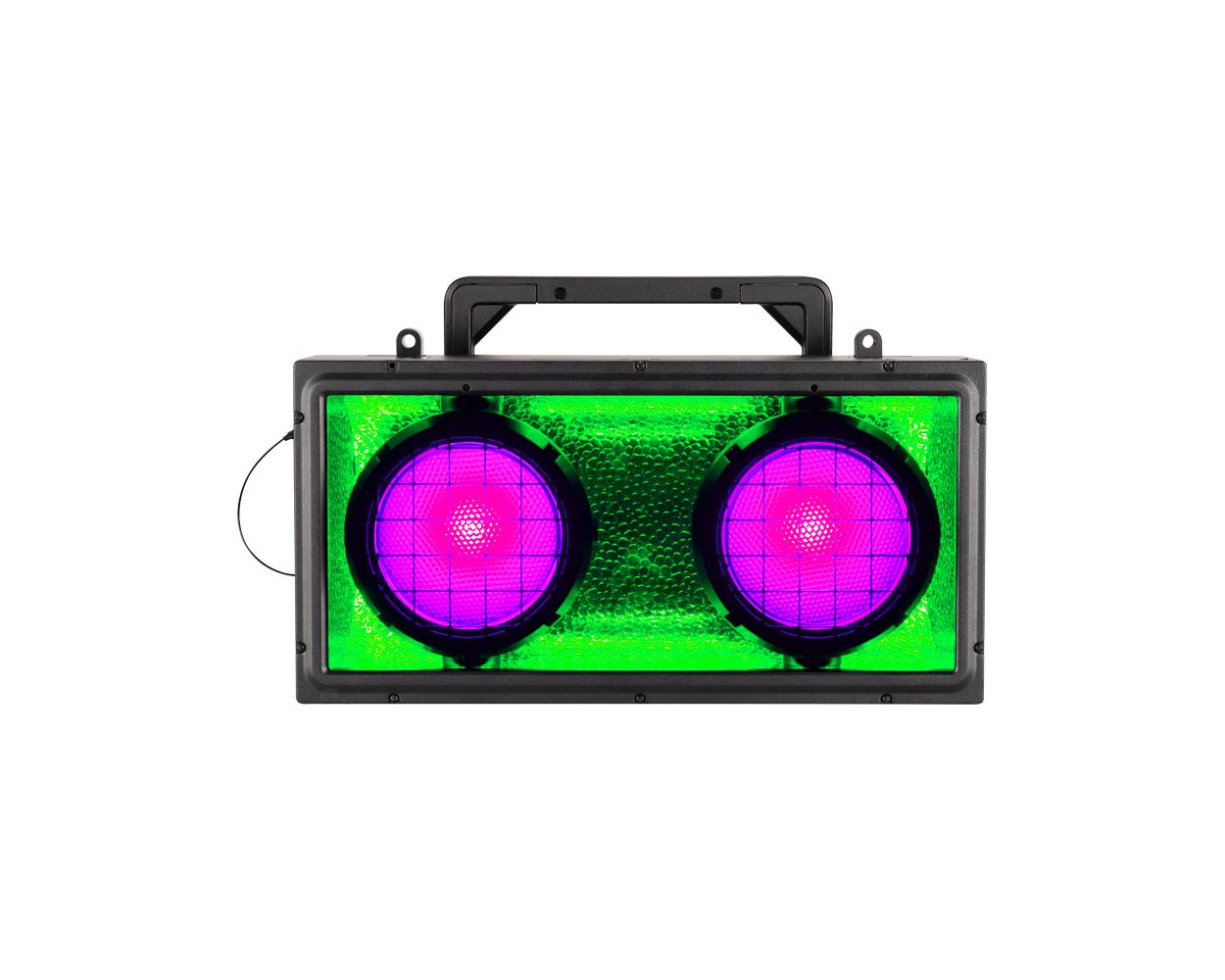

Encore DBX is a dynamic effect fixture featuring a 5-color LED dual-lens blinder/strobe and RGB background LEDs for stunning visual effects. Powered by two 150W RGBAW LEDs, it offers flexible control, variable white color temperatures, and rugged IP65-rated durability.

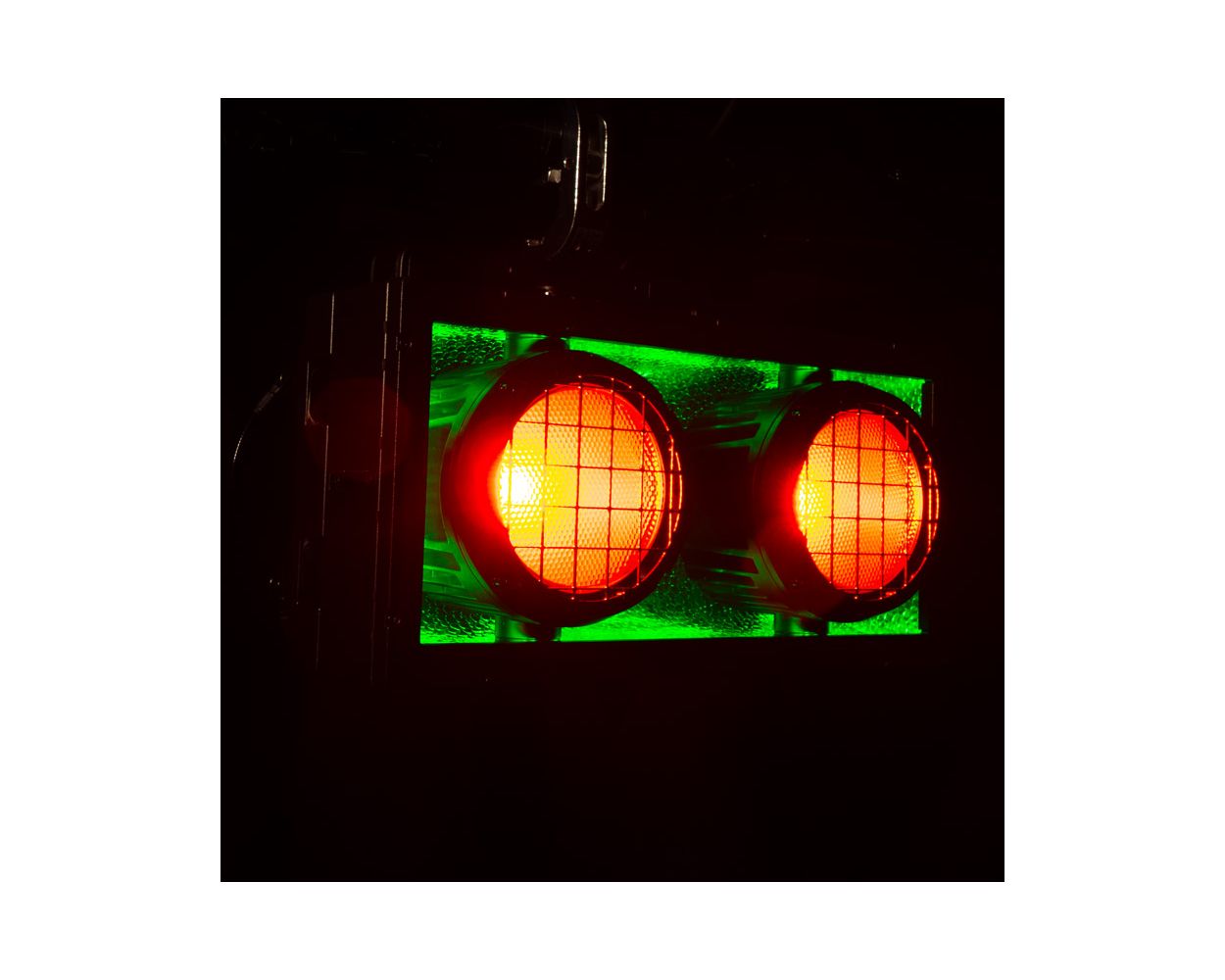

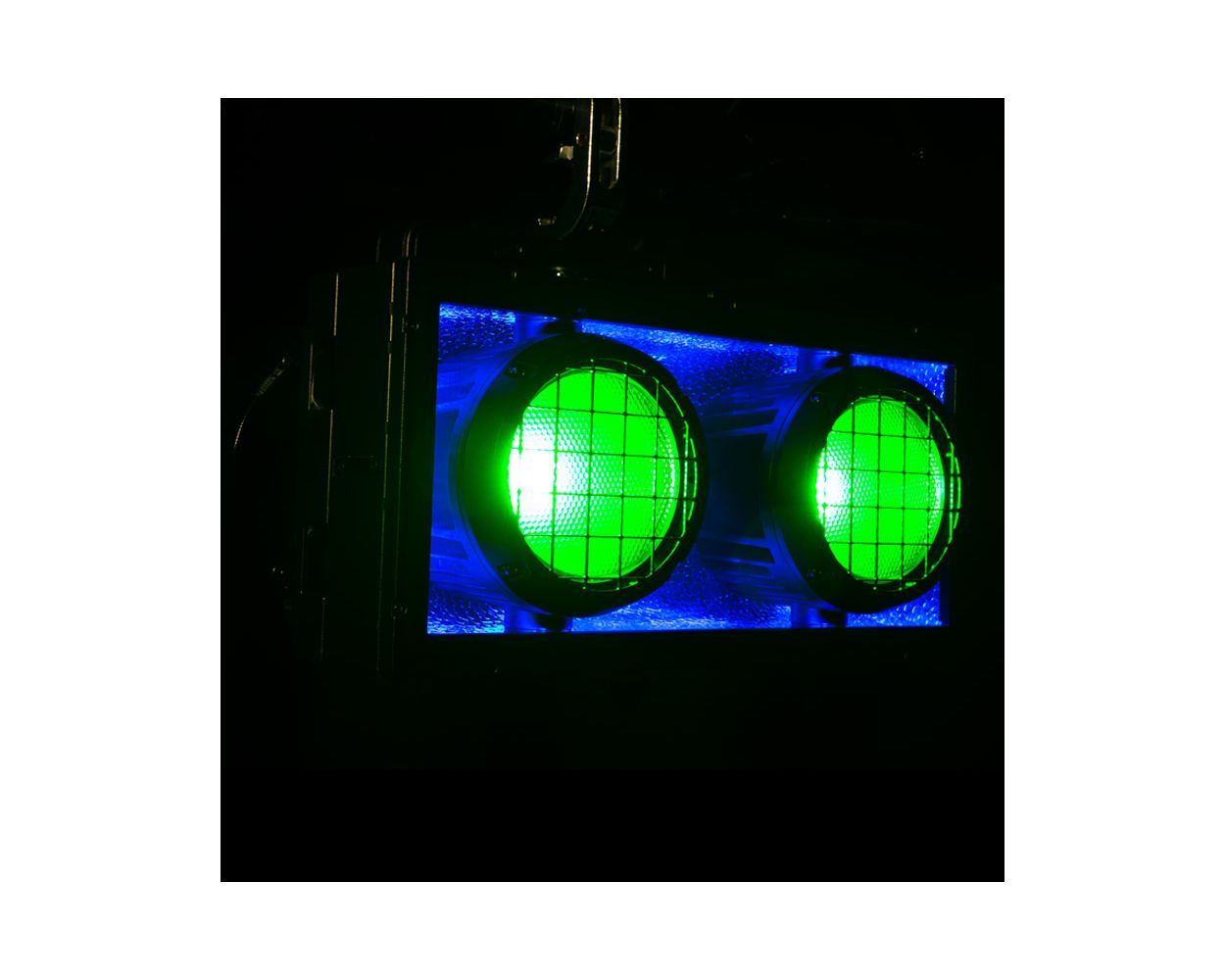

Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs, it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector, the Encore DBX offers a total lumen output of 11,400+, producing rich colors and sharp contrast.

With features like individually controllable cells, built-in programs, and variable white color temperature (2700K–6500K), the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes, electronic strobe, and refresh rates (900Hz–25K) for smooth, flicker-free operation. The fixture is built to last with a rugged IP65-rated housing, making it suitable for both indoor and outdoor use. Control options include DMX512, Bluetooth, and the Aria X2 wireless management system for over the air firmware/software updates, offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions, theatres and corporate events.

Features:

• 2 Cell, Five Color (RGBAW) LED Blinder
• Background RGB LEDs
• Individually Controllable Cells
• Built-In Cell Programs
• Built-In Background LED Programs

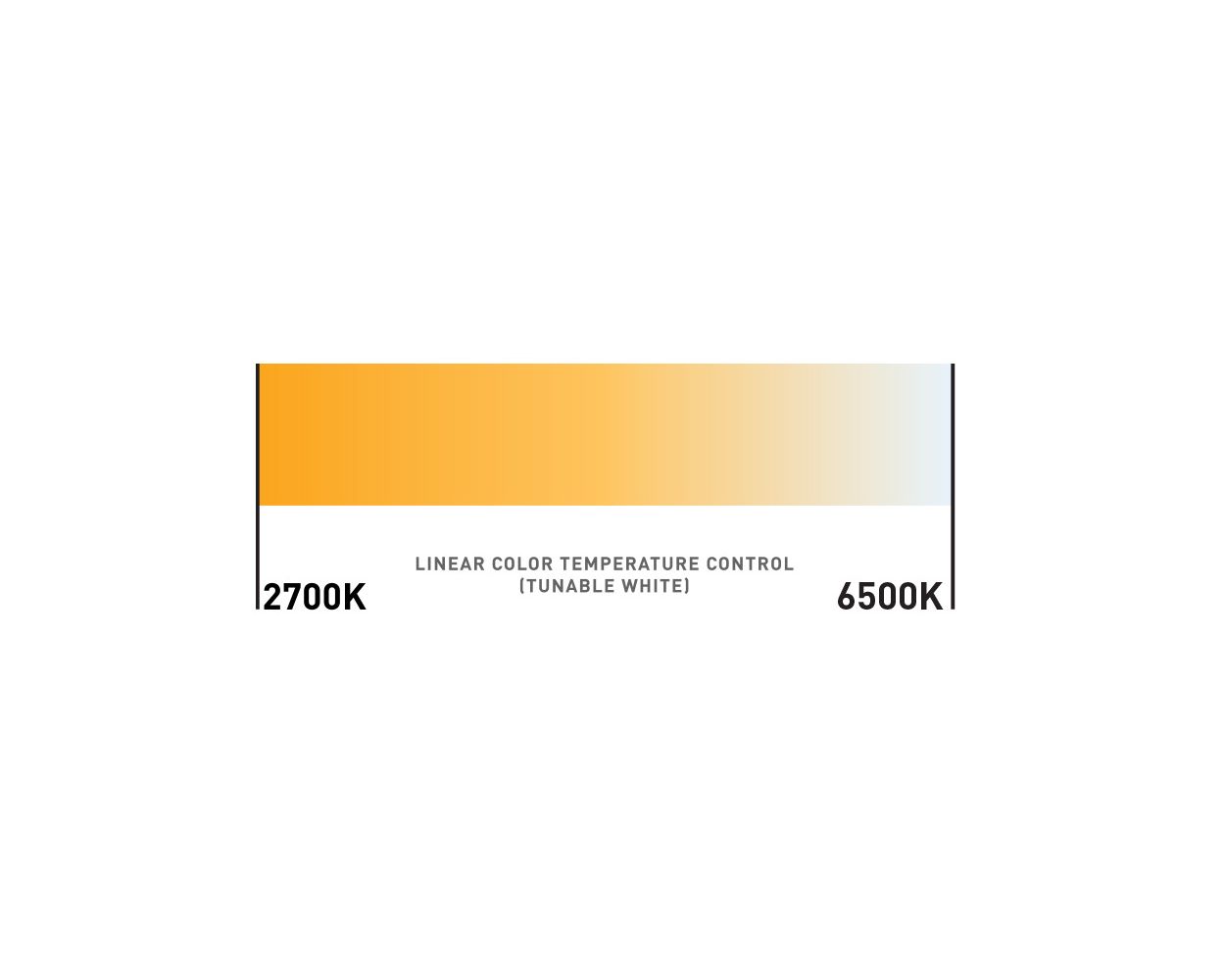

• Variable White Color Temperature Control (2,700K ~ 6,500K)
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (1 ~ 20Hz)
• Electronic Dimming
• Aria X2 Wireless Management System

Specifications:

• Source:
  • 2x 150W RGBAW LED's
  • RGB Background LED's
  • 50,000 Hour Average LED Life*
    *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
• Photometrics:
  • Total Lumen Output: 11,465
  • CRI: 89
• Optical:
  • Beam Angle: TBA
  • Field Angle: TBA
• Effects:
  • Variable Strobe Rate: 1- 20Hz
  • Variable 16-bit Dimming Modes and Curves
  • RGB Background Reflector Effect
• Color:
  • RGBAW Color Array
  • RGB Background
  • Variable CCT 2700K - 6500K + five presets
• Physical:
  • IP65 Housing
  • OLED Digital display

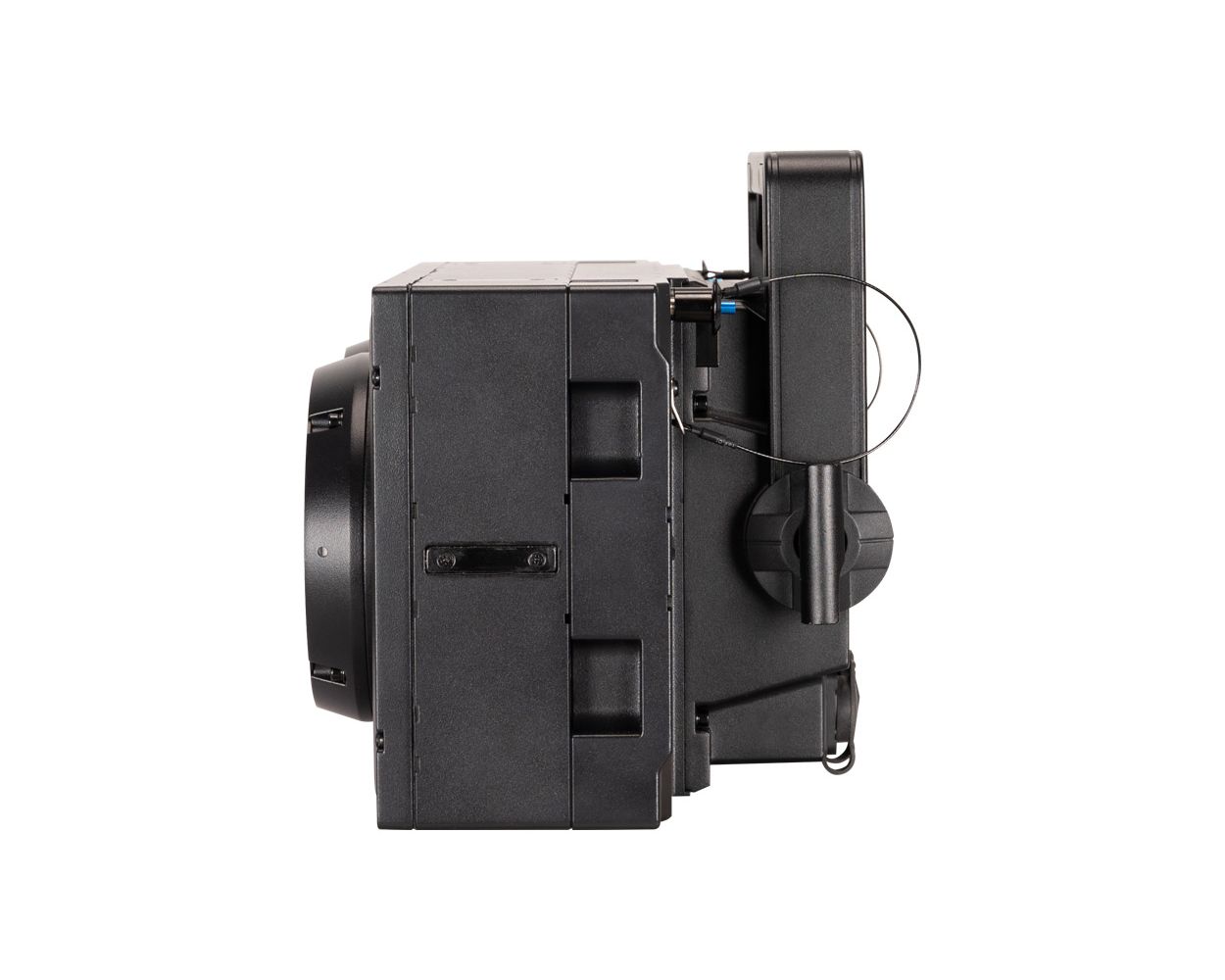

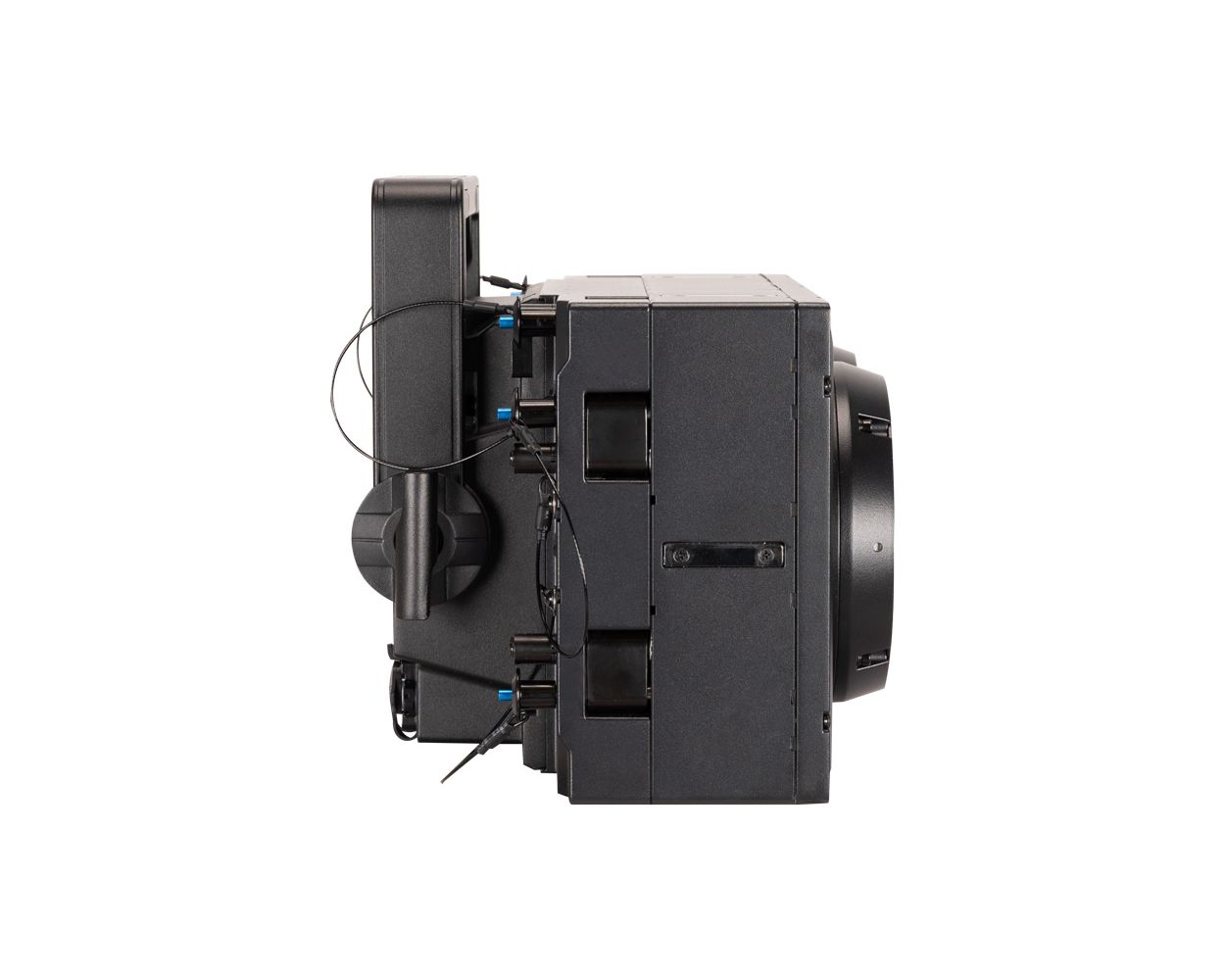

  • Adjustable Mounting Yoke with Omega Receivers
  • Second Set of Omega Receivers on Rear
• Control:
  • DMX512
  • Aria X2 Wireless Management / DMX System
  • Bluetooth
  • RDM (Remote Device Management)
  • (17) DMX Channel Modes (5CH / 8CH / 10CH / 11CH / 12CHA / 12CHB / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH modes)
  • On-board Manual Control Mode
  • Primary / Secondary Mode

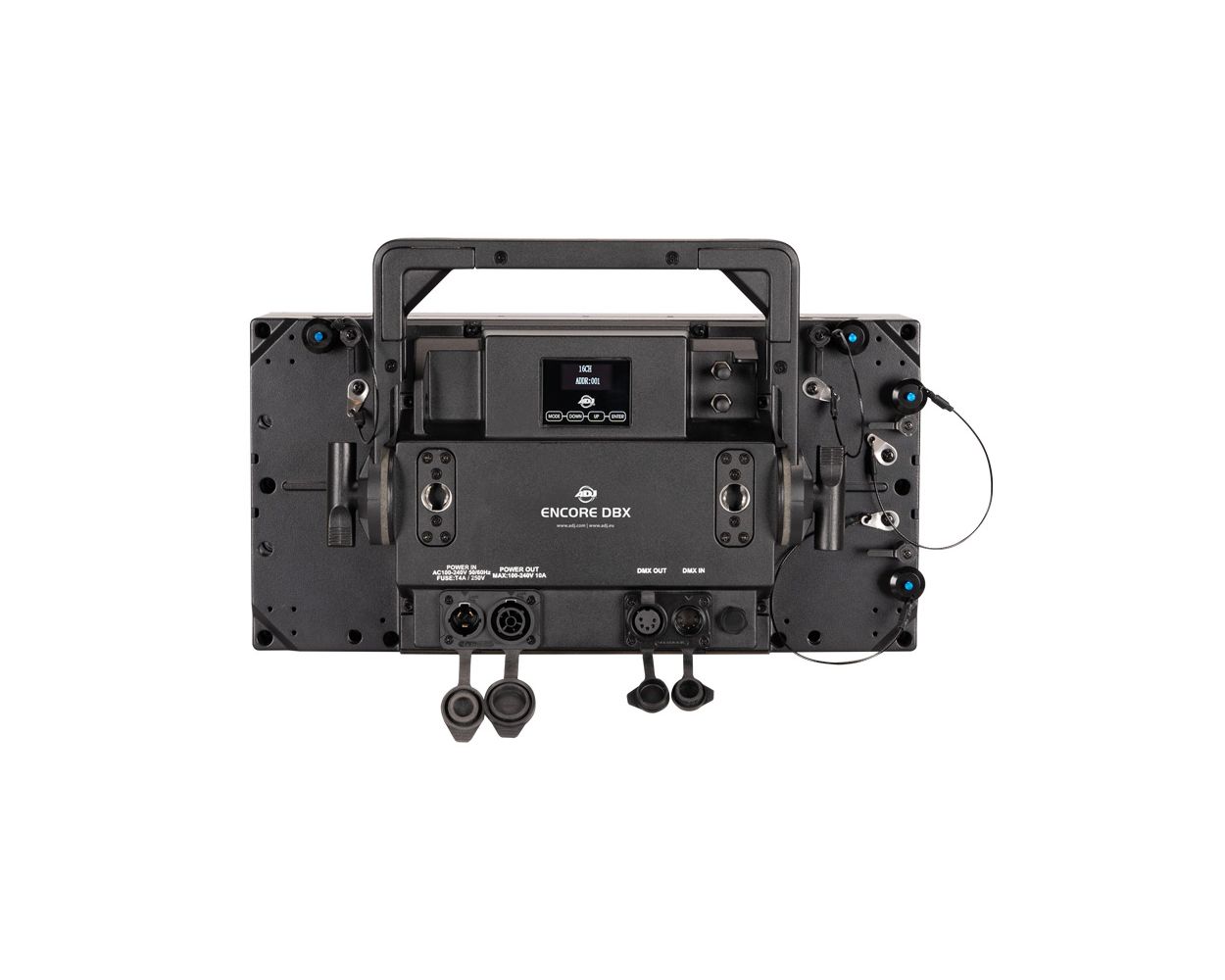

• Connections:
  • 5pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
  • IP65 Locking Power Sockets
• Dimensions & Weight:
  • Length: 16.54” (420mm) Width: 10.28” (261mm) Height: 9.11” (231.3mm)
  • Weight: 26.1 lbs. (11.85 kg)
• Power:
  • AC100-240V/50Hz-60Hz Input
  • 347W Power Consumption
  • Link 2 pieces @120VAC or 6 pieces @ 230VAC
• Thermal:
  • Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
  • Storage Temperature: -22°F to 113°F (-30°C to 45°C)
• Certifications & IP Rating:
  • CE
  • cETLus (Pending)
  • FCC
  • IP65
• Included Accessories:
  • Outdoor Locking Power Cable
  • Safety Cable
