Sku: ENC163

Encore Profile Mini Color

Regular price
$369.99
Regular price
Sale price
$369.99
Shipping calculated at checkout.
Vendor: ADJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

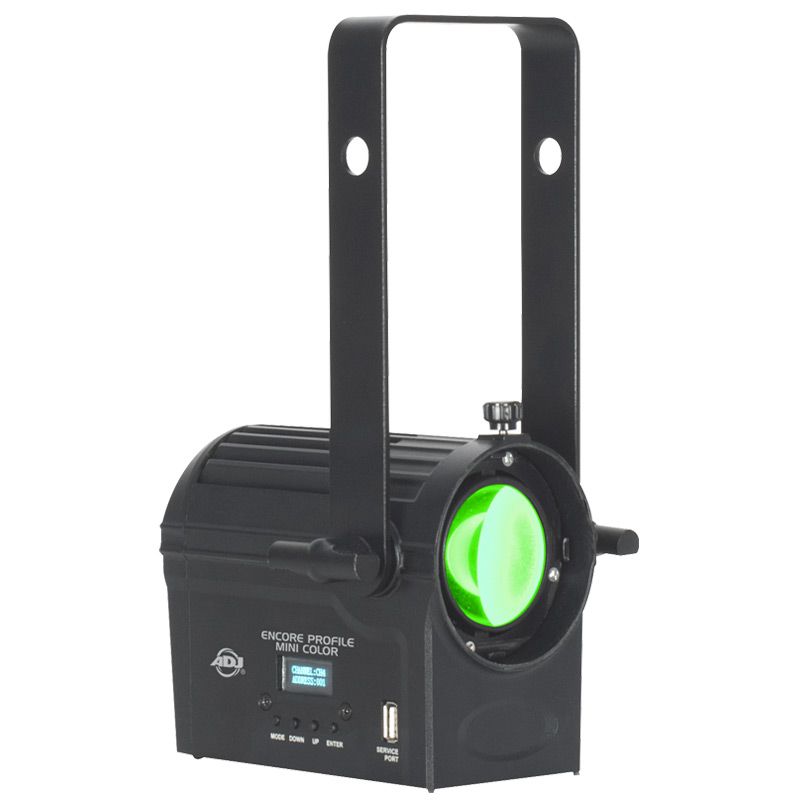

Designed for applications where size really matters, the ADJ Lighting Encore Profile Mini Color is a compact and versatile LED-powered color ellipsoidal luminaire. It utilizes a versatile LED engine comprised of 16 x 3.5W RGBWAL (red / green / blue / white / amber / lime) LEDs that offers a 50,000-hour average life expectancy. Through varying the intensity of the six LED colors, an extremely wide color palette can be achieved, ranging from vibrant and bold primaries to soft and subtle pastels. It can also generate white light with color temperatures varying from 2700K up to 7000K, with a dedicated Dynamic White DMX channel provided to allow simple selection.

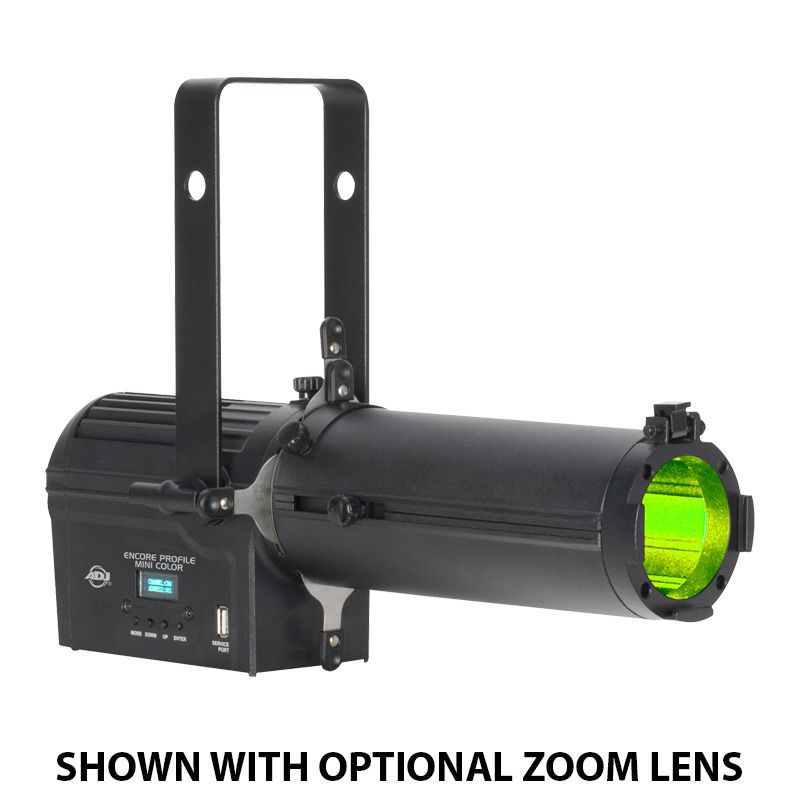

Two compatible lens options are available (sold separately), which can be used to adapt the fixture depending on the beam angle required (one of these lenses are required for the fixture to project properly). Both lenses offer manual zoom, with the EP Mini Lens 1530 option offering a variable beam angle of 15° - 30° and the EP Mini Lens 2550 version providing wider options of 25° - 50°. The fixture can also be used to project GOBO patterns and is supplied with a holder for standard “E” size GOBOs (GOBOs sold separately).
In the Box:

  • (1) Encore Profile Mini Color
  • (1) Locking Power Cable

 Features:

  • Light Source: 16x 3.5W RGBWAL LEDs
  • Color Temperature: 2,700K to 7,000K
  • CRI: >86
  • Beam Angle: 15° to 30° or 25° to 50° (sold separately)
  • Dimming: Electronic
  • Refresh Rate: Variable
  • Strobe: Variable
  • Color: RGBWAL
  • Gobo: "E" Size
  • Control Protocol: DMX & RDM
  • Operating Modes: DMX, Manual
  • IP Grade: IP20

Tech Specs

Optics:

Light Source Type: RGBWAL LED

Light Source Wattage: 16x 3.5w

Minimum Beam Angle: 15.0°

Maximum Beam Angle: 50.0°

Control

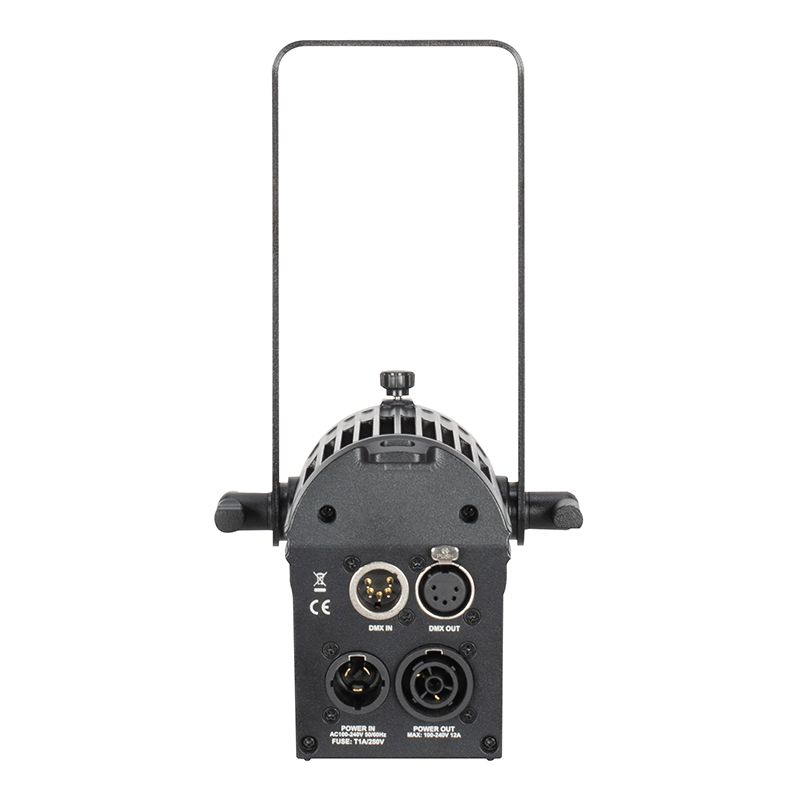

DMX Channel Modes: 6 / 8 / 12

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 6.03 in

Width: 5.67 in

Height: 10.75 in

Weight: 3.64 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 55w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 2 Years
