Sku:
70579
ENTTEC D-Split 5 Pin DMX Splitter
Regular price
$133.00
Regular price
$133.00
Sale price
$133.00
Unit price
per
Shipping calculated at checkout.
Vendor: ENTTEC
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

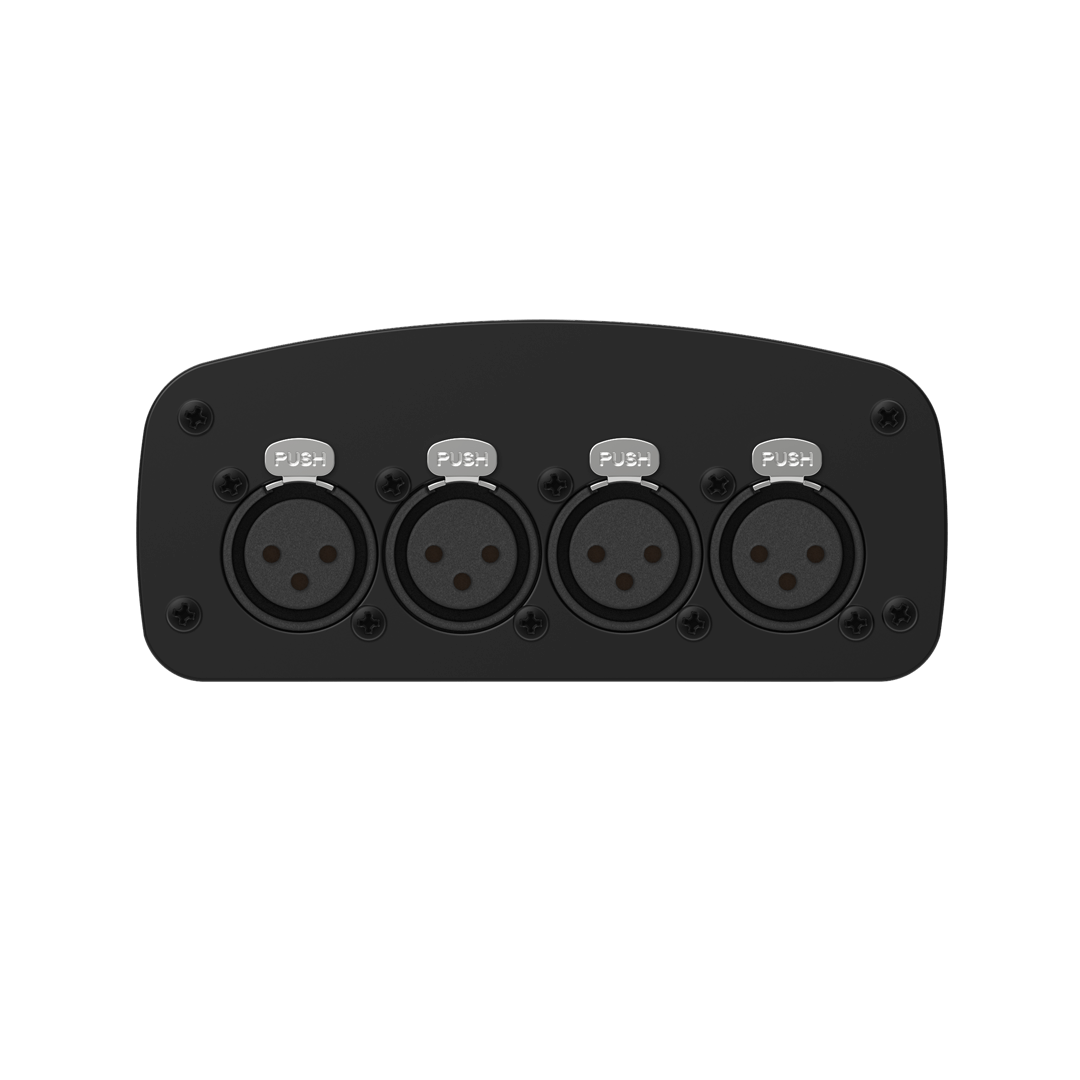

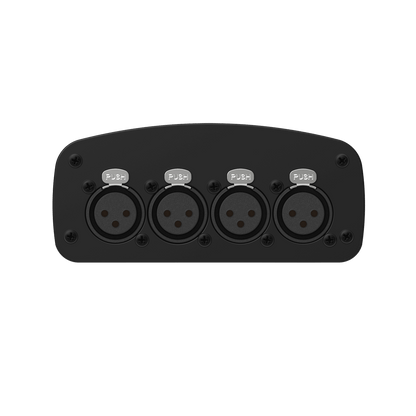

Affordable and simple to use, the ENTTEC D-Split is a 4 port DMX splitter that allows you to easily expand your lighting rig. Choose between the model with 2x 3 Pin outputs and 2x 5 Pin outputs, or all 5 Pin outputs.
From the Manufacturer:

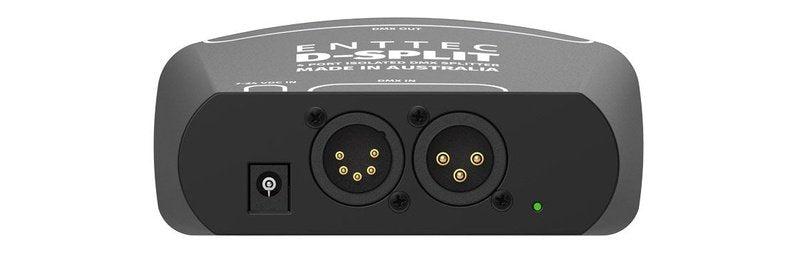

The D-Split is an optically-isolated DMX splitter and repeater for DMX512. With one input and four outputs, the D-Split gives you the ultimate flexibility to link up to 32 DMX fixtures.
In the Box:
- (1) D-Split 4x 5 Pin
- (1) DC Power Adapter
- (1) DIN Clip with mounting screws
Features:
- Input: 3-Pin or 5-Pin

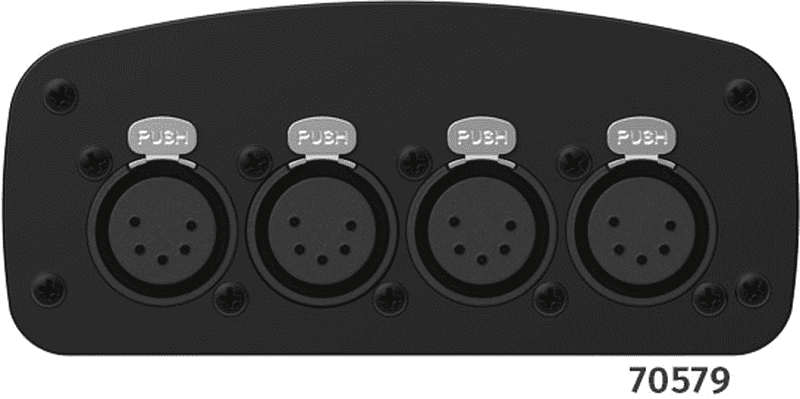

- Output: 4x 5 Pin
- 1000V optical isolation on each port
- Optional DIN-Rail mounting clip
Tech Specs
Control
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: Yes
Physical:
Length: 9.25 in
Width: 3.42 in
Height: 2.04 in
Weight: 0.35 lb
Electrical
Voltage Range: 7 - 24 VDC
Power Cable Connector - Fixture Side: DC Plug
Main Power Connector on Included Cable: DC Power Adapter
View full details
