EP1D

The Elation NETRON EP1D is a convenient single port node, powered over ethernet or USB-C.

From the Manufacturer:

The NETRON EP1D is a DIN-Rail Ethernet to DMX gateway with a single RDM compatible port.

It is configurable via the internal web remote or the NETRON CLU tool. EP1D is powered over Ethernet or via the convenient USB-C connection.

EP1D is a powerful and convenient single port node that is ideally suited to distribute sACN and Art-Net traffic across any type of facility or building network.

Features:

• RDM, ArtNet and sACN support
• Factory and user presets for plug and play setup
• POE or USB-C powered
• Remote configuration via internal webpage
• Unlocks ONYX NOVA 4-Universe License

Specifications:

• Mounting: DIN rail
• Connections:

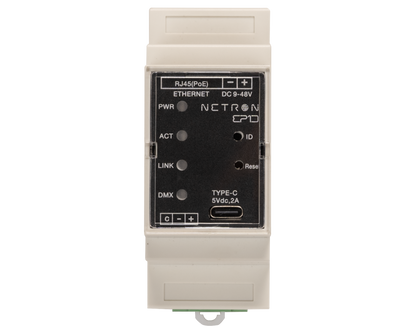

  • Front
    • USB-C Temporary Power (5V/2A)
    • (4x) LED Status Indicator

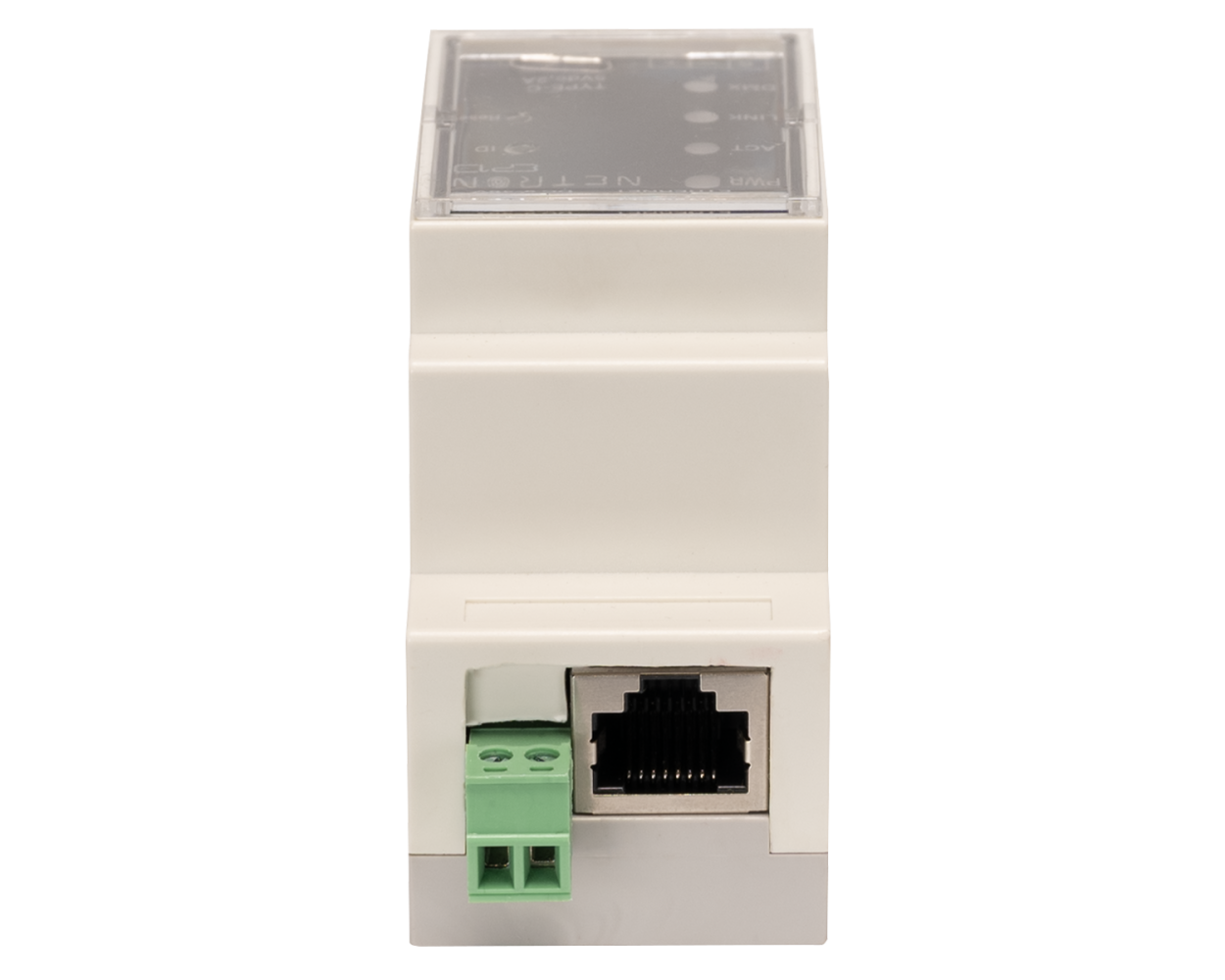

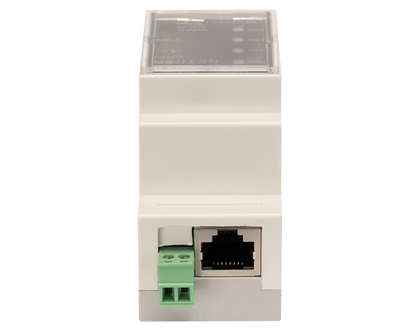

  • Top
    • RJ45 Gigabit Ethernet (POE)
    • DC 9-48V In (2pin Terminal Block)
  • Bottom
    • 3pin Phoenix Terminal Block DMX/RDM optically isolated port
    • Bidirectional DMX In / Out
• Physical
  • Length: 87mm (3.4 in.)
  • Width: 36mm (1.4 in.)
  • Height: 60mm (2.4 in.)
  • Weight: 0.2 kg (0.44 lbs)
• Electrical
  • POE 802.3af
  • DC 9-48V
  • USB-C (5V/2A)
  • Power Consumption 1.6W
• Approvals / Ratings: CE/ cETLusÂ
