Sku:
EPIXDRIVE2000IP

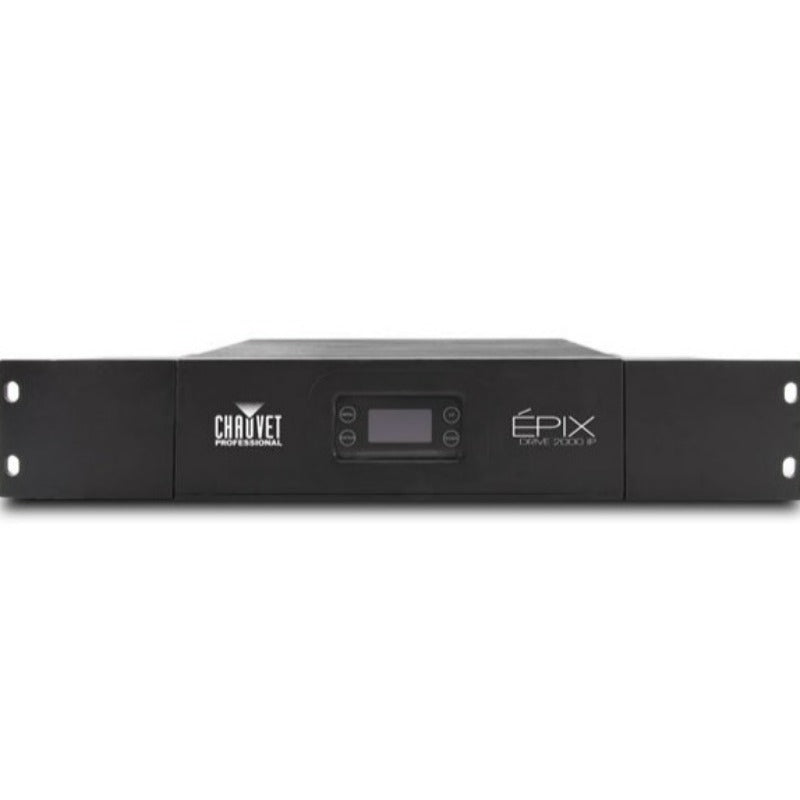

EPIX Drive 2000 IP
- Regular price
- $1,170.00
- Regular price
-
- Sale price
- $1,170.00
- Unit price
- per
Shipping calculated at checkout.
Vendor: Chauvet Professional
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
ÉPIX Drive 2000 IP is IP65 outdoor-rated and hosts the processing and power supply for the ÉPIX IP and Tour system. With a maximum capacity of 2000 LEDs, ÉPIX Drive 2000 IP supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the ÉPIX fixtures. Using the new 7 and 8 channel operating modes you can quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks.
In the Box:
- (1) ÉPIX Drive 2000 IP
- (1) Seetronic Powerkon IP65 power cord
- (2) Rack ears
- (1) Bag of rack ear mounting screws
- (4) Rubber feet
Construction:
- Dimensions (with rack ears): 19.01 x 3.30 x 10.35 in ( 483 x 84 x 263 mm)
- Dimensions (without rack ears): 10.55 x 3.30 x 10.35 in (268 x 84 x 263 mm)
- Weight: 12 lb (5.4 kg)
- Rack Space: 2U
- IP65
Control:
- Control Protocol: Art-Net, Kling-Net, sACN
- Control Channels: 10 Art-Net/sACN Universes per port (20 total per device)
- Physical Linking: 110 inline ÉPIX Strip IP Tour, 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour

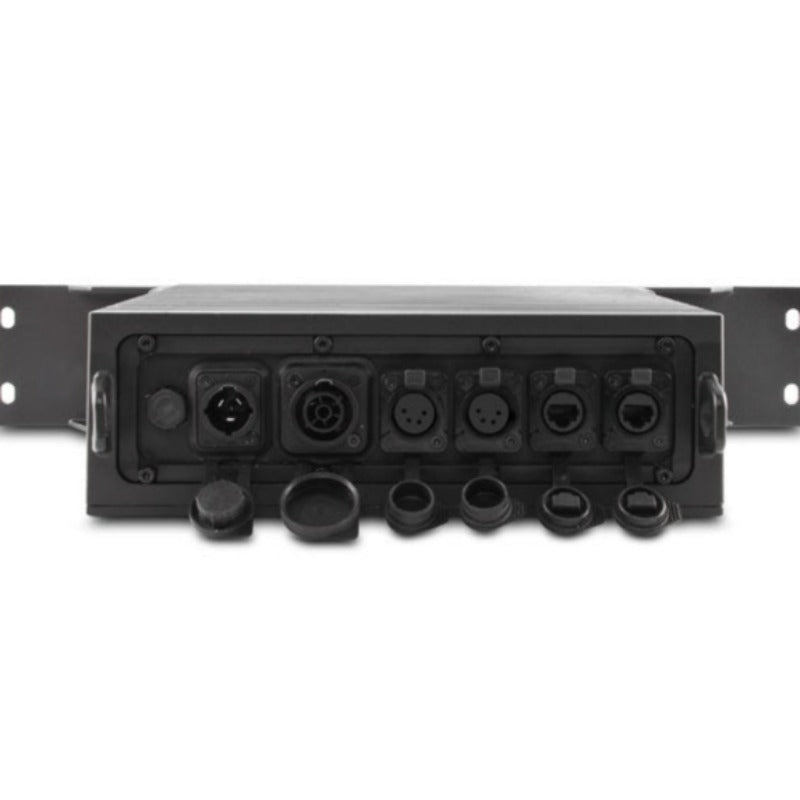

- Data Connectors: Seetronic Etherkon IP65
Power:
- Input Voltage: 100-240V, 50/60Hz (Auto Ranging)
- Power and Current: 530 W, 4.68 A @ 120 V, 60 Hz
- Power Linking: 3 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
- Output Voltage: 48 VDC
- Maximum Load: 10 ÉPIX Strip IP or 18 ÉPIX Strip Tour or 6 ÉPIX Bar Tour (per output)
Tech Specs
Physical:
Length: 10.55 in
Width: 10.35 in
Height: 3.3 in
Weight: 12 oz
Electrical
Voltage Range: 100-240
Maximum Wattage: 558w
Warranty
Warranty: 2 years
