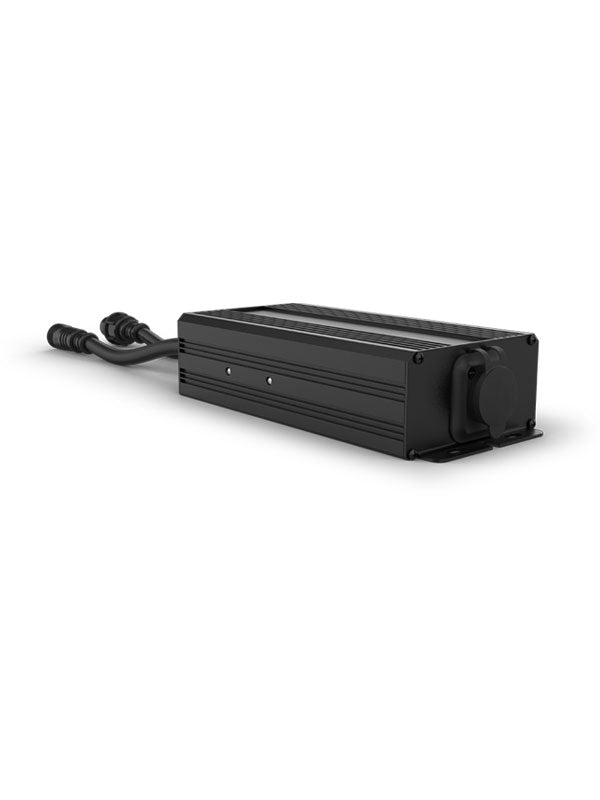

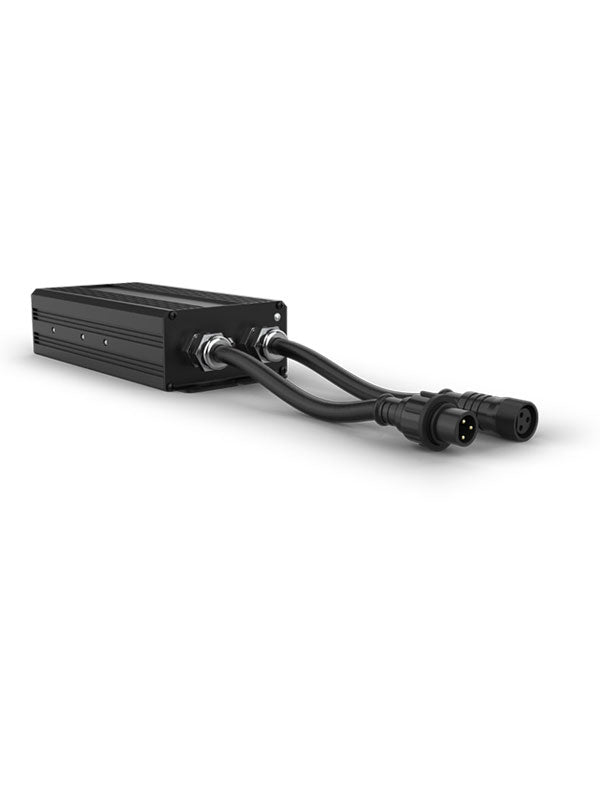

EPIX Flex Boost

From the Manufacturer

ÉPIX Flex Boost is a 24V in-line voltage booster that doubles the capacity of each output on the ÉPIX Flex Drive and the quantity of ÉPIX Flex 20 it controls. There is no need to solder into system with this plug-and-play operation.

Features

• IP65 outdoor rated in-line voltage booster for ÉPIX Flex 20
• Works when connected to the outputs of the ÉPIX Flex Driver

Specifications

Construction / Physical

• Dimensions: 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm)
• Weight: 4.4 lb (2 kg)
• Exterior Color: Black
• Housing Material: Aluminum

Connections

• Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Device inputs: (1) 3-pin male IP Flex
• Device Outputs: (1) 3-pin female IP Flex
• Physical Linking: 2 inline ÉPIX Flex 20
• Cable Length (signal): 1.16 ft (0.355 m)
• Cable Length (power): 5 ft (1.5 m)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 200 W, 1.6 A @ 120 V, 60 Hz
• Power and Current: 200 W, 0.87 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET
• IP Rating: IP65, outdoor/wet, with pressure equalizing M14 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• MET Listing Number: E114016-1144
• US Safety: UL 8750
• Canadian Safety: CSA C22.2 No. 250.13-12

What's Included

• ÉPIX Flex Boost
• Seetronic Powerkon power cord

Required Accessories

• Accessories (required): ÉPIX Flex Drive
• Compatible Mounting Options: M12 Bolt/Clamp
