Sku:
EPIXSTRIPIP
EPIX Strip IP
Regular price
$580.50
Regular price
Sale price
$580.50
Unit price
per
Shipping calculated at checkout.
Vendor: Chauvet Professional
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

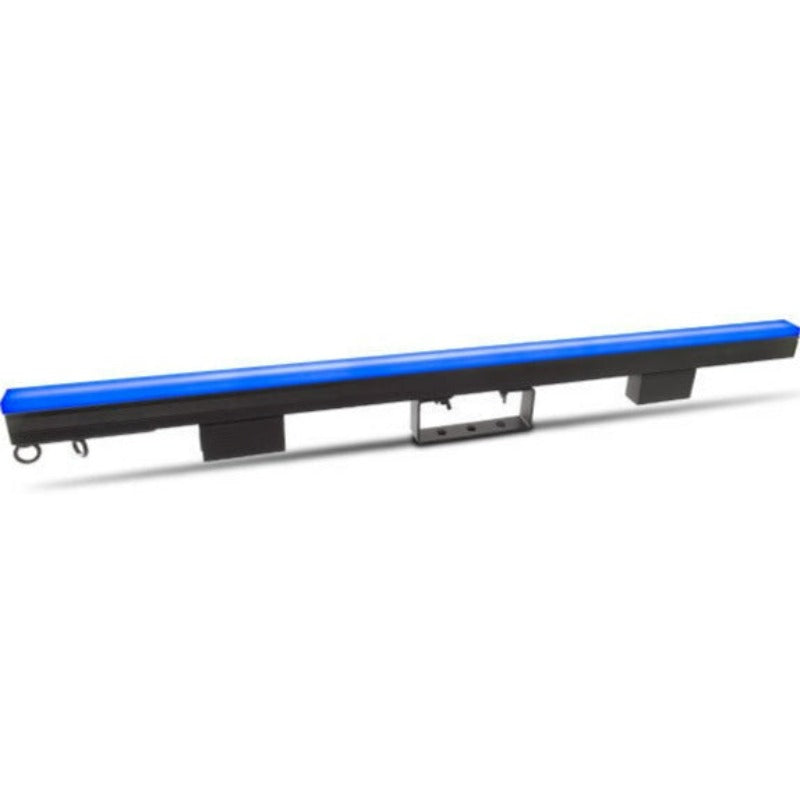

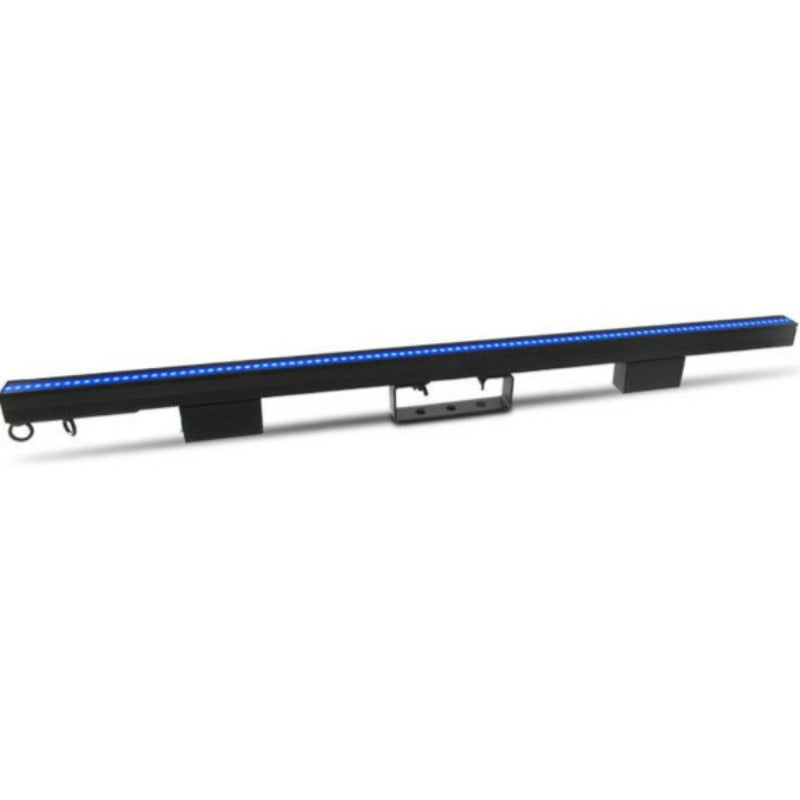

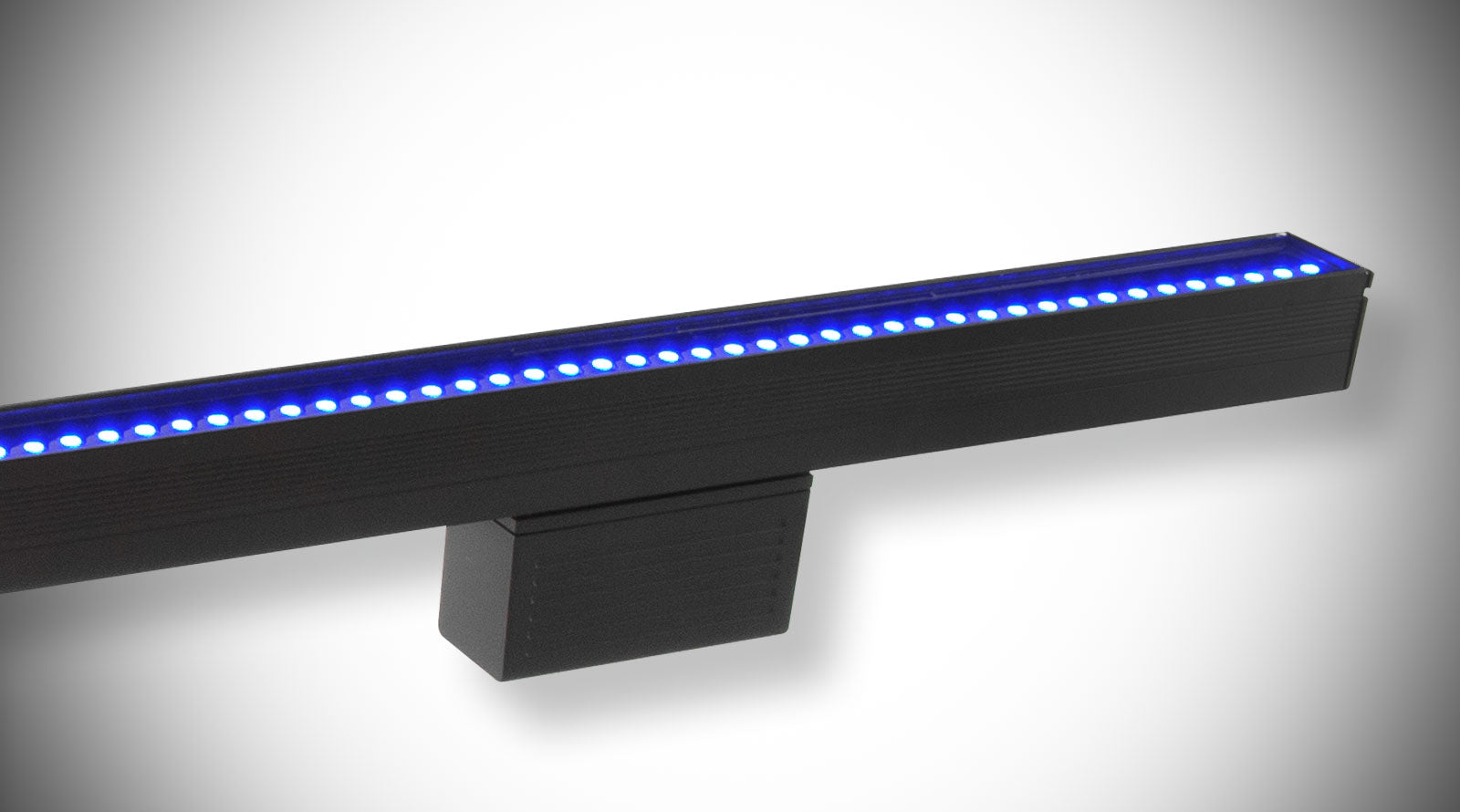

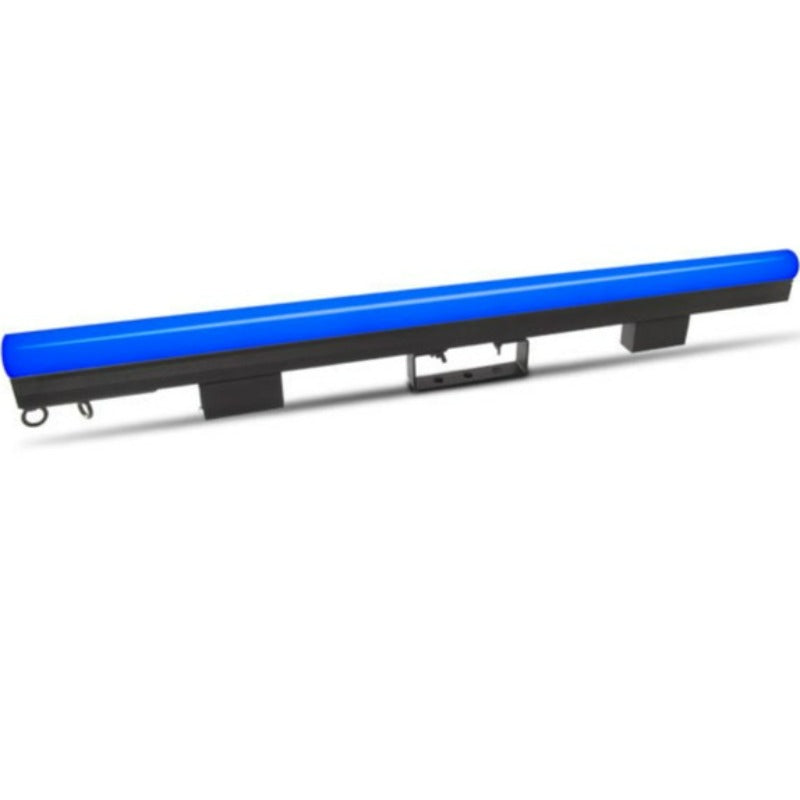

ÉPIX Strip IP is a dynamic IP65 outdoor-rated, pixel-mapping 1-meter LED strip fixture featuring 100 LEDs in a row. Ideal for festivals, concert touring, and installations, this versatile fixture comes with dome and flat accessories and stunning pre-built content to allow you to easily configure and program shows in minutes with minimum time/effort for sizzling looks. Power and control it through our ÉPIX Drive 2000 IP on Art-Net, Kling-Net, or sACN (streaming ACN).
Quantity discount available for every 12 pieces. Request a quote for details :)
*EPIX Drive 2000IP required. (Sold Separately)
In the Box:
- (1) ÉPIX Strip Tour
- (1) White Frost Filter
- (1) Black stealth filter (installed)
Specifications:
- Pixel Pitch: 10mm
- LED Type: SMD5050
- Arrangement: 100 pixels x 1 pixel
- Dimensions (square milky filter ): 39.37 x 3.93 x 1.33 in (1000 x 100 X 34 mm)
- Physical Linking: 10 inline ÉPIX Strip IP per port of Drive 2000 IP
Optical:
- Brightness: open: 8,640 NITS, square milky filter (installed): 2,470 NITS, black stealth filter (included): 1,455 NITS, round milky filter (optional): 1,360 NITS
- View Angle: 160°
- Color: RGB
Power:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 35 W, 0.292 A @ 120 V, 60 Hz
Control:
- Control Protocol: Art-Net, Kling-Net, sACN
- Channels: 7, 8, 15, 30, 75, 150 or 300
- Refresh Rate: 4,800 Hz (S-PWM)
- Data Connections: IP rated 4-pin XLR
Tech Specs
Optics:
Light Source Type: SMD5050
Control
DMX Channel Modes: 7, 8, 15, 30, 75, 150 or 300
Physical:
Length: 39.37 in
Width: 3.97 in
Height: 1.33 in
Weight: 6 lb
Electrical
Voltage Range: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Maximum Wattage: 44w

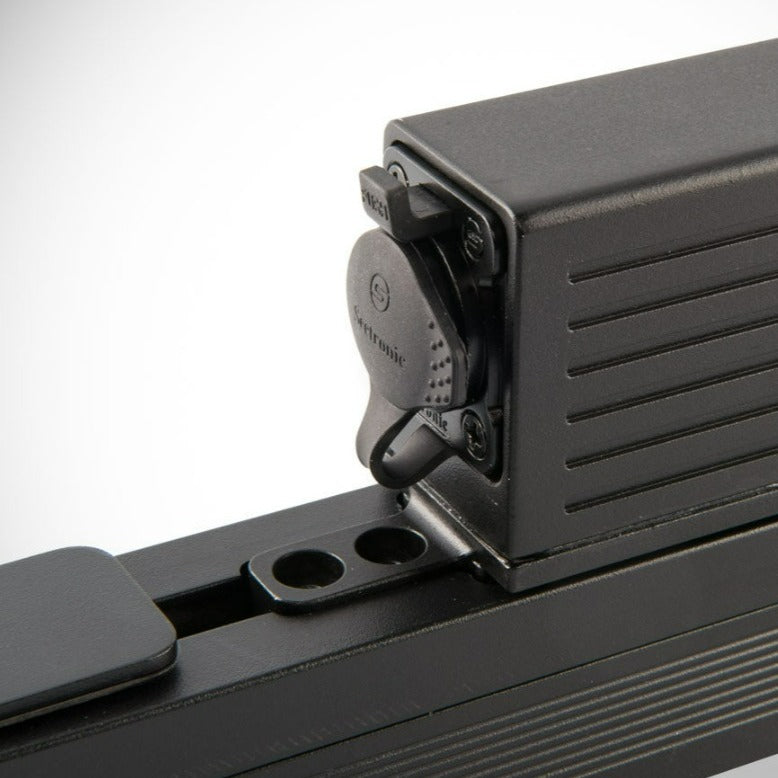

Power Cable Connector - Fixture Side: Seetronic Powerkon IP65
Main Power Connector on Included Cable: Edison
Warranty
Warranty: 2 years
