Sku:
EPIXSTRIPTOUR
EPIX Strip Tour
- Regular price
- $290.00
- Regular price
-
- Sale price
- $290.00
- Unit price
- per
Shipping calculated at checkout.
Vendor: Chauvet Professional
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

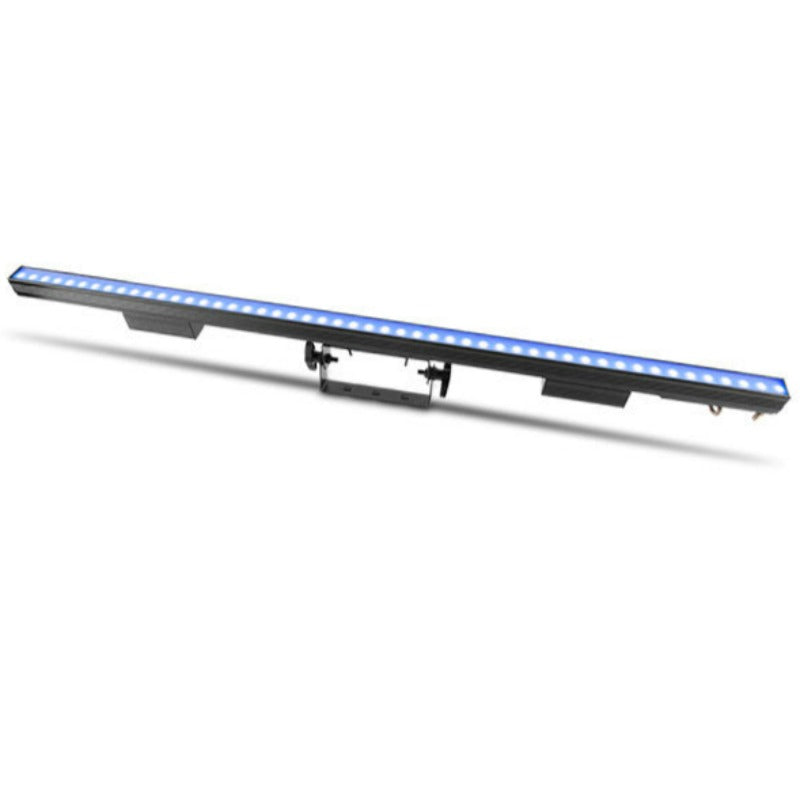

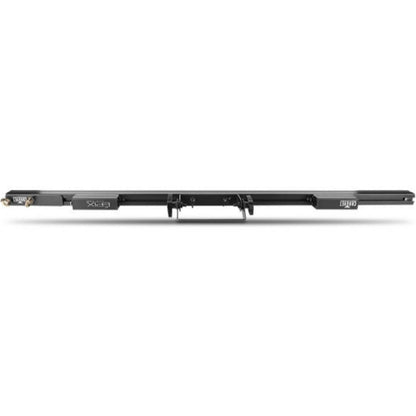

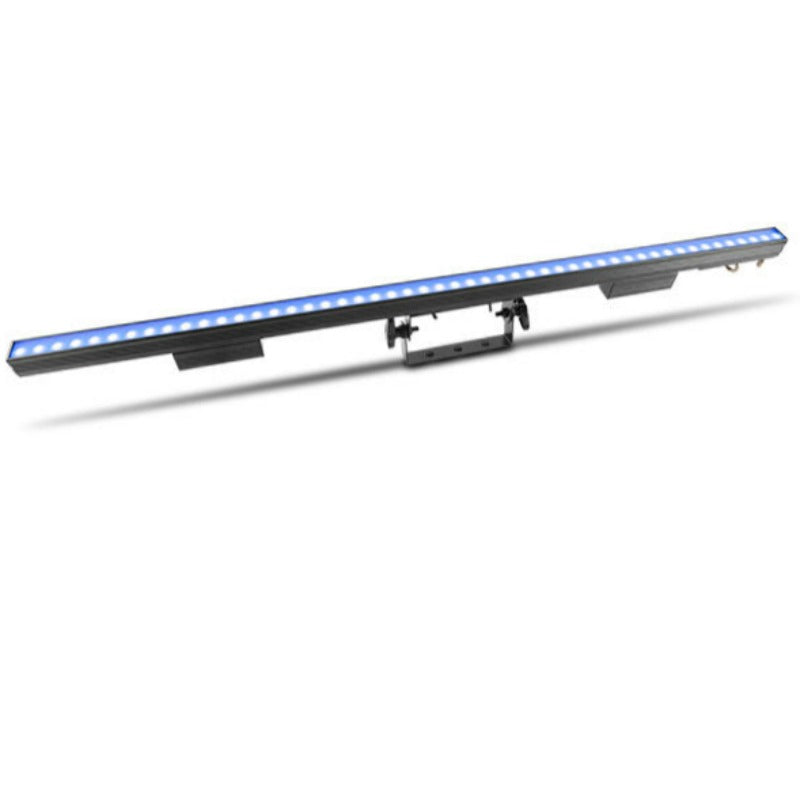

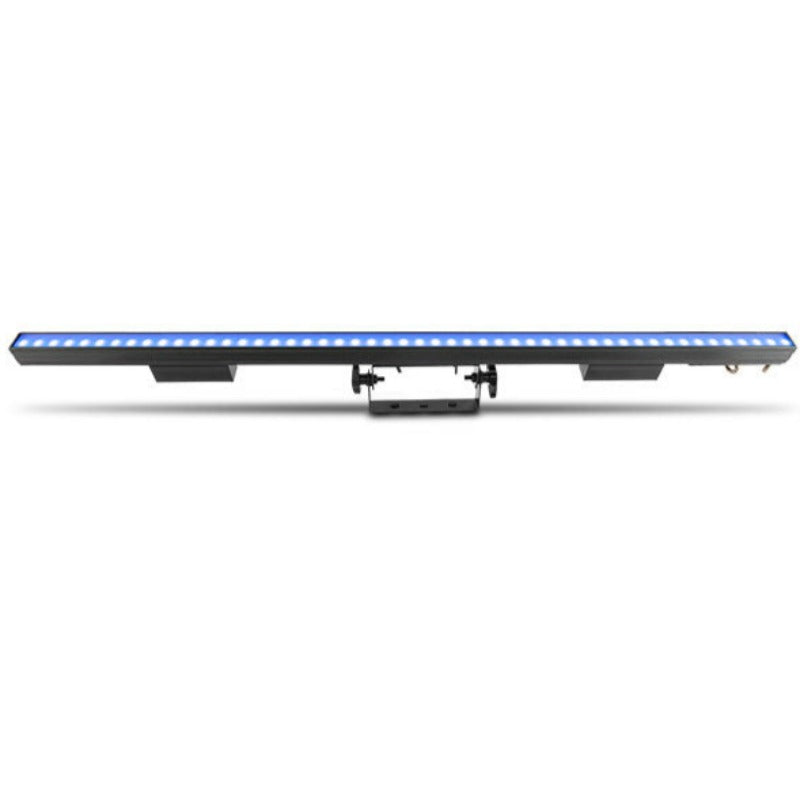

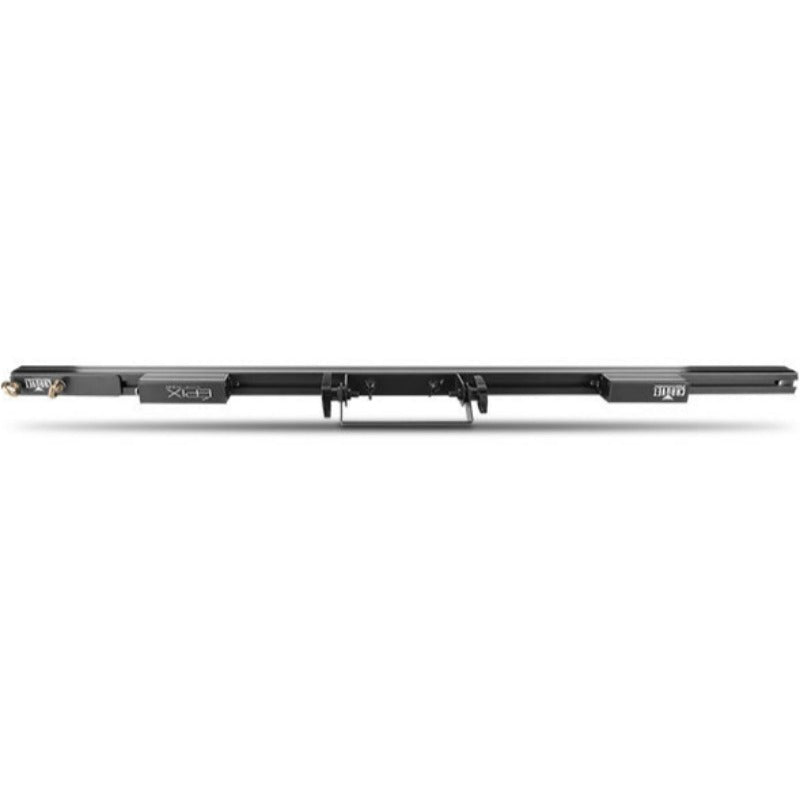

ÉPIX Strip Tour is a pixel-mapping 1-meter LED Strip for showing video and/or motion graphics. 50 LEDs in a row and a 125° viewing angle can be used with the installed black stealth filter for high contrast or the white frosted filter for high output. Use the ÉPIX Drive 900 to power and control it on Art-Net, Kling-Net, or sACN (streaming ACN).
EPIX Drive 900 required. (Sold Separately)
In the Box:
- (1) ÉPIX Strip Tour
- (1) White Frost Filter
- (1) Black stealth filter (installed)
Specifications:
- Pixel Pitch: 20mm
- LED Type: SMD5050
- Arrangement: 50 pixels x 1 pixel
- Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
- Link up to 18 units inline
Optical:
- Brightness: (white frost filter installed): 1,094 NITS
- Brightness: (black stealth filter installed): 267 NITS
- View Angle: 125°
- Color: RGB
Power:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Max Power: 17W
Control:
- Control Protocol: Art-Net, Kling-Net, sACN
- Channels: 150
- Refresh Rate: 4,700 Hz (S-PWM)
- Data Connections: 4-pin XLR
Tech Specs
Optics:
Light Source Type: SMD5050
Physical:
Length: 39.37 in
Width: 1.18 in
Height: 4.72 in
Weight: 3.44 lb
Electrical
Voltage Range: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Maximum Wattage: 17w
Warranty
Warranty: 2 years
