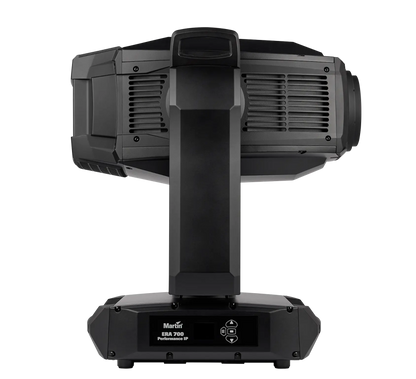

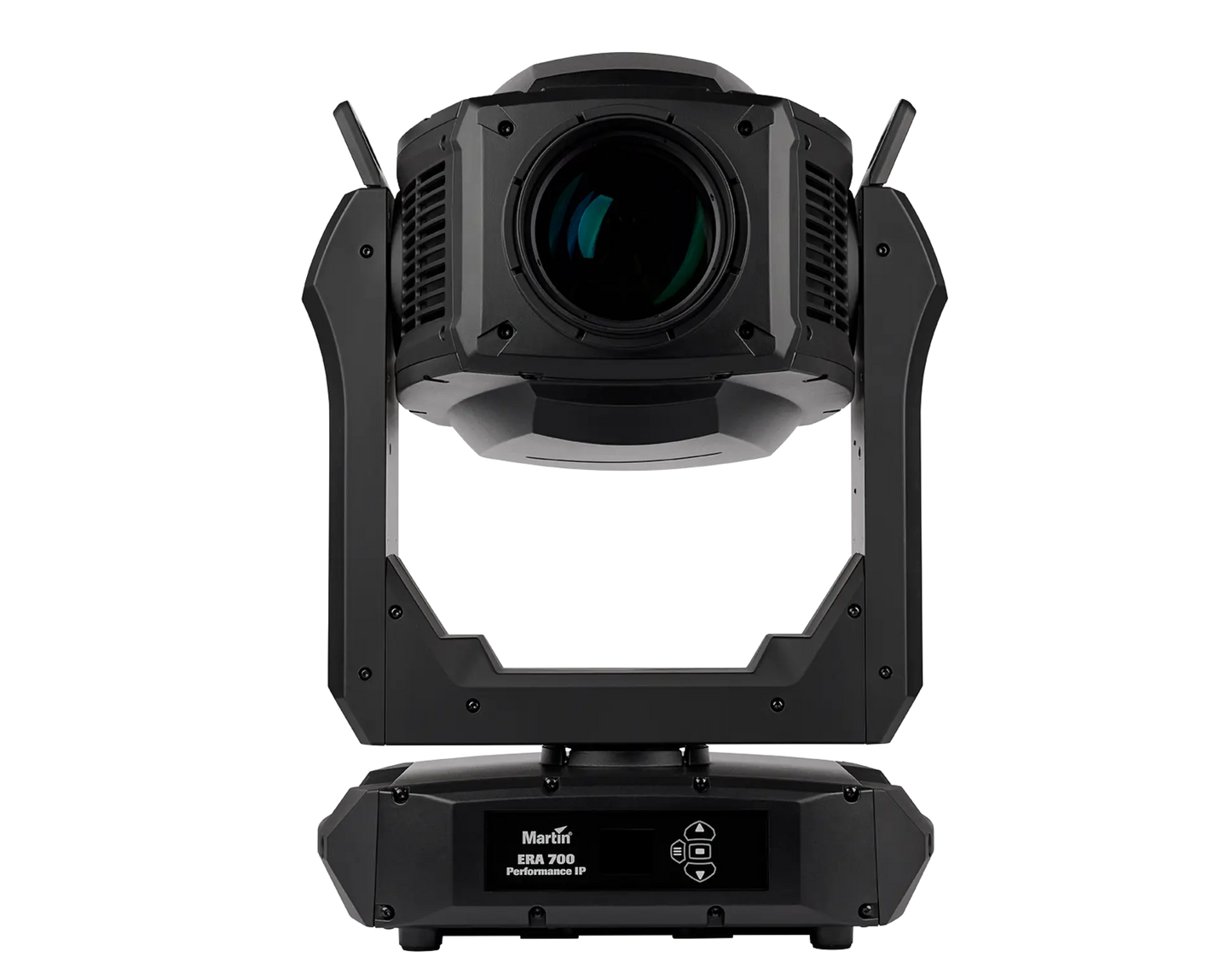

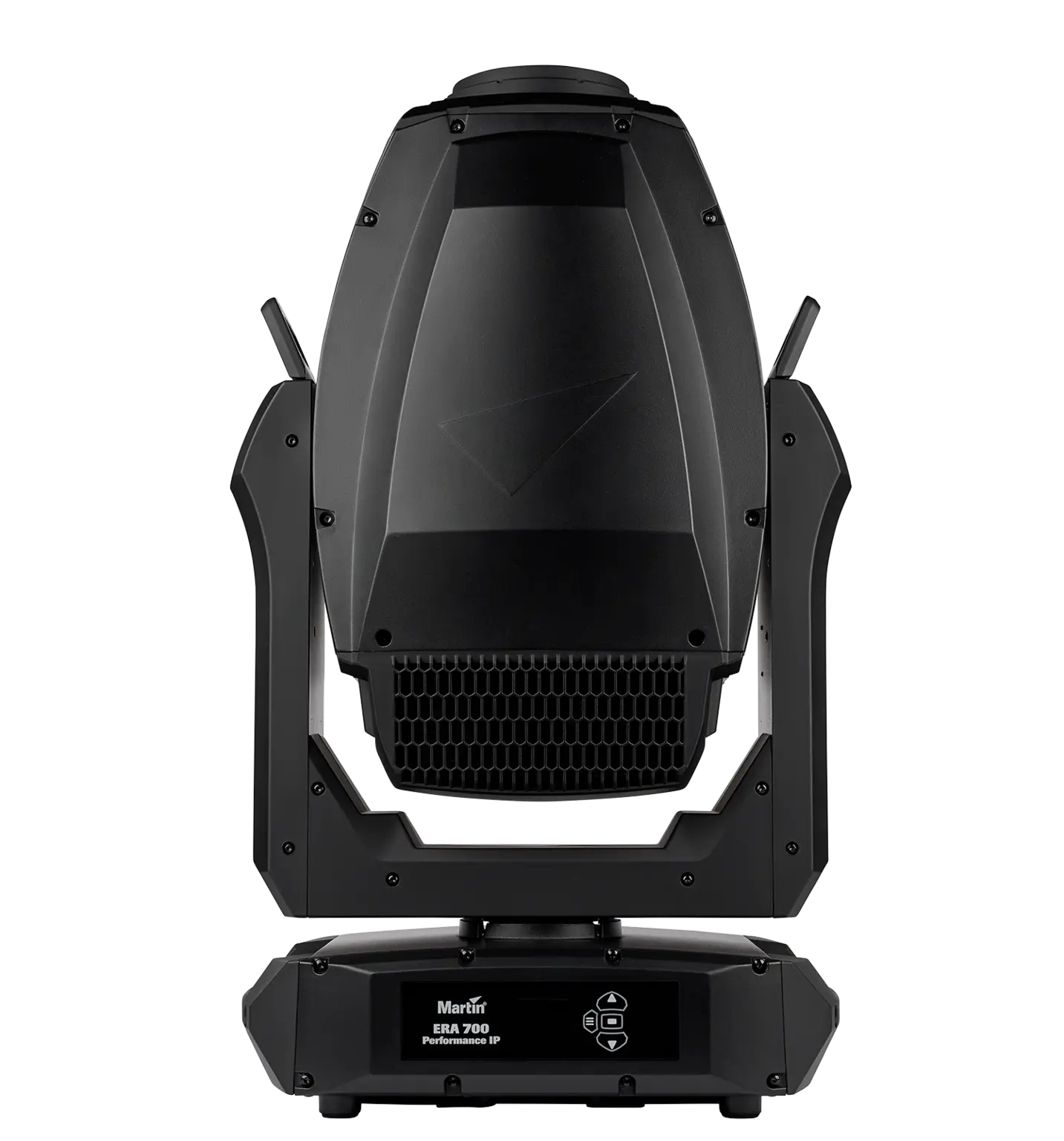

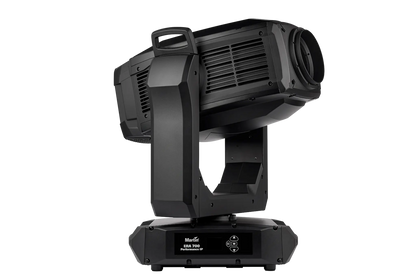

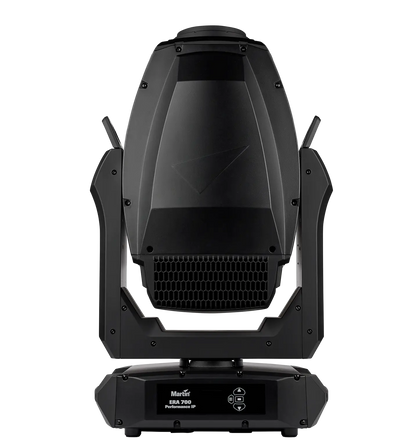

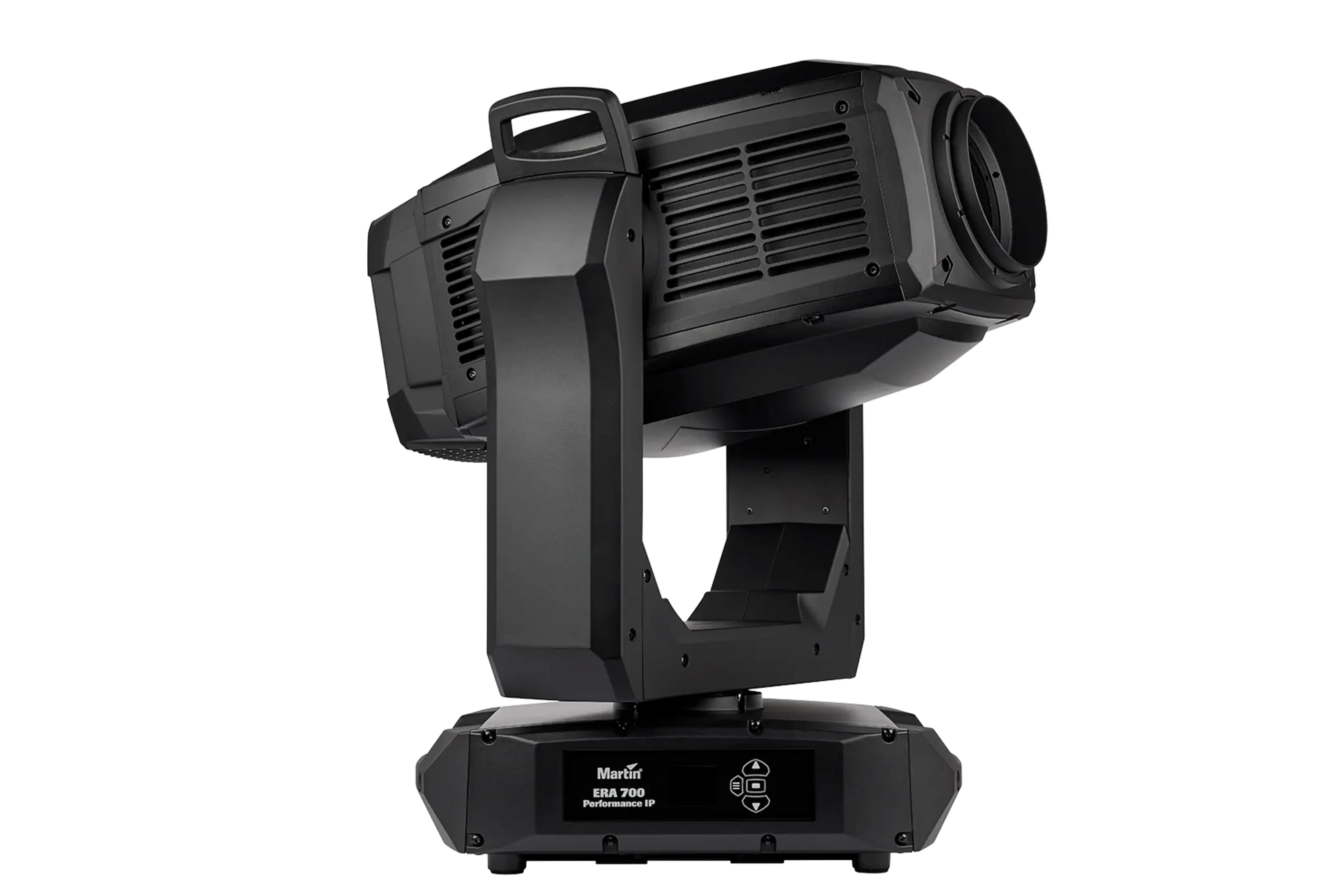

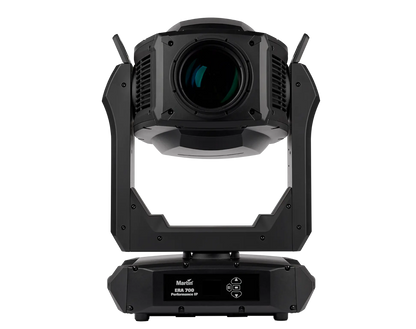

ERA 700 Peformance IP

The Martin ERA 700 Performance IP is a 680 W LED-based moving head profile delivering 26,000 lumens with CMYC color mixing, full curtain framing, dual gobo wheels, IP65+ weatherproofing, and C5M marine-grade protection — purpose-built for permanent outdoor entertainment.

From the Manufacturer

The ERA 700 Performance IP is Martin Professional's flagship outdoor profile, specially designed for permanent outdoor entertainment use in even the most demanding environments. Its 680 W LED engine produces 26,000 lumens of output through a 1:8 zoom system, providing a comprehensive toolkit for lighting design: CMYC color mixing, a full curtain framing system, dual gobo wheels, dual prisms, dual frost, animation wheel, and a wide range of new gobo designs covering rock and roll, theatrical, and architainment applications.

Standing at just 759 mm tall and weighing under 40 kg, the ERA 700 Performance IP is compact and lightweight for its class. Its IP65+ rating — elevated to IP66 with the included anti-tamper box installed — eliminates the need for outdoor protection domes. C5M marine-grade salinity protection and an active humidity control system ensure consistent performance from -20°C to +40°C in the harshest environments, including coastal and marine installations. The anti-tamper box also prevents unauthorized removal of power and data connections in public settings. Available in black and white finishes for seamless integration into a wide range of outdoor installations, including theme parks, cruise ships, and architainment venues.

Features

• 26,000 lm output from a 680 W, 6,500 K LED engine — ideal for large-scale outdoor shows and long-throw applications
• IP65+ rated (IP66 with anti-tamper box installed) — no outdoor protection dome required
• C5M marine-grade salinity protection — resistant to extreme coastal and marine environments
• Active humidity control system — maintains optimal internal humidity for consistent performance
• Operates from -20°C to +40°C — reliable in extreme cold and heat
• CMYC color mixing — CMY plus Spectral Enhancement Filter (color wheel position) for boosted CRI of 90
• 7-slot color wheel — includes Spectral Enhancement Filter plus 6 dichroic filters + open
• Full curtain framing system — rotatable +/-60°, 4 independently controllable blades with full variable angle and position for complete blackout capability
• Rotating gobo wheel — 7 gobos + open, with wheel rotation, gobo rotation, indexing, and shake
• Static gobo wheel — 8 gobos + open, with wheel indexing, rotation, and shake
• Animation wheel — indexing, continuous rotation with variable speed and direction, shake (flow)
• Dual prisms — Linear (6-facet) and circular (4-facet), independently insertable with indexing and continuous rotation
• Dual frost — heavy and medium, independently controllable
• Iris — variable 0–100%
• 1:8 zoom range — 5.4° to 44°, motorized
• Motorized focus with tracking
• Pan: 540° / Tilt: 270° — 16-bit control in both Basic and Extended DMX modes
• Anti-tamper box — secures power and data connections in public environments while boosting IP rating to IP66
• Available in black and white finishes
• Recommended use: Permanent outdoor installations, theme parks, cruise ships, architainment, large outdoor concerts and festivals

Specifications

Light Source

• LED Engine Power: 680 W
• Light Engine Luminous Output: 41,600 lm (engine); 26,000 lm (fixture)
• Color Temperature: 6,500 K
• LED Refresh Rate: 3,600 Hz
• Minimum LED Lifetime: 20,000 hours (to >70% luminous output)
• Binning: Tight color and flux binning

Photometric Data (With Spectral Enhancement Filter)

• Fixture Luminous Output: 16,420 lm
• CRI: 90
• CQS: 88
• TM-30 Rf: 87
• TM-30 Rg: 106
• TLCI: 73

Optics

• Front Lens Diameter: 120 mm (4.75 in.)
• Zoom Range: 5.4° to 44° (1:8), motorized
• Focus: Motorized with tracking

Dynamic Effects

• Color Mixing: CMY, independently variable 0–100% (16-bit)
• Color Temperature Control: Variable 6,500–2,700 K (CTO)
• Color Wheel: 7 filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
• Rotating Gobo Wheel: 7 gobos + open, wheel rotation, gobo rotation, indexing, shake
• Static Gobo Wheel: 8 gobos + open, wheel indexing, rotation, shake
• Animation Wheel: Indexing, continuous rotation with variable speed and direction, shake (flow)
• Framing: Rotatable module +/-60°, 4 individually controllable full curtain blades with variable angle and position
• Prism 1: Linear, 6-facet, indexing and continuous rotation
• Prism 2: Circular, 4-facet, indexing and continuous rotation
• Frost 1: Heavy, variable
• Frost 2: Medium, variable
• Iris: Variable 0–100%
• Dimmer/Shutter: 0–100% continuous electronic dimming, regular and random strobe and pulse effects, instant open and blackout; four dimming curve options
• Pan: 540°
• Tilt: 270°

Control

• Protocols: DMX, RDM, Art-Net (1/2/3/4 + RDM over Art-Net), sACN
• DMX Modes: Basic (42ch), Extended (54ch)
• 16-bit Parameters: Dimming, CMY, CTO, zoom, focus, framing, gobo rotation/indexing, pan, tilt
• Setting and Addressing: Control panel with backlit LCD display and battery-powered operation
• DMX Compliance: USITT DMX512/1990
• RDM Compliance: ANSI/ESTA E1.20
• Art-Net Compliance: Art-Net 1, 2, 3, and 4
• sACN Compliance: ANSI E1.31-2016
• Transceiver: Opto-isolated RS-485

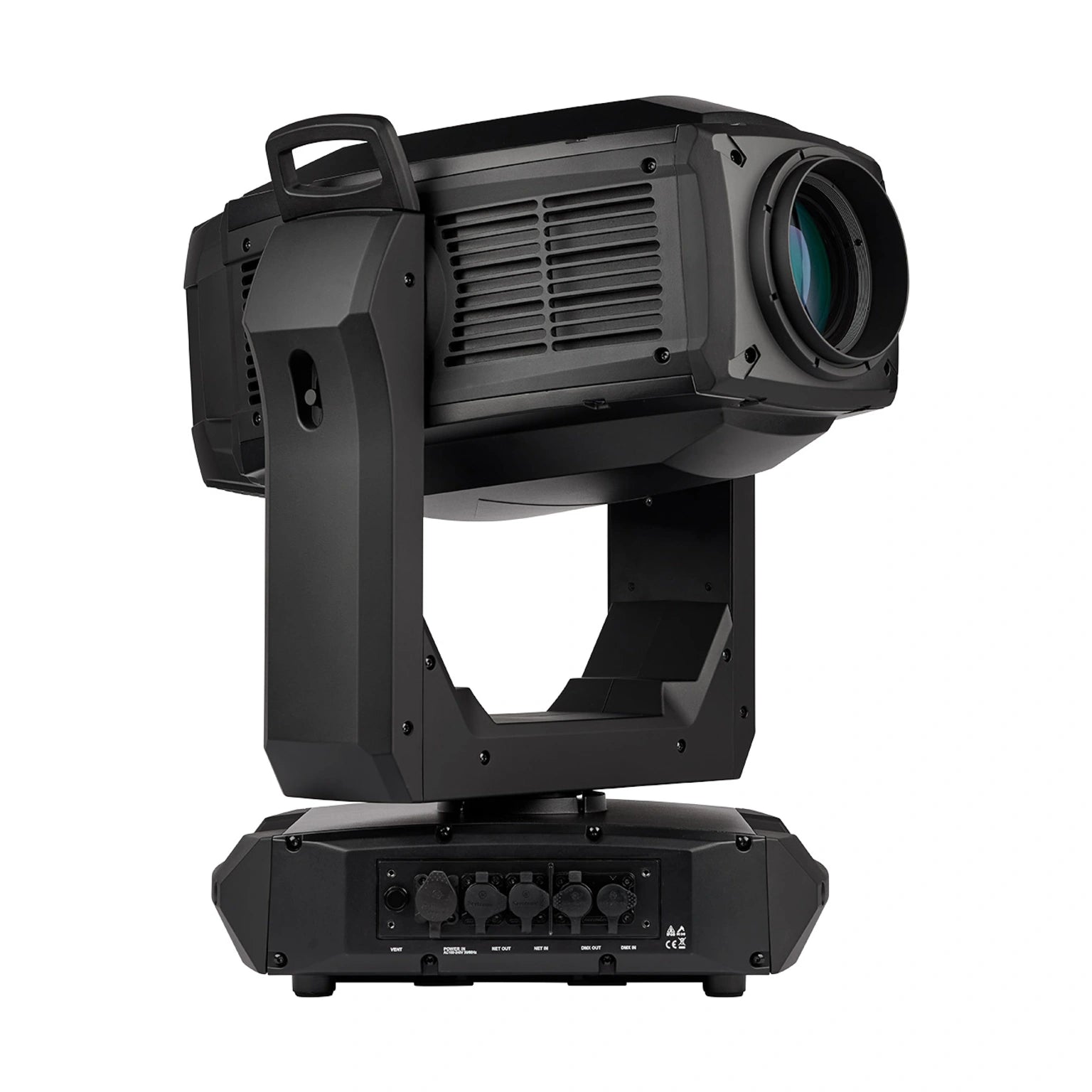

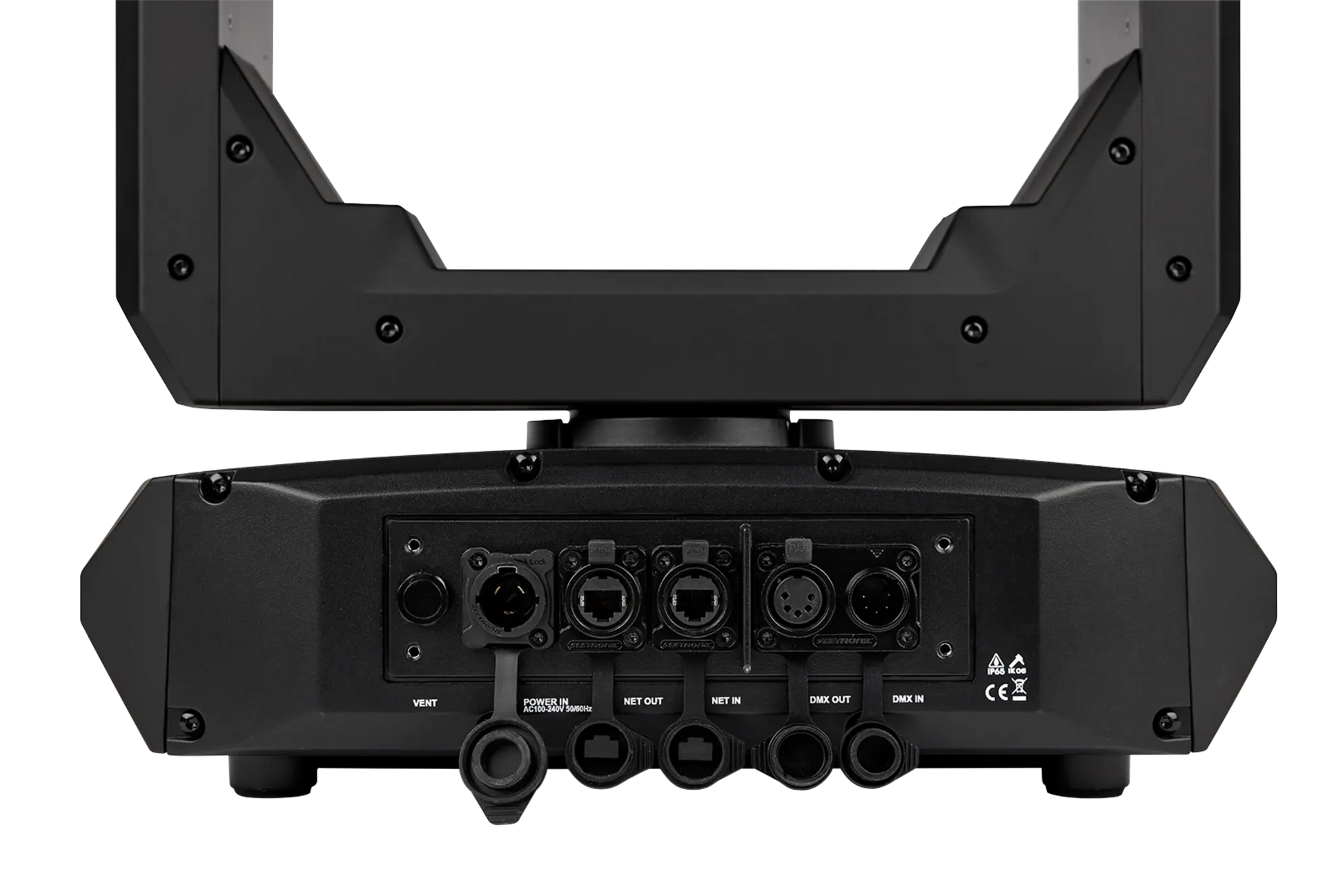

• Connections: TRUE1 compatible power in, Neutrik 5-pin locking XLR (DMX/RDM in/thru), Neutrik etherCON (Ethernet in/thru with fail-safe bypass)
• Firmware Update: Via DMX using Martin Companion software or Martin Companion Cable

Electrical

• AC Power: 100–240 V AC nominal, 50/60 Hz
• Power Factor: 0.97 @ 100/120/230/240 V
• Typical Current Draw: 11.1 A @ 100/120 V; 3.7 A @ 200/230/240 V

Physical

• Weight: 39.7 kg (87.3 lbs.)
• Length (head): 542 mm (21.3 in.)
• Length (base): 436 mm (17.1 in.)
• Width (base): 314 mm (12.3 in.)
• Width (across yoke): 450 mm (17.7 in.)
• Height (head straight up): 759 mm (29.8 in.)
• Height (maximum): 767 mm (30.2 in.)
• Protection Rating: IP65 (IP66 with anti-tamper box installed)
• Corrosion Resistance: C5-M (very high corrosivity / marine, ISO 12944)
• Operating Temperature: -20°C to +40°C
• Housing: Available in black or white

What's in the Box

• Martin ERA 700 Performance IP fixture
• Two omega brackets with 1/4-turn fasteners
• Anti-Tamper Environmental Protection Box
• User documentation
