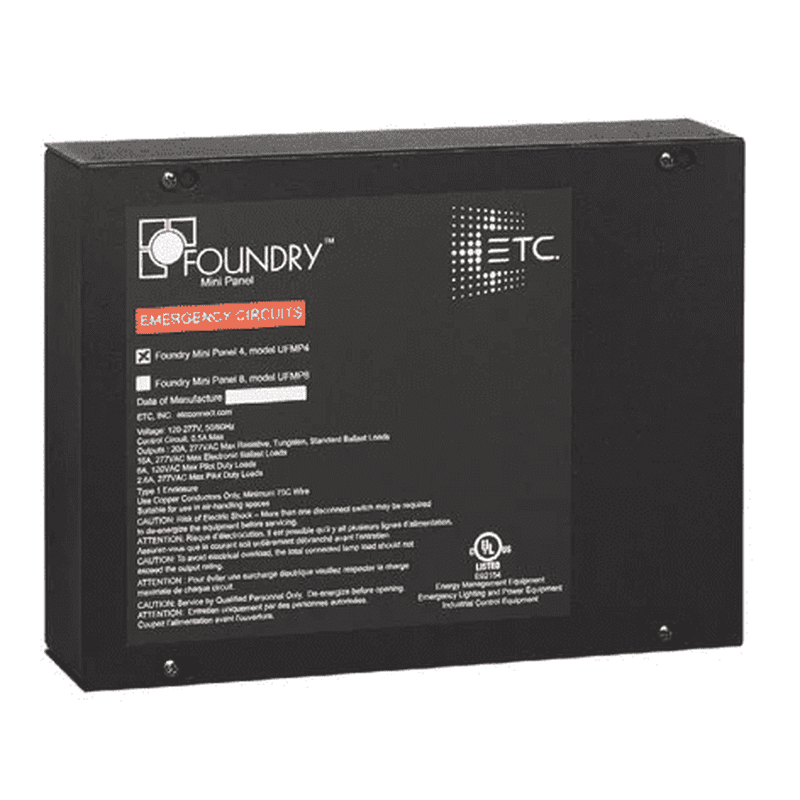

ETC UFMP4 4 Zone Mini Relay Panel
- Regular price
- $660.00
- Regular price
-
- Sale price
- $660.00
- Unit price
- per
Shipping calculated at checkout.
Vendor: ETC
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
It's smart to turn off power to permanently installed GEAR when you're not using it. This panel is one of the easiest/cheapest ways to get up to (4) circuits of power, switched on and off via DMX control.
*This item may be backordered. Please request a quote with us for pricing and lead times.
From the Manufacturer:
DMX-controlled Unison Foundry™ products are the perfect partners for Unison Paradigm® and Mosaic® systems to create a complete, economical lighting control package. The Foundry Mini Panel takes 20A branch circuit input and provides four switched power control outputs with fully-isolated 0-10V dimming per output.
Each Mini Panel can be wired with discrete inputs for each output, just one input split to all outputs, or anything in between. With the capacity to support combinations of 120V, 277V, normal and emergency circuits in a single Mini Panel, Foundry offers outstanding flexibility in a compact, robust package.
Each Mini Panel can be wired with discrete inputs for each output, just one input split to all outputs, or anything in between. With the capacity to support combinations of 120V, 277V, normal and emergency circuits in a single Mini Panel, Foundry offers outstanding flexibility in a compact, robust package.
In the Box:
- (1) UFMP4 4 Zone Mini Relay Panel
Features:
- Switched power control of four or eight circuits with 0–10 V
dimming - 120 or 277 VAC power input per zone
- 20 A fully rated relays for use with general purpose, tungsten,
fluorescent, LED and plug loads - 0–10 V dimming output per zone for direct connection to
dimming ballasts and LED drivers - Demand Response load shedding contact input
- Flush-mount and surface-mount options
- UL924 control bypass via
- Contact closure input
- Normal power loss sense feed terminals
- DMX controlled and RDM configurable
Tech Specs
Physical:
Length: 3 in
Width: 12 in
Height: 9 in
Weight: 6 lb
Electrical
Voltage Range: 120 VAC 60Hz
