ETC UFR2-LV Dual-Zone DMX Relay with 0-10V

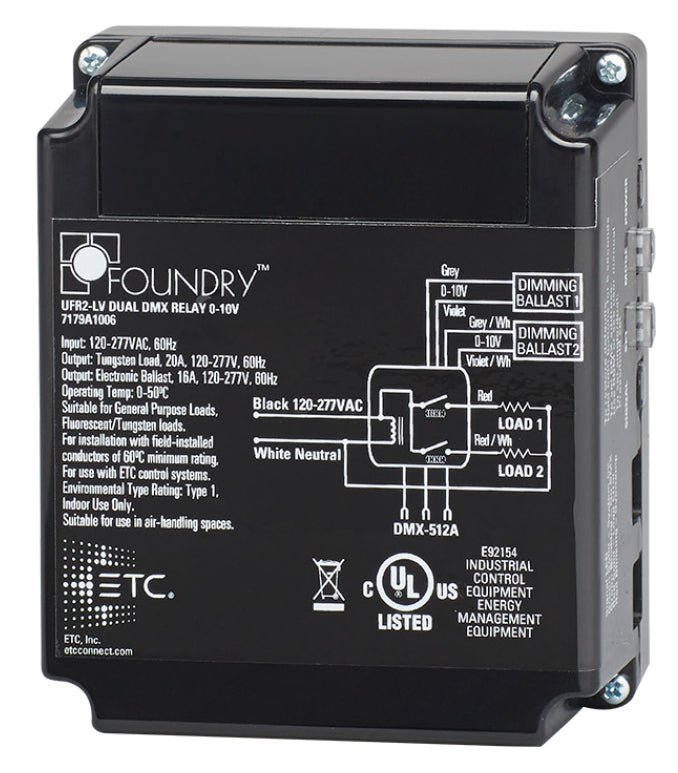

The ETC UFR2-LV Unison Foundry® 0-10V Dimming Controller offers DMX controlled, fully-rated 20-Amp relays with fully isolated 0-10V dimming for direct control of compatible LED drivers and fluorescent dimming ballasts. This style of dimming controller can be mounted to electrical junction boxes.

The UFR2-LV Controller provides two outputs of control that can be wired to individual fixtures or used for zone control. Each output can be configured to a separate DMX address, or both outputs can be controlled in unison by setting the 0–10V Controller to single-channel mode. This model allows you to control connected loads from any DMX control device. Configure the 0–10V Controller either remotely via RDM (using a tool like ETC Net3 Concert) or locally on the controller.

Applications for the ETC UFR2-LV

• Arena and stadium suites
• Office buildings
• Conference and meeting rooms
• Healthcare facilities
• Houses of worship
• Classrooms
• Hospitality and restaurants
• Retail

ETC UFR2-LV Features

• Switched power control of two circuits with 0-10V dimming
• 20A fully-rated relays for use with general purpose, tungsten, fluorescent and LED loads
• Supports plug loads
• 120/277VAC power input
• DMX controlled and RDM configurable

ETC UFR2-LV Specifications

Ambient Environment

• For indoor use only.
• Rated for plenum use.
• 32°F to 104°F (0°C to 40°C) operating temperatures in 5–95% non-condensing humidity.

Electrical Specification

• Power input: 120–277VAC, 60 Hz
• Maximum load rating is 20A (total connected load). This can be split between the two relay outputs in any combination required for the installation, but cannot exceed 20A total connected load for the controller.
• Independent control for 0-10V fluorescent ballasts and/or LED drivers, each capable of sinking 100mA
• Supported load types (all voltages): 20A fully-rated relay for use with general purpose, tungsten, fluorescent, and LED lighting loads

Compliance

• UL and cUL listed
• Conforms to UL 916 (Energy Management Equipment) and UL 2043 (Plenum rated)

Physical

• Size (H x W x D): 2 x 3.5 x 3 in
• Weight: 0.75 lbs
