ew 300 G4-865-S-GW1

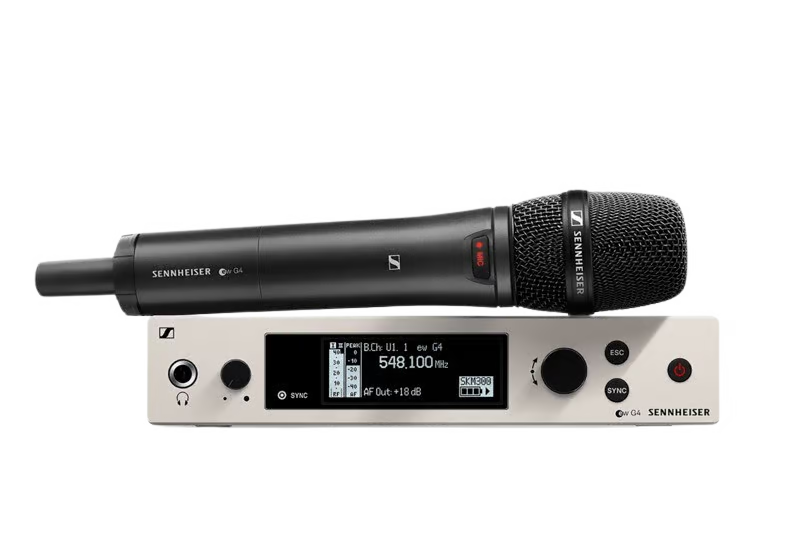

Wireless vocal set. Includes (1) SKM 300 G4-S handheld with mute switch, (1) e 865 capsule (supercardioid, condenser), (1) EM 300-500 G4 rackmount receiver, (1) GA 3 rack kit and (1) mic kit, frequency range:GW1 (558 - 608 MHz)

From The Manufacturer:

Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend. Moderators and presenters love working with G4. The aluminum housing of the handheld transmitter is not just robust but also lightweight for long speeches, whereas the noiseless mute switch ensures full control.

Features:

• Easy to use, fast setup time

• Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software

• Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment

• Up to 88 MHz bandwidth, up to 32 channels

• Increased RF output power (10/30/50 mW)

• Transmission Range: up to 100 meters / 330 feet

• Compatible with wireless speaker system LSP 500 PRO

• RC (remote control) switch available for the bodypack transmitter

Specifications:

• Modulation

• Wideband FM

• Frequency ranges

• Aw+: 470 - 558 MHz

• AS: 520 - 558 MHz

• Gw1: 558 - 608 MHz

• Gw: 558 - 626 MHz

• GBw: 606 - 678 MHz

• Bw: 526 - 698 MHz

• Cw: 718 - 790 MHz

• Dw: 790 - 865 MHz

• JB: 806 - 810 MHz

• K+: 925 - 937.5 MHz

• Receiving frequencies

• Max. 3520 receiving frequencies, adjustable in 25  kHz steps

• 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation

• 6 frequency banks with up to 32 programmable channels

• Switching bandwidth

• up to 88 MHz

• Nominal/peak deviation

• ±24 kHz / ±48 kHz

• Receiver principle

• True diversity

• Sensitivity (with HDX, peak deviation)

• < 2.5 μV for 52 dBA eff S/N

• Adjacent channel selection

• Typically ≥ 75 dB

• Intermodulation attenuation

• Typically ≥ 70 dB

• Blocking

• ≥ 75 dB

• Squelch

• 5 to 25 dBμV in steps of 2 dB

• Pilot tone squelch

• Can be switched off

• Antenna inputs

• 2 BNC sockets

• Compander system

• Sennheiser HDX

• EQ presets (switchable, act on line and monitor outputs)

• Preset 1: Flat

• Preset 2: Low Cut (-3 dB at 180 Hz)

• Preset 3: Low Cut/High Boost  (-3 dB at 180 Hz, +6 dB at 10 kHz)

• Preset 4: High Boost (+6 dB at 10 kHz)

• Signal-to-noise ratio (1 mV, peak deviation)

• ≥ 115 dBA

• Total harmonic distortion (THD)

• ≤ 0.9 %

• AF output voltage (at peak deviation, 1 kHz AF)

• 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu

• Setting range “AF Out”

•  48 dB (3 dB steps)

• Temperature range

• -10 °C to +55 °C

• Power supply

• 12 V DC

• Current consumption

• 350 mA

• Dimensions Approx.

• 202 x 212 x 43 mm

• Weight Approx.

• 980 g

Included:

• 1x SKM 300 G4-S handheld with mute switch

• 1x e 865 capsule (supercardioid, condenser)

• 1x EM 300-500 G4 rackmount receiver

• 1x GA 3 rack kit

• 1x mic kit, frequency range:GW1 (558 - 608 MHz)
