ew 500 G4-MKE2-GW1

The Sennheiser EW 500 G4-MKE2-GW1 is a rugged all-in-one wireless system for broadcasters and presenters.

From the Manufacturer

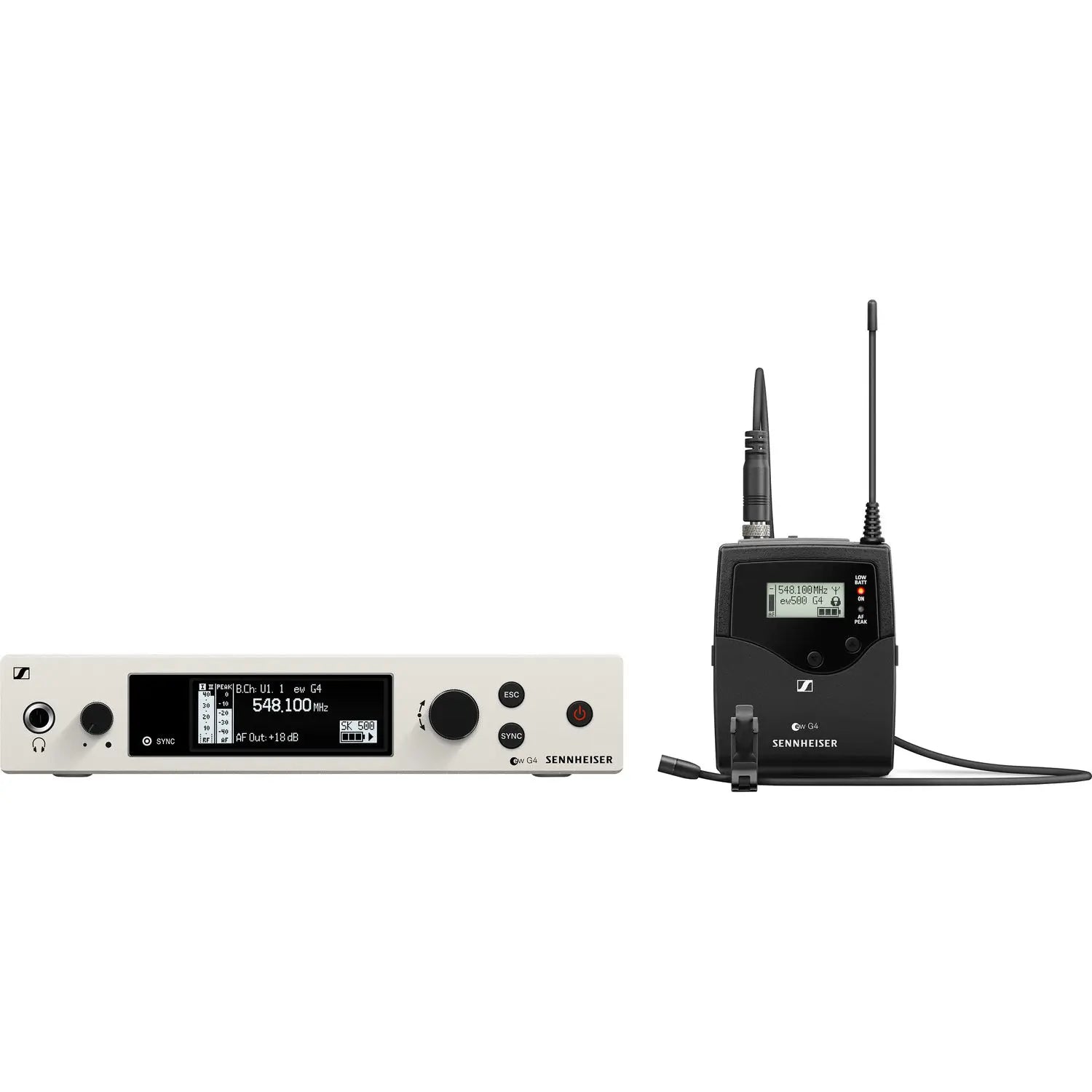

Rugged all-in-one wireless system for broadcasters and presenters. Set consists of 1 SK 500 G4 bodypack, 1 MKE 2 Gold Lavalier mic, 1 EM 300-500 rackmount receiver and 1 GA3 rack kit. The pro's choice. Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi channel setups. The pro's choice for impressive presentations. The professional MKE 2 Gold omni-directional condenser microphone resists the test of time on any big live stage and ensures a high speech intelligibility on any stage, indoors and outdoors.

Features

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
• Recommended use: Broadcasting, presenting, live performance, houses of worship, speaking engagements, corporate events

Specifications

Product

• Transducer Type: Pre-polarised condenser
• Receiver Principle: True diversity
• Total Harmonic Distortion (THD): ≤ 0.9 %
• RF Sensitivity: < 2.5 µV for 52 dBa eff S/N

Frequency Specifications

• Audio Frequency Response: Mic: 80 to 18,000 Hz, Line: 25 to 18,000 Hz

Acoustic Properties

• Equivalent Noise Level (db): 26 dB
• Max. Sound Pressure Level: 142 dB
• Signal-to-Noise Ratio: ≥ 115 dBA
• Pickup Pattern: Omnidirectional
• Squelch: 5 to 25 dBµV in steps of 2 dB

Connectivity

• Connection: Wireless
• Connectors: 3.5mm

Inputs/Outputs

• Audio Output: 6.3 mm jack socket (unbalanced): +12 dBu

Battery & Power

• Battery Operating Time (h): Typically 8 h

Electrical Properties

• Input Impedance: 40 kΩ, unbalanced / 1 MΩ

Dimensions

• Dimensions: Approx. 202 x 212 x 43 mm
• Product Weight (g): 980
• Package Length (mm): 405
• Package Height (mm): 73
• Cable Length (m): approx. 1.60 m

What's in the Box

• EM 300-500 G4-S True diversity receiver
• SK 500 G4 Bodypack transmitter
• MKE 2 Lavalier microphone
• GA 3 Rackmount set
• 2 AA Batteries
• 2 Rod antennas
• NT 2-3 Power supply
• Quick guide
• Safety guide
• Manufacturer declaration sheet
