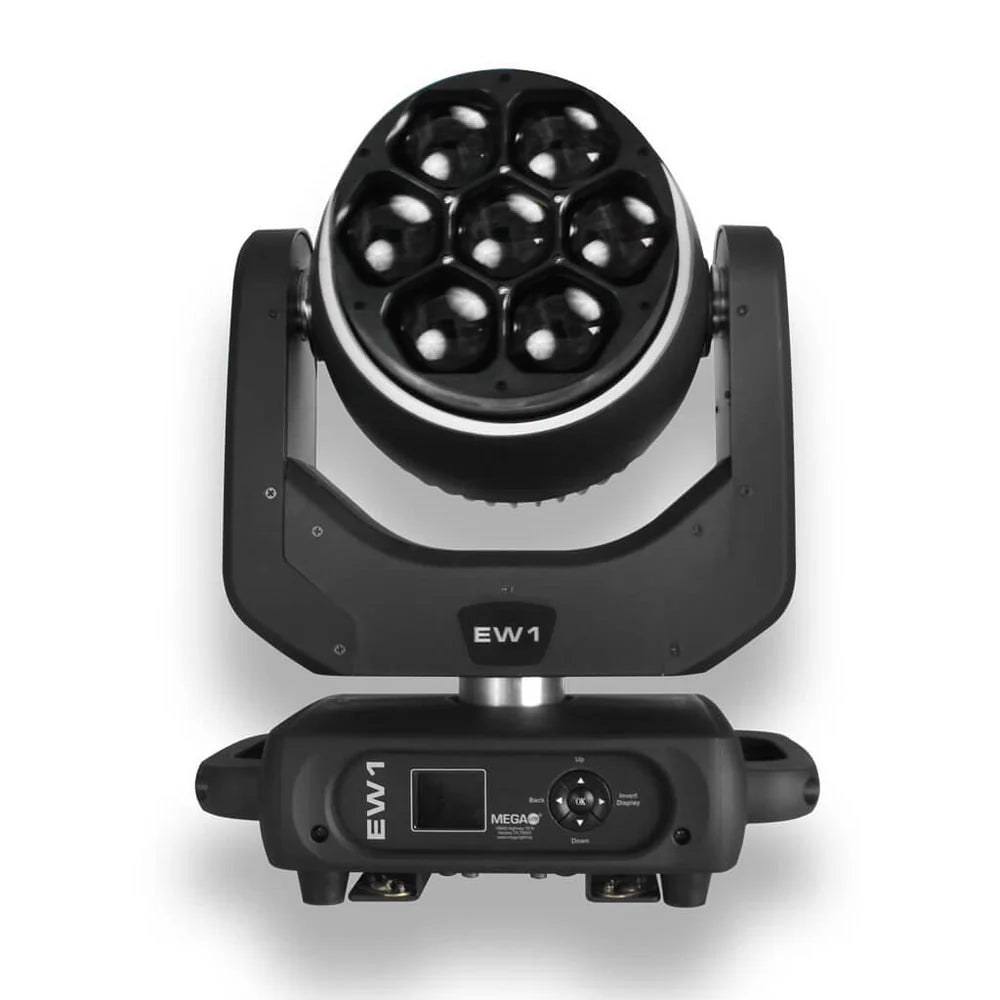

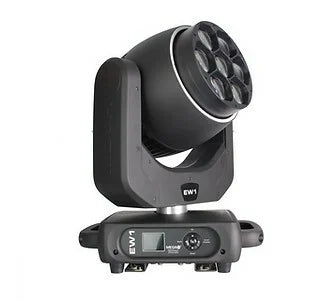

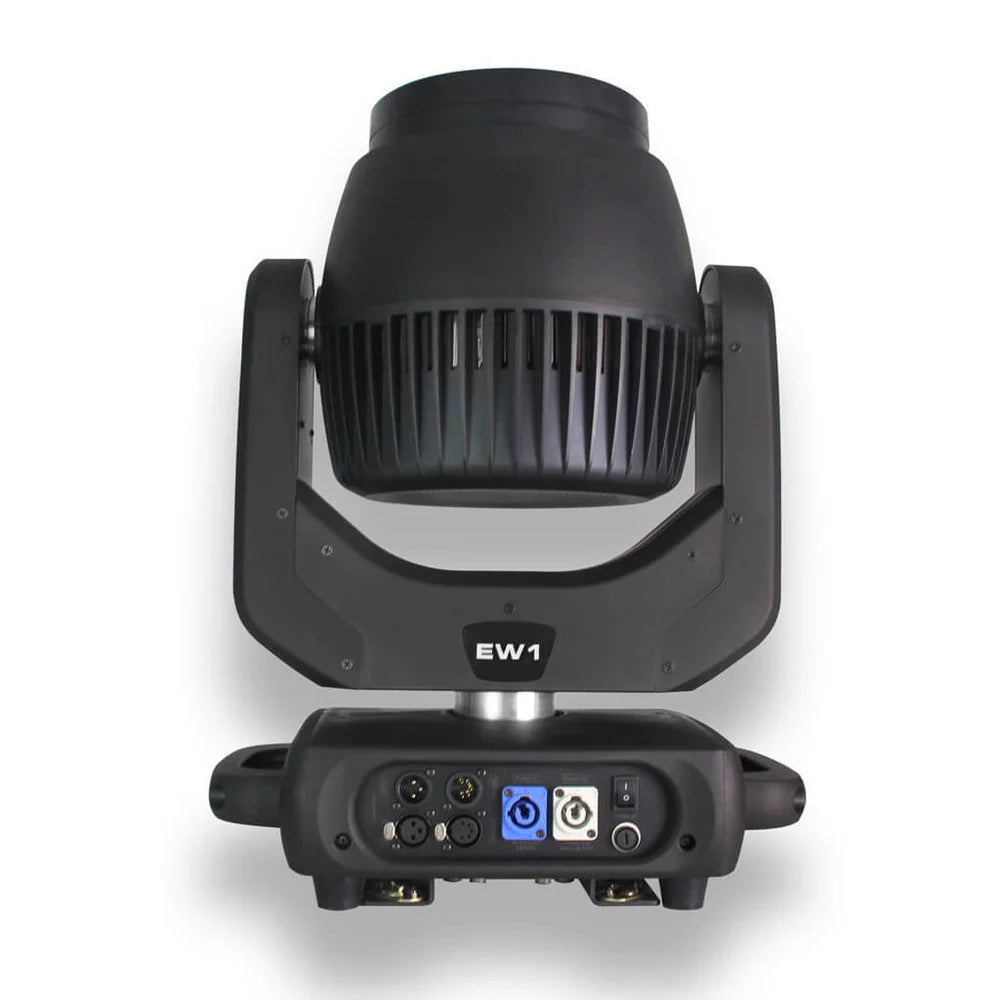

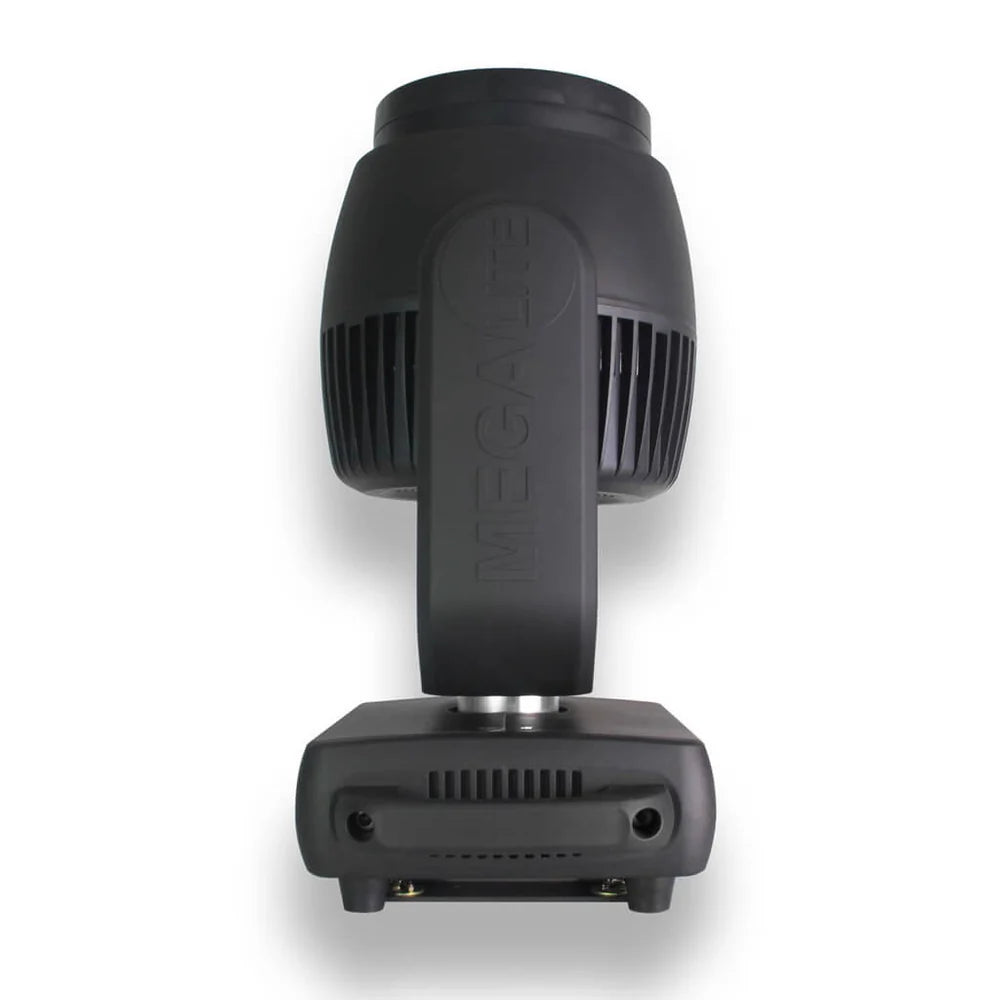

EW1

The Mega-Lite EW1 luminaire is an incredibly versatile fixture with beam-to-wash adaptability and an outer ring to add additional effects.

From the Manufacturer:

The EW1 luminaire, a versatile tool for your lighting needs, is equipped with 7 x 60 Watt RGBW LEDs, each with individual control and a kaleidoscopic effect. This versatility empowers you to create a wide range of possible lighting scenes, giving you the freedom to bring your creative vision to life.

With its beam-to-wash element, the EW1 luminaire is designed for adaptability, allowing it to be used as a beam or wash. Its outer ring adds another element of depth to the fixture, giving you the flexibility to create unique lighting effects for any event.

The EW1 luminaire is not only compact and lite, but also designed with your convenience in mind. It's easy to use, making it a perfect choice for professionals in the entertainment industry. The EB1, part of the series, is a hard-edge beam that pairs seamlessly with the EW1, ensuring a hassle-free setup.

Features:

• 7 60W LEDS: The EW1 is equipped with seven 60 Watt RGBW (red, green, blue and white) high intensity LEDs that provide a powerful beam and wash effect, which serves as a primary light, and has the ability to be pixelated pixel control (using the full DMX profile).
• PIXABLE HALO: This unit offers an eye-catching Pixable Ring light with 62 X .5W RGB SMD SMD LEDs. The basic profile has a pre-programmed effect and speed control, the full control gives better handling over the pixels.
• 4° TO 36° ZOOM RANGE: Adapt to any stage with the EW1's versatile zoom range. With a 4° focused beam to illuminate specific elements or use as an areal beam and the 36° zoom can be used to cover large areas.

Specifications:

Mechanical:

• Housing: High Temp, Low Flammability, Plastic
• Mounting System: 2 Quick Release Clamp Mounts
• Power Connection: Input Seetronics SAC3MPA Panel Mount; Output Seetronics SAC3MPB Panel Mount Cable Seetronics SAC3FCA plug to Nema 5/15
• Signal Connection: 3 and 5 Pin XLR In and Out (IP Rated)
• Zoom Angle: 4° to 36° Electronic Zoom

Electrical:

• Light Source: 7 X 60W RGBW Osram 62 X .5W RGB
• Color Temperature: 7562K
• CRI (Warm White): 72 @ full
• Lumen Output: 7625Lm
• Power Supply: N/A
• Power Consumption: 382 Watts 3.25 Amps @110V

Control System:

• Control Protocols: DMX 512
• RDM: Yes, Address, Channel Mode, Pan Invert, Tilt Invert, Pan and Tilt Swap
• Channel Modes: 2 Modes of operations
• Mode 1: 27 Channel Mode
• Mode 2: 103 Channel Mode
• Display: Digital

Size and Weight:

• Fixture Size: 15” X 9.37” X 19.37”
• Fixture Weight: 32lb
• Packaged Size: 16.5” X 13.5” X 24.5”
• Packaged Weight: 35.25lb

Photometric:

• Lumens @ Full Output (Narrow): 6,000
• Efficacy: 13 lm/W
• Lumens @ Full Output (Wide): 7,625
• Efficacy: 17 lm/W
• Red Emitter Peak Wavelength: 634 nm
• Green Emitter Peak Wavelength: 522 nm
• Blue Emitter Peak Wavelength: 447 nm
