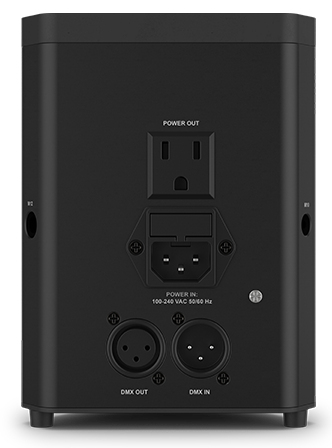

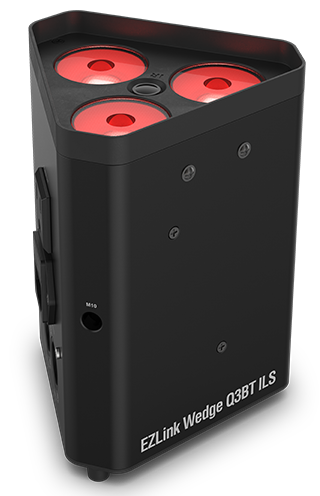

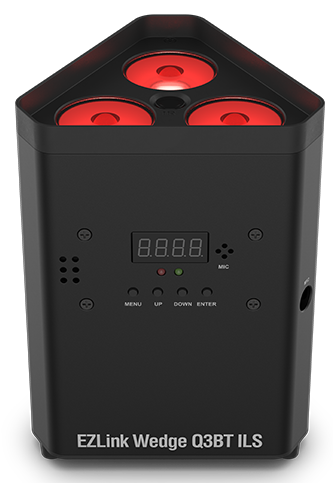

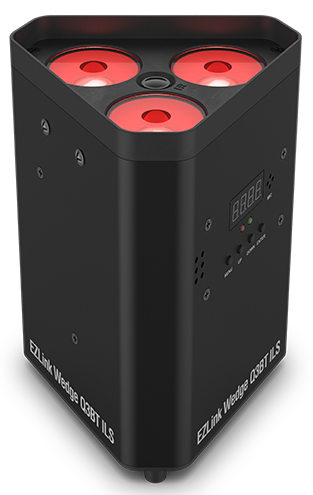

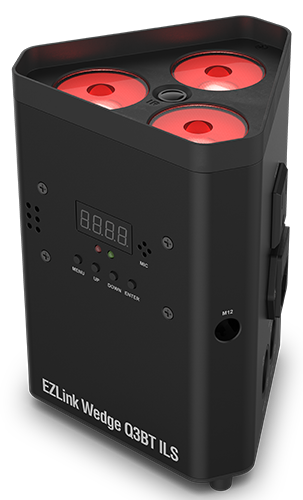

EZlink Wedge Q3BT ILS

The EZlink Wedge Q3BT ILS is a battery powered par. It is easy to control wirelessly as it is D-Fi compatible. This is a great option for someone who wants quick setup times and does smaller events.

From the Manufacturer:

EZLink Wedge Q3BT ILS is a 100% TRUE wireless, battery-operated, quad-color (RGBA) LED wash light solution. Its wedge-shaped design makes it the ideal fixture for venue corners, Trusst Goal Post and Arch Kit truss systems. Enjoy a wide range of control options including the IRC-6 remote, ILS, Bluetooth, and DMX. Generate a broad spectrum of colors and achieve natural-looking color temperatures throughout your event thanks to punchy amber LEDs.

Features:

• 100% TRUE wireless, battery-operated, quad-color (RGBA) LED wash light with built-in Bluetooth® wireless technology

• ILS compatibility for use in the ILS ecosystem

• Control directly from a smart phone or tablet without any additional hardware

• Convenient, wireless non-DMX control using the IRC-6 remote

• The wedge-shaped design makes it fit perfectly inside TRUSST® Goal Post and Arch Kit truss systems

• Generate a broad spectrum of colors and achi66.8eve natural-looking color temperatures with punchy amber LEDs

• Attaches to truss without the need for a bracket, using M10 or M12 threaded rig points

• Save time running cables and extension cords by power linking multiple units

Specifications:

• DMX Channels:4 or 8

• DMX Connectors: 3-Pin XLR

• Light Source:3 LEDs (quad-color RGBA) 5 W, (1.4 A), 50,000 hours life expectancy

• Strobe Rate:0 to 20 Hz

• Beam Angle:13°

• Field Angle:25°

• Recharge Time:5 hours

• Illuminance:1,400 lux @ 2 m

• Power Linking:16 units @ 120 V; 23 units @ 230 V

• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)

• Weight:2 lb (0.9 kg)Size:4.3 x 4.3 x 6.8 in (109 x 109 x 171 mm)

• Approvals:CE, RoHS, UKCA, FC

• Optional Controllers: IRC-6Maximum

• Run Time (all on) (single color): up to 20 hours: up to 9 hours Maximum Run Time

• Bracket Mounting Hole: 13 mm

• Maximum Run Time (all on):: up to 9 hours

• Maximum Run Time (single color):: up to 20 hours

• Power and Current: 30 W, 0.5 A @ 120 V, 60 HzPower and Current: 28 W, 0.3 A @ 230 V, 50 Hz

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

What’s Included?

• Ovation Reve F-3

• Seetronic Powerkon power cord

• Gel frame holder (7.5 in/191 mm accessories)

• Gel frame

• 140mm Omega bracket with mounting hardware

Optional Accessories:

• Professional Clamps: CTC-50HC, CTC-50HCN

• Safety Cable: SC-07

• TRUE1 Style Power Extension Cables

• 3-pin or 5-pin DMX Cables

• RDM2go

• USB Jump Drive
