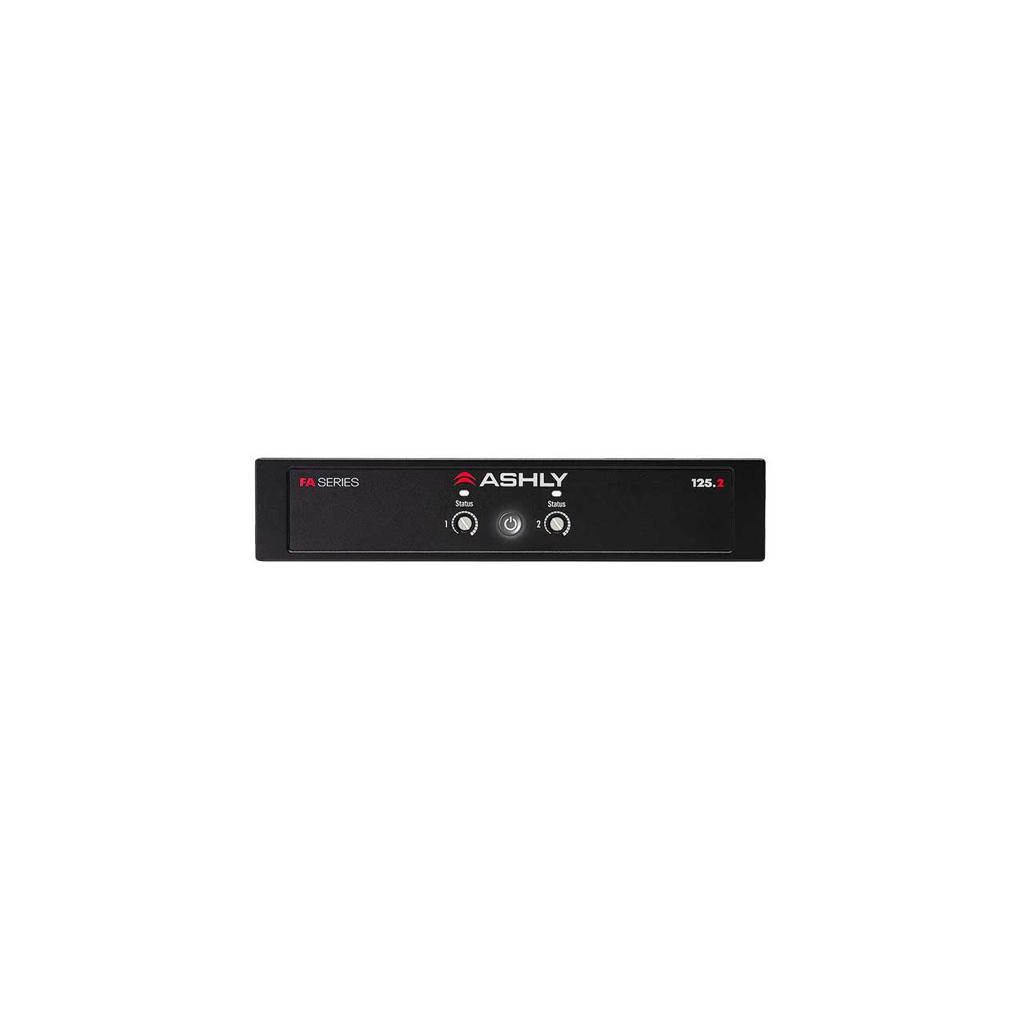

FA125.2 2-Channel Power Amplifier

The Ashly FA125.2 is a compact, two-channel Class D power amplifier designed for professional audio installations where space, efficiency, and flexible output configuration are important. It delivers 125 watts per channel and features dynamic power sharing, allowing available power to be distributed between the two channels when different loads require different amounts of power. Supporting low-impedance loudspeakers and 70V/100V distributed audio systems, the FA125.2 is suitable for conference rooms, retail spaces, hospitality venues, houses of worship, and other commercial installations.

From The Manufacturer:

Ashly's FA Series combines high-density Class D amplification with a compact half-rack-width chassis. The series is designed to provide reliable amplifier performance in installations where traditional rackmount amplifiers may be too large.

The FA125.2 incorporates power-sharing technology that allows up to 250 watts to be allocated across its two output channels, subject to the manufacturer's operating conditions. It also features quiet active cooling, automatic DSP protection functions, remote control connections, and energy-saving standby operation. Its selectable low-impedance and high-impedance modes support a variety of loudspeaker installations.

Key Features:

• Two-channel Class D power amplifier.

• 125 watts per channel with both channels driven under rated conditions.

• Dynamic power sharing of up to 250 watts across the two channels.

• Supports 4Ω and 8Ω low-impedance loudspeaker loads.

• Supports 70V and 100V constant-voltage loudspeaker systems.

• Supports 25V operation.

• Compact half-rack-width chassis.

• Quiet active cooling system.

• Built-in 80Hz high-pass filter for high-impedance operation.

• Integrated clip limiter.

• Front-panel input-level controls and status indicators.

• Switchable input sensitivity.

• Remote GPIO connections for level control, standby, and fault status.

• Front-panel control lockout.

• Automatic sleep and wake functionality.

• USB port for firmware updates.

• Protection against overheating, output DC, excessive output power, and AC mains faults.

Specifications:

• Brand: Ashly.

• Model: FA125.2.

• Product type: Professional power amplifier.

• Amplifier class: Class D.

• Number of channels: 2.

• Rated output power at 4Ω: 125W per channel.

• Rated output power at 8Ω: 125W per channel.

• Rated 70V output: 125W per channel.

• Rated 100V output: 125W per channel.

• Power-sharing capability: Up to 250W total across the two channels under supported operating conditions.

• 25V operation: Supported.

• Input sensitivity: Switchable between -10dBV and +4dBu.

• Low-impedance voltage gain at -10dBV sensitivity: 43.1dB.

• Low-impedance voltage gain at +4dBu sensitivity: 31.3dB.

• Input connectors: Removable Euroblock connectors.

• Speaker output connectors: Removable two-pole Euroblock connectors, one per channel.

• Remote connections: GPIO for DC level control, standby, and fault status.

• Firmware interface: USB.

• Power supply: Universal AC switching power supply.

• AC input: 100–240V AC, 50–60Hz.

• Cooling: Adaptive active fan cooling.

• Protection: Over-temperature, output DC, output over-power, AC mains voltage, and mains fuse protection.

• Compliance: UL, Energy Star, CE, FCC Class B, and RoHS.

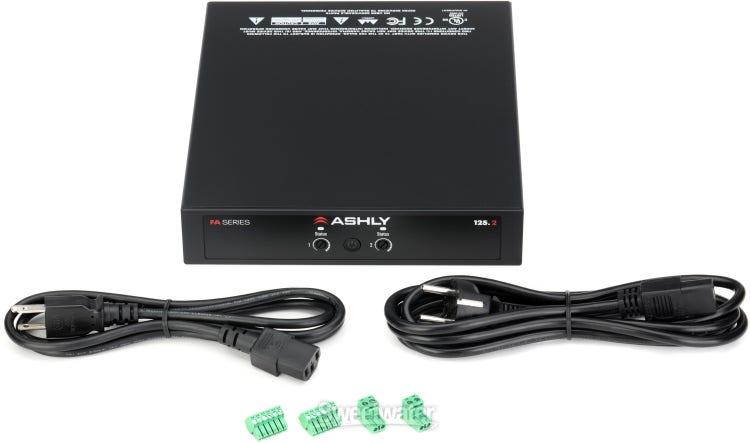

Included Accessories:

• AC power cable.

• Other supplied accessories should be confirmed with the distributor.

Applications:

• Conference rooms and meeting spaces.

• Corporate offices and boardrooms.

• Retail stores and shopping centres.

• Hotels and hospitality venues.

• Houses of worship and church sound systems.

• Educational facilities.

• Commercial background music systems.

• Public-address installations.

• Small venues and presentation spaces.

• Distributed audio systems using compatible 25V, 70V, or 100V loudspeakers.

Included Accessories:

• AC power cable, subject to the supplied regional package.

• Additional accessories: Confirm with the supplier.

Accessories (Not Included):

• Rackmount kit.

• Wall or surface-mounting bracket.

• Loudspeakers.

• Audio signal cables.

• Loudspeaker cables.

• Remote level controller.

• External audio processing equipment, if required.

• Additional installation hardware.

Size:

• Width: 220mm (8.66 inches).

• Height: 43.7mm (1.72 inches).

• Depth: 262mm (10.32 inches).

• Form factor: Half-rack width.

• Rack installation: Optional mounting hardware is available.

Weight:

• Net weight: Approximately 1.61kg (3.55lb).

• Shipping weight: Confirm with the supplier.

Electrical/Thermal:

• AC input: 100–240V AC, 50–60Hz.

• Power consumption in sleep mode: Less than 0.5W.

• Idle power consumption in low-impedance mode: Approximately 8W.

• Idle power consumption in high-impedance mode: Approximately 13W.

• Power consumption at one-eighth rated output into 4Ω: Approximately 52W.

• Power consumption at one-eighth rated output into 8Ω: Approximately 49W.

• Thermal dissipation at one-eighth rated output into 4Ω: Approximately 72BTU/hour.

• Cooling: Adaptive active cooling.

• Operating temperature: 0°C–40°C, non-condensing.

• Energy-saving features: Automatic sleep and wake functionality.
