FLARIS 1XK IP65 RGBW+WW Hybrid Strobe

The Volus Flaris 1XK high-powered strobe/wash light delivers amazing effects and color mixing with motorized tilt for the ultimate in flexible strobe lighting.

From the Manufacturer

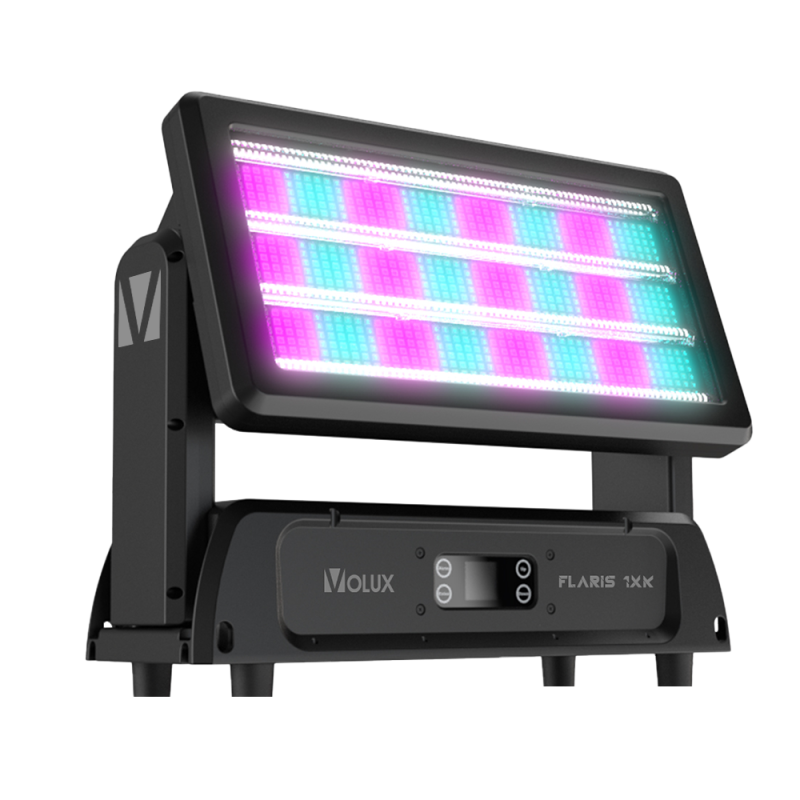

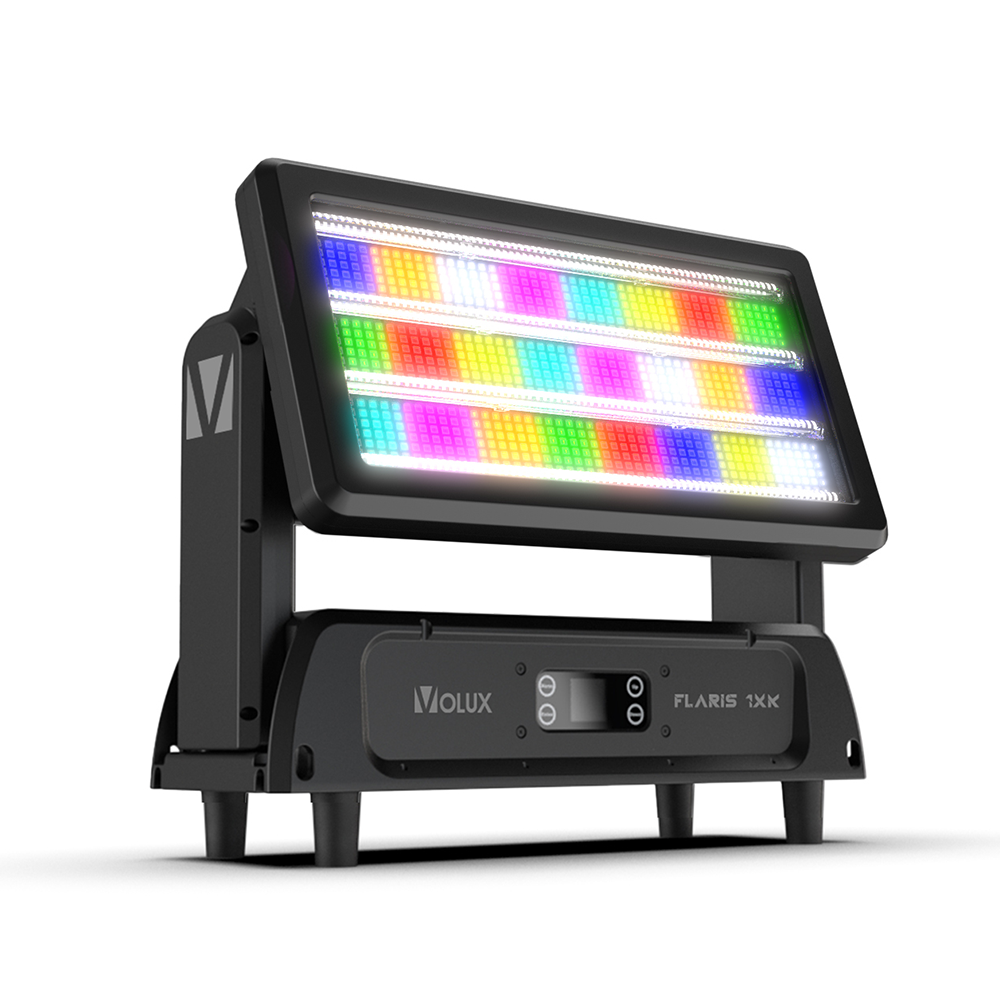

FLARIS 1XK is a high-powered, IP65-rated motorized strobe/wash light that integrates four ultra-bright white light strobe tubes along with three RGB+WW pixel plate segments that deliver incredibly rich effects and vibrant color mixing. The strobe elements offer up to 96 total mappable zones, while the plate segments can be mapped into 24 zones for energetic, creative pixel effects with built-in macros. The pixel plate integrates a dedicated 3,000K warm white LED color to offer expanded blinder functionality that can be combined with the RGB colors to deliver a near-pure white output to match the strobe elements for ultra-intense output. Its motorized tilt offers 180 degrees of range and can be controlled via DMX, Art-Net, and sACN with various modes for ease of programming.

Features

Powerful Strobe Elements: 4x Strobe Tubes, Mappable into 96 Zones

RGB+WW Pixel Plate Elements: RGB+Warm White Pixel Plate, Mappable into 24 Zones

Motorized Tilt: 180 Degree Tilting Range

Robust Design: IP65 Outdoor Rated, CM4 Coastal Approved (Temporary Use)

• 4 x Cool White Strobe Tube Elements w/ 96 Pixel Mappable Zones
• 3 x  RGB+Warm White Pixel Plate Segments w/ 24 Pixel Mappable Zones
• 110,000 Combined Lumen Output
• 180-Degree Motorized Tilt

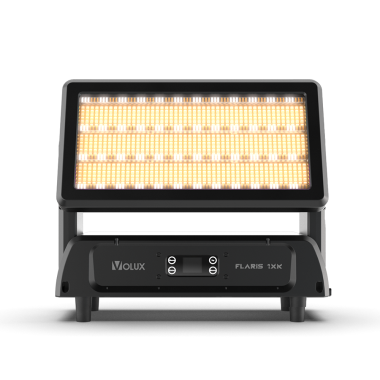

• Dedicated Warm White (3,000K) on Pixel Plate w/ Color Temperature Control
• High-Speed 1-30 FPS Electronic Strobe
• 16-Bit Dimming w/ 4 Selectable Dimmer Curves
• Built-In Eye-Candy Effect Macros
• Red Shift Emulation
• DMX / Art-Net / sACN Control + RDM
• 9 Control Personalities including Emulation Modes
• Alignment Pins for Multi-Unit Arrays
• PowerCon TRUE1 Connections
• 5-Pin XLR Connection
• IP-Rated EtherCON Connection

Specifications

OPTICAL

• Source (Center Strobe): 576 x Cool White LED
• Source (Pixel Plate): 864 x SMD5050 RGB + Warm White (3,000K)
• CRI: 90‚â•
• Color Temperature: 3,000 - 7,500K
• Luminous Flux (Strobe): 98,400 lm
• Luminous Flux (Plate @ Full, all colors): 61,640  lm
• Lumens (Combined All @ Full): 110,660 lm
• Source Life Expectancy: 50,000 Hours
• Beam Angle (Strobe Tubes): 100¬∞
• Beam Angle (Pixel Plate): 120¬∞

COLOR SYSTEM

• Color Spectrum: RGBW + Warm White
• Pixel Zones: 96 (Strobe) + 24 (Plate)
• Variable CTO: Yes
• Virtual Color Swatch
• Macros: Built-In Programs for Strobe & Pixels with Speed Adjustment

DYNAMIC EFFECTS

• Dimming Resolution: 16-bit Dimming
• Dimmer Curves: 4 + Red Shift Emulation
• Adjustable PWM: Yes
• Stand-Alone Mode: Selection of Static Color & FX
• Built-in Automated Programs: Yes
• Shutter/Strobe: 0.3 - 30Hz

BODY

• Body: Die-Cast Magnesium
• Body Color: Black

CONTROL

• Protocols: DMX512, Art-Net, sACN RDM
• DMX Channels: 18 / 33 / 56 / 68 / 76 / 112 / 114 / 138 / 208 CH
• Artnet Modes: 18 / 33 / 56 / 68 / 76 / 112 / 114 / 138 / 208 CH
• Display: High-resolution LCD Display

OPERATION

• Dimmer: 16-bit linear 0 ~ 100% electronic dimmer
• Strobe / Shutter: 0.3 - 30 Hz, electronic
• Operating Temperature: -4 ¬∞F ~ 113 ¬∞F
• LED Control: Adjustable PWM, flicker-free operation

ELECTRICAL

• Power Supply: 100-240V - 50/60Hz
• Max Power Consumption (Dynamic): 1,200W
• Max Strobe Power: 1,700W
• Power factor: >0.96

PHYSICAL

• Ingress Protection Rating: IP65, outdoor/wet + CM4 (Temporary Outdoor Use, Temporary Coastal Approved)
• Cooling: Forced Air Heatsink
• Signal connection: IP-Rated 5-Pin XLR IN/THRU + IP-Rated RJ45 IN/THRU
• Power connection: TRUE1 Compatible IP65 Power Connector
• Dimensions (WxHxL): 19.4‚Ä≥ x 14.7" x 6.8"
• Weight: 31.7lbs / 14.4kg

What's Included

• FLARIS 1XK Strobe
• IP65 Master Power Cable
• 5-Pin XLR Cable
• (2x) Omega Bracket
• Safety Cable

Optional Accessories

• RJ45 Data Linking Cables
• Trigger Clamp
• 4-Unit Flight Case
