Sku: FOC369

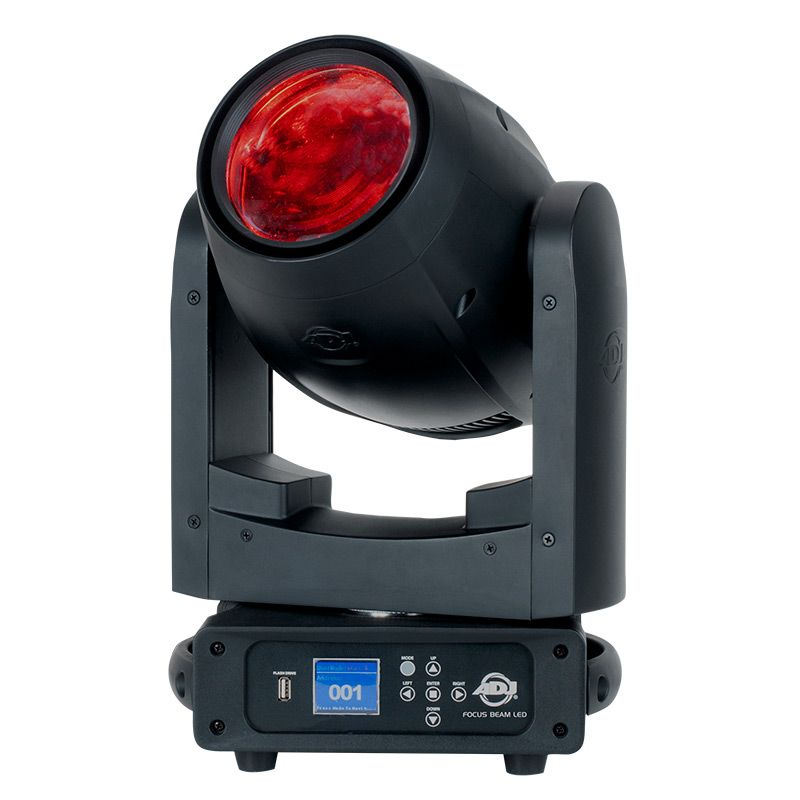

Focus Beam LED

Regular price
$1,579.99
Regular price
Sale price
$1,579.99
Shipping calculated at checkout.
Vendor: ADJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Description

Caret Down

This fixture is intended to be used with other Focus Series moving heads, and is powered by an 80W LED engine to produce a powerful 7400K, 2.5-degree beam from an advanced optical system. It also has several different control options including DMX & RDM. This is a great option to elevate your lighting game.

From the Manufacturer:

The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 2.5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear), and it has a built-in in frost filter for wash effects.

There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of dimming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.

The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect.

There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 5-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.

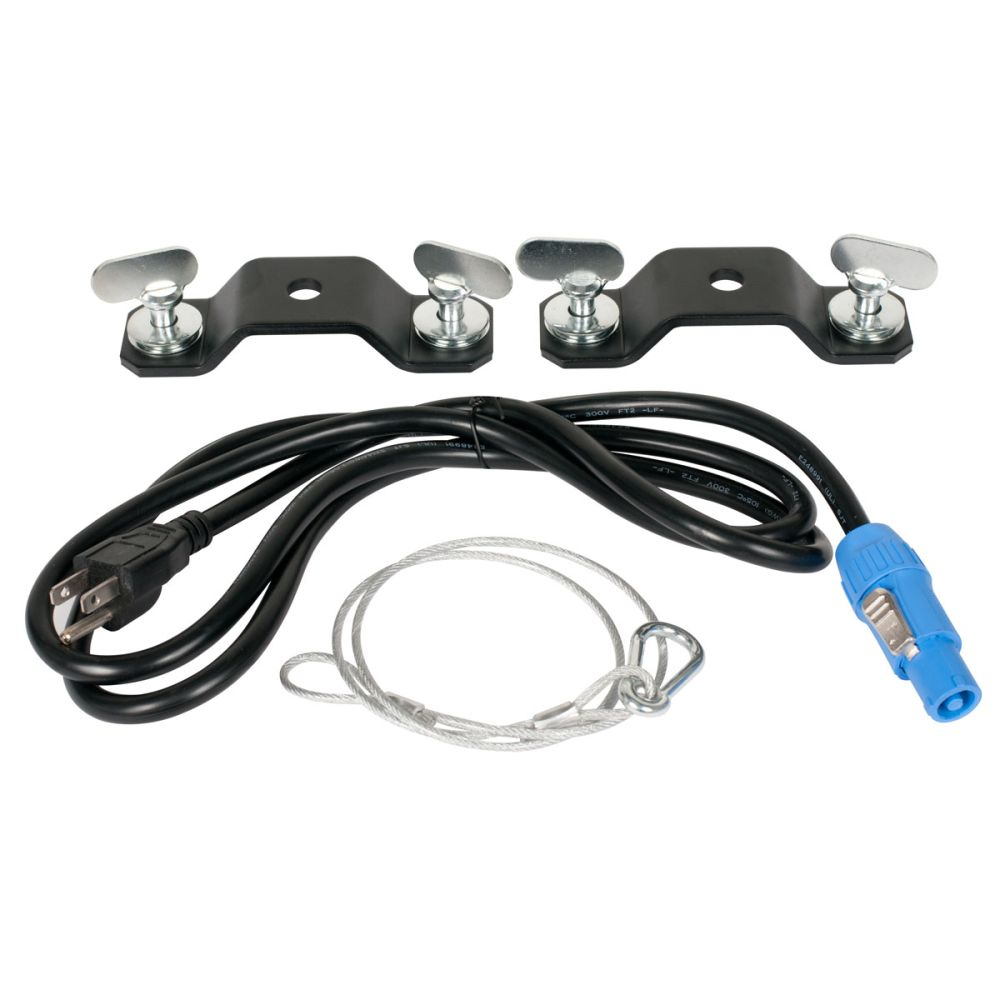

In the Box:

  • (1) Focus Beam LED

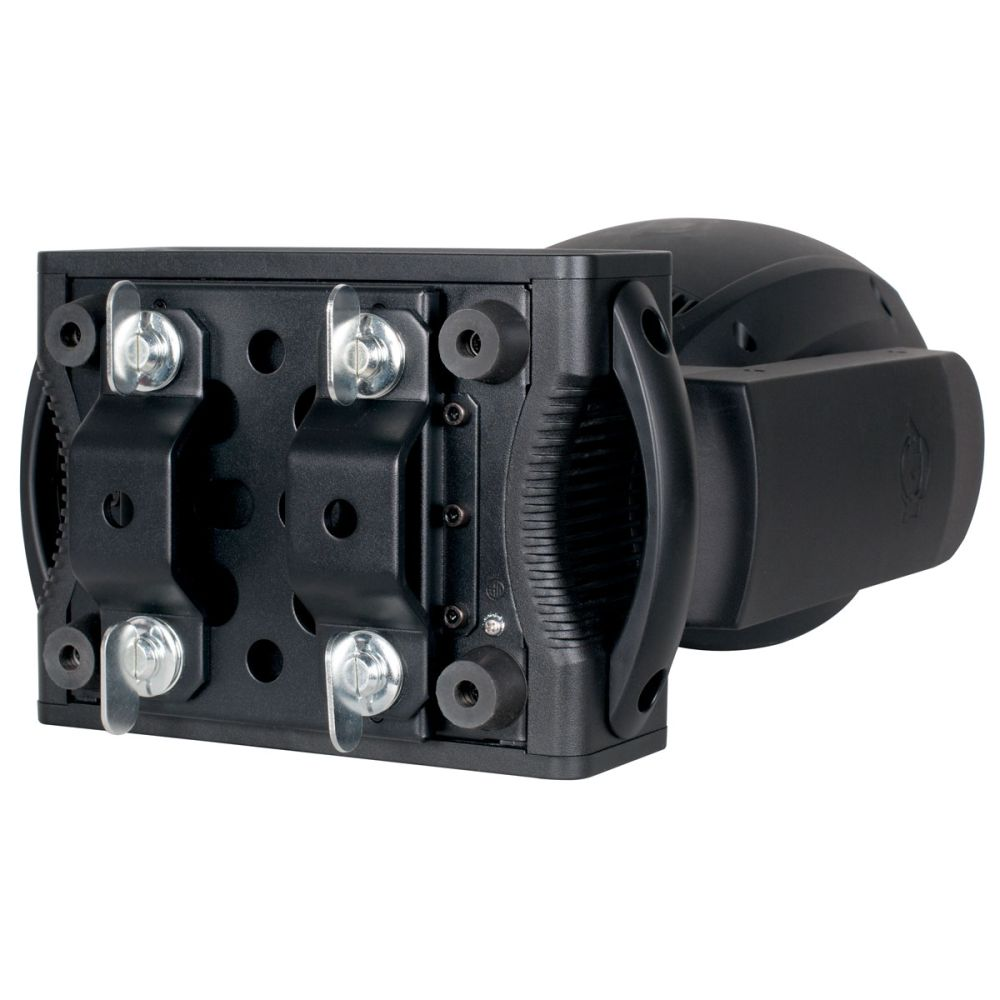

  • (2) Omega Brackets
  • (1) Seetronic Power Locking Power Cable

Features:

  • Control Protocol: DMX & RDM (Remote Device Management)
  • DMX Modes: 2 (16 & 18)
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Speed control (0.1~10 Seconds)
  • Dimming: 0 - 100%
  • Strobe & pulse control
  • Motorized Focus
  • Linear Frost 0-100% (Wash effect)
  • 2 Prisms: 6 & 8 Facet, Indexable and Rotatable
  • USB firmware update port
  • Adjustable LED Refresh Rates (900~25k Hz)
  • Adjustable Gamma Settings (1.0-2.8)
  • With Wired Digital Communication Network

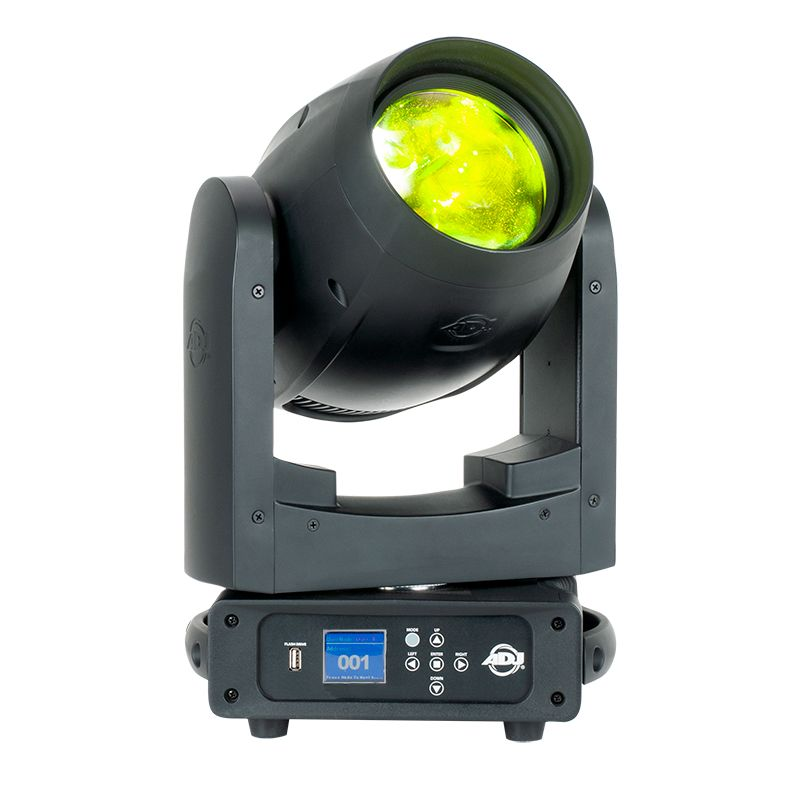

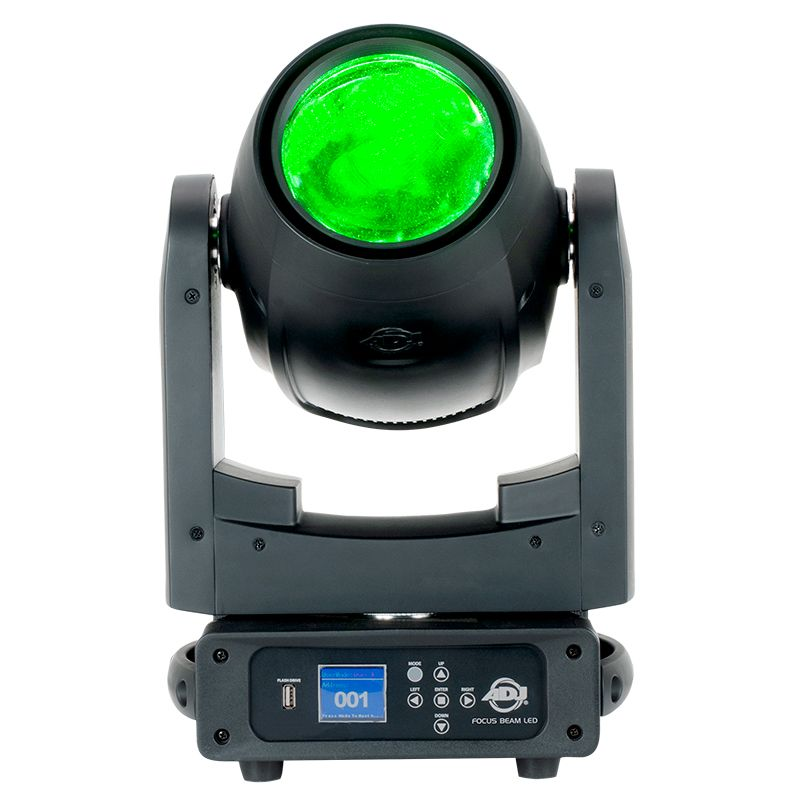

  • Display: Touch display with 5-button touch menu

Light Source:

  • 1x 80W Cool White LED Engine
  • 2.5° Beam Angle
  • Color Temperature: 7400K
  • 50,000 Hour Average LED Life

Color Wheel:

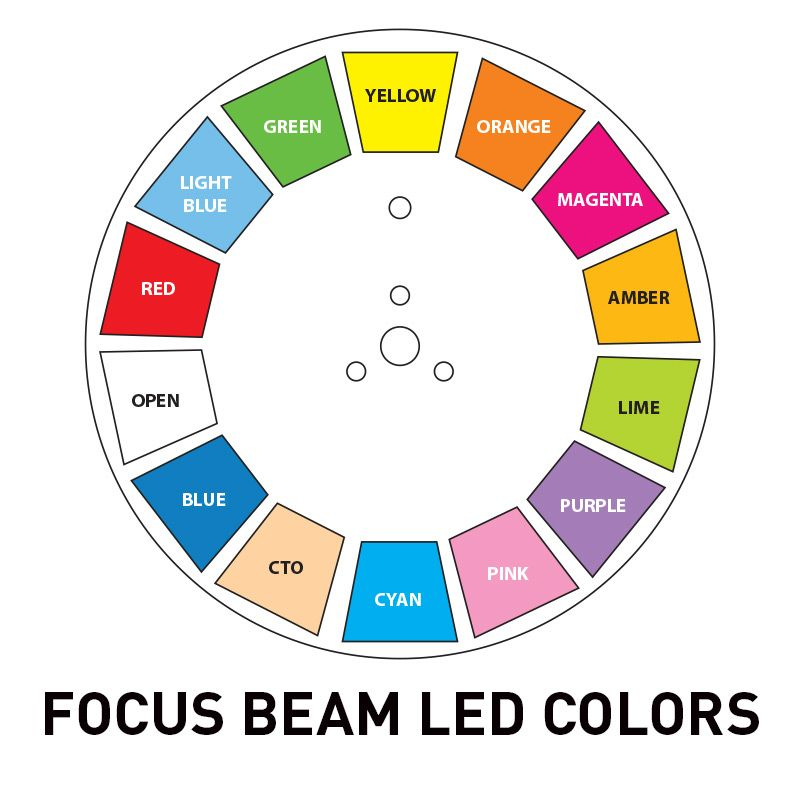

13 dichroic colors + white

GOBO Wheel:

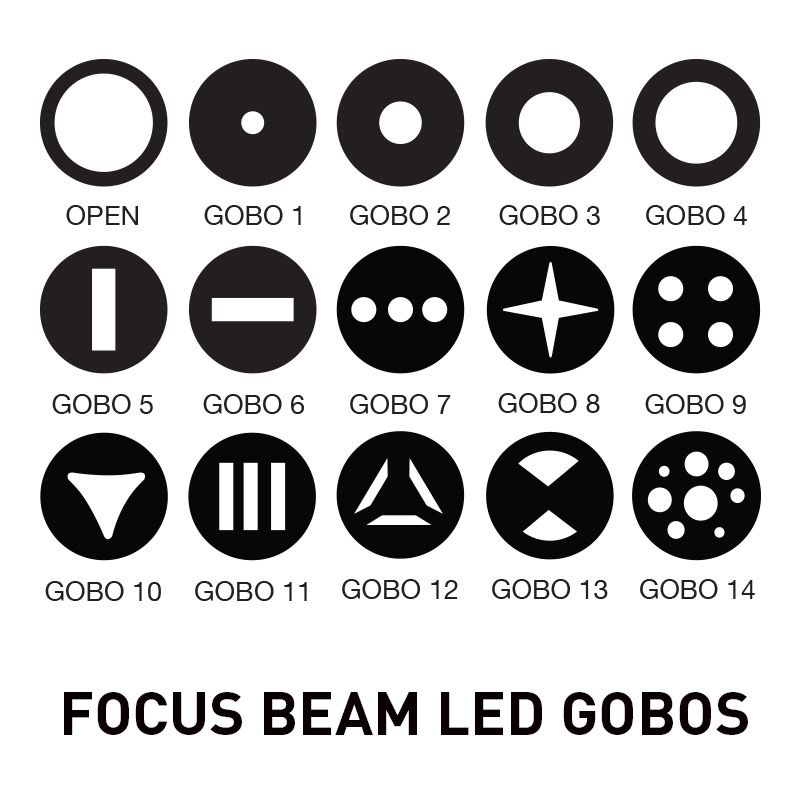

Metal wheel with 15 fixed GOBOs + Open GOBO shake effect

Prism Wheel:

  • Prism Wheel 1: Rotatable 8-facet Circular
  • Prism Wheel 2: Rotatable 6-facet Linear
  • Prism Indexing with overlay feature

Control:

  • Control Modes: DMX512, RDM (Remote Device Management) & Stand Alone Internal Programs
  • 2 DMX Channel Modes: 16 & 18 channels
  • 16-Bit Pan, Tilt & Dimmer control

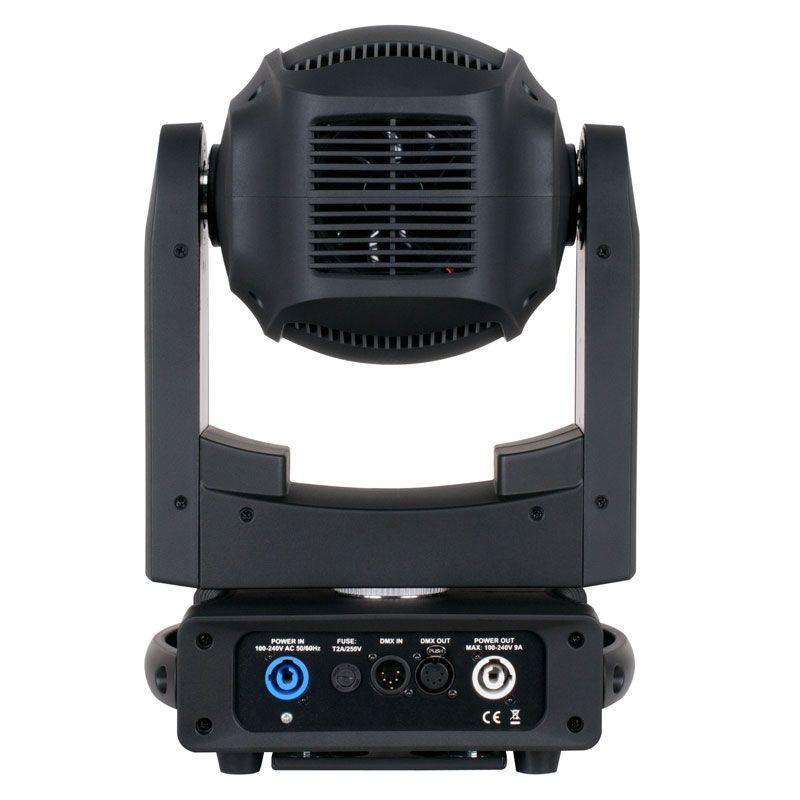

Connections:

  • DMX Connections: 5-pin Locking XLR In & Out
  • Power Connections: Seetronic Locking Power In & Out

Pan/Tilt:

  • Pan & Pan Fine: 630 degrees
  • Tilt & Tilt Fine: 270 degrees



    Tech Specs

    Optics:

    Light Source Type: Cool White LED Engine

    Light Source Wattage: 80Ww

    Minimum Beam Angle: 2.5°

    Control

    DMX Channel Modes: 16 / 18

    DMX 3-Pin Connectors?: Yes

    DMX 5-Pin Connectors?: Yes

    Physical:

    Length: 10.96 in

    Width: 7.55 in

    Height: 17.61 in

    Weight: 27 lb

    Electrical

    Voltage Range: 100 - 240 VAC 47/63 HzAC 100-240V, 50-60Hz (Auto Sensing)

    Maximum Wattage: 136w

    Power Cable Connector - Fixture Side: PowerCON True1

    Main Power Connector on Included Cable: Edison
