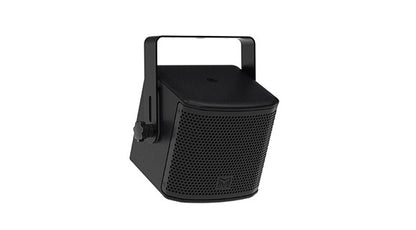

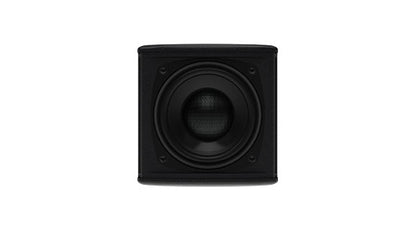

FP4 4" Passive 2-Way FlexPoint Loudspeaker

The FP4 is a Coaxial passive 2-way loudspeaker. It is a great option for those looking for a small enclosure that provides a high quality short-throw audio.

From the Manufacturer:

The FP4 is a point-source loudspeaker designed for short-throw distributed systems which require premium sound quality from a miniature enclosure. It delivers exceptional output and performance for its size and is ideal for installations requiring spot and fill coverage where space is limited. With a wide and smooth frequency response, it reproduces both speech and music effortlessly.

Features:

• Miniature, passive two-way loudspeaker

• High output capability relative to size

• Coaxial Point Source configuration

• Wide frequency response for quality speech and music reproduction

• 4” (100mm)/1.25” (32mm) voice coil LF driver

• 1” (25mm) polymer diaphragm/0.7” (18mm) exit HF driver

• 110° conical dispersion

• 3D prediction software [DISPLAY 3]

• Powered by iKON or VIA amplifiers

Applications:

• Fill and spot coverage where space is limited

• Theatres and churches requiring minimal visual intrusion

• Distributed systems in bars and restaurants

• Museum and gallery installations

• Immersive sound spaces

• Portable corporate AV events

Specifications:

• Product Name

• FP4

• Type

• Coaxial passive 2-way

• Crossover Frequency

• 2.6kHz

• Frequency Response  - 4π

• 142Hz - 18kHz

• ± 3dB, -10dB @103Hz with preset

• Drivers

• LF: 4", 1.25" Voice coil, Ferrite Motor HF: 0.7" exit, 1" Voice coil, Coaxial HT polymer dome compression driver

• Sensitivity  (4V 1m free-field)

• 84dB

• Nominal Impedance

• 16 Ohms

• Rated Power

• 60W AES, 240W peak

• Maximum SPL

• 102dB Cont, 108dB Peak (6dB)

• Dispersion (-6dB)

• 110° conical

• Connectors

• NL4MPXX speakons (pair), Pheonix terminal block 1725302

• Pin Connections (Input)

• 1+ / 1-

• Pin Connections (Link)

• 1+/- and 2+/-

• Fittings

• 4 x M6 inserts, 1 x 3/8” (mic stand) fixing point

• Dimensions

• (W) 130mm, (H) 130mm, (D) 126mm (W) 5.1ins, (H) 5.1ins, (D) 5.0ins

• Weight

• 1.9kg (4.2lbs)

• Volume

• 0.8L
