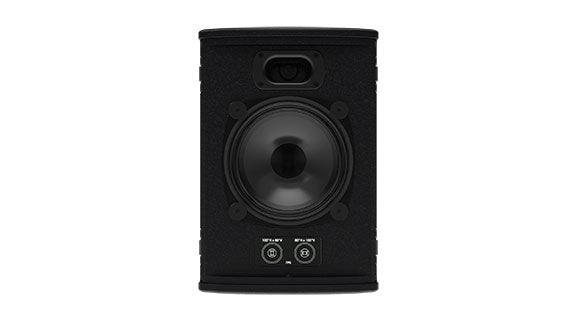

FlexPoint FP6 Loudspeaker

The FP6 is a compact Wall mount speaker. It is design for high output short-throw applications. It is a great option for foreground or background applications.

From the Manufacturer:

The FP6 is a premium, ultra-compact point-source loudspeaker designed for short-throw applications which require superb sonic performance and coverage consistency from an extremely small enclosure. With full-frequency response and exceptional output capabilities for its size, it is ideal for installation in small spaces and areas which require spot and fill coverage.

Features:

• Ultra-compact, passive two-way loudspeaker

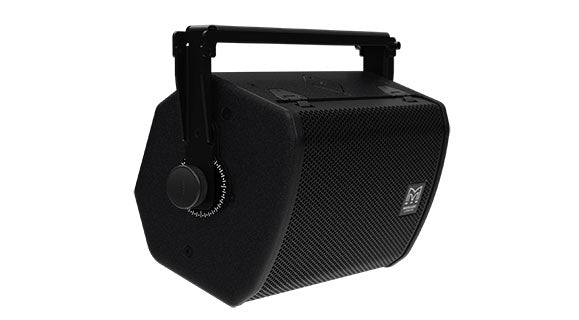

• Versatile, multi-angle enclosure with flexible mounting options

• Coaxial Point Source configuration with user-rotatable drive unit

• 6” (150mm)/1.75” (44mm) voice coil, low distortion, neodymium LF driver

• 1.4” (36mm) polymer diaphragm/0.7” (18mm) exit HF driver

• 100° H x 80° V dispersion

• Quick-release steel grille

• 3D prediction software [DISPLAY 3]

• Powered by iKON or VIA amplifiers

Applications:

• Fill and spot coverage

• Under balcony fill

• Theatres and churches

• Distributed systems in bars and restaurants

• Museum and gallery installations

• Immersive sound spaces

• Portable corporate AV events

• Discreet stage monitor

Specifications:

• Product Name

• FP6

• Type

• Coaxial passive 2-way

• Crossover Frequency

• 2.3kHz

• Frequency Response - 4π

• 73Hz - 20kHz ± 3dB, -10dB @57Hz with preset

• Drivers

• LF: 6", 1.75" Voice coil, Neodymium Motor with flux stabilising ringsHF: 0.7" exit, 1.4" Voice coil, Coaxial HT polymer dome compression driver

• Sensitivity (4V 1m free-field)

• 1dB

• Nominal Impedance

• 16 Ohms

• Rated Power

• 150W AES, 600W peak

• Maximum SPL

• 113dB Cont, 119dB Peak (6dB)

• Dispersion (-6dB)

• 100° H, 80° V

• Connectors

• NLT4MPXX-BAG speakons (pair)

• PIN Connections (Input)

• 1+ / 1-

• PIN Connections (Link)

• 1+/- and 2+/-

• Fittings

• 4 x M10, 15 x M6 fixing points, 1 x 3/8” (mic stand) fixing point

• Dimensions

• (W) 321mm, (H) 220mm, (D) 197mm (W) 12.6ins, (H) 8.7ins, (D) 7.8ins

• Weight

• 5.5kg

• 12.1lbs

• Volume

• 7L
