FlexPoint FP8 Loudspeaker

The FP8 is a high quality install speaker. It is a great option for portable or install applications.

From the Manufacturer:

The FP8 is a premium, ultra-compact point-source loudspeaker designed for short-throw applications which require superb sonic performance and coverage consistency from a small enclosure. With full-frequency response and exceptional output capabilities for its size, it is ideal for a wide variety of touring and install applications.

Features:

• Ultra-compact, passive two-way loudspeaker

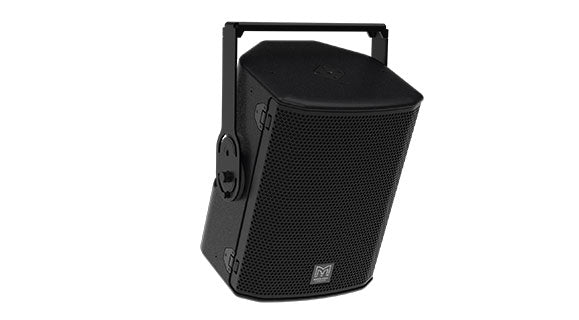

• Versatile, multi-angle enclosure with flexible mounting options

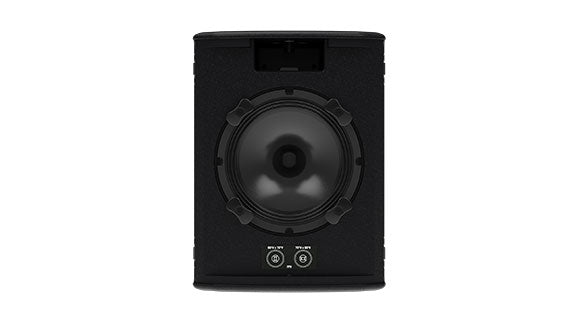

• Coaxial Point Source configuration with user-rotatable drive unit

• 8” (200mm)/2” (50mm) voice coil, low distortion, neodymium LF driver

• 1.7” (43mm) polymer diaphragm/1” (25mm) exit HF driver

• 90° H x 70° V dispersion Quick-release steel grille

• 3D prediction software [DISPLAY 3]

• Powered by iKON or VIA amplifiers

Applications:

• Fill and spot coverage

• Under balcony fill

• Theatres and churches

• Distributed systems in bars and restaurants

• Museum and gallery installations

• Immersive sound spaces

• Portable music playback and corporate AV events

• Stage monitoring

Specifications:

• Product Name

• FP8

• Type

• Coaxial passive 2-way

• Crossover Frequency

• 2.0kHz

• Frequency Response  - 4π

• 63Hz - 18kHz ± 3dB, -10dB @50Hz with preset

• Drivers

• LF: 8", 2" Voice coil, Neodymium Motor with flux stabilising ringsHF: 1" exit, 1.7" Voice coil, Coaxial HT polymer dome compression driver

• Sensitivity (2.83V 1m free-field)

• 94dB

• Nominal Impedance

• 8 Ohms

• Rated Power

• 250W AES, 1000W peak

• Maximum SPL

• 118dB Cont, 124dB Peak (6dB)

• Dispersion (-6dB)

• 90° H, 70° V

• Connectors

• NLT4MPXX-BAG speakons (pair)

• PIN Connections (Input)

• 1+ / 1-

• PIN Connection (Link)

• 1+/- and 2+/-

• Fittings

• 4 x M10, 15 x M6 fixing points, dual pole-mount socket, 2 x handle pockets

• Dimensions

• (W) 376mm, (H) 280mm, (D) 265mm (W) 14.8ins, (H) 11.0ins, (D) 10.4ins

• Weight

• 9.3kg

• 20.5lbs

• Volume

• 13L

• Accessories

• Separate landscape and portrait touring and install yokes, wall bracket, rigging bar and transit cover
