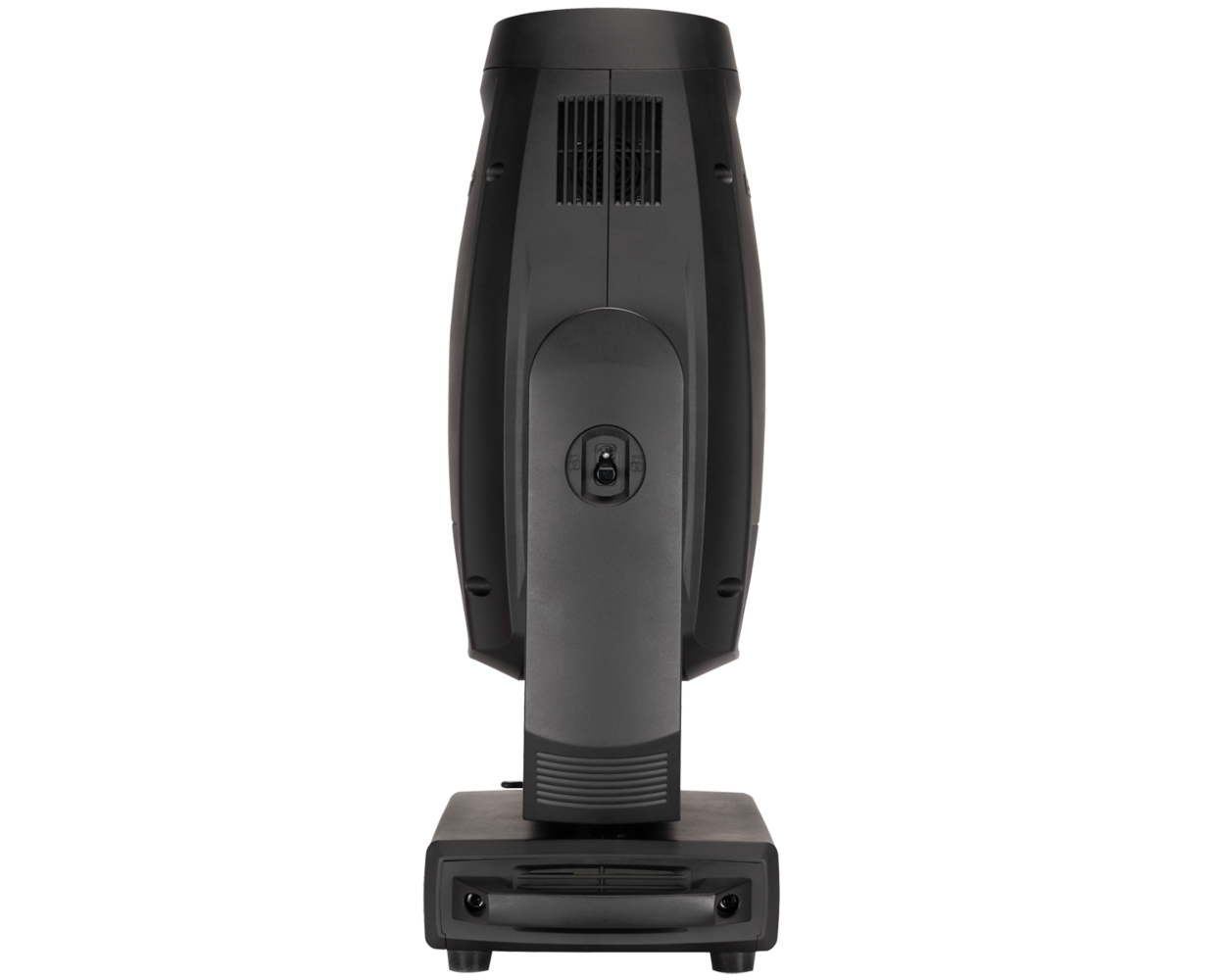

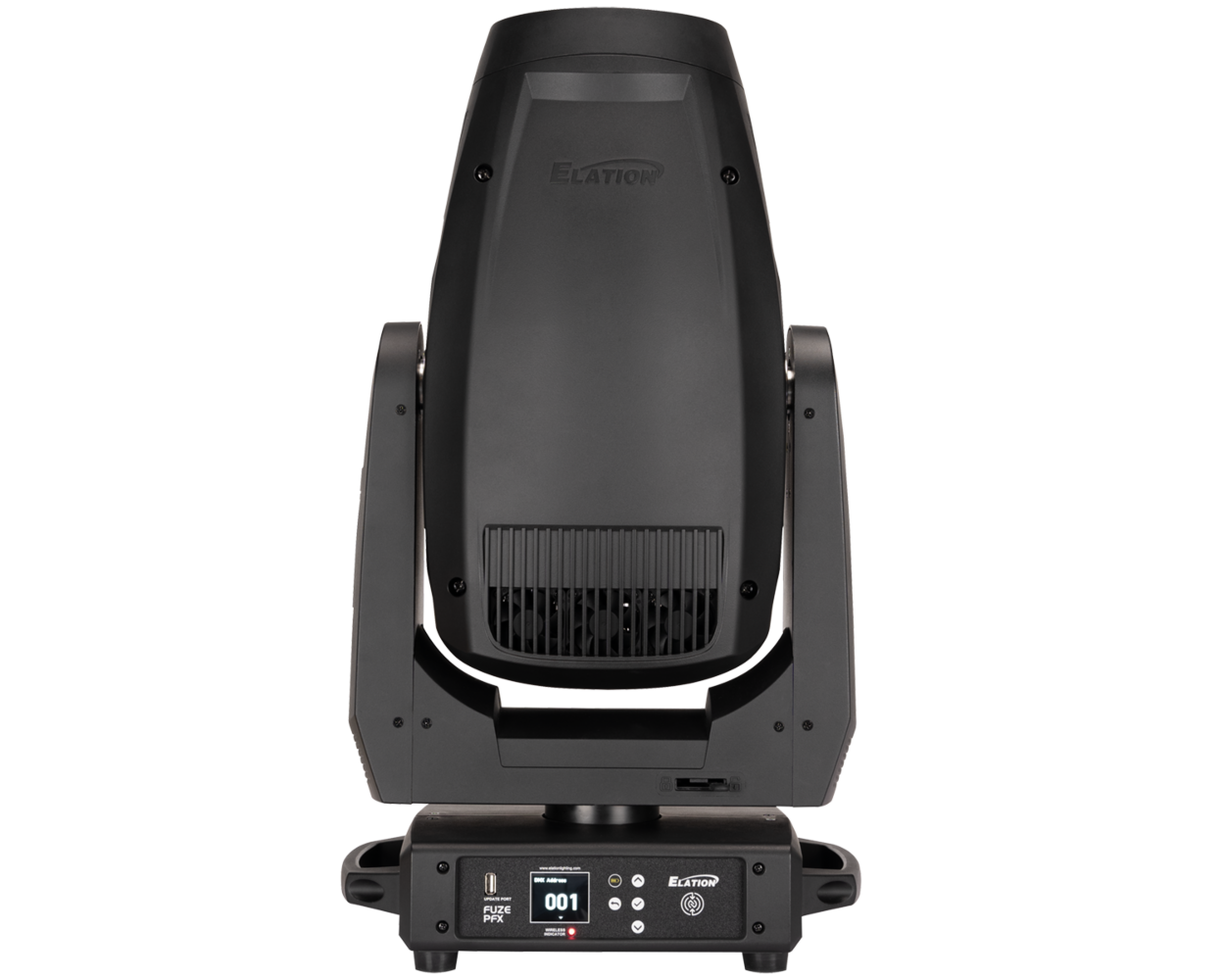

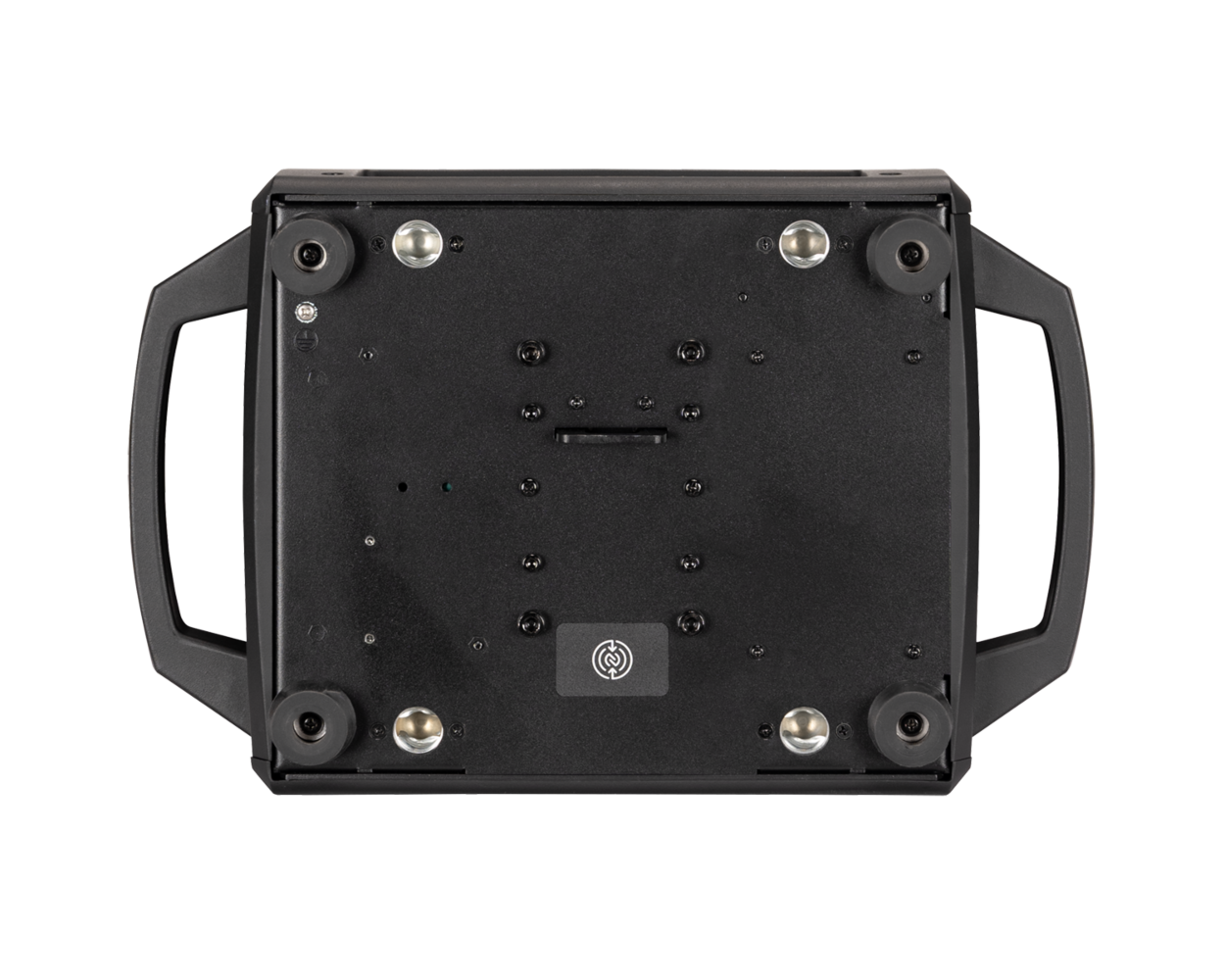

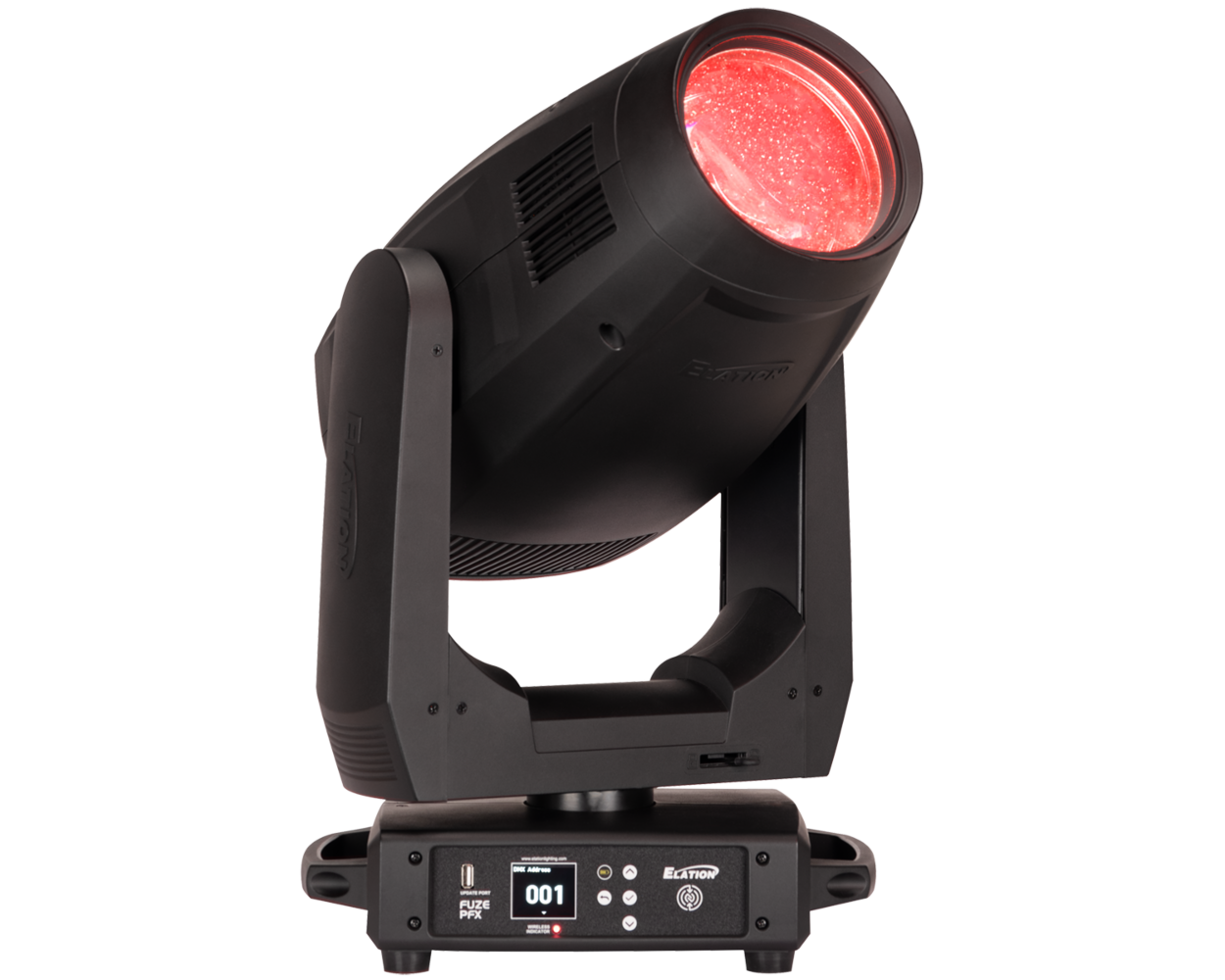

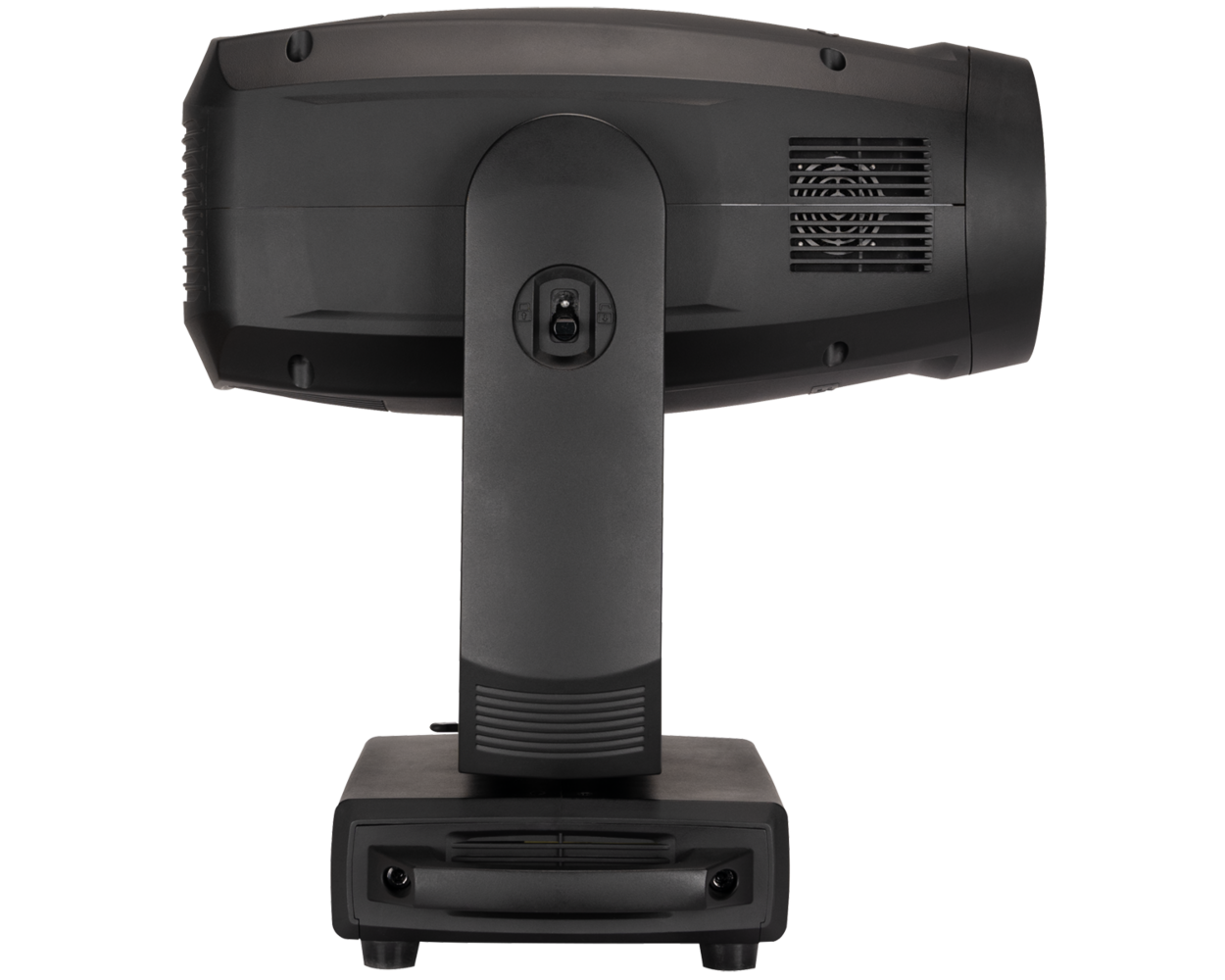

FUZE PFX

The Elation FUZE PFX is a unique LED Framing FX fixture, for lighting professionals looking for stunning special effects and multi-purpose functions from tight beams to wide washes.

From the Manufacturer:

The FUZE PFX™ is a unique LED Framing FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The PFX is capable of projecting tight beams, precise framing and wide washes using a highly efficient optical design while providing over 15000 lumens of output from its 400W white LED engine.

Housing 19 carefully designed gobos and a 3° to 53° zoom, the FUZE PFX can create stunning mid-air FX as easily as precise image projections. The PFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Full blackout framing blades allow shaping of the beam to highlight precise areas on the stage, and function as a creative mid air effect as well.  Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.

A truly remarkable compact powerhouse for any application, the FUZE PFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.

Features:

• 400W LED 6,600K White LED Engine
• 15000 Total Lumen Fixture Output
• Framing and Effects Fixture
• Zoom Range from 3° to 53°
• Variable CMY, CTO and 8-Position Color Wheel
• Dual High CRI Filters
• 7 Rotating and 11 Fixed Gobos
• Dual Independent Prisms for Layering
• Motorized Iris
• Soft and Wash Frost Filters

Specifications:

• SOURCE
  • 400W 6,600K Bright White LED Engine
  • 20,000 Hour Average LED Life*
    *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• PHOTOMETRIC DATA
  • 15000 Total Lumen Output
  • CRI 72 (Filter CRI 80, CRI 90)
  • Zoom Range 3° - 53°
  • Beam Angle
  • Field Angle
• EFFECTS
  • Motorized Zoom
  • 4 Rotating Full Blackout Framing Blades
  • +/-  60° Framing Index
  • 2 Variable Frost Filters (Light and Wash)
  • Dual Independent Prisms (6 Facet linear & 6 Facet round)
  • Motorized Iris
  • Variable 16-bit Dimming Curves
  • High Speed Electronic Shutter and Strobe
  • Pan Angle: 540°
  • Tilt Angle: 270°
• COLOR
  • CMY Color Mixing
  • Linear CTO Color Correction
  • 7 Dichroic Colors including UV Filter
  • High CRI Filter 80+90
• GOBOS
  • 7 Rotating / Indexing Interchangeable Glass Gobos
  • 11 Static Metal Gobos
• CONTROL / CONNECTIONS
  • DMX Channels
  • 16-bit Pan, Tilt, and Dimming Control
  • DMX Adjustable LED Frequency
  • DMX, Art-Net, sACN Protocol Support
  • RDM (Remote Device Management)
  • Aria x2 Wireless Device Management
  • 4 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display

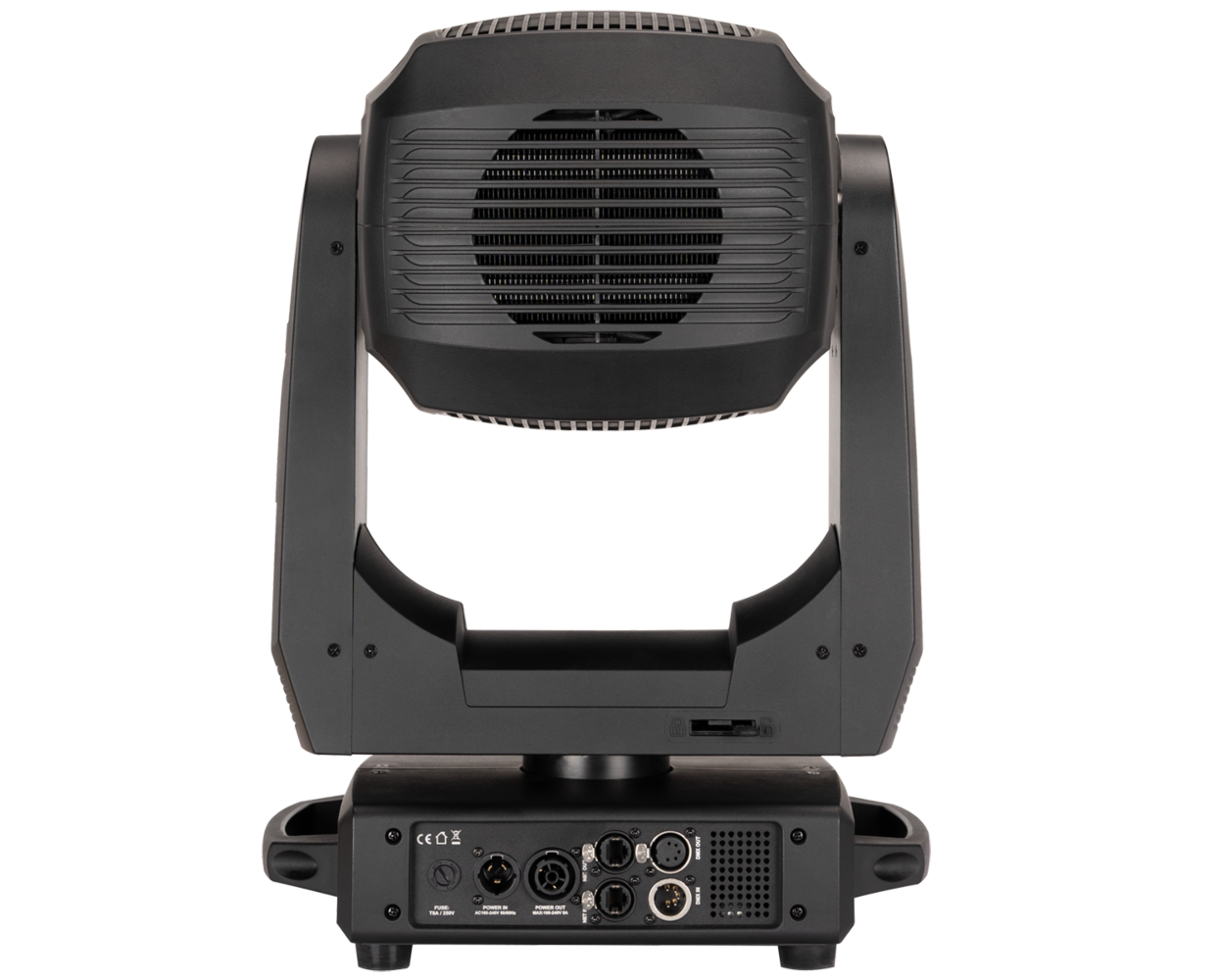

  • Locking 5pin XLR Connector In/Out
  • Locking RJ45 Ethernet Connector In/Out
  • IP65 Locking Power Connector In/Out
  • USB Connection (Firmware Updates)
• SIZE / WEIGHT
  • Length: 14.3” (362mm)
  • Width: 9.2" (233mm)
  • Vertical Height: 25.14" (637mm)
  • Weight: 50 lbs. (22.7kg)
• ELECTRICAL / THERMAL
  • AC 100-240V - 50/60Hz
  • 600W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)
  • BTU/hr (+/- 10%) 2047
• APPROVALS / RATINGS: CE | cETLus | FCC | UKCA | IP20
