Sku: FUZ625

Fuze Teatro

$11,128.00
$11,128.00
Sold out
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down
The Fuze Teatro is an impressive fixture with it's accurate colors and silent operation.

From the Manufacturer:

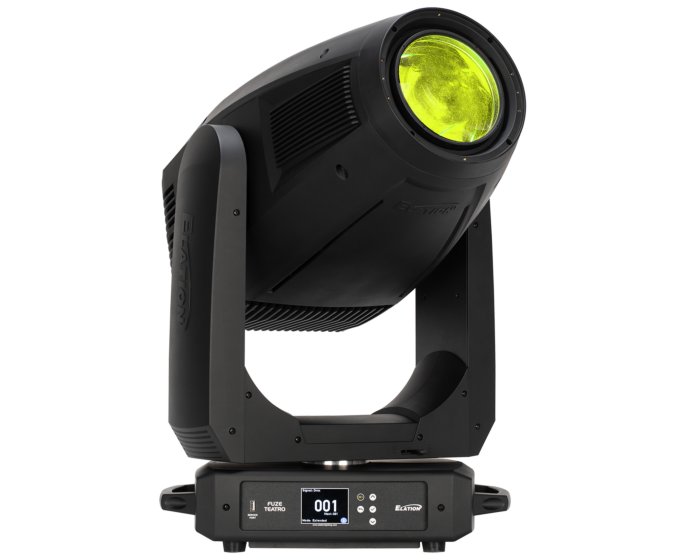

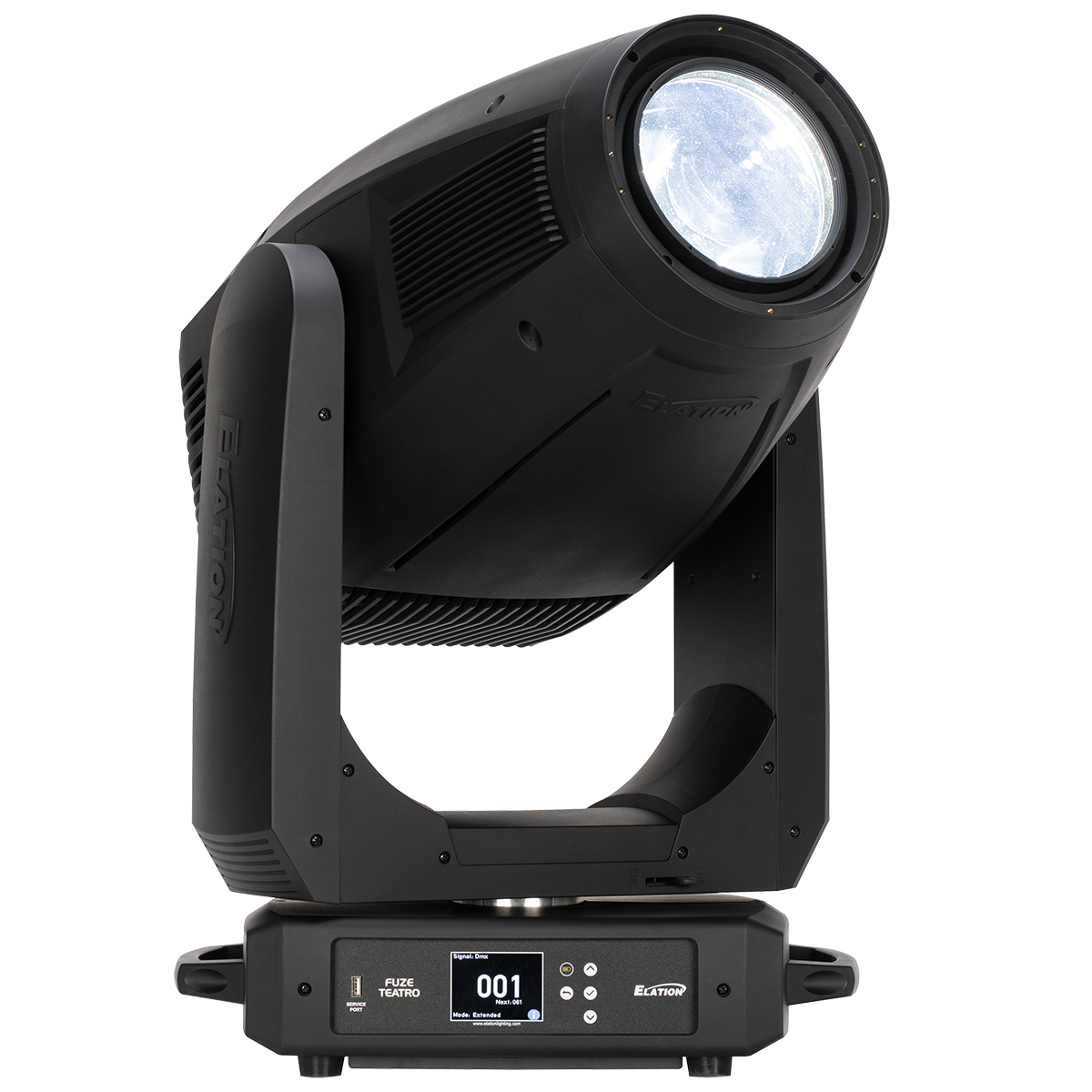

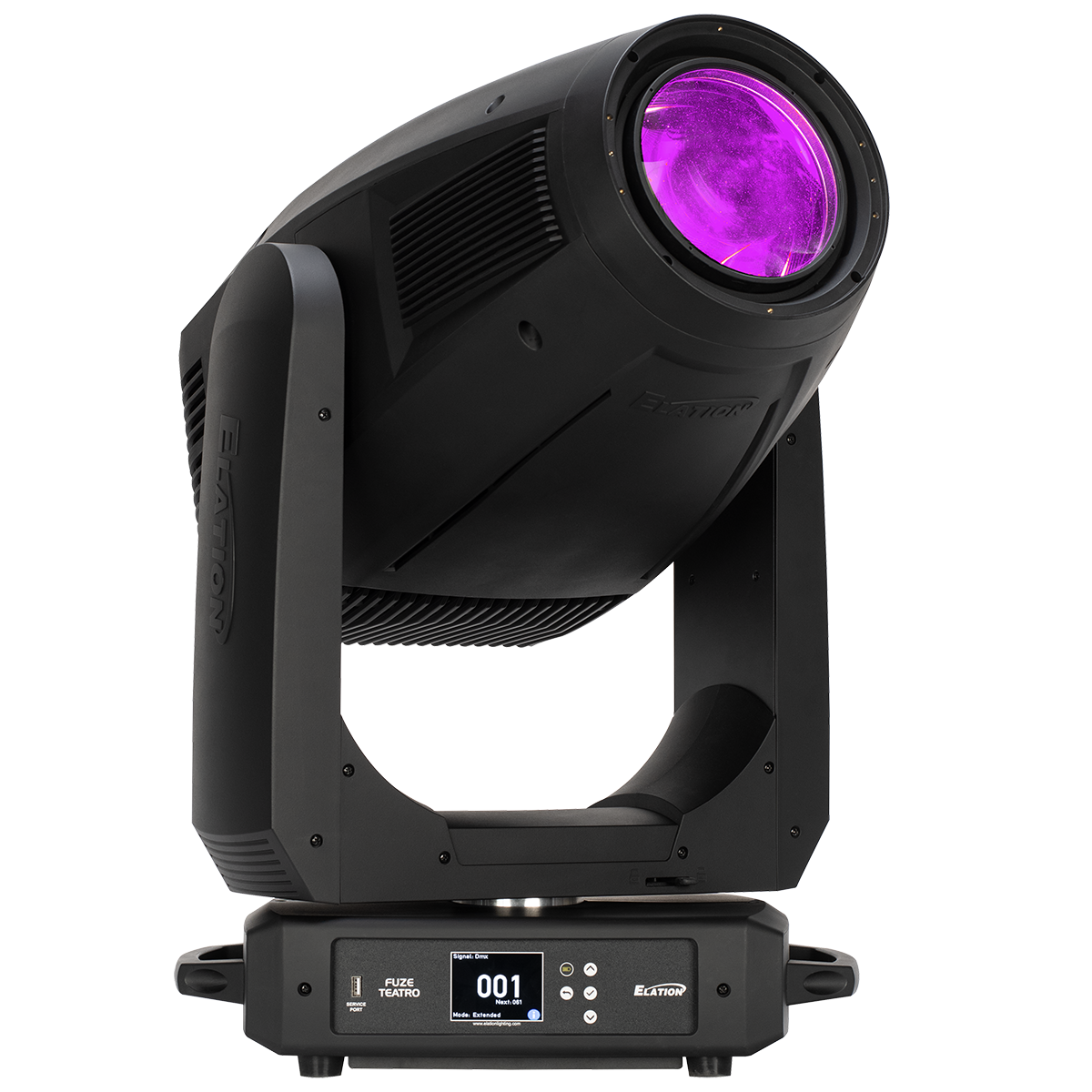

The Fuze Teatro is a silent fanless full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications.
The 92 CRI engine utilizes an 480W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of up to 15,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

The Fuze Teatro is designed for any application where a silent fully automated framing fixture with outstanding and compelling color range and quality is required. The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.

Dual rotating gobo wheels, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.

Features:

  • 100W Solid State Phosphor-Converted (SSPC) Light Engine
  • Compact and lightweight IP66 housing
  • Ultra Intense 0.9˚ Beam
  • Endless High-Speed 360 Pan and Tilt Movements
  • CMY Color Mixing CMY
  • FX Package with rotating, fixed gobo, 4 prisms and dual frost
  • NFC Support
  • FIL (Foam In Lay) Polyurethane Foam Packaging Included

      Specifications:

      Source:

      • 100W Solid State Phosphor-Converted (SSPC) Light Engine
      • 6000K, CRI 70
      • 10,000 Hour Lamp Life

      *Test lab conditions. May vary depending on several factors including but not limited to:

      Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

      Photometric Data:

      • 15.000 Total Lumen Output
      • CRI 92
      • Zoom Range 7° - 50°

      Effects:

      • Motorized Zoom
      • 4 Rotating Full Blackout Framing Blades, +/- 60° Index
      • Dual Variable Frost Filter (Medium/ Wash)
      • 4 Facet Round, 4 Facet Linear Prism
      • Motorized Iris
      • Variable 16-bit Dimming Curve Modes
      • High Speed Electronic Shutter and Strobe
      • Pan Angle: 540° / 630°
      • Tilt Angle: 250°
      • Motionless Reset
      Colour:
      • RGBMA Color Array
      • CMY Emulation
      • Variable CCT 2400K - 8500K
      • Green/Magenta Shift
      • Virtual Gel Swatch Book

      Gobos

      • 2x 6 Rotating / Indexing Interchangeable Glass Gobos Animation Wheel

      CONTROL / CONNECTIONS

      • 16-bit Pan, Tilt, and Dimming Control
      • DMX Adjustable LED Frequency
      • DMX, RDM, Art-NET, sACN Protocol Support
      • 4 Button Touch Control Panel
      • Full Color 180° Reversible LCD Menu Display
      • 16 Bit Resolution Adjustable Movement
      • 5pin DMX In/Out
      • Locking Ethernet In/Out
      • IP65 Locking Power In/Out

        Tech Specs

        Optics:

        Light Source Type: Full Spectrum 480W RGBMA LED Engine

        Light Source Wattage: 480w

        Minimum Beam Angle: 7.0°

        Maximum Beam Angle: 50.0°

        Control

        DMX 5-Pin Connectors?: Yes

        Physical:

        Length: 18.1 in

        Width: 11.8 in

        Height: 31.4 in

        Weight: 79.4 lb

        Electrical

        Voltage Range: AC 100-240V - 50/60Hz

        Maximum Wattage: 725w
