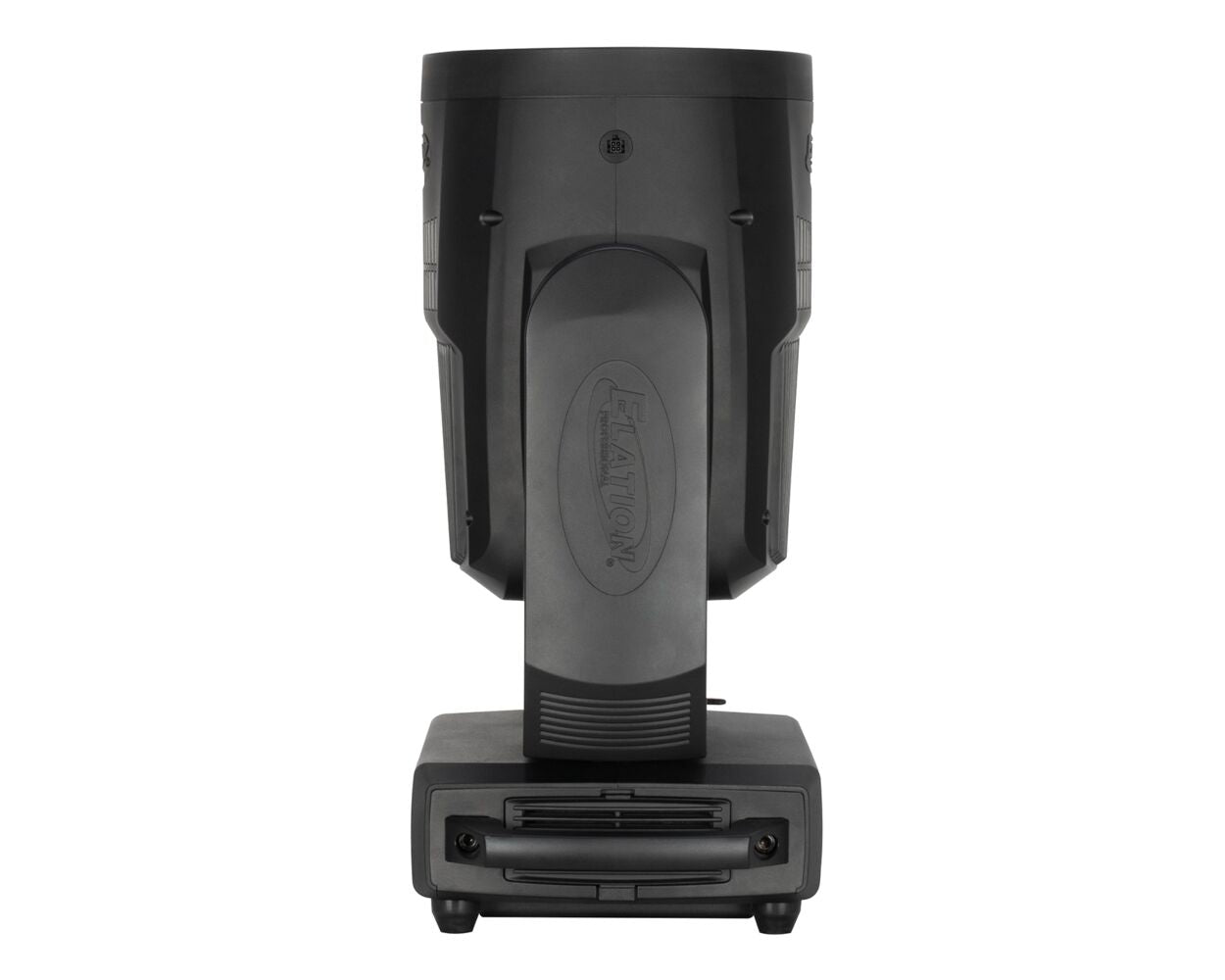

Fuze Wash 500

The The Fuze Wash 500 is a LED Fresnel wash fixture and is intended to be used in theaters and for television

From the Manufacturer:

The FUZE WASH 500™ is a powerful automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 17,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

The FUZE WASH 500 is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and a soft field is required. An optional indexable ovalizer lens and a fully automated barn door system is available for additional remote beam control.

Features:

• 500W Full Spectrum RGBMA LED Engine

• Up to 17,000 Total Lumen Fixture Output @ 6500K

• CRI up to 92

• Wide Zoom Range from 6° to 53°

• Variable 16-bit Dimming Curve Modes

• CMY Emulation

• Virtual Color Correction

• Green/Magenta Shift

• Virtual Gel Swatch Book

Specifications:

• Source

• 500W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine

• 30,000 Hour Average LED Life*

• Photometric Data

• 17,000 Total Lumen Fixture Output

• CRI 92

• Zoom Range 6° - 53°

• Field Angle 12.1° - 63.6°

• Beam Angle 6.3° - 53.7°

• Effects

• Motorized Zoom

• Optional Indexable Ovalizer Lens

• Optional Motorized Barn Doors

• Variable 16-bit Dimming Curve Modes

• High Speed Electronic Shutter and Strobe

• Color

• RGBMA Color Array

• CMY and RGB Emulation

• Variable CCT 2400K - 8500K

• Green/Magenta Shift

• Virtual Gel Swatch Book

• Control / Connections

• DMX Channel Modes

• With Barndoor: 6 Channel modes - 21Ch, 30Ch, 19Ch CMY, 26Ch Ex, 19Ch RGB, 26Ch RGB Ex,

• Without Barndoor: 6 Channel modes - 17Ch, 26Ch, 15Ch CMY, 22Ch CMY, 15Ch RGB, 22Ch RGB Ex

• 16-bit Pan, Tilt, and Dimming Control

• DMX Adjustable LED Frequency

• DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support

• 4 Button Touch Control Panel

• Full Color 180° Reversible LCD Menu Display

• Locking 5pin XLR Connector In/Out

• Locking RJ45 Ethernet Connector In/Out

• Locking IP65 Power Connector In/Out

• USB Connection (Firmware Updates)

• Size / Weight

(Without Snoot)

• Length: 13.8” (350mm)

• Width: 16.1” (407.9mm)

• Vertical Height: 21.7” (550.5mm)

(With Snoot:)

• Length: 15.3” (389.5mm)

• Width: 16.1” (407.9mm)

• Vertical Height: 21.7” (590mm)

• Center Spacing: 23.6" (600mm)

• Weight: 40.89 lbs. (18.5kg)

• Electrical / Thermal

• AC 100-240V - 50/60Hz

• Max Power Consumption 609W

• 14°F to 113°F (-10°C to 45°C)

• BTU/hr (+/- 10%) 2151.71

• Approvals / Ratings

• CE | cETLus | IP20 | FCC
