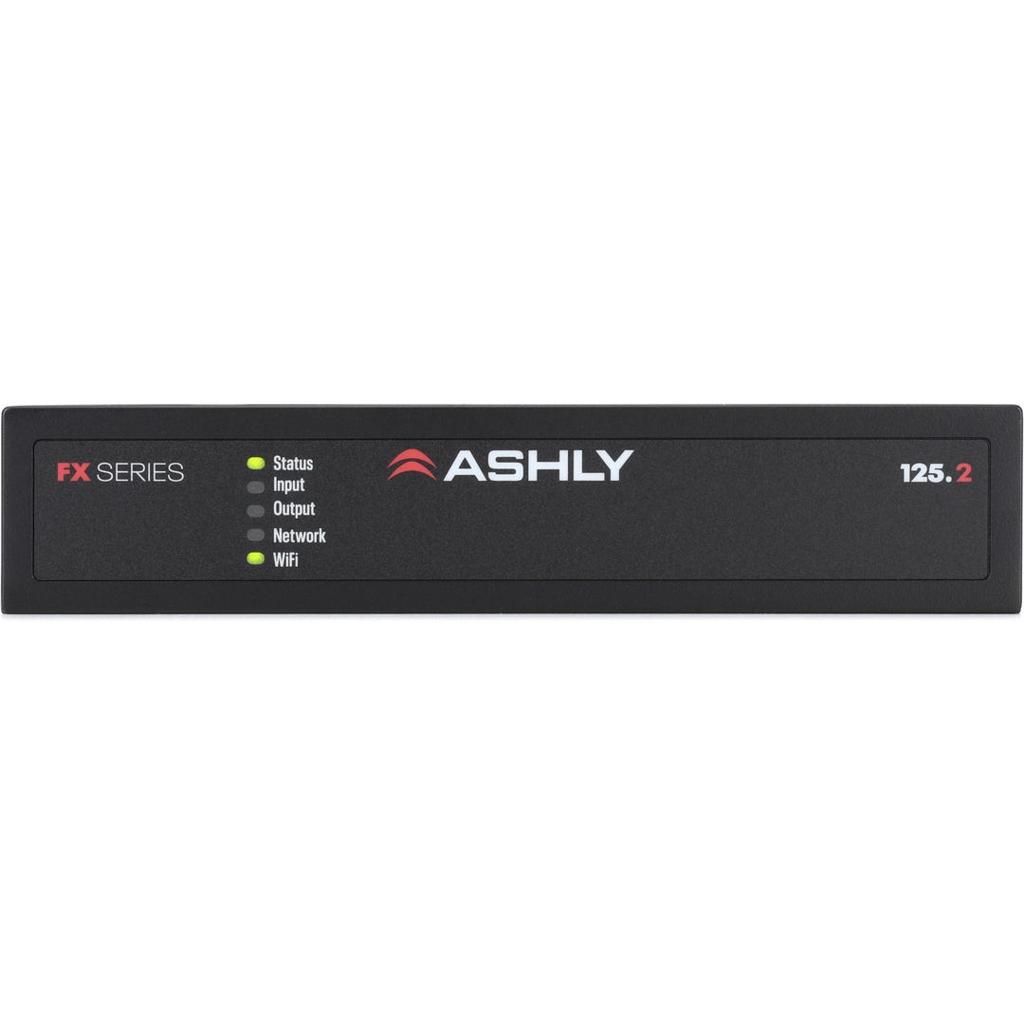

FX125.2

The Ashly FX125.2 is a compact, two-channel Class D power amplifier delivering 125 watts per channel, with integrated digital signal processing and network-based control. Designed for professional installation applications, it supports low-impedance loudspeakers and bridged 70V/100V distributed audio systems. Built-in Wi-Fi, Ethernet connectivity and browser-based configuration provide convenient access to its advanced audio processing, making it a versatile solution for commercial sound systems where performance, flexibility and compact dimensions matter.

From The Manufacturer:

The Ashly FX Series combines efficient Class D amplification with integrated DSP and network connectivity. The FX125.2 features two amplifier channels, dynamic power sharing and configurable low- or high-impedance operation. Its processing capabilities include equalisation, routing, compression, limiting, FIR filters, crossover functions, polarity and delay. Users can configure the amplifier through a web browser using its built-in wireless access point or a wired Ethernet connection.

Key Features:

• Two-channel Class D power amplifier.

• 125W per channel with both channels driven in low-impedance mode.

• Dynamic power sharing of up to 250W from one channel under supported conditions.

• Supports 4Ω and 8Ω loudspeaker loads.

• Supports 16Ω operation, with output limited by the available voltage swing.

• Bridged operation for 70V and 100V distributed audio systems.

• Up to 250W in bridged high-impedance mode under the specified operating conditions.

• Integrated digital signal processing.

• Built-in Wi-Fi wireless access point.

• Ethernet connectivity for network control.

• Browser-based configuration interface.

• Balanced microphone/line inputs on removable Euroblock connectors.

• Additional unbalanced RCA inputs.

• Two-channel S/PDIF digital audio input/output.

• DSP functions include routing, gain, parametric EQ, compression, limiting, FIR filters, crossovers, polarity and delay.

• Customisable loudspeaker presets.

• Remote GPIO, standby/mute and volume-control functionality.

• Adjustable automatic or manual power-saving mode.

• Universal 100–240V AC power supply.

• Compact half-rack-width chassis.

Specifications:

Amplifier

• Model: FX125.2

• Amplifier type: Class D

• Number of channels: 2

• Output power, both channels driven: 2 × 125W

• Maximum power with power sharing: Up to 250W from one channel under supported conditions

• Bridged high-impedance output: Up to 250W

• Supported low-impedance loads: 4Ω and 8Ω

• 16Ω output: 125W when one channel is driven, subject to the manufacturer's stated operating conditions

• High-impedance modes: 70V and 100V, using bridged channel operation

• 25V operation: Supported, subject to output configuration and load requirements

• Power sharing: Yes

Audio Performance

• Frequency response: 20Hz–20kHz, +0/−0.25dB under the manufacturer's stated test conditions

• Signal-to-noise ratio: Greater than 106dB, A-weighted, 20Hz–20kHz at 8Ω

• Total harmonic distortion plus noise: Less than 0.05% under the manufacturer's stated test conditions

• Amplifier circuitry: Full-bandwidth PWM Class D

• Output protection: Short-circuit, DC, undervoltage, temperature and overload protection

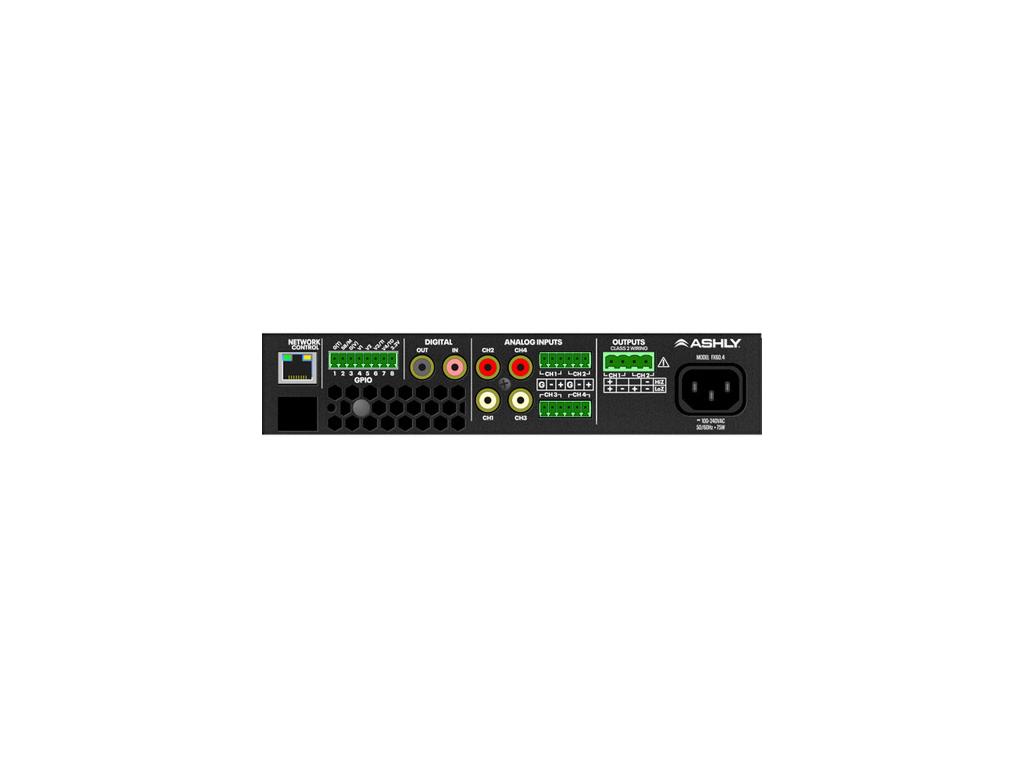

Inputs and Outputs

• Analogue inputs: Balanced microphone/line inputs via removable Euroblock connectors

• Additional analogue inputs: Unbalanced RCA

• Digital audio: Two-channel S/PDIF digital input/output

• Network connection: Ethernet

• Wireless connection: Integrated Wi-Fi access point

• Loudspeaker outputs: Two low-impedance channels or one bridged high-impedance output

• Remote control: GPIO, standby/mute and volume-control connections

Digital Signal Processing

• Input sensitivity configuration.

• Signal routing and gain adjustment.

• Parametric equalisation.

• Crossover and filter configuration.

• Compression and limiting.

• FIR filtering.

• Output polarity and delay adjustment.

• Customisable loudspeaker presets.

• Browser-based configuration and control.

Power Supply

• AC input: 100–240V

• Frequency: 50–60Hz

• Standby power consumption: Less than 0.5W

• Power consumption at one-eighth rated output into 4Ω: 54W

Specifications are based on the Ashly FX Series datasheet and operating manual.

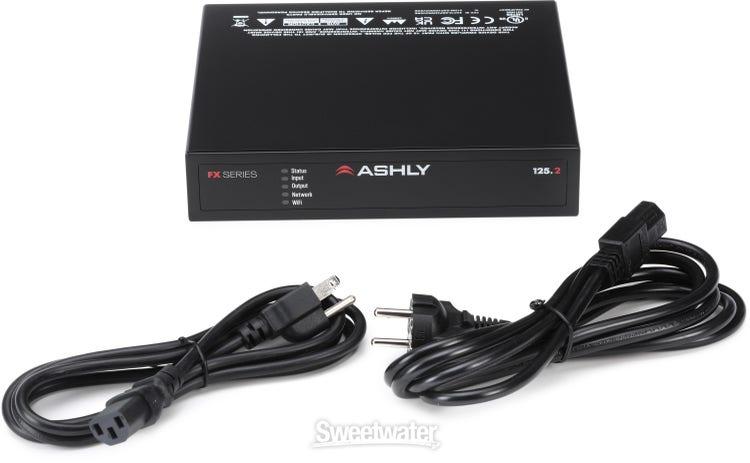

Included Accessories:

• AC power cable: Confirm the regional cable supplied with the unit.

• Other package contents: Confirm with the supplier before listing them as included.

Applications:

• Commercial background music systems.

• Retail stores and shopping centres.

• Restaurants, cafés and hospitality venues.

• Conference rooms and meeting facilities.

• Corporate offices and reception areas.

• Houses of worship.

• Educational facilities.

• Small distributed audio systems.

• 70V and 100V public-address installations.

• Background music and paging systems.

• Installations requiring integrated DSP and network-based amplifier control.

Included Accessories:

• Manufacturer-supplied package contents should be confirmed with the seller.

• Optional half-rack mounting hardware is available separately.

• Optional desk or wall-mount hardware is available separately.

Accessories (Not Included):

• Optional FA1.2RM rack-mount kit, half-rack extension and connection plate.

• Optional FA2.2RM rear-support kit.

• Optional FATWB desk/wall-mount bracket.

• Compatible WR-1 or WR-1.1 GPIO remote volume controller.

• External loudspeakers.

• Loudspeaker cables.

• Additional audio cables and adaptors.

• External network equipment, where required.

• External control system, where required.

Size:

• Width: 220mm

• Height: 44mm

• Depth: 213mm

• Rack format: Half-rack width, approximately 1U high.

Dimensions are taken from the FX Series operating manual.

Weight:

• Net weight: 2.0kg

• Shipping weight: Not verified.

Electrical/Thermal:

• AC input: 100–240V AC, 50–60Hz.

• Standby power consumption: Less than 0.5W.

• Power consumption at one-eighth rated output into 4Ω: 54W.

• Thermal dissipation at one-eighth rated output into 4Ω: 78BTU/hour.

• Cooling and ventilation: Provide adequate airflow around the amplifier and avoid obstructing ventilation when installed in an enclosure.

• Protection: Short circuit, DC fault, undervoltage, overheating and overload protection.

• Power-saving operation: Configurable sleep/standby mode.
