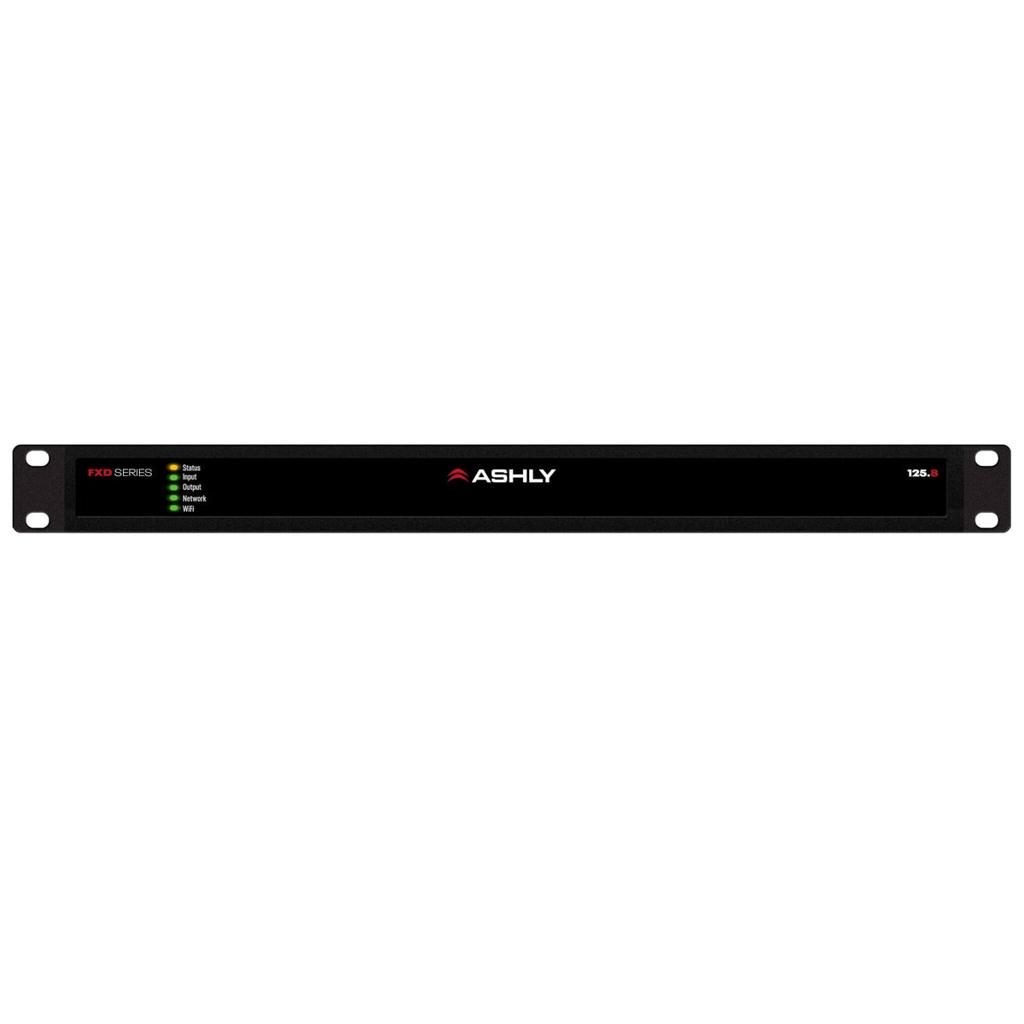

FX125.8

The Ashly FX125.8 is an eight-channel Class D installation amplifier delivering 125 watts per channel, with integrated digital signal processing (DSP), network connectivity and flexible loudspeaker configurations. Designed for multi-zone commercial audio systems, it supports low-impedance loudspeakers and bridged 70V/100V distributed audio applications. Built-in Wi-Fi, Ethernet connectivity and browser-based control allow installers to configure audio routing, equalisation and speaker processing from a compatible device. Its eight amplifier channels and compact 1U rackmount design make it a versatile solution for installations requiring multiple independently controlled audio outputs.

From The Manufacturer:

The Ashly FX Series combines high-density Class D amplification with integrated DSP and network-based configuration. The FX125.8 provides eight low-impedance amplifier outputs or four bridged high-impedance outputs. Its processing platform includes input, zone, output and speaker processing, with functions such as parametric equalisation, crossover filters, compression, limiting, FIR filtering, polarity and delay. The browser-based interface is accessible over Ethernet or the built-in Wi-Fi access point, allowing the amplifier to operate as a compact amplification, mixing and processing solution for installed audio systems.

Key Features:

• Eight-channel Class D power amplifier.

• 125W per channel with all channels driven into supported low-impedance loads.

• Up to 250W from a single channel under supported power-sharing conditions.

• Eight low-impedance outputs or four bridged high-impedance outputs.

• Supports 4Ω and 8Ω loudspeaker loads.

• Supports 16Ω operation, with output limited by available voltage swing.

• Supports 70V and 100V distributed audio systems using bridged channel pairs.

• Supports 25V applications when correctly configured and limited.

• Integrated digital signal processing.

• Eight-channel DSP configuration for eight-channel models.

• Built-in Wi-Fi access point.

• Ethernet network connectivity.

• Browser-based configuration without dedicated control software.

• Balanced microphone/line inputs via removable Euroblock connectors.

• Additional unbalanced RCA inputs.

• Two-channel S/PDIF digital audio input and output.

• Input, zone, output and loudspeaker processing.

• Parametric EQ, crossover filtering, compression, limiting, FIR filters, polarity and delay.

• Customisable loudspeaker presets.

• Remote GPIO and volume-control functionality.

• Automatic or manual standby/sleep settings.

• Variable-speed fan cooling.

• Universal 100–240V AC power supply.

• Full-width 19-inch, 1U rackmount chassis.

Specifications:

Amplifier

• Model: FX125.8

• Amplifier type: Class D

• Number of amplifier channels: 8

• Output configuration: Eight low-impedance outputs or four bridged high-impedance outputs

• Output power with all channels driven: 8 × 125W at supported loads

• Bridged output power: Up to 250W per channel pair

• Maximum single-channel power with power sharing: Up to 250W under supported conditions

• Supported low-impedance loads: 4Ω and 8Ω

• 16Ω operation: Up to 125W with a single channel driven, subject to available voltage swing

• High-impedance modes: 70V and 100V using bridged channel pairs

• 25V operation: Supported with appropriate configuration and output limiting

• Power sharing: Yes

Audio Performance

• Frequency response: 20Hz–20kHz, ±0.5dB under the manufacturer's stated test conditions

• Signal-to-noise ratio: Greater than 106dB, A-weighted, 20Hz–20kHz at 8Ω

• Total harmonic distortion plus noise: Less than 0.05% under the manufacturer's stated test conditions

• Amplifier circuitry: Class D, full-bandwidth PWM modulator

• Integrated DSP: Yes

Inputs and Outputs

• Analogue inputs: Eight input channels for the FX125.8 configuration

• Balanced inputs: Microphone/line inputs via removable Euroblock connectors

• Additional analogue inputs: Unbalanced RCA

• Digital audio: S/PDIF input and output

• Network connection: Ethernet RJ45

• Wireless connection: Integrated Wi-Fi access point

• Loudspeaker outputs: Eight low-impedance channels or four bridged high-impedance outputs

• Remote connections: GPIO via removable Euroblock connector

• USB: No USB connection listed in the manufacturer's specifications

Digital Signal Processing

• Input gain and sensitivity adjustment.

• Input signal routing.

• Zone source selection and level control.

• Zone processing and compression.

• Output routing.

• Parametric equalisation.

• Crossover filtering.

• FIR filter import.

• Speaker presets and speaker EQ.

• Compression and limiting.

• Output polarity and delay adjustment.

• Remote control and power-management configuration.

Power Supply

• Input voltage: 100–240V AC

• Frequency: 50–60Hz

• Standby power consumption: Less than 0.5W

• Power consumption at one-eighth rated output into 4Ω: 200W

Protection

• Short-circuit protection.

• DC fault protection.

• Undervoltage protection.

• Thermal protection.

• Overload protection.

Specifications are based on the manufacturer's FX Series operating manual.

Included Accessories:

According to the manufacturer’s operating manual, the standard package contains:

• Ashly FX125.8 amplifier.

• Mains power cable appropriate to the sales territory.

• Euroblock analogue input connectors.

• Euroblock GPIO connector.

• Euroblock loudspeaker output connectors.

• Four adhesive rubber feet.

• Documentation pack.

The manual states that the eight-channel models are supplied with rack ears installed.

Applications:

• Commercial background music systems.

• Retail stores and shopping centres.

• Restaurants, cafés and hospitality venues.

• Hotels and hotel lobbies.

• Conference rooms and meeting facilities.

• Corporate offices and reception areas.

• Houses of worship and auditoriums.

• Educational facilities and classrooms.

• Multi-zone audio distribution.

• Distributed 70V and 100V public-address systems.

• Office noise-masking systems.

• Museum displays, retail kiosks and media playback installations.

• Installations requiring multiple amplifier channels and integrated DSP.

• Commercial systems requiring network-based configuration and remote management.

Included Accessories:

• AC mains power cable.

• Removable Euroblock analogue input connectors.

• Removable Euroblock GPIO connector.

• Removable Euroblock loudspeaker output connectors.

• Four adhesive rubber feet.

• Documentation pack.

• Rack ears installed on the amplifier.

Confirm the contents of the specific retail unit with the supplier if package completeness is important.

Accessories (Not Included):

• Compatible Ashly WR-1 or WR-1.1 GPIO remote volume controller.

• External loudspeakers.

• Loudspeaker cabling.

• Additional audio cables and adaptors.

• Ethernet cabling and external network equipment, where required.

• External control equipment, where required.

• Additional rack accessories beyond the installed rack ears.

Size:

• Width: 440mm

• Height: 44.5mm

• Depth: 320mm

• Rack format: 19-inch rackmount, 1U high.

Dimensions are taken from the manufacturer's published specifications.

Weight:

• Net weight: 3.6kg

• Shipping weight: Not verified from the manufacturer’s manual.

Electrical/Thermal:

• AC input: 100–240V AC, 50–60Hz.

• Standby consumption: Less than 0.5W.

• Power consumption at one-eighth rated output into 4Ω: 200W.

• Thermal dissipation at one-eighth rated output into 4Ω: 256BTU/hour.

• Cooling: Variable-speed fan.

• Operating temperature: 0–40°C, non-condensing indoor environment.

• Installation: Maintain adequate ventilation and ensure the rack or enclosure does not restrict cooling airflow.

• Protection: Short circuit, DC fault, undervoltage, temperature and overload protection.
