FX60.2 2-Channel DSP Power Amplifier

The Ashly FX60.2 is a compact, two-channel Class D power amplifier with integrated digital signal processing (DSP), network connectivity and flexible loudspeaker configurations. Delivering 60 watts per channel for low-impedance applications, it can also be configured for a bridged, high-impedance output of up to 120 watts for 70V/100V distributed audio systems. With built-in Wi-Fi, browser-based configuration and comprehensive audio processing, the FX60.2 is well suited to professional commercial installations that require reliable amplification and convenient remote management.

From The Manufacturer:

The Ashly FX Series combines efficient Class D amplification with integrated DSP and network-based control. The FX60.2 provides two low-impedance output channels or one bridged high-impedance output. Its processing capabilities include equalisation, routing, crossover functions, compression, limiting, delay and speaker presets. An integrated wireless access point and browser-based user interface allow configuration from a compatible computer or mobile device without dedicated control software.

Key Features:

• Two-channel Class D power amplifier.

• 60W per channel for low-impedance operation.

• Up to 120W in bridged high-impedance mode.

• Supports 4Ω and 8Ω loudspeaker loads.

• Supports 70V and 100V distributed audio operation when appropriately bridged and configured.

• Integrated digital signal processing.

• Built-in Wi-Fi access point.

• Ethernet network connectivity.

• Browser-based control interface.

• Balanced microphone/line inputs on removable Euroblock connectors.

• Unbalanced RCA inputs.

• Two-channel S/PDIF digital audio input/output connectivity.

• DSP functions include equalisation, routing, gain, compression, limiting, FIR filters, crossover, polarity and delay.

• Customisable loudspeaker presets.

• Automatic or manual power-saving standby mode.

• Remote mute, standby, GPIO and volume-control functionality.

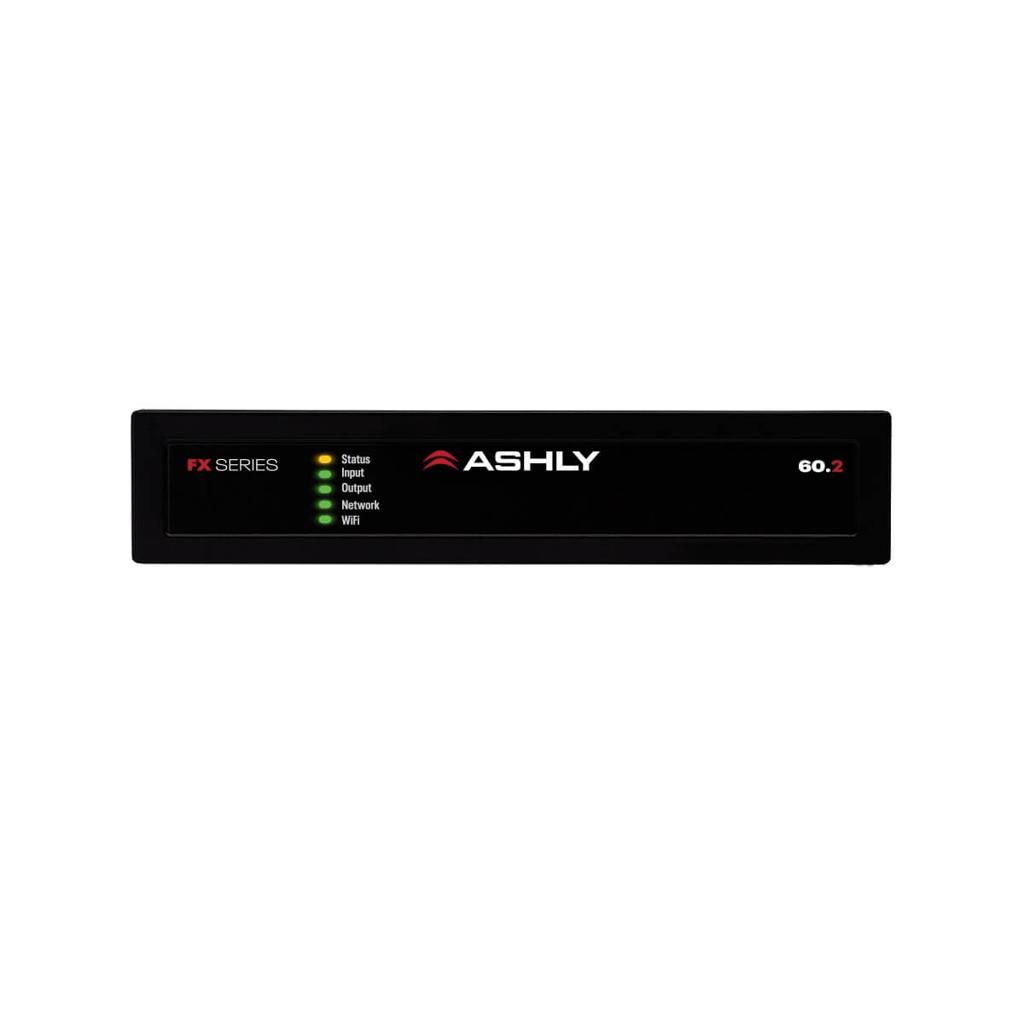

• Front-panel indicators for amplifier status, input, output and network activity.

• Universal 100–240V AC power supply.

• Compact half-rack-width chassis.

Specifications:

Amplifier

• Model: FX60.2

• Amplifier type: Class D

• Number of amplifier channels: 2

• Low-impedance output power: 2 × 60W

• High-impedance output power: Up to 120W in bridged mode

• Supported low-impedance loads: 4Ω and 8Ω

• High-impedance operation: 70V/100V, with the amplifier channels appropriately bridged and configured

• Power sharing: Yes; up to 120W from a single channel under supported operating conditions

• Output circuit: Full-bandwidth PWM Class D amplification

Audio Performance

• Signal-to-noise ratio: Greater than 106dB, A-weighted, 20Hz–20kHz at 8Ω

• THD+N: Less than 0.05% under the manufacturer's stated test conditions

• Frequency response: 20Hz–20kHz, +0/−0.25dB under the manufacturer's stated test conditions

• DSP: Integrated digital signal processing

• Processing functions: EQ, routing, gain, compression, limiting, FIR filtering, crossover, polarity and delay

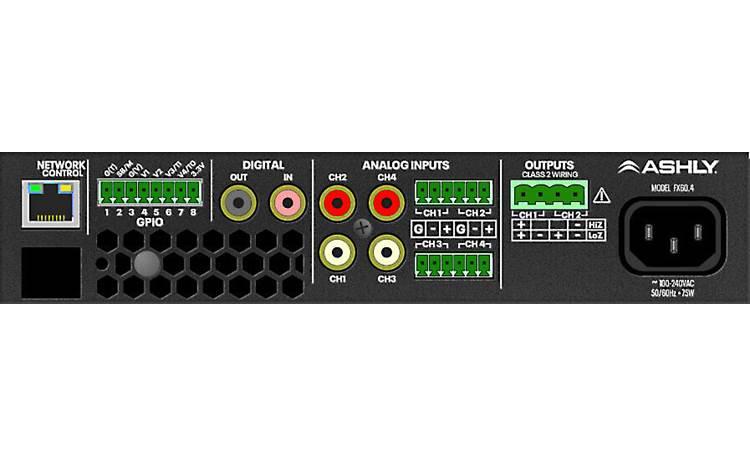

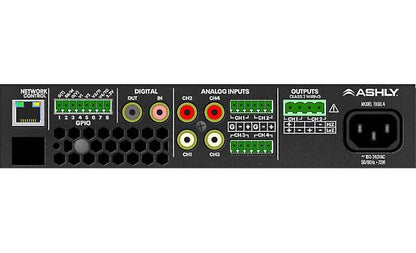

Inputs and Outputs

• Analogue inputs: Balanced microphone/line inputs via removable Euroblock connectors, plus unbalanced RCA inputs

• Digital audio: S/PDIF digital I/O

• Network: Ethernet and integrated Wi-Fi

• Remote control: GPIO, standby/mute and remote volume-control connections

• Loudspeaker outputs: Two low-impedance outputs, or one bridged high-impedance output

Power Supply

• Input voltage: 100–240V AC

• Frequency: 50–60Hz

• Standby power consumption: Less than 0.5W

• Power consumption: Approximately 75W, as listed in the manufacturer's specifications

Protection

• Short-circuit protection

• DC protection

• Undervoltage protection

• Temperature protection

• Overload protection

Specifications are based on Ashly's FX Series operating manual and manufacturer documentation.

Included Accessories:

• AC power cable: Confirm the supplied regional cable with the seller.

• Other package contents: Not independently verified.

Applications:

• Retail stores and commercial spaces.

• Restaurants, cafés and hospitality venues.

• Meeting rooms and conference facilities.

• Houses of worship.

• Background music systems.

• Small commercial public-address systems.

• Distributed audio installations using compatible 70V/100V loudspeakers.

• Compact multi-zone audio installations.

• Installations requiring remote configuration and integrated DSP.

Included Accessories:

• Manufacturer-supplied package accessories should be confirmed with the seller.

• Rackmount and wall-mount accessories are available separately; do not assume they are included with the amplifier.

Accessories (Not Included):

• Optional half-rack mounting hardware.

• Optional desk or wall-mount bracket.

• Optional remote volume controller, such as the Ashly WR-1 or WR-1.1, subject to compatibility.

• External loudspeakers.

• Audio and loudspeaker cables.

• External control equipment, where required.

Size:

• Width: 220mm

• Height: 44mm

• Depth: 213mm

• Rack format: Half-rack-width, approximately 1U high.

Dimensions are taken from the manufacturer's FX Series operating manual.

Weight:

• Net weight: 2.0kg

• Shipping weight: Not verified.

Electrical/Thermal:

• AC input: 100–240V, 50–60Hz.

• Listed power consumption: 75W.

• Standby consumption: Less than 0.5W.

• Thermal output at 1/8 full power into 4Ω: 61BTU/hour.

• Cooling and installation: Provide adequate ventilation and avoid obstructing airflow, particularly when installed in a rack or enclosed space.

• Operating environment: Indoor, controlled environment; consult the manufacturer’s manual for installation and temperature requirements.
