FX60.8

The Ashly FX60.8 is an eight-channel Class D installation amplifier combining efficient amplification, integrated digital signal processing and network-based control in a compact 1U rackmount chassis. Delivering 60 watts per channel, it supports low-impedance loudspeakers and can be configured for bridged 70V or 100V distributed audio applications. Its built-in Wi-Fi access point, Ethernet connectivity and browser-based control interface make it a flexible solution for multi-zone commercial audio installations.

From The Manufacturer:

The Ashly FX60.8 integrates an eight-channel power amplifier, audio matrix and comprehensive DSP processing into one installation-friendly unit. Its processing tools include equalisation, crossover filters, compression, limiting, delay, polarity adjustment and loudspeaker presets. Users can configure signal routing and amplifier settings through a web browser using the built-in Wi-Fi access point or a wired Ethernet connection, without installing dedicated control software.

Key Features:

• Eight-channel Class D power amplifier.

• 60W per channel into supported 4Ω and 8Ω loads.

• Four bridged channel pairs, delivering up to 120W per pair under supported operating conditions.

• Supports 4Ω and 8Ω low-impedance loudspeakers.

• Supports 25V, 70V and 100V distributed audio configurations, subject to output mode and bridging requirements.

• Integrated digital signal processing.

• Built-in Wi-Fi access point for direct wireless configuration.

• Ethernet connectivity for wired network control.

• Browser-based user interface accessible from a computer, tablet or smartphone.

• Balanced microphone/line inputs via removable Euroblock connectors.

• Additional unbalanced RCA analogue inputs.

• S/PDIF digital audio input and output.

• Eight input and eight output processing paths.

• Input, zone and output signal routing.

• Parametric equalisation and crossover filtering.

• Compression, limiting, delay and polarity adjustment.

• FIR filter import and loudspeaker preset management.

• Remote GPIO, standby, mute and volume-control functionality.

• Automatic and manual power-saving modes.

• Variable-speed fan cooling.

• Universal 100–240V AC power supply.

Specifications:

Amplifier

• Model: FX60.8

• Amplifier type: Class D

• Number of channels: 8

• Rated output: 8 × 60W into supported 4Ω or 8Ω loads

• Bridged output: Up to 120W per bridged channel pair

• Number of bridged pairs: 4

• Supported low-impedance loads: 4Ω and 8Ω

• Additional load support: 16Ω, with output limitations

• Distributed audio modes: 25V, 70V and 100V, subject to configuration

• Power sharing: Yes, with dynamic allocation between channels under supported conditions

Audio Performance

• Frequency response: 20Hz–20kHz, ±0.5dB according to published product specifications

• Signal-to-noise ratio: Greater than 106dB, A-weighted at 8Ω

• Total harmonic distortion plus noise: Less than or equal to 0.05%

• Amplifier circuitry: Class D

• Integrated DSP: Yes

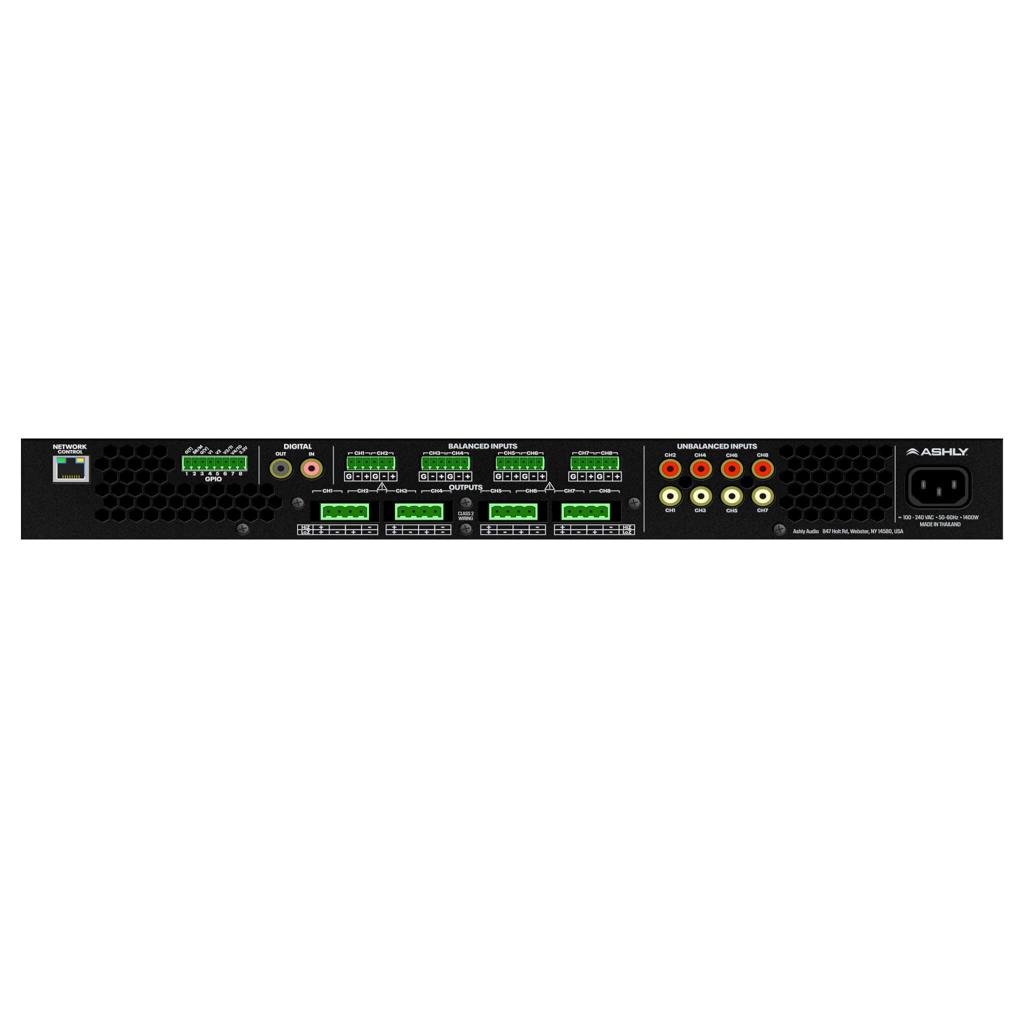

Inputs and Outputs

• Balanced analogue inputs: 8 microphone/line channels via removable Euroblock connectors

• Additional analogue inputs: 8 unbalanced RCA inputs

• Digital audio: S/PDIF coaxial input and output

• Network connection: Ethernet RJ45

• Wireless connection: Built-in Wi-Fi access point

• Loudspeaker outputs: 8 amplifier channels, presented through four removable 4-pole Euroblock connectors

• GPIO: Removable 8-pole Euroblock connector

• USB: No USB connection listed in the published specifications

Digital Signal Processing

• Input gain and sensitivity adjustment.

• Signal routing and zone mixing.

• Parametric equalisation.

• Crossover filtering.

• Compression and limiting.

• FIR filter import.

• Output delay and speaker alignment.

• Polarity adjustment.

• Loudspeaker presets.

• Browser-based configuration and control.

Power Supply

• AC input: 100–240V

• Frequency: 50–60Hz

• Typical power consumption: 75W

• Standby power consumption: 0.5W

• Power connector: IEC AC inlet

Protection and Environmental

• Short-circuit protection.

• DC fault protection.

• Overload protection.

• Thermal protection.

• Undervoltage protection.

• Operating temperature: 0–40°C.

• Cooling: Variable-speed fan.

• Compliance listed in product specifications: CE.

Included Accessories:

According to the manufacturer's operating manual, the standard package contains:

• Ashly FX60.8 amplifier.

• Mains power cable appropriate to the sales territory.

• Euroblock analogue input connectors.

• Euroblock GPIO connector.

• Euroblock loudspeaker output connectors.

• Four adhesive rubber feet.

• Product documentation.

Applications:

• Commercial background music systems.

• Retail stores and shopping centres.

• Restaurants, cafés and bars.

• Hotels and hospitality venues.

• Corporate offices and reception areas.

• Conference rooms and meeting facilities.

• Houses of worship.

• Educational facilities.

• Multi-zone audio distribution.

• Office noise-masking systems.

• Museum and retail media playback installations.

• Distributed public-address systems using compatible 25V, 70V or 100V loudspeakers.

• Installations requiring multiple amplifier channels and integrated DSP.

Included Accessories:

• AC power cable.

• Analogue input Euroblock connectors.

• GPIO Euroblock connector.

• Loudspeaker output Euroblock connectors.

• Four adhesive rubber feet.

• Product documentation.

Rackmount ears are also listed in the retailer's product information. Confirm the supplied mounting hardware with the seller when purchasing.

Accessories (Not Included):

• External loudspeakers.

• Loudspeaker cables.

• Additional analogue audio cables and adaptors.

• Network cables and external network equipment, where required.

• Compatible remote volume controllers.

• External control systems, where required.

• Additional rack accessories not included with the supplied package.

Size:

• Width: Approximately 483mm.

• Height: Approximately 46mm.

• Depth: Approximately 320mm.

• Rack format: 1U, 19-inch rackmount.

Dimensions are converted from the published measurements of 19 × 12.6 × 1.8 inches.

Weight:

• Net weight: Approximately 3.5kg.

• Shipping weight: Approximately 4.66kg.

The net weight is based on the published specification of 7.7lb. The shipping weight is converted from the listed 10.285lb package weight.

Electrical/Thermal:

• AC input: 100–240V AC, 50–60Hz.

• Typical power consumption: 75W.

• Standby consumption: 0.5W.

• Cooling: Variable-speed fan.

• Operating temperature: 0–40°C.

• Thermal management: Maintain adequate ventilation and ensure rack installation does not obstruct the required airflow.

• Protection: Short circuit, DC fault, overload, thermal and undervoltage protection.
