Sku:
GL-PXLSTRIPCTR
Gamma IP Pixel Driver
- Regular price
- $989.00
- Regular price
-
- Sale price
- $989.00
- Unit price
- per
Shipping calculated at checkout.
Vendor: GAMMA LED Vision
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

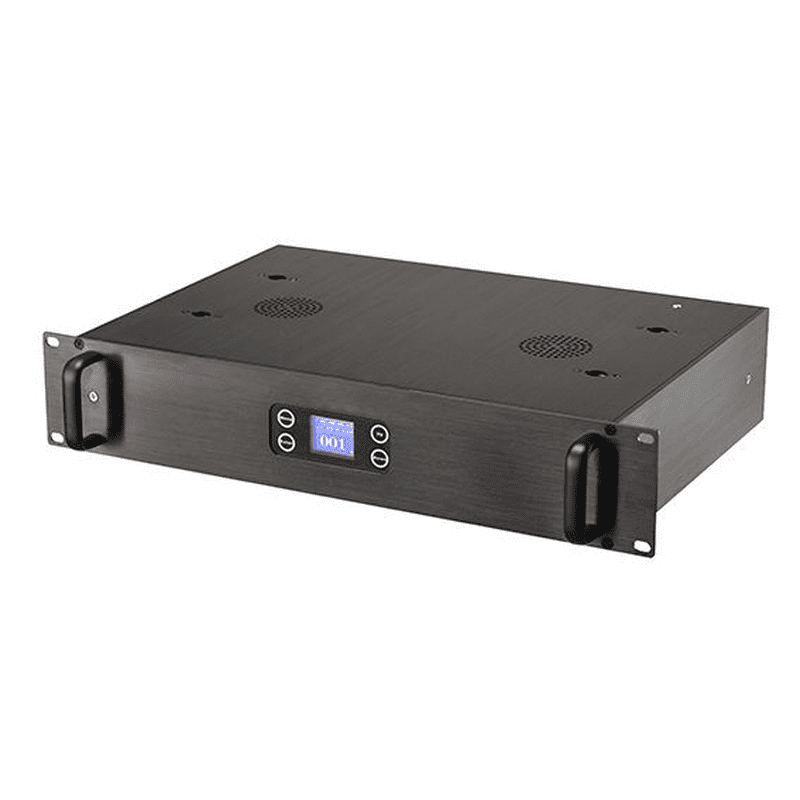

The Gamma pixel strip driver has 4 output ports, each allowing up to 8 strips per port with a maximum cable length of 200 feet. Full pixel control is achieved over Art-Net, or alternatively, standard DMX can be used with built-in macros.
From the Manufacturer:
Our LED Pixel Strip IP is a pixel mapping, one-meter strip that sets up in minutes with minimal technical know-how. Each strip houses 80 tri-colored SMD 5050 LEDs, has a pixel pitch of 12.5 millimeters, and a 120-degree viewing angle. With multiple control options―industry standard Art-Net and DMX ―pixel mapping displays are achieved in minutes. Runs both signal and power over 5 pin cables with locking connectors that provide greater stability and connection in a daisy chain. IP-65 outdoor rated features also makes this a reliable setup for any type of setting no matter if its indoors or outdoors.
In the Box:
- (1) Pixel Strip Driver

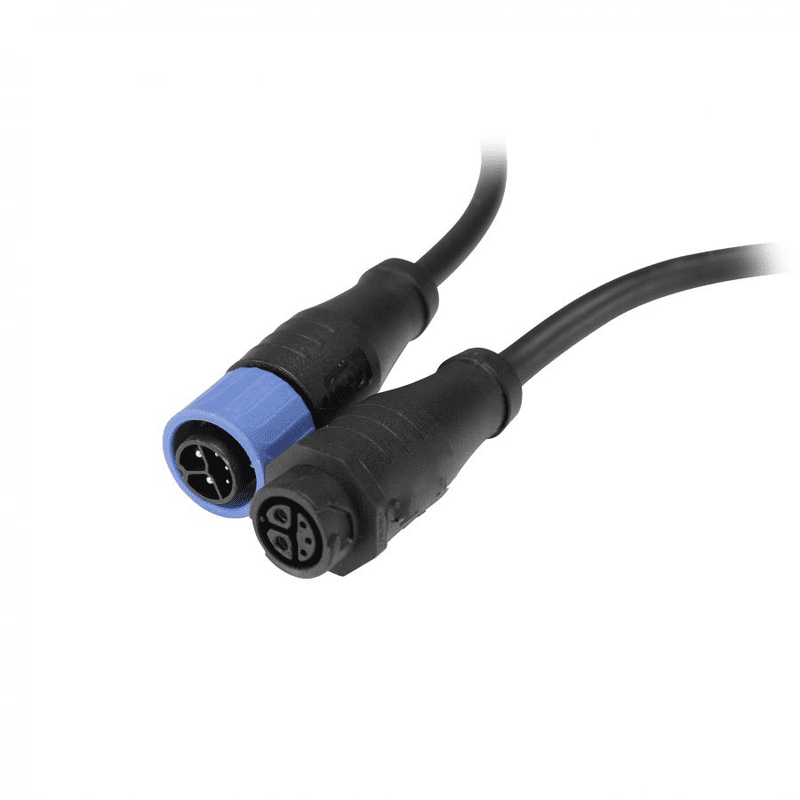

- (1) Locking Power Cable
Features:

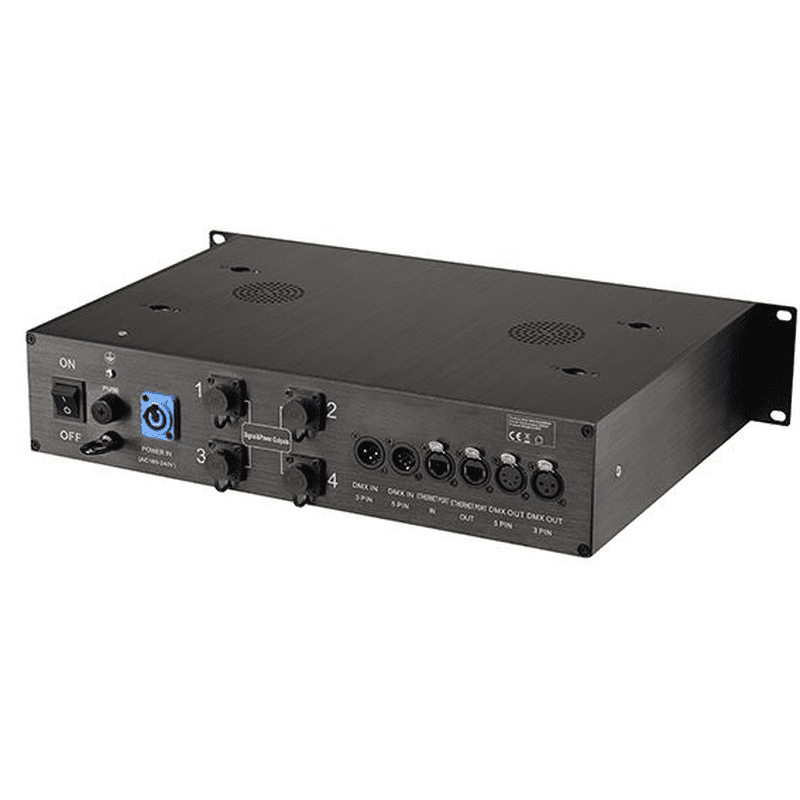

- Outputs: 4x 5 Pin pixel outputs
- Max strips per output: 8
- Input: Ethernet in and through, DMX in and through (5 & 3)
- Control Protocol: DMX, Art-Net
- Operating Modes: 1LED / 2LED / 3LED / 4LED = 1 Pixel
- IP Grade: IP65
Tech Specs
Control
DMX 3-Pin Connectors?: Yes
DMX 5-Pin Connectors?: Yes
Physical:
Weight: 12.12 lb
Electrical
Voltage Range: 90 - 260 VAC 50/60Hz
Maximum Wattage: 2200w
Power Cable Connector - Fixture Side: PowerCON
Main Power Connector on Included Cable: Edison
