Sku: GL-PXLSTRIP

Gamma IP Pixel Strip (Single Strip)

Regular price
$241.00
Regular price
Sale price
$241.00
Shipping calculated at checkout.
Vendor: GAMMA LED Vision

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Description

Caret Down

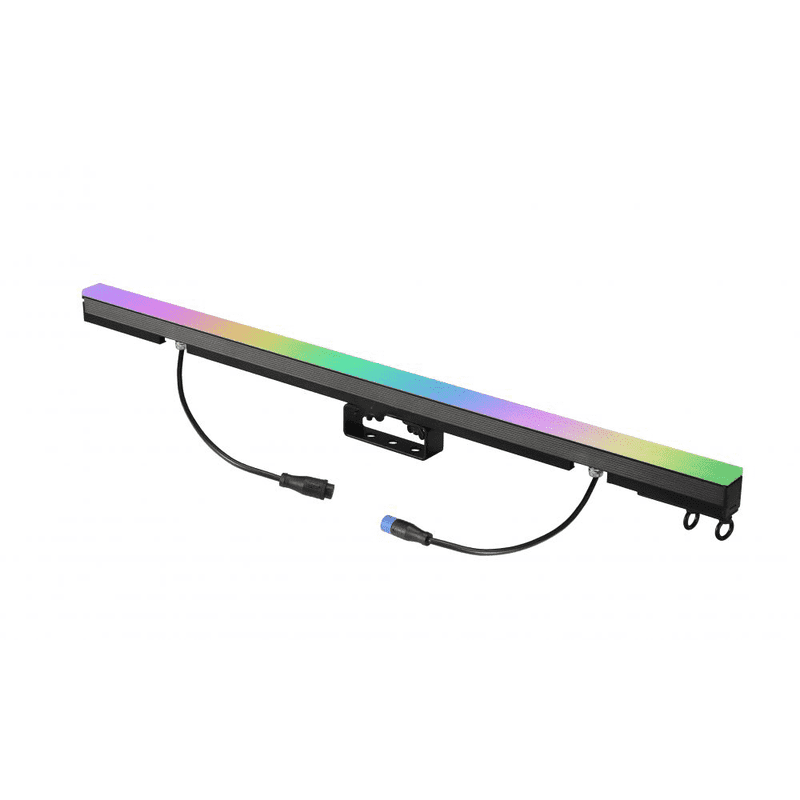

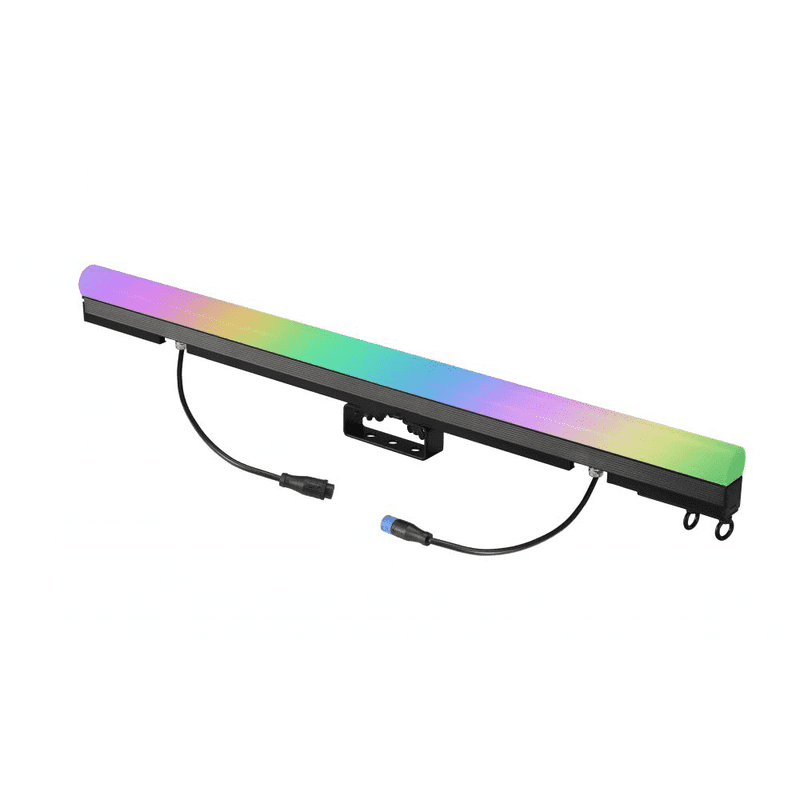

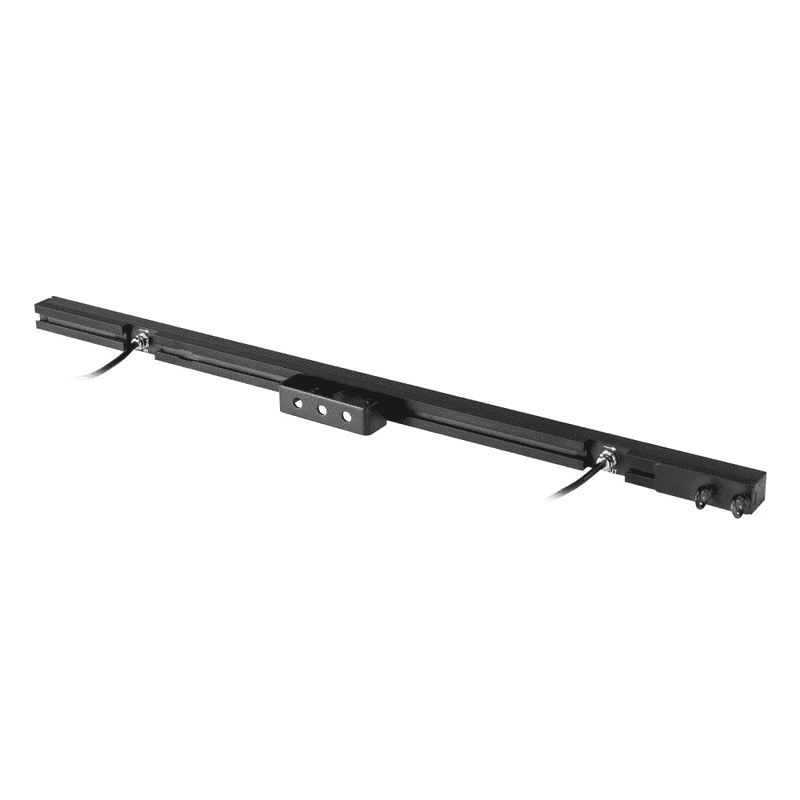

The Gamma pixel strips are very versatile and easy to install. They feature 80 pixels per meter, which is more than the typical 60 per meter that most strips have. They include 500mm waterproof input and output lead cables for easy daisy chaining. Additional cables can be purchased separately.

The Gamma pixel strip driver has 4 output ports, each allowing up to 8 strips per port with a maximum cable length of 200 feet. Full pixel control is achieved over Art-Net, or alternatively, standard DMX can be used with built-in macros.

From the Manufacturer:

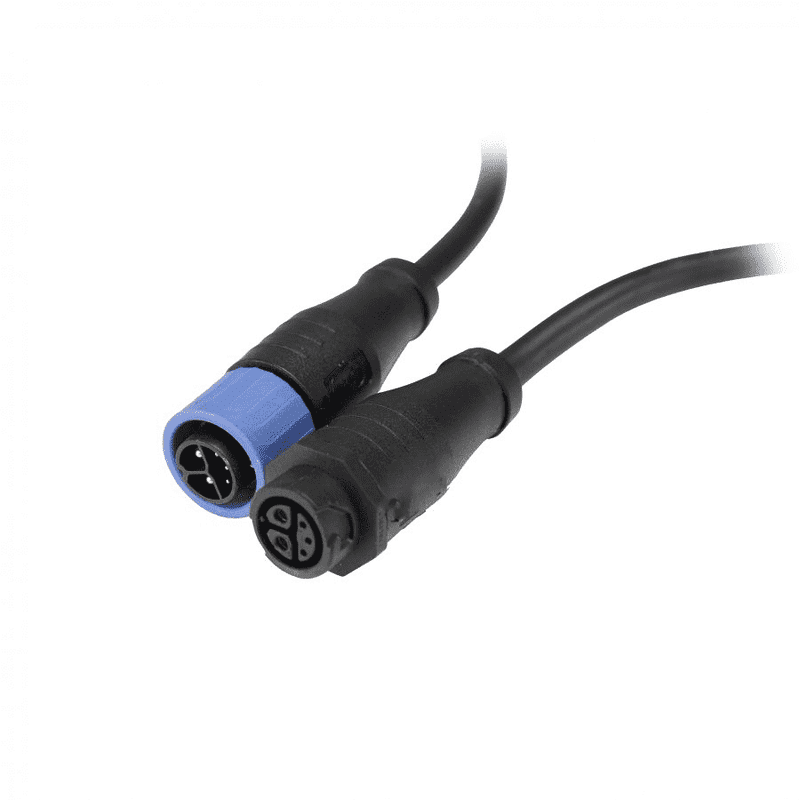

Our LED Pixel Strip IP is a pixel mapping, one-meter strip that sets up in minutes with minimal technical know-how. Each strip houses 80 tri-colored SMD 5050 LEDs, has a pixel pitch of 12.5 millimeters, and a 120-degree viewing angle. With multiple control options―industry standard Art-Net and DMX ―pixel mapping displays are achieved in minutes. Runs both signal and power over 5 pin cables with locking connectors that provide greater stability and connection in a daisy chain. IP-65 outdoor rated features also makes this a reliable setup for any type of setting no matter if its indoors or outdoors.


In the Box:

  • (1) 1M IP Pixel Strip

 Video Review:

Features:

  • Light Source: 80x SMD5050 RGB LEDs
  • Color: RGB
  • Length: 1 Meter
  • Lead Length: 500mm
  • Control Protocol: DMX, Art-Net
  • Operating Modes: 1LED / 2LED / 3LED / 4LED = 1 Pixel
  • IP Grade: IP65

Resources:



Tech Specs

Optics:

Light Source Type: RGB LED

Light Source Wattage: 25w

Minimum Beam Angle: 120.0°

Maximum Beam Angle: 120.0°

Physical:

Length: 1000 mm

Width: 35 mm

Height: 100 mm

Weight: 4.4 lb

Electrical

Voltage Range: 36 VDC

Maximum Wattage: 25w
