GeNetix 10Scene Store

10 scene lighting playback device for installations.

From the Manufacturer:

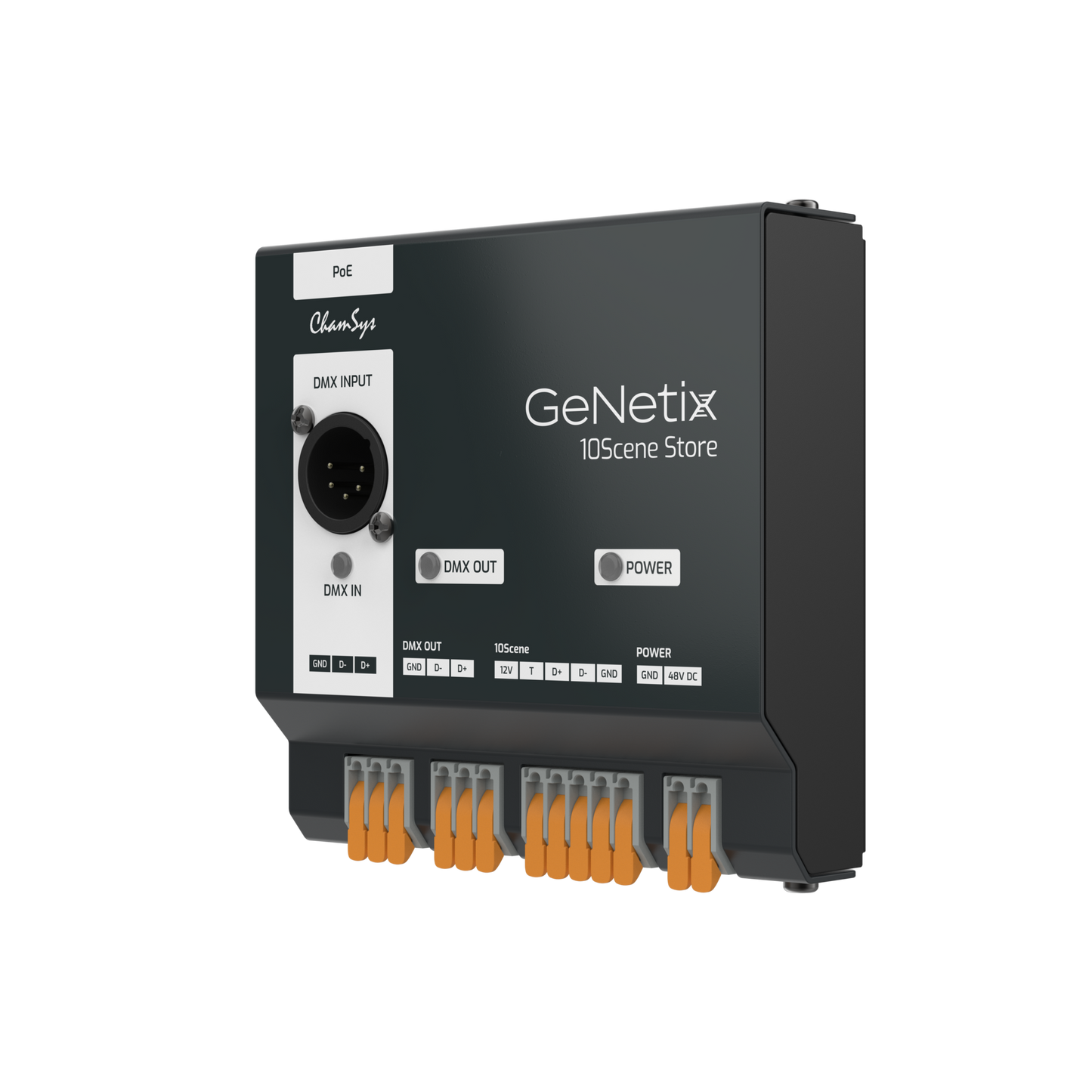

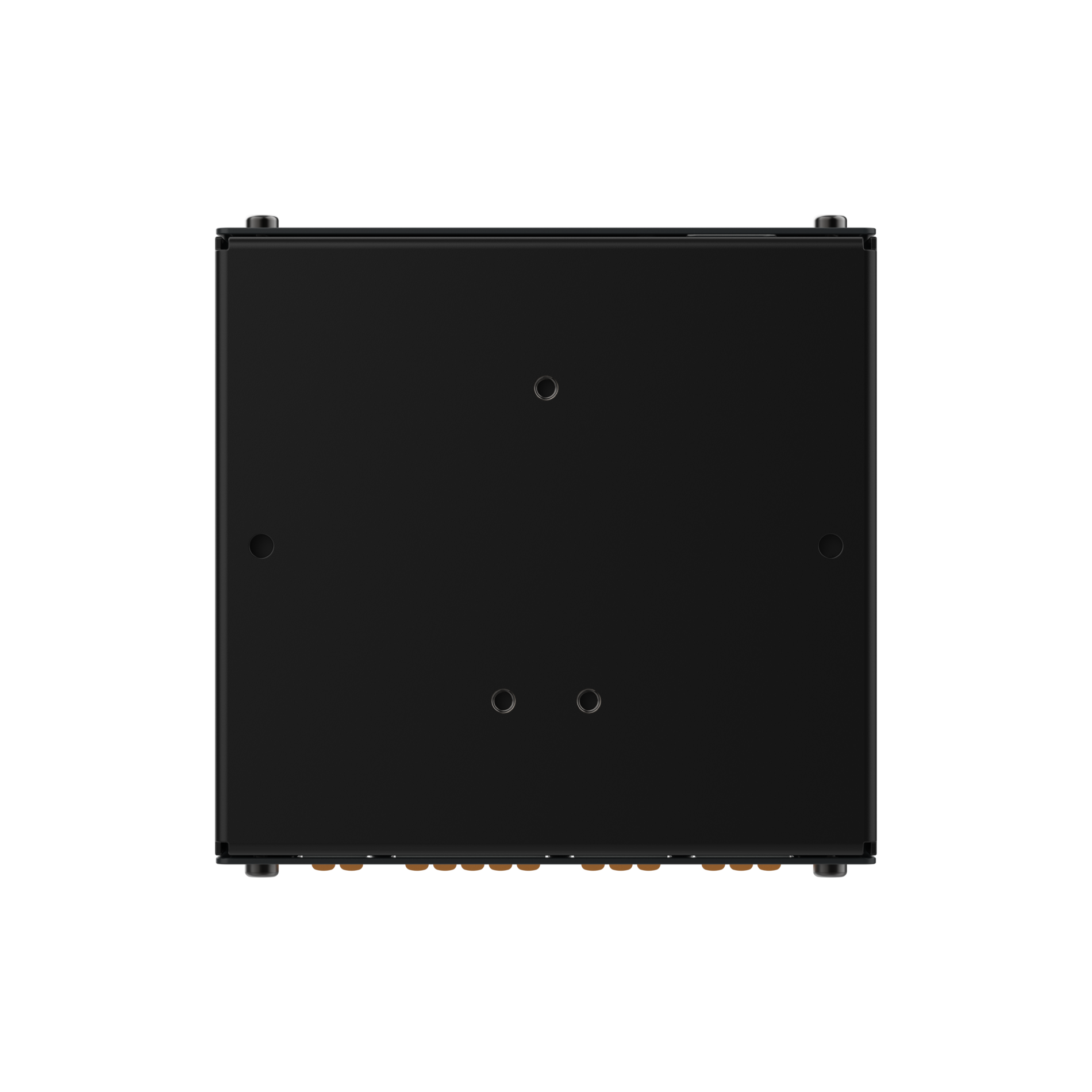

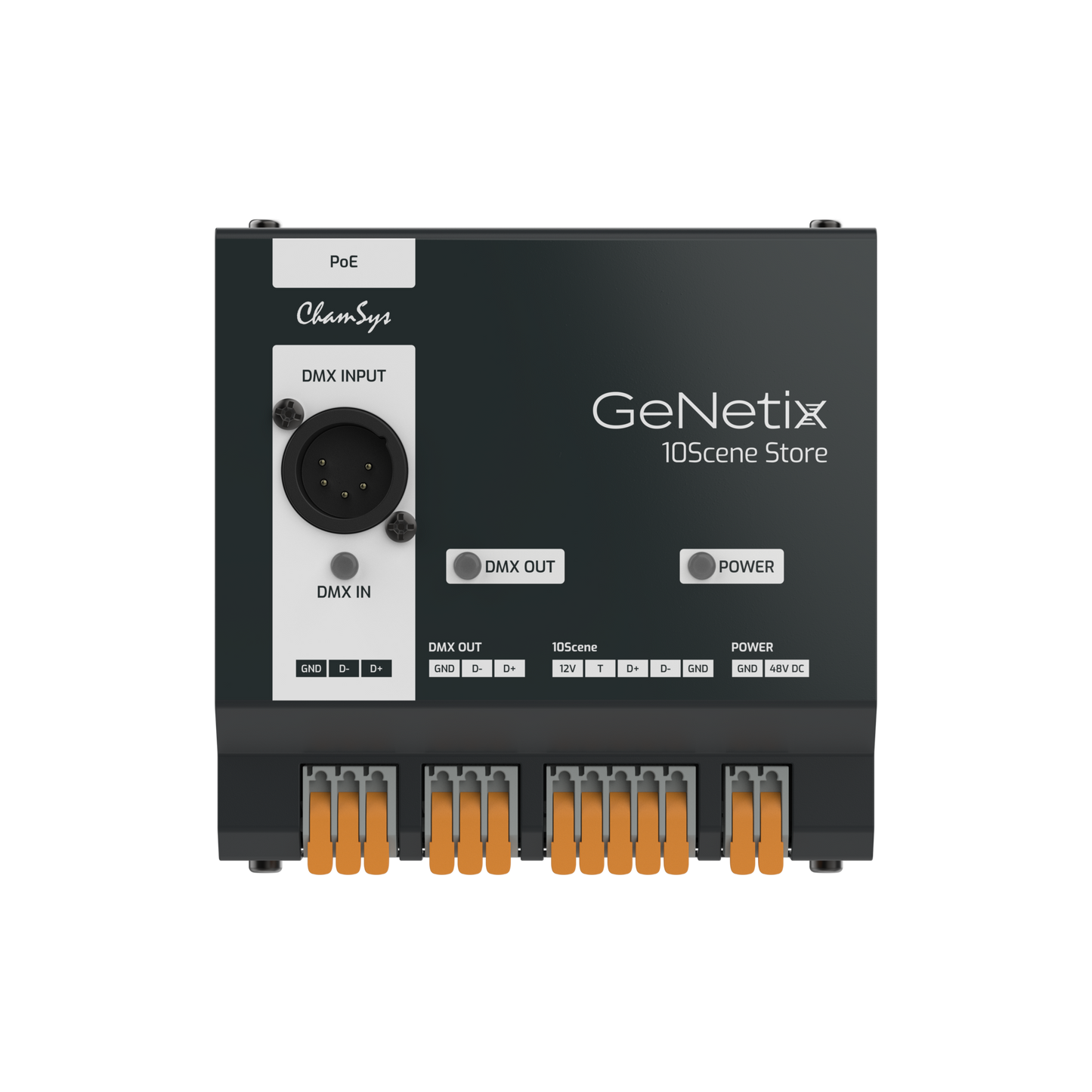

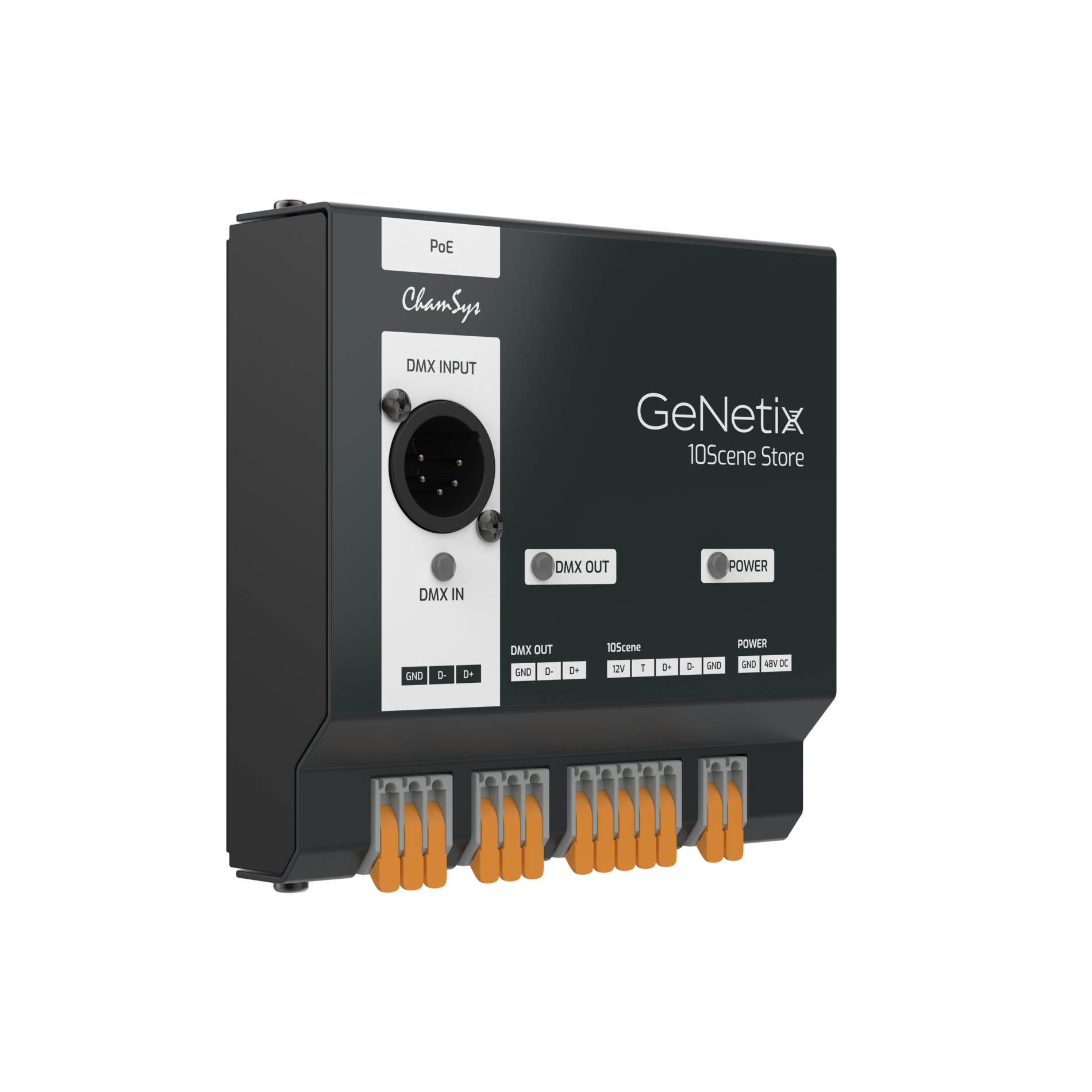

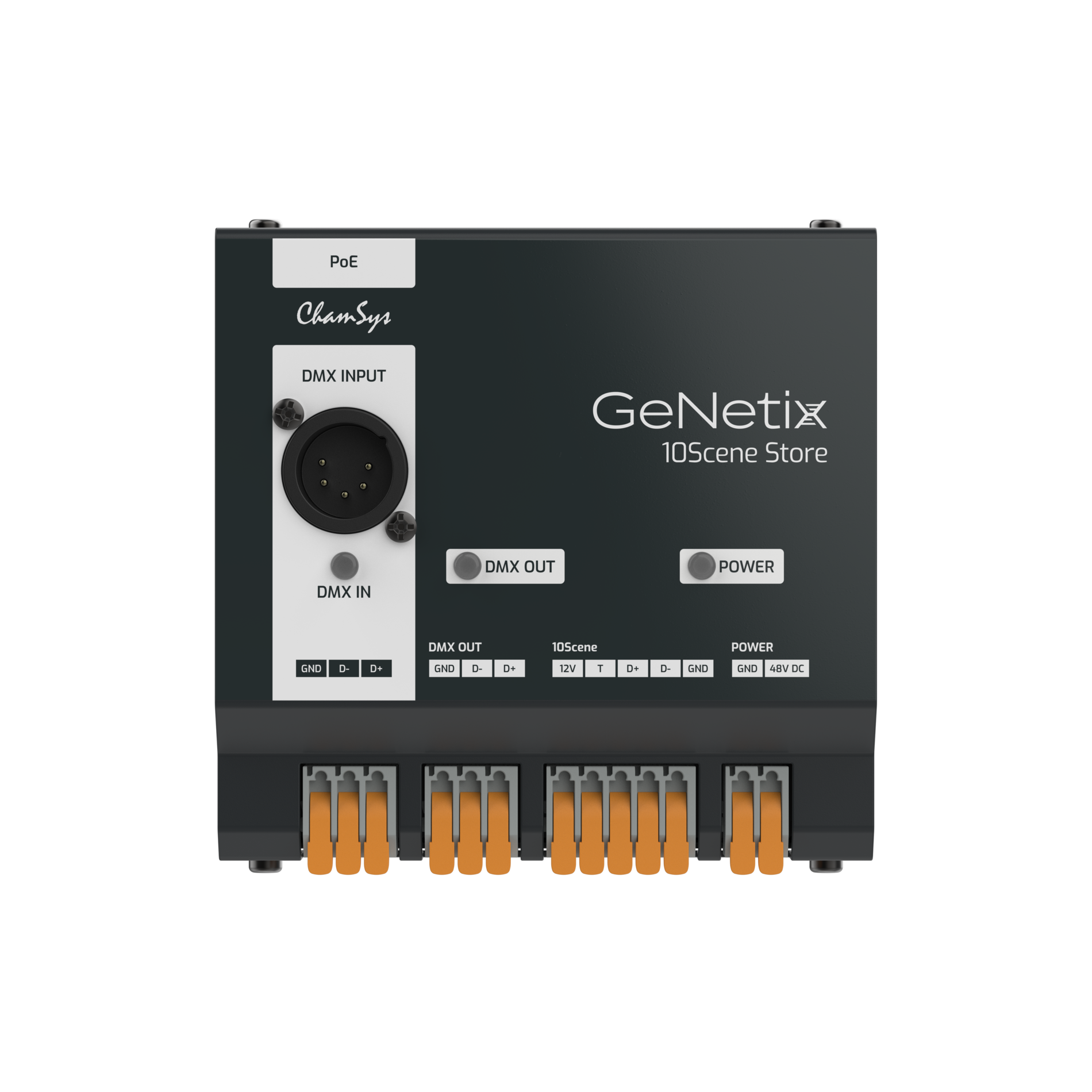

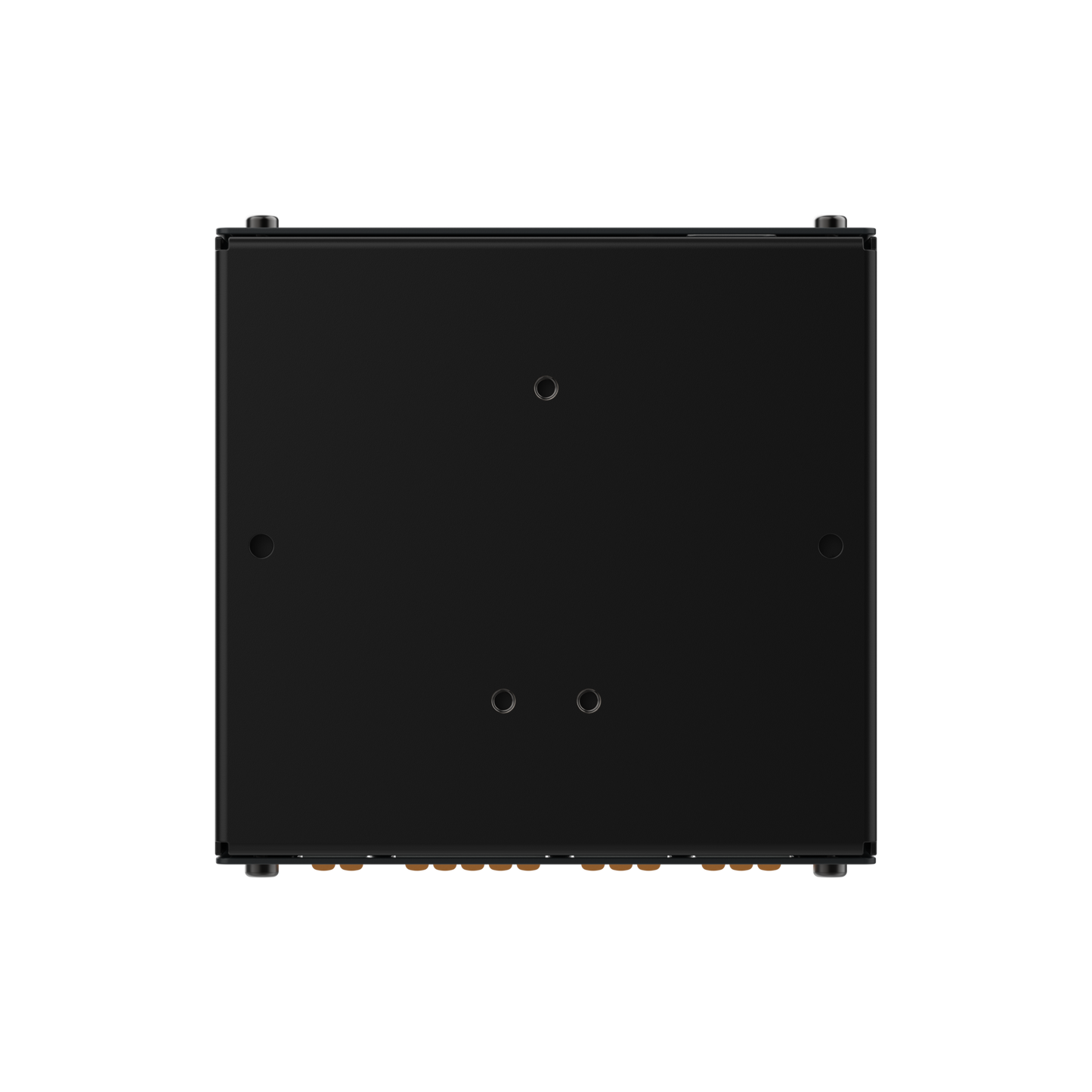

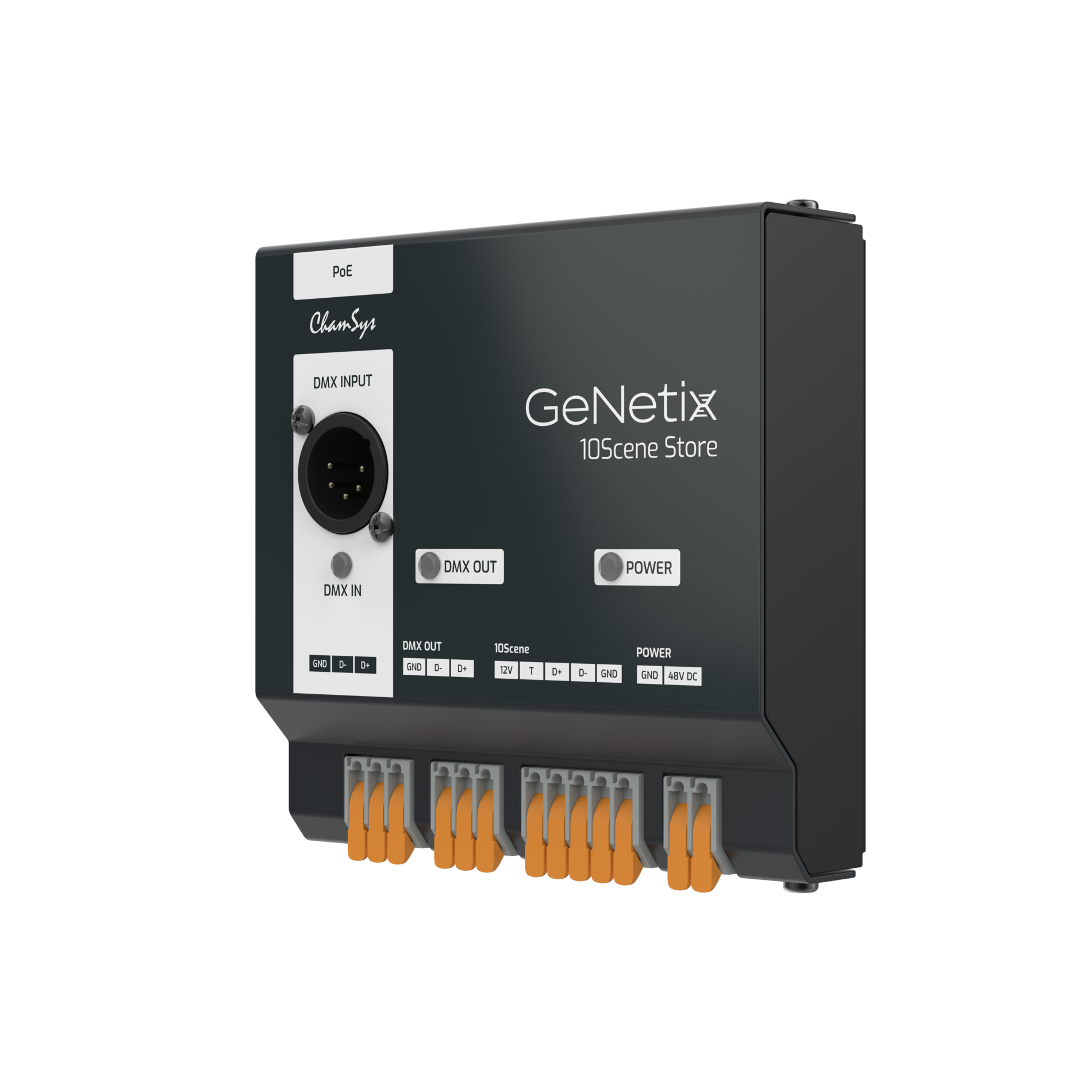

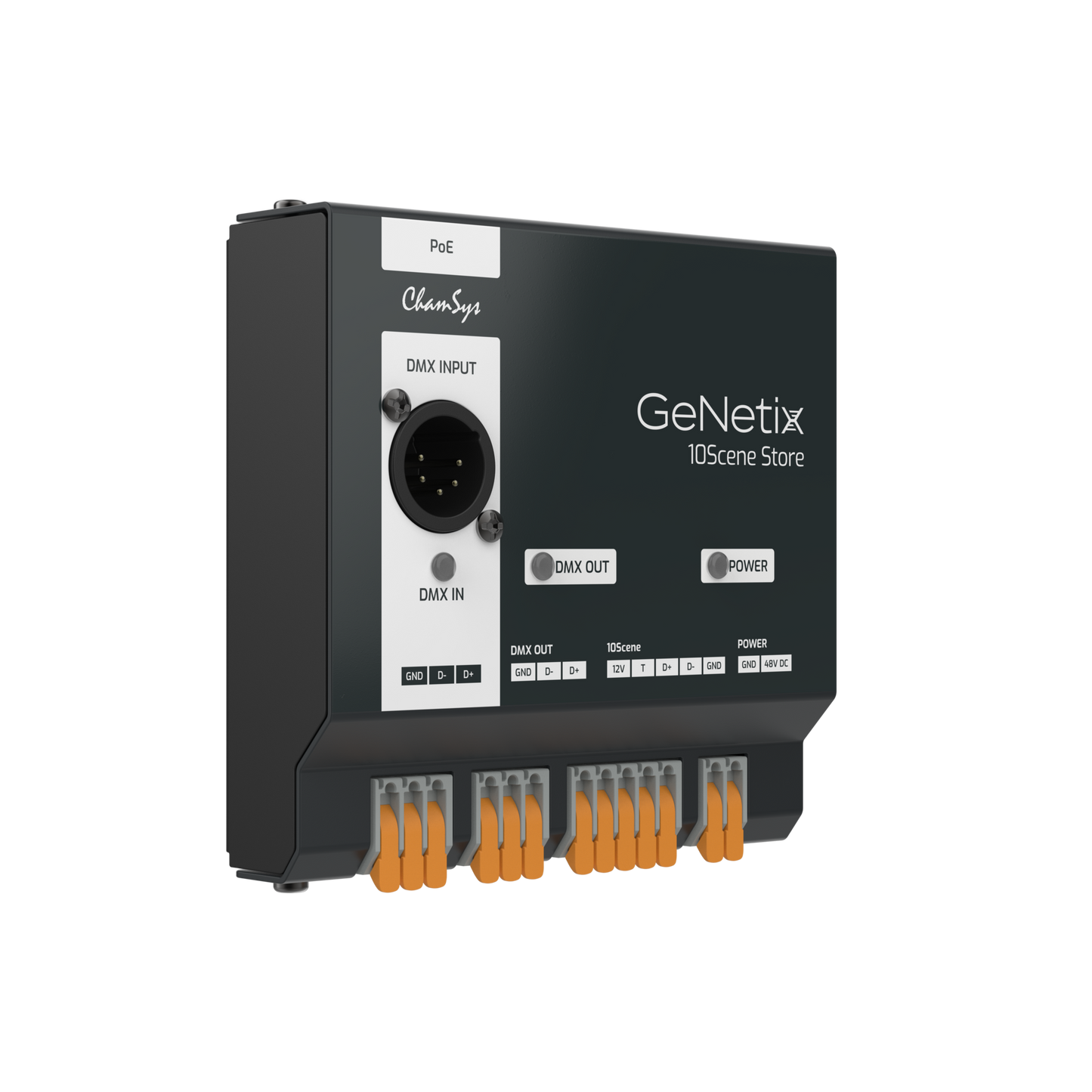

GeNetix 10Scene Store is a single universe wall or DIN Rail mounted standalone playback device that stores 10 static lighting Scenes (cues) which can be recalled with connected 10Scene wall plates. Load Scenes from either QuickQ or MagicQ show files or program via its in-built DMX Input port. Powered by either PoE or external 48V power supply, this simple installation device supports up to ten 10Scene wall plates, and features one DMX IN (XLR5 & Wago), one DMX OUT (Wago) and a network port.

Overview

• Stores 10 Static Lighting Scenes with fade times

• Scenes can sent and retreived from either MagicQ or QuickQ

• Scenes can be programmed via any DMX console via DMX Input

• Can be PoE or 48v DC powered

• Integrates with 10Scene Wall Plates & 10Scene App for triggering of Scenes

Specifications:

• Hardware Specification

• DMX Output Ports: 1 (Wago)

• DMX Input Ports: 1 (Linked Wago & 5 Pin DMX)

• Network Ports: 1

• 10Scene Ports: 1 (Wago)

• PoE Input: Yes

• 48v Power Input: Yes (Wago)

• Software Specifications

• 10 Scene Snapshot Record via DMX Input with Fade times

• Load Scenes from MagicQ or QuickQ consoles

• Web Server

• Weights and Dimensions

• Width: 116mm (4.57”)

• Depth: 32mm (1.26”)

• Height:117mm (4.60”)

• Weight: 0.45 KG (1.00 lbs)

Included Accessories:

• Din Rail Mount Clip
