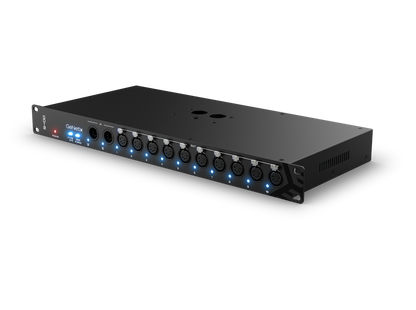

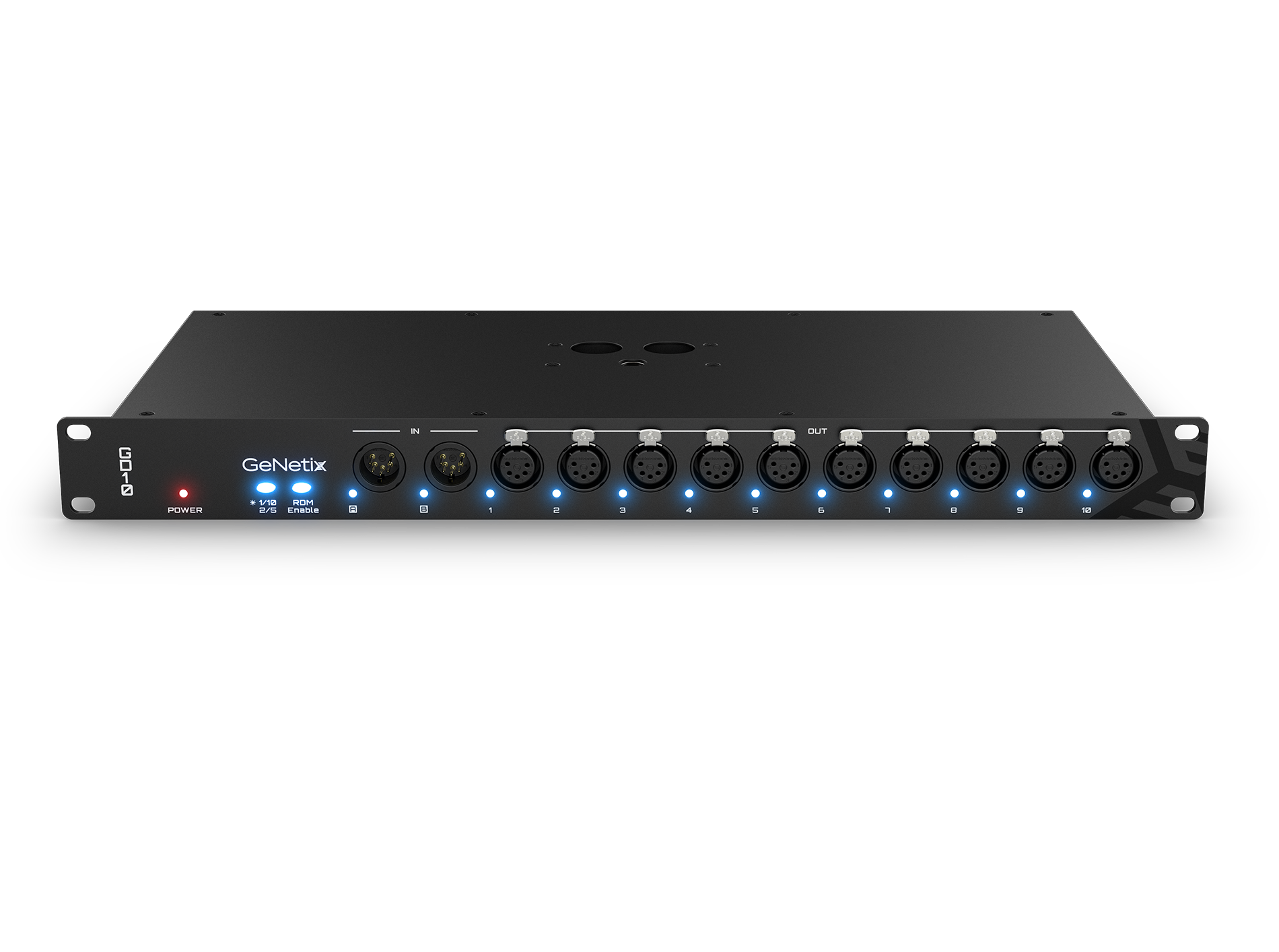

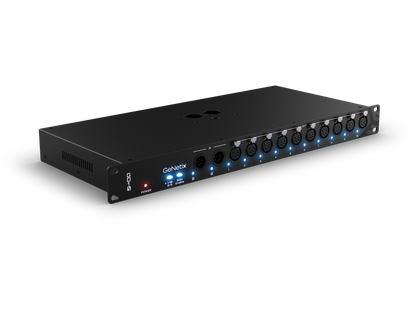

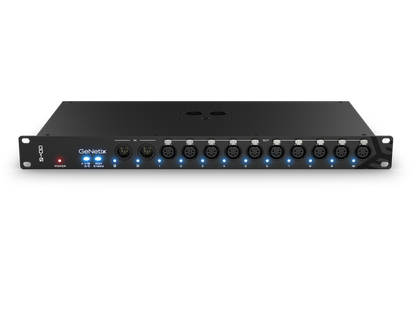

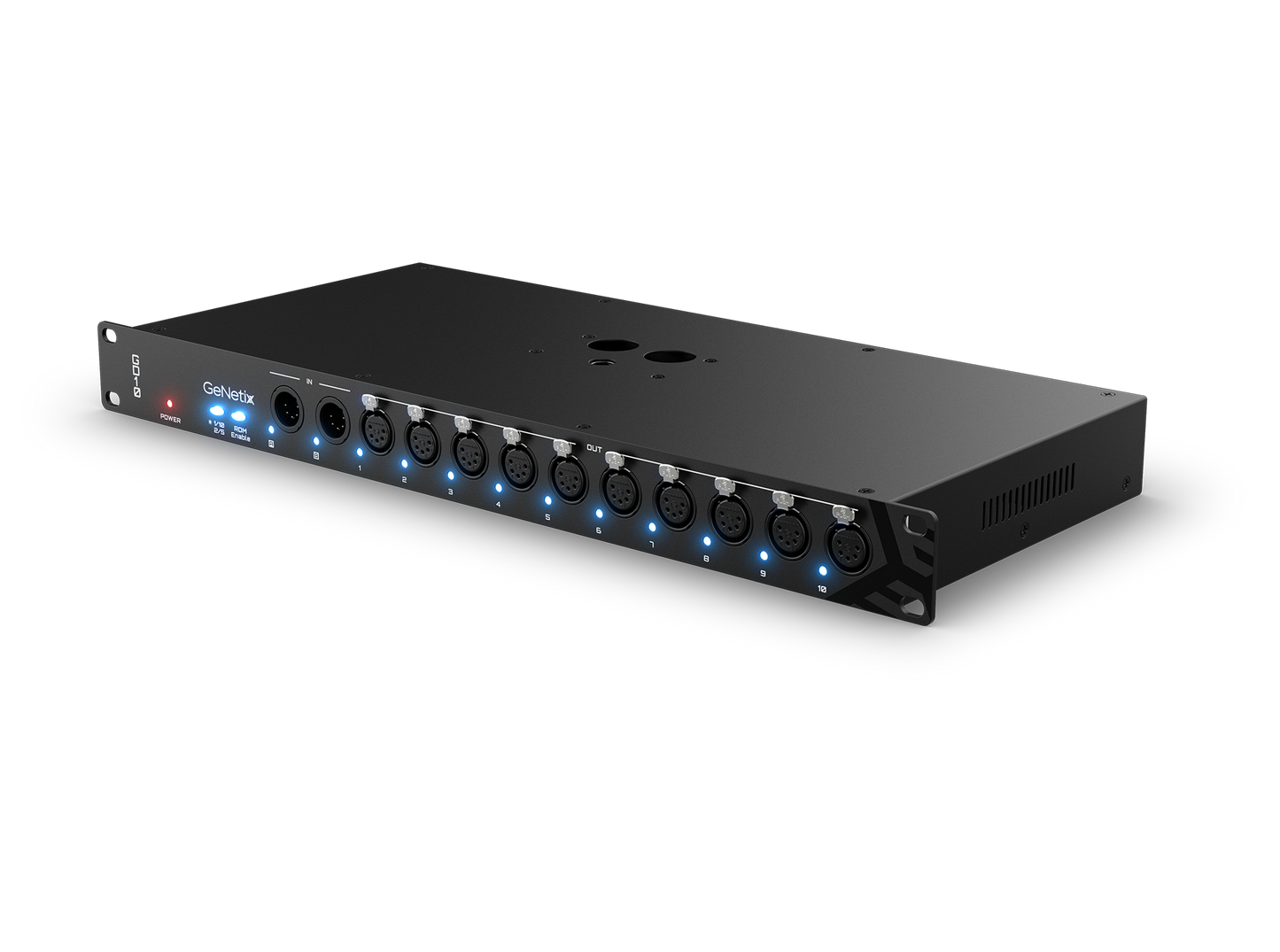

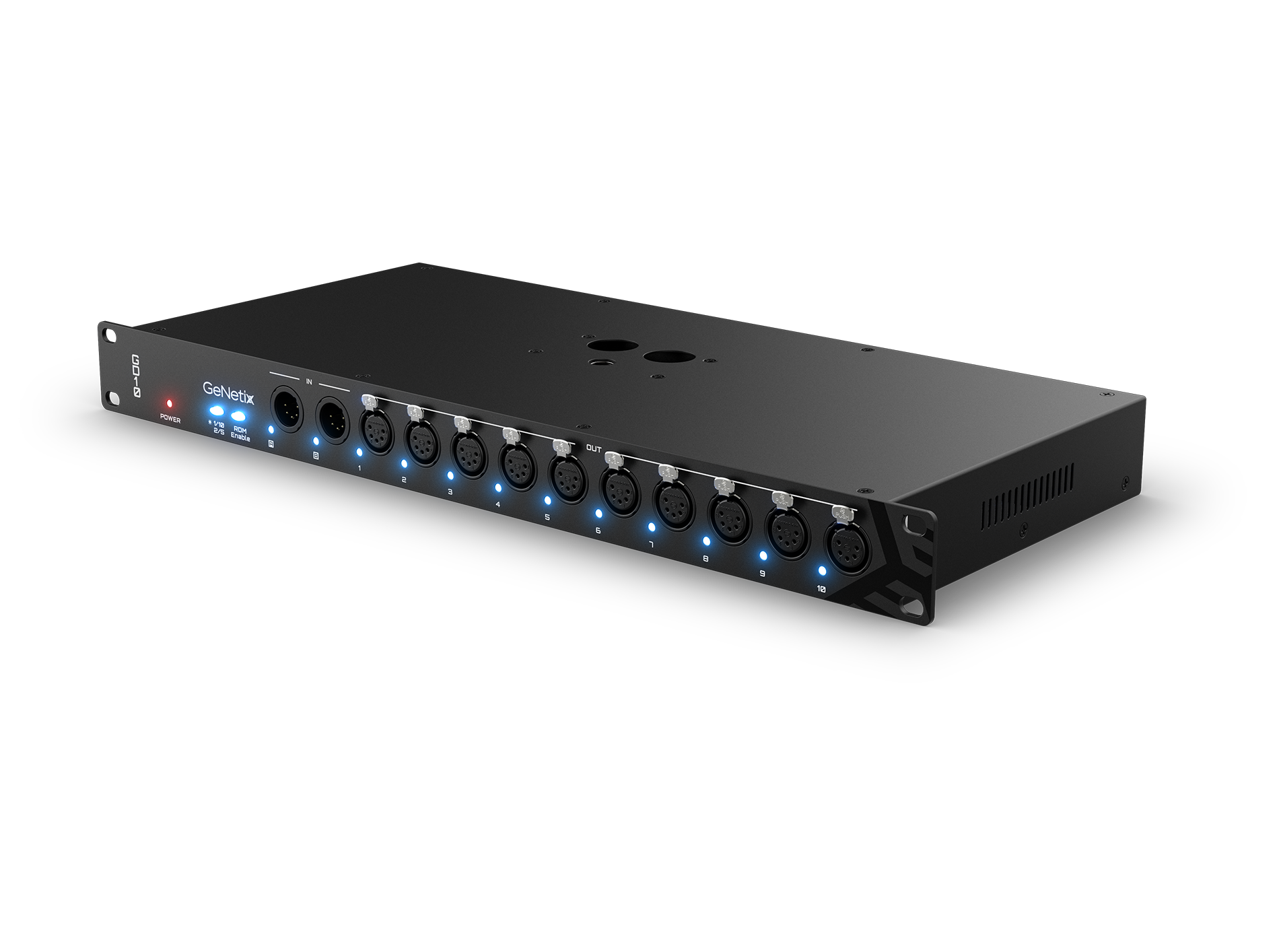

GeNetix GD10 10 Port DMX Splitter

The GD10 is a rack-mountable 10 port splitter. It can be used for live events or for permanent installs.

From the Manufacturer

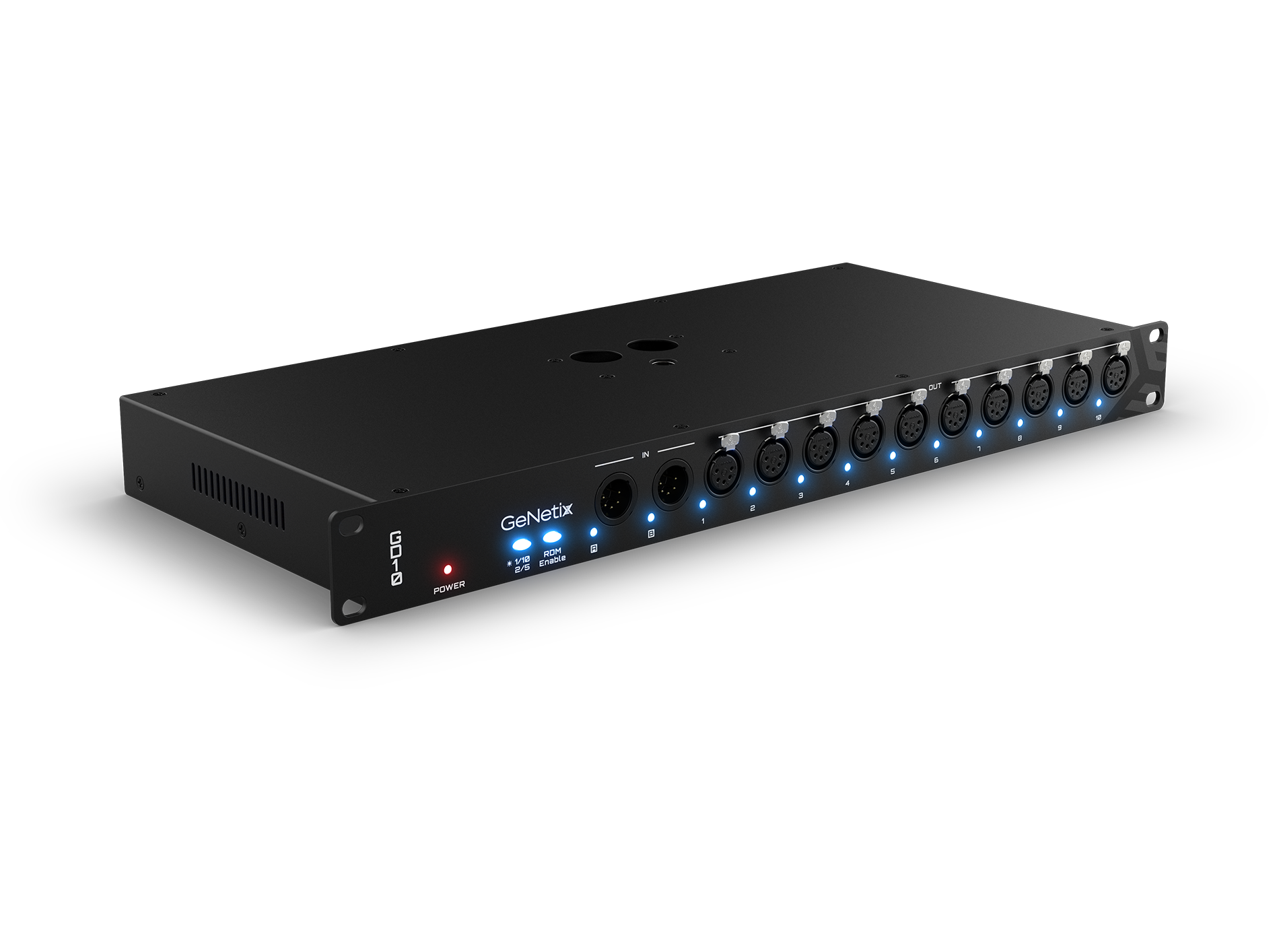

GeNetix GD10 is a 19″ 1U rack-mountable, RDM-capable 10-Port DMX Splitter at home in many different environments, with a design suited for both long-term installations and live events. Two selectable operating modes offer either 1×10 or 2×5 DMX signal distribution. GD10 features an ‘RDM Disable button’ to strip out RDM data and retime the DMX signal, and its ruggedly built construction includes a PowerCon True1 Mains Input connector.

Features

• 10 Port RDM E1.20 Compliant DMX Splitter

• 2 Input / 10 Output DMX Splitter

• 1 In to 10 Ouput or 2 In to 5 Output Mode

• 19” 1U Rack Mountable

Specifications

• 5 Pin DMX Output Ports: 10

• 5 Pin DMX Input Ports: 2

• RDM Enable/Disable Option: Yes

• M12 Clamp Fixing: Yes

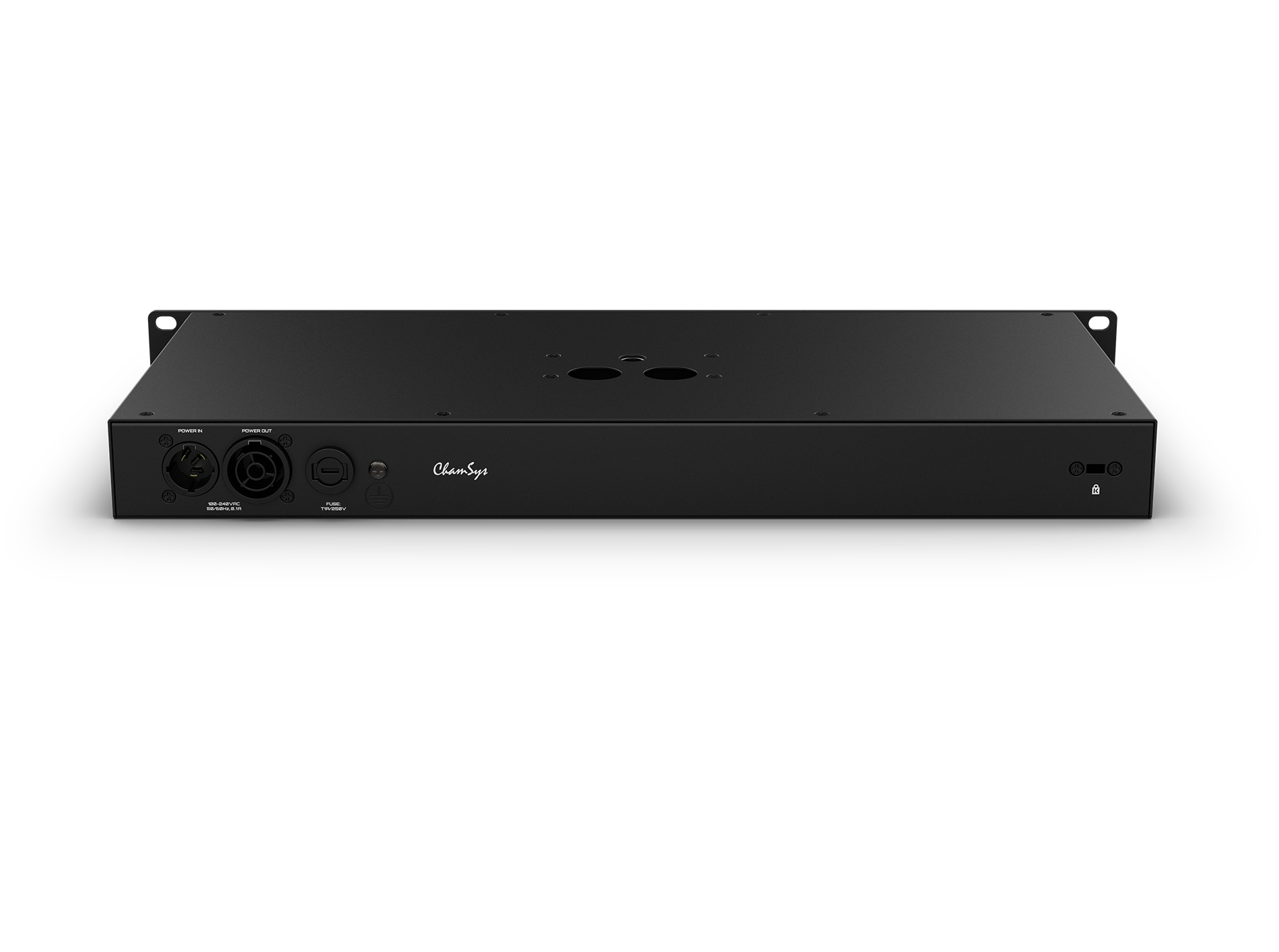

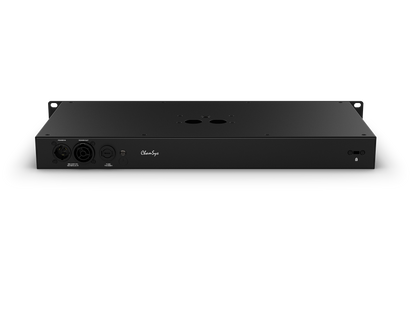

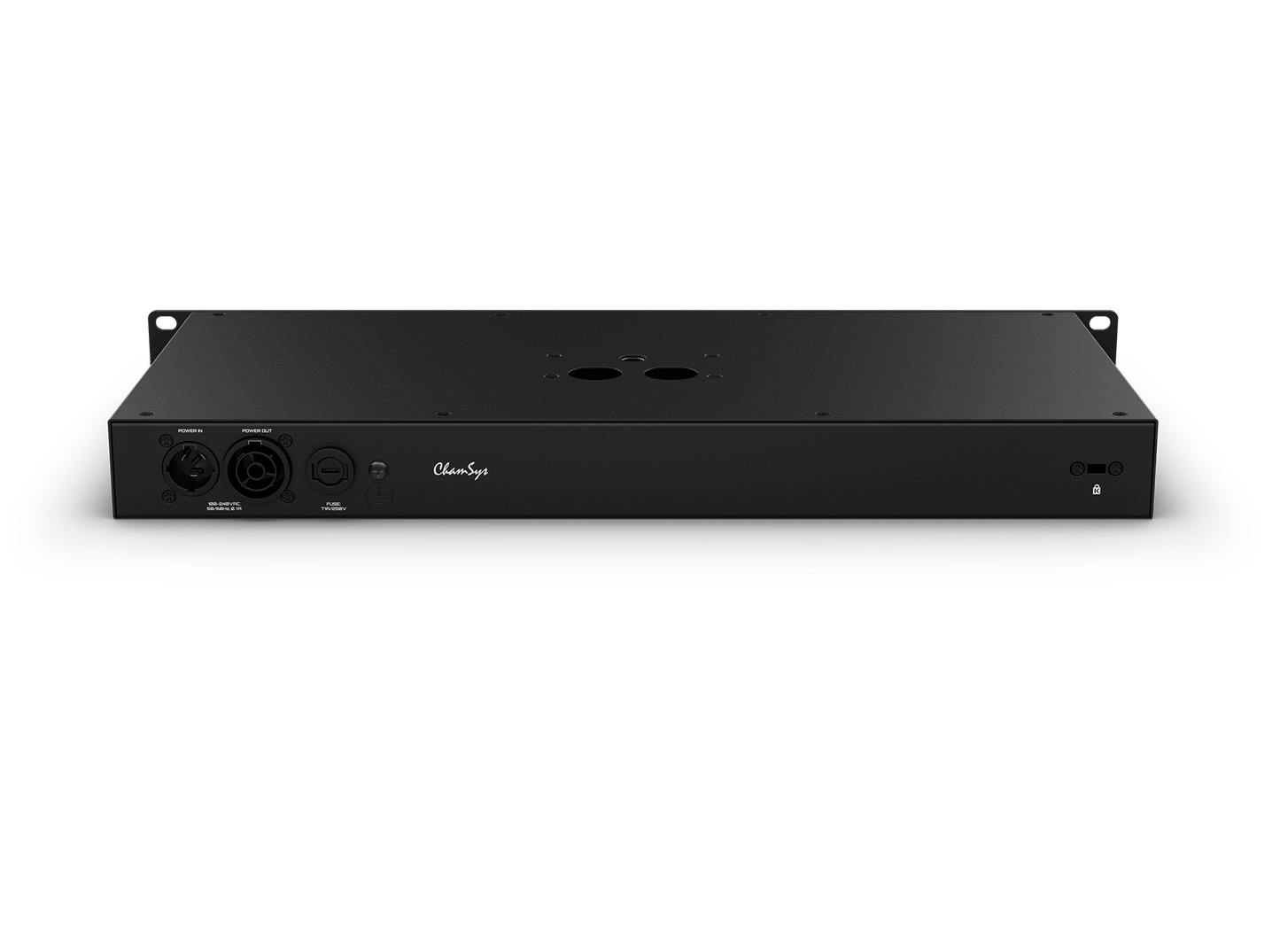

• Power Input: Neutrik powerCON TRUE1 110 to 240 VAC

• Width: 480mm (18.9 inches)

• Depth: 218mm (8.59 inches)

• Height: 44.4mm (1.75 inches)

• Weight: 2.75 KG (6.06 lb)

• Included Accessories: Neutrik powerCON TRUE1 Power Cable: 1
