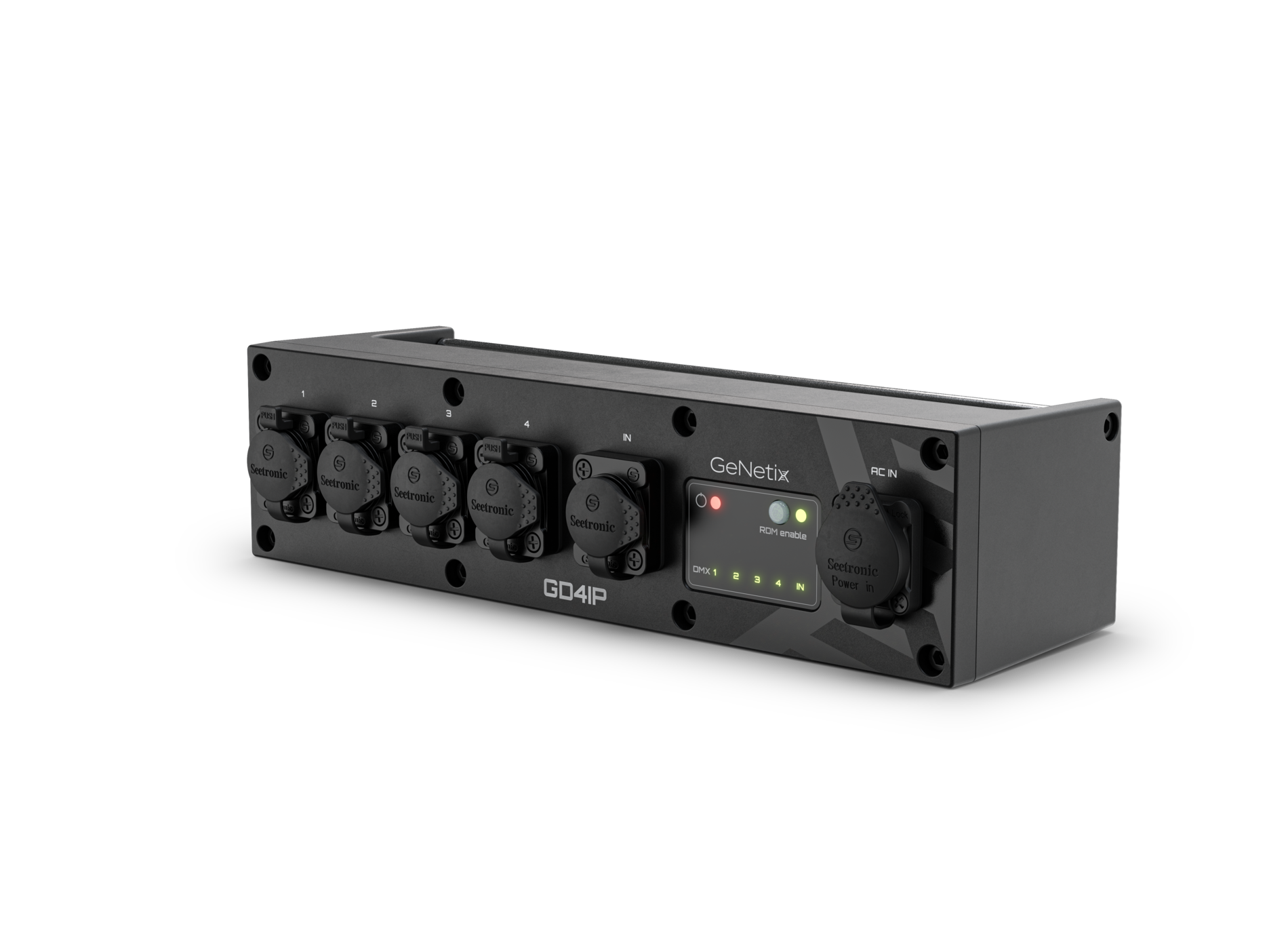

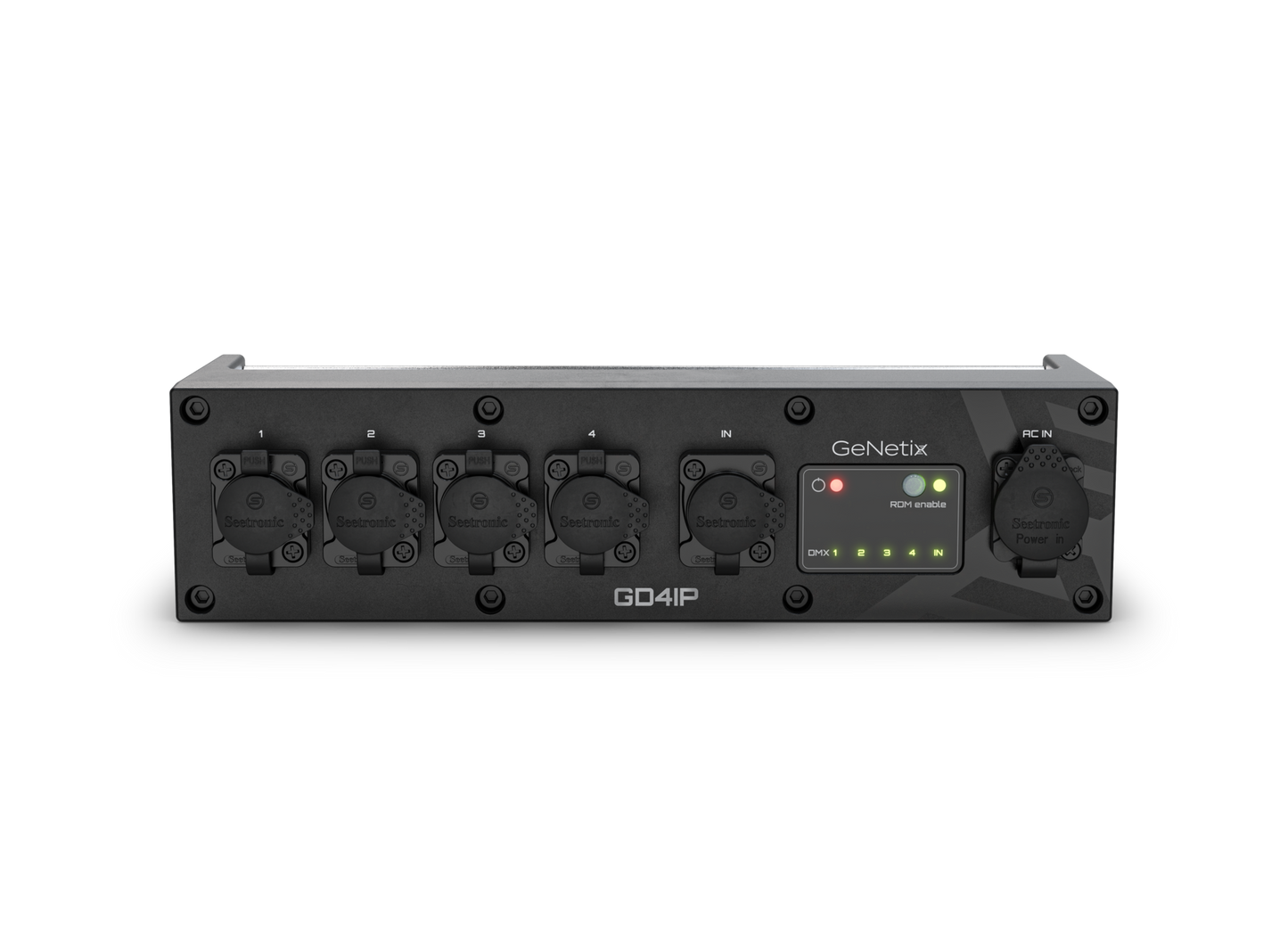

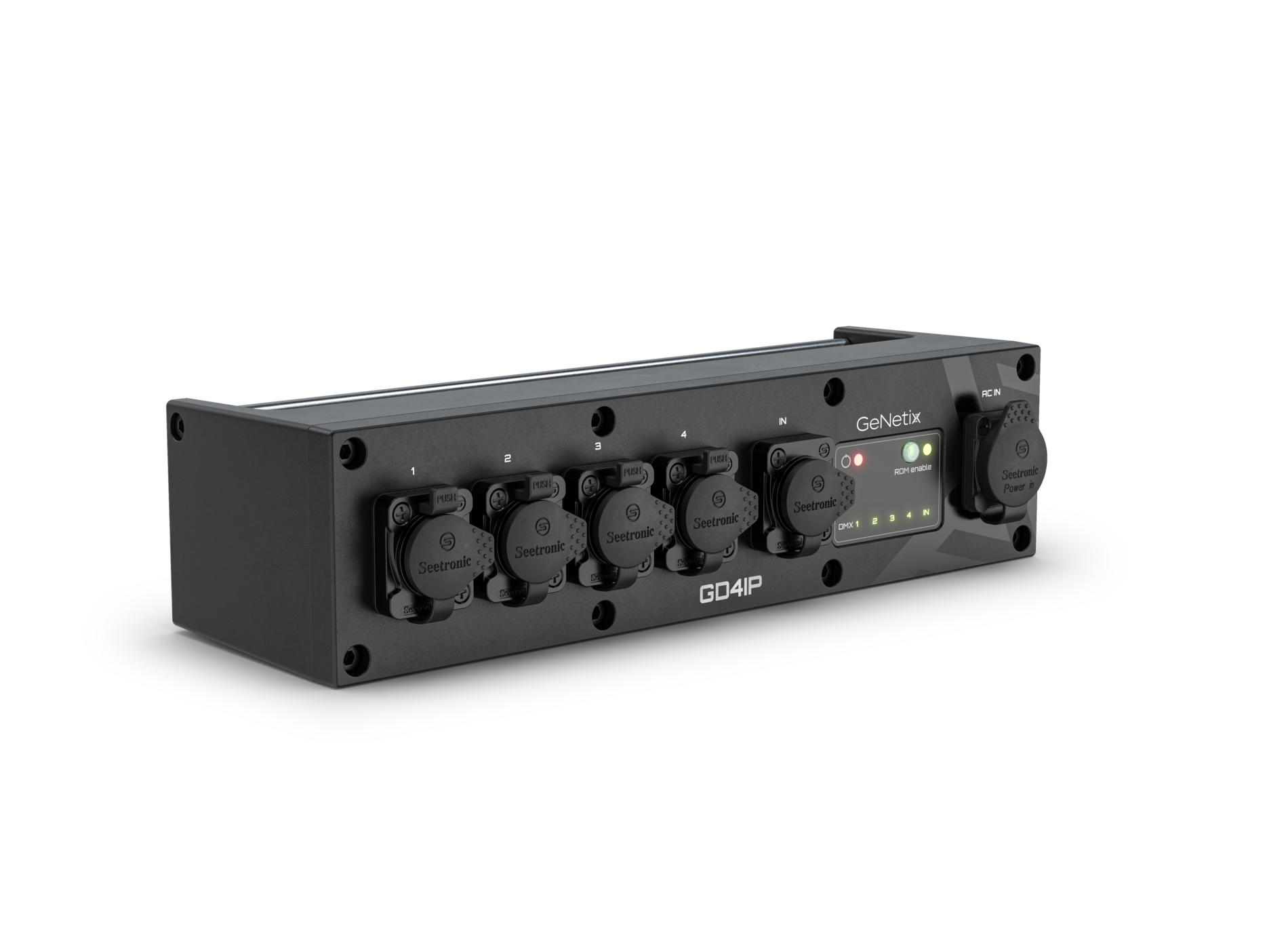

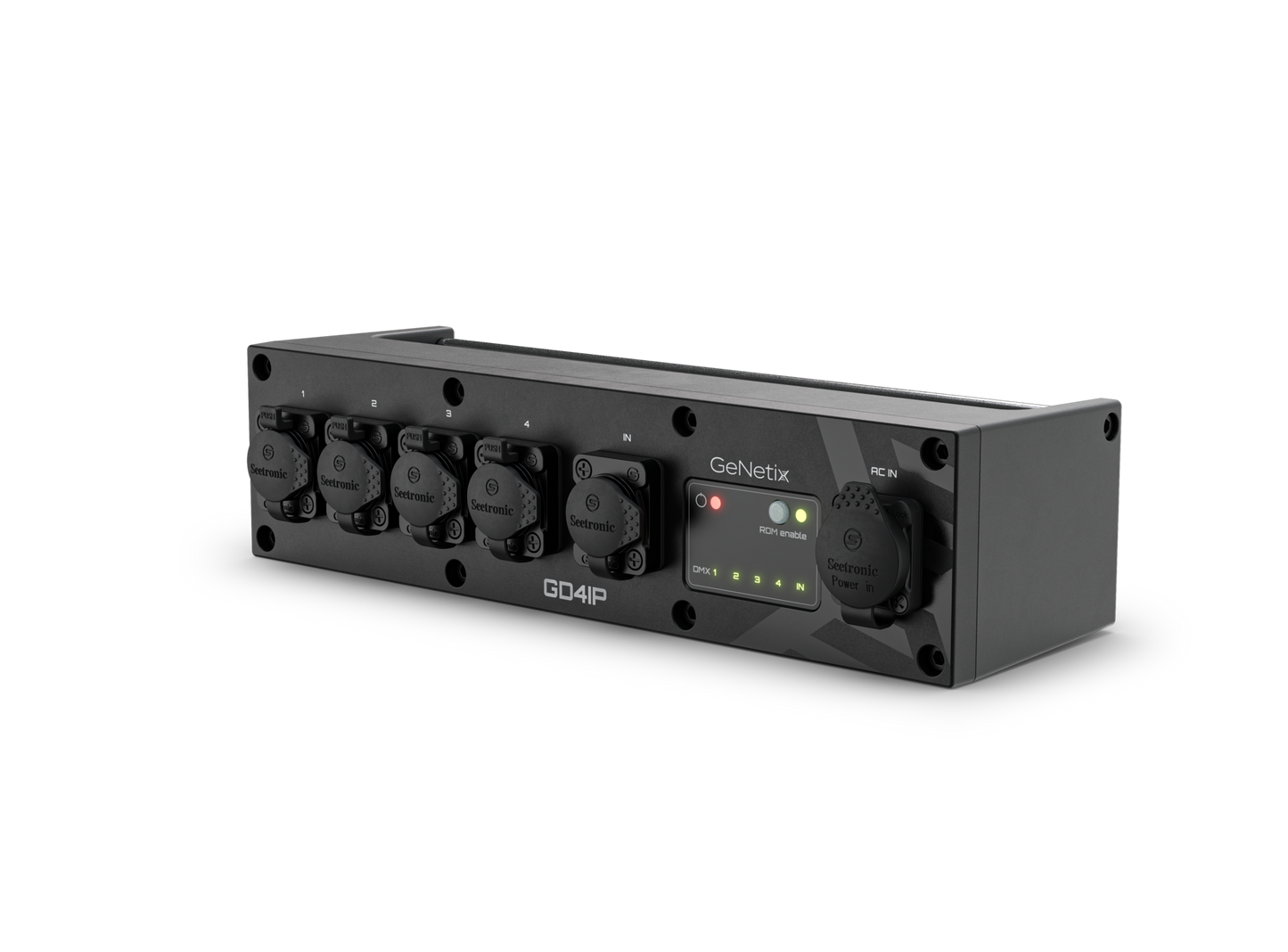

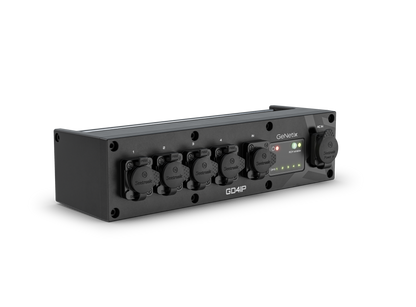

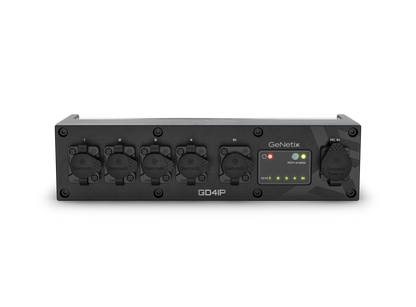

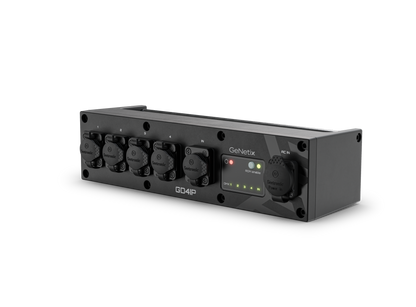

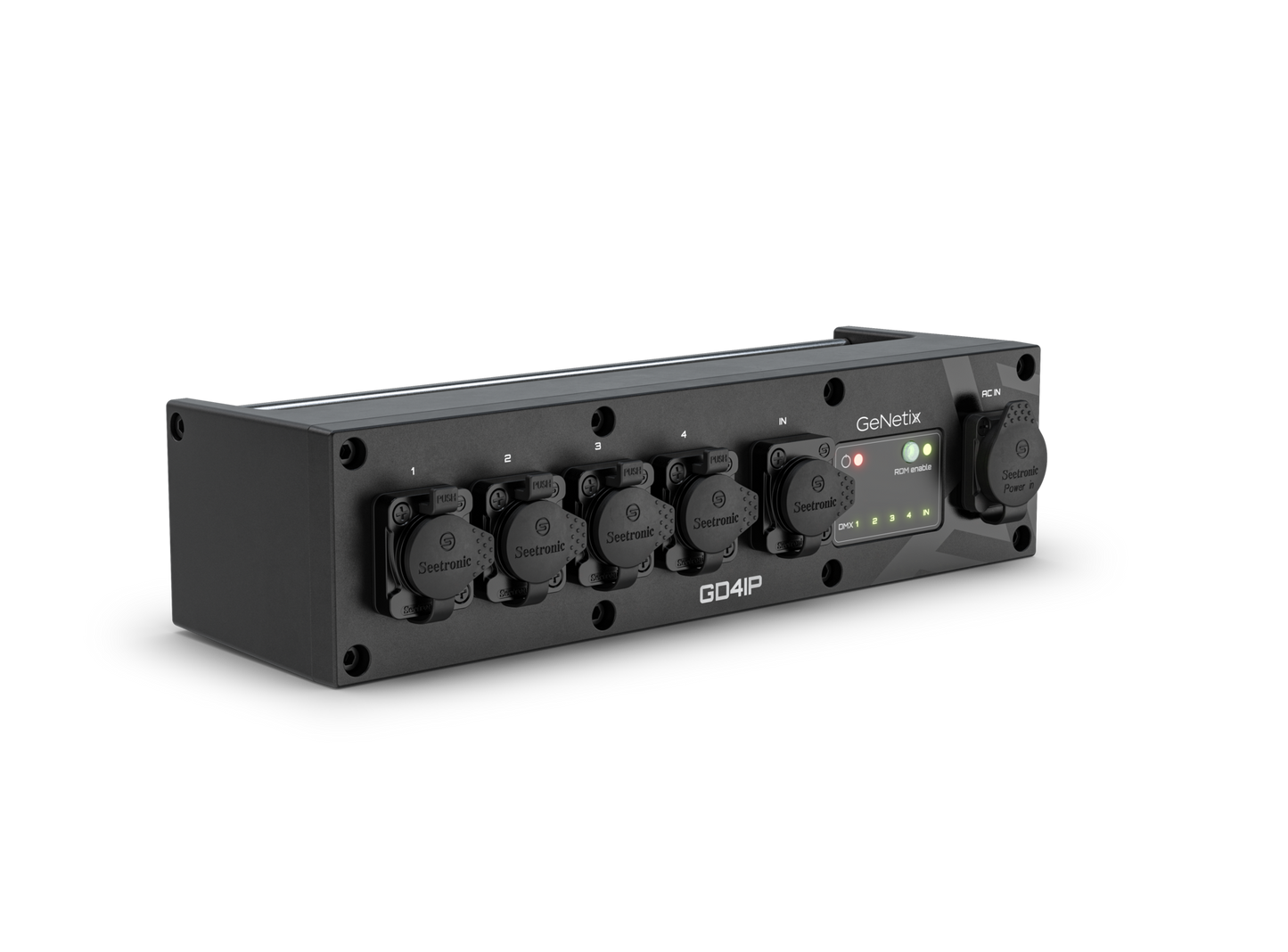

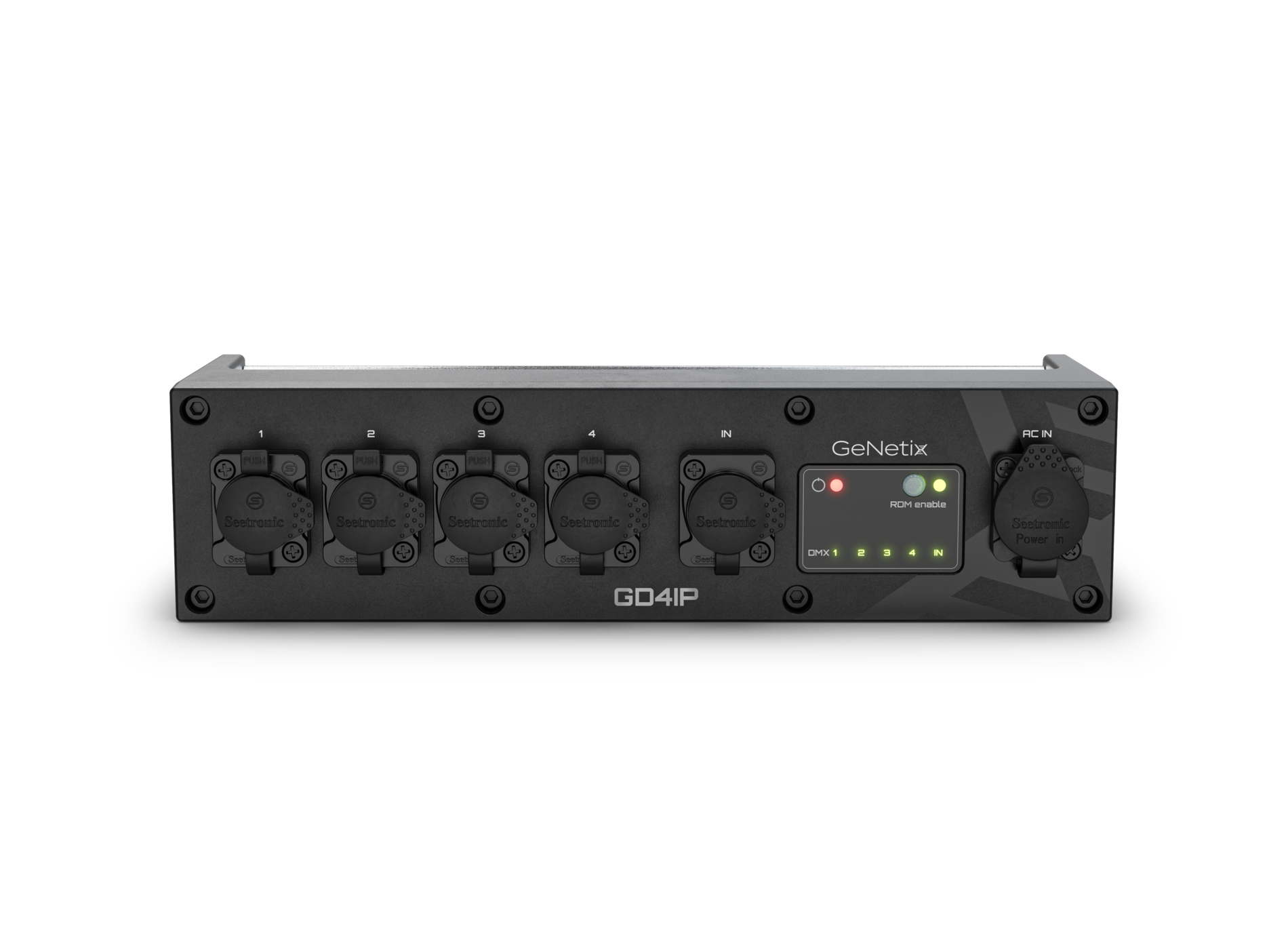

GeNetix GD4 IP DMX/RDM Splitter IP Rated

The GeNetix GD4 IP is a DMX/RDM outdoor rated Splitter. It has one input and 4 outputs. This is a great option for those looking for a rugged all purpose DMX Splitter.

From the Manufacturer:

GeNetix GD4IP is a compact IP65-rated 4-port DMX Splitter that comes with multiple rigging options for easily mounting in your rig. Featuring 1 DMX Input to 4 DMX Outputs and an ‘RDM Disable button’ to strip out RDM data and retime the DMX signal, this ruggedly built device comes with Seetronic IP65 connectors and a PowerCon True1 Mains Input connector.

Overview:

• 4 Port RDM E1.20 Compliant DMX Splitter

• IP65 Rated

• PowerCon True1 Top Mains Input

• M12 Threaded Insert for Clamp Mounting

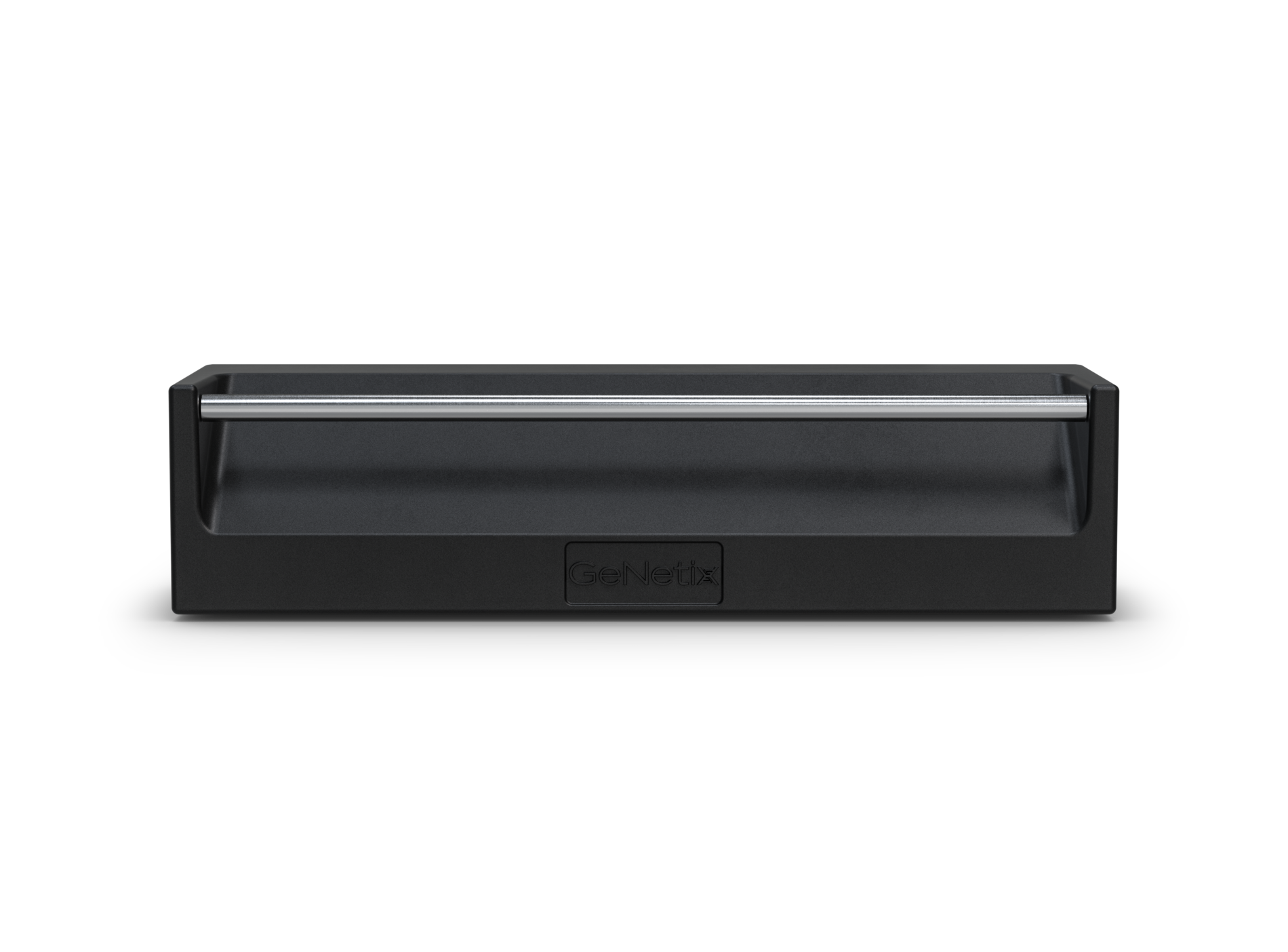

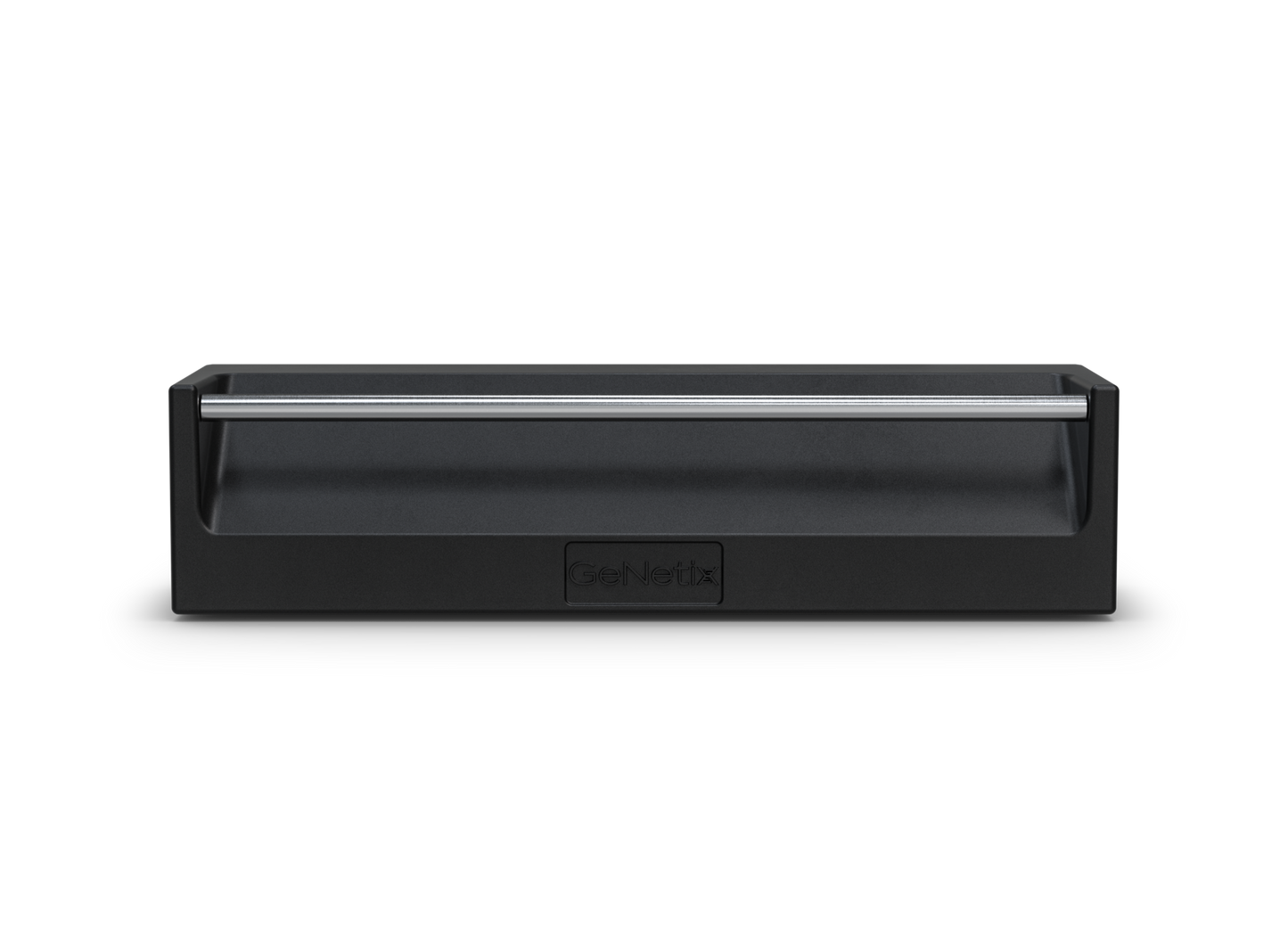

• Built in Rail for secondary Safety bond when rigged

Hardware Specifications:

• 5 Pin DMX Output Ports: 4

• 5 Pin DMX Input Ports: 1

• RDM Enable/Disable Option: Yes

• Mains Input: PowerCon True1 Top

• IP65 Rated: Yes

• Port Status LEDs: Yes

• M12 Clamp Fixing: Yes

• Safety Bond Fixing Rail: Yes

• Width: 274mm (10.81 inches)

• Depth: 76mm (3,0 inches)

• Height: 68mm (2.68 inches)

• Weight: 1.40 KG (3.09 lb)
