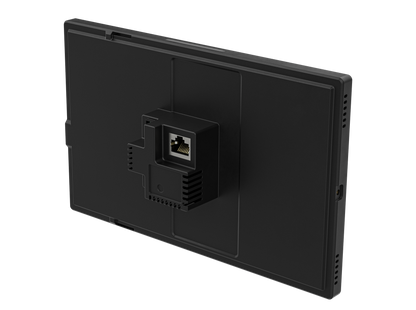

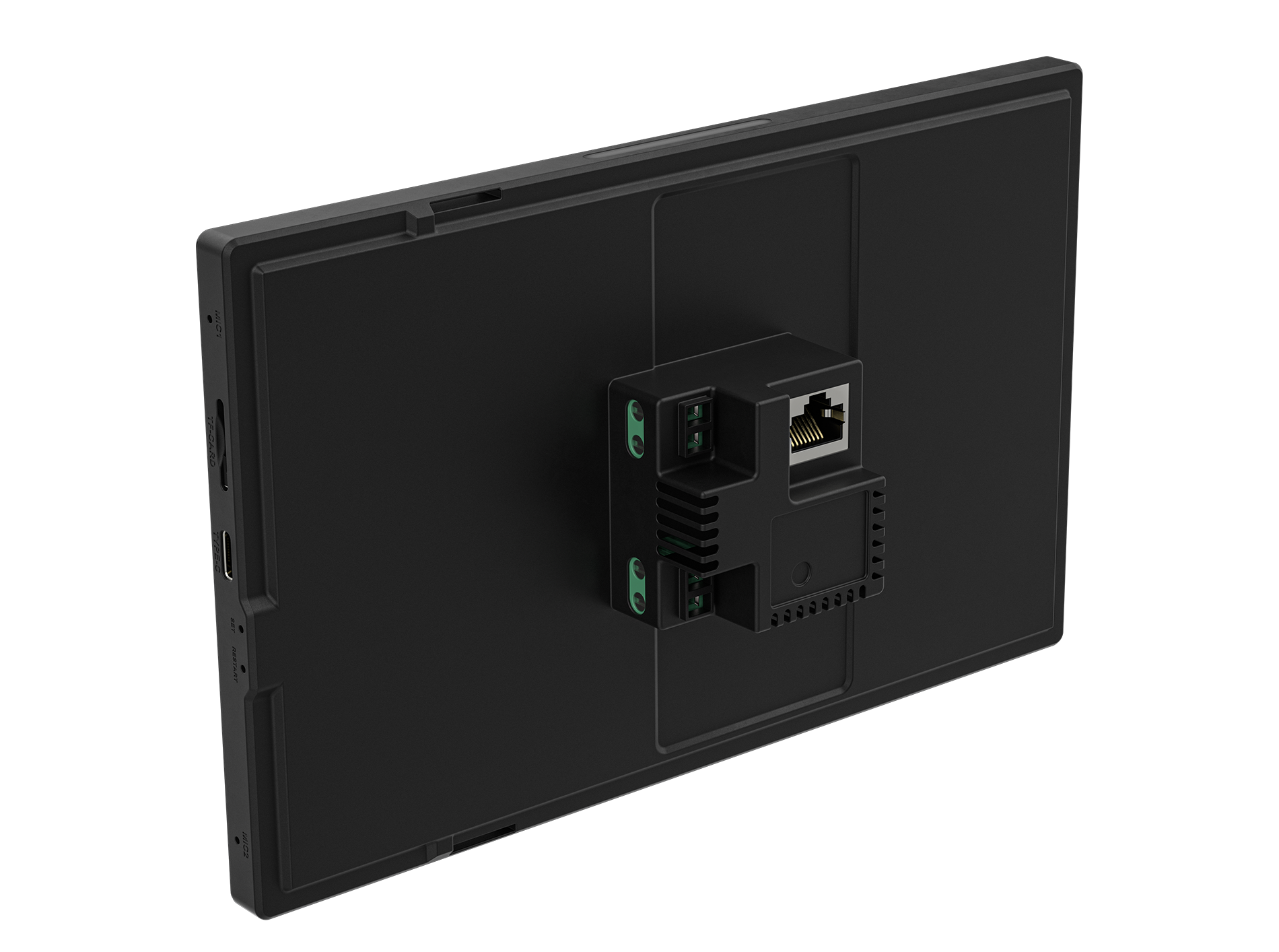

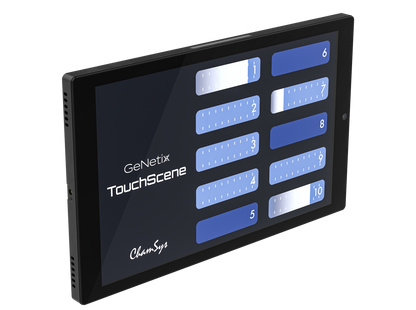

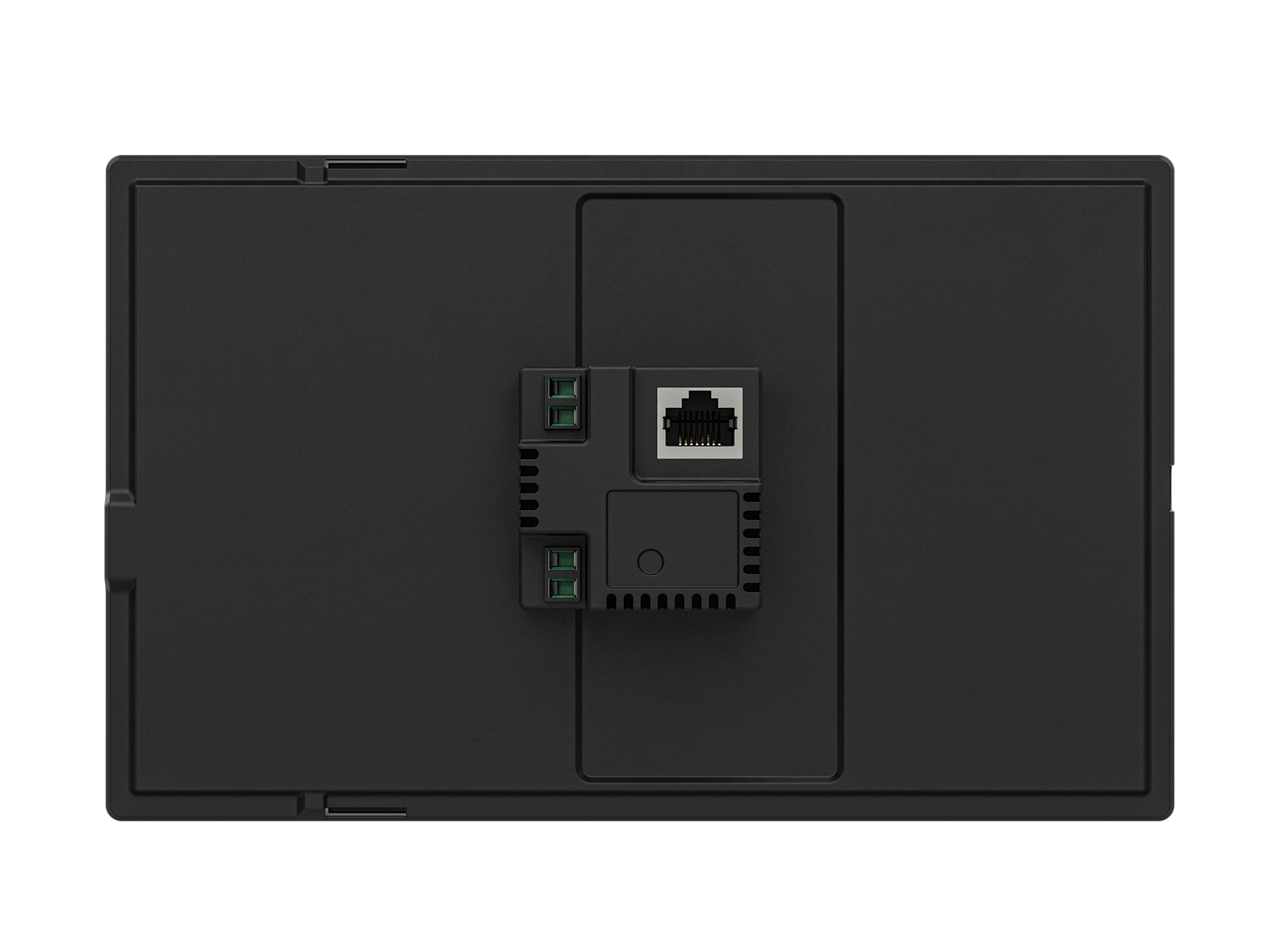

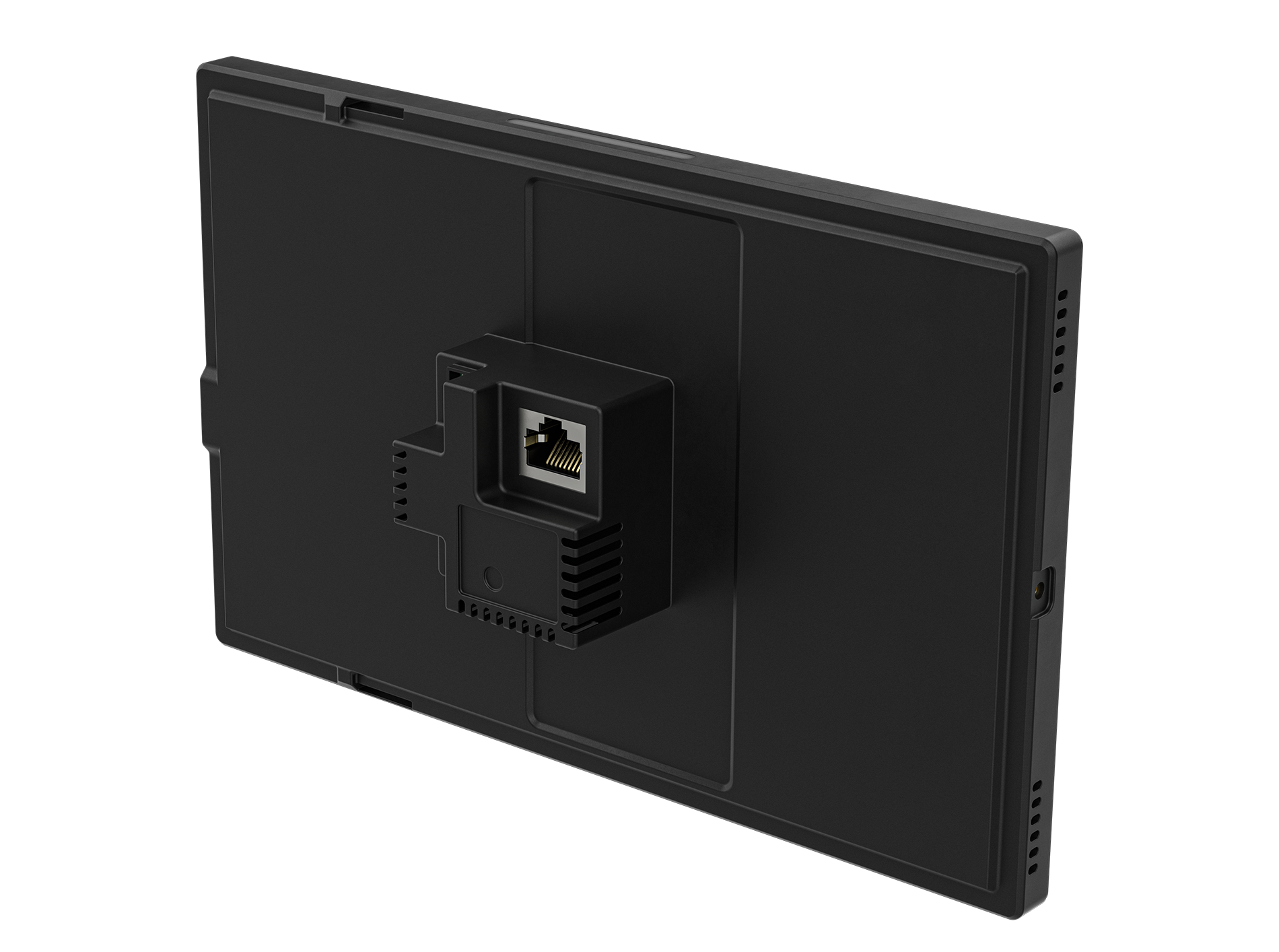

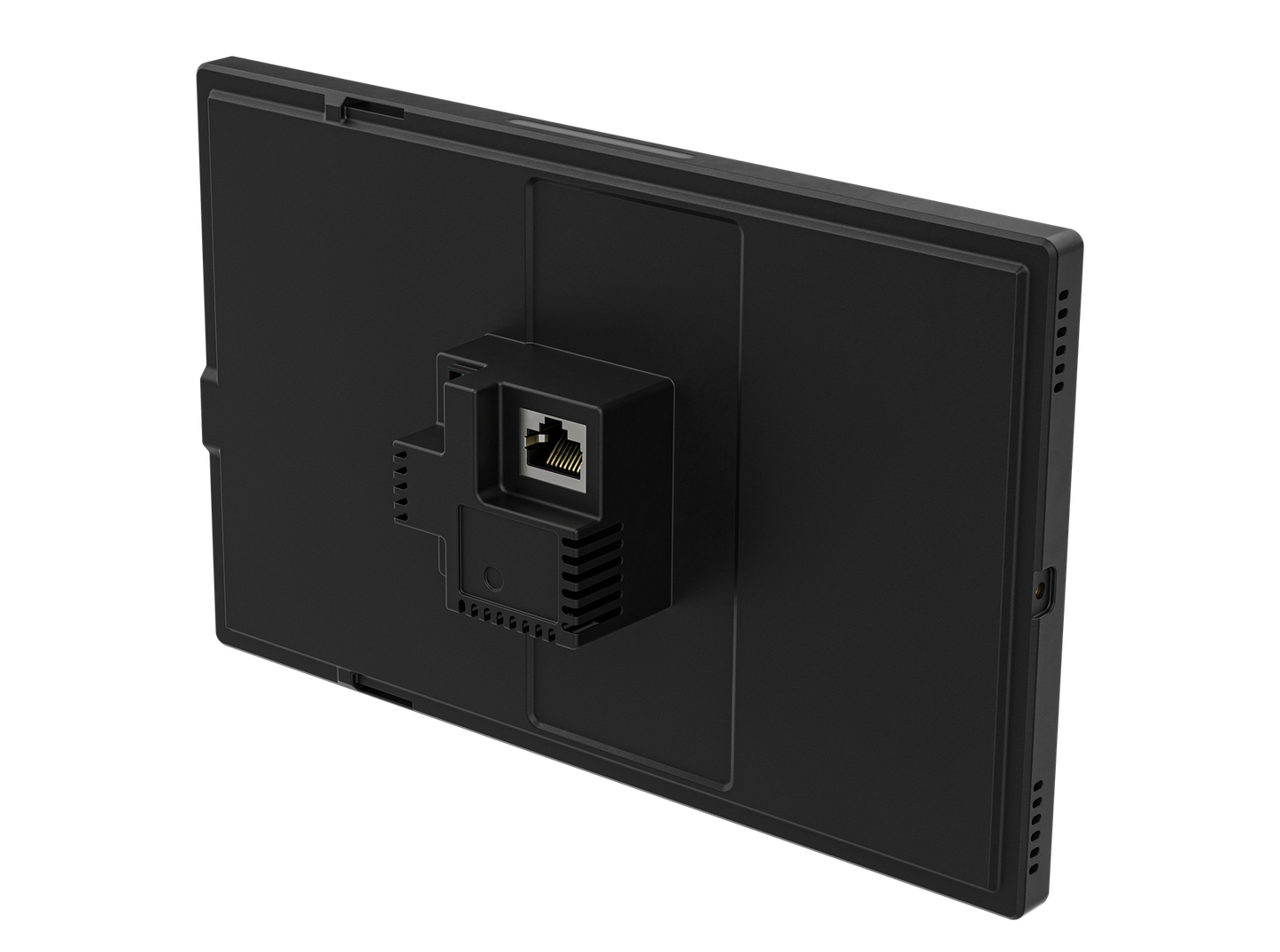

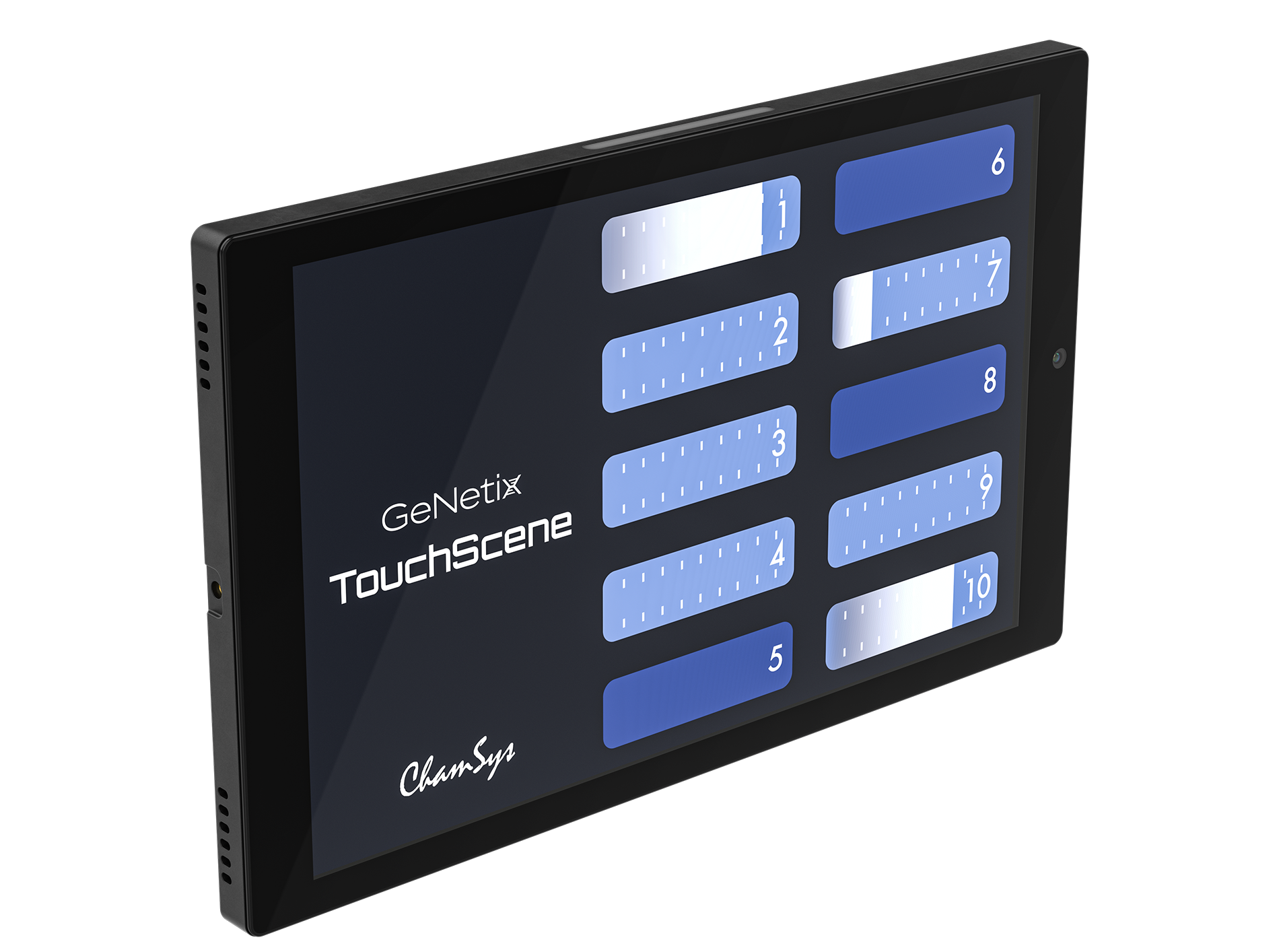

GeNetix TouchScene Wall Plate

The GeNetix TouchScene Wall Plate is a wall plate that connects to the MagicQ consoles or software. It is a great option for simple control to play back scenes.

From the Manufacturer:

GeNetix TouchScene elegantly integrates with MagicQ or QuickQ systems and GeNetix nodes for remote Scene activation.

When connected to GeNetix Nodes, TouchScenes can be used to toggle on/off Scenes stored on GeNetix Nodes. When TouchScenes are used with MagicQ or QuickQ controllers, additional Scene level control is available. Connecting to a MagicQ control system allows for complete interface customisation, including custom icons and images as well as fully customising the items on the display.

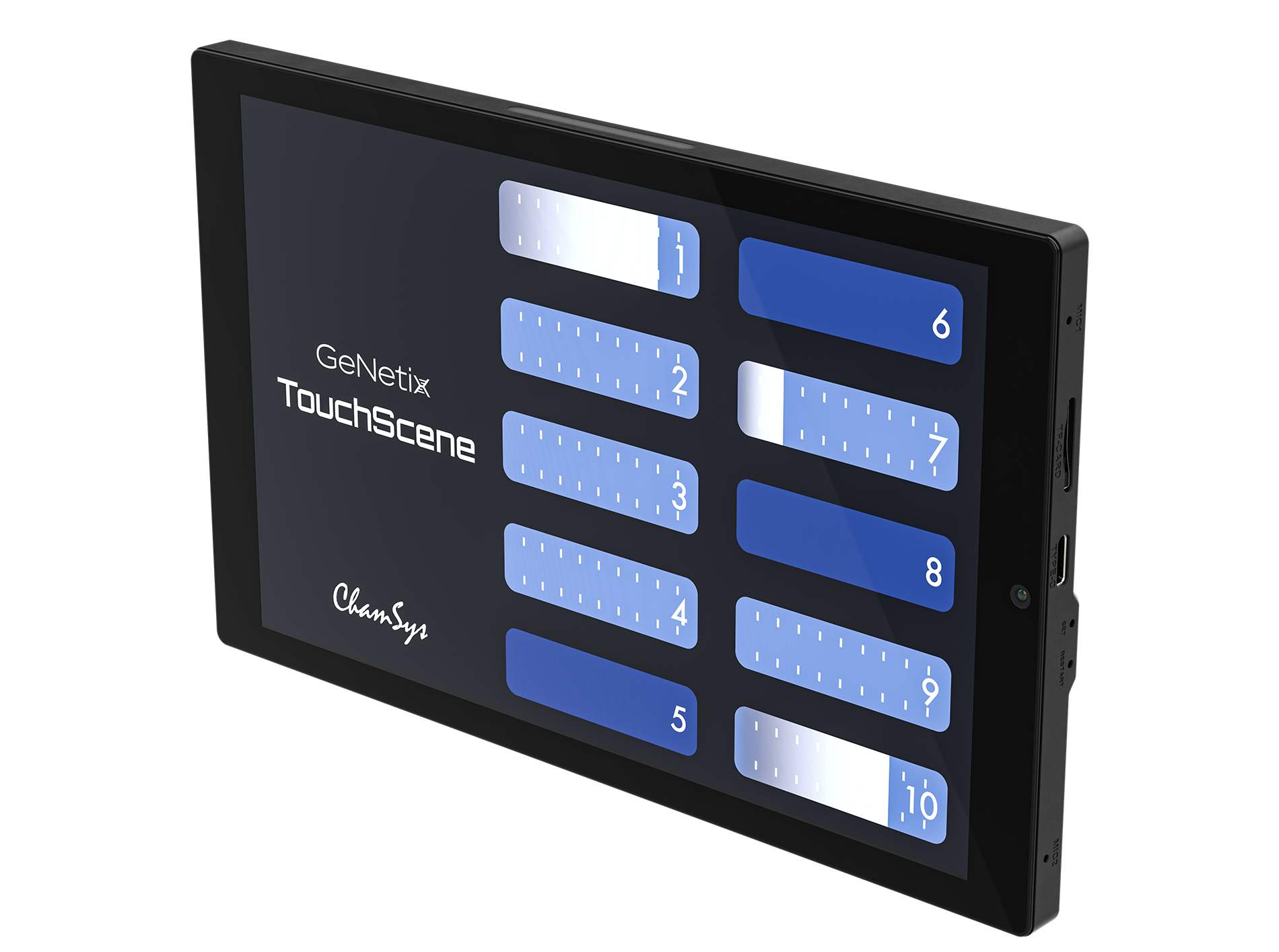

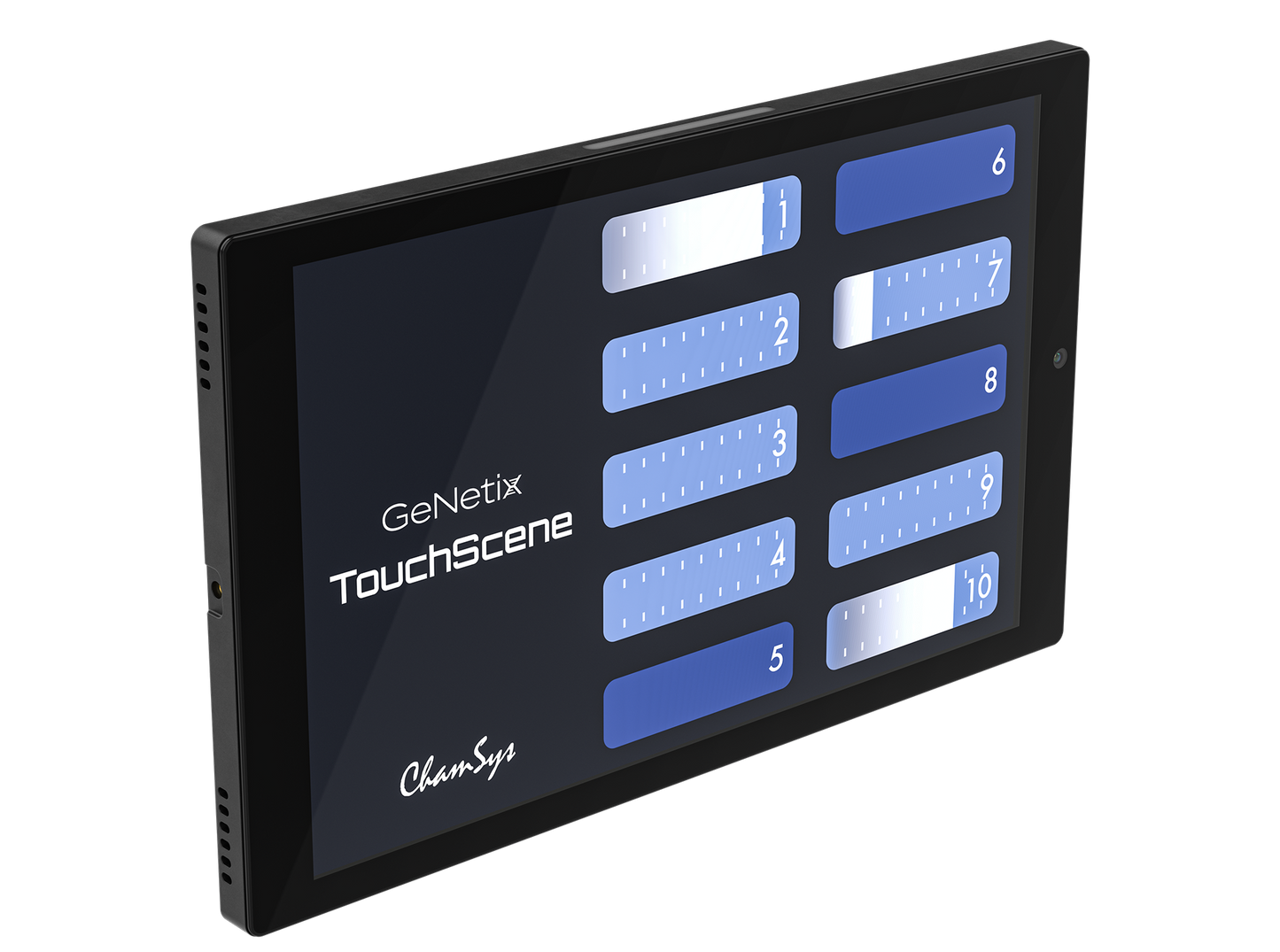

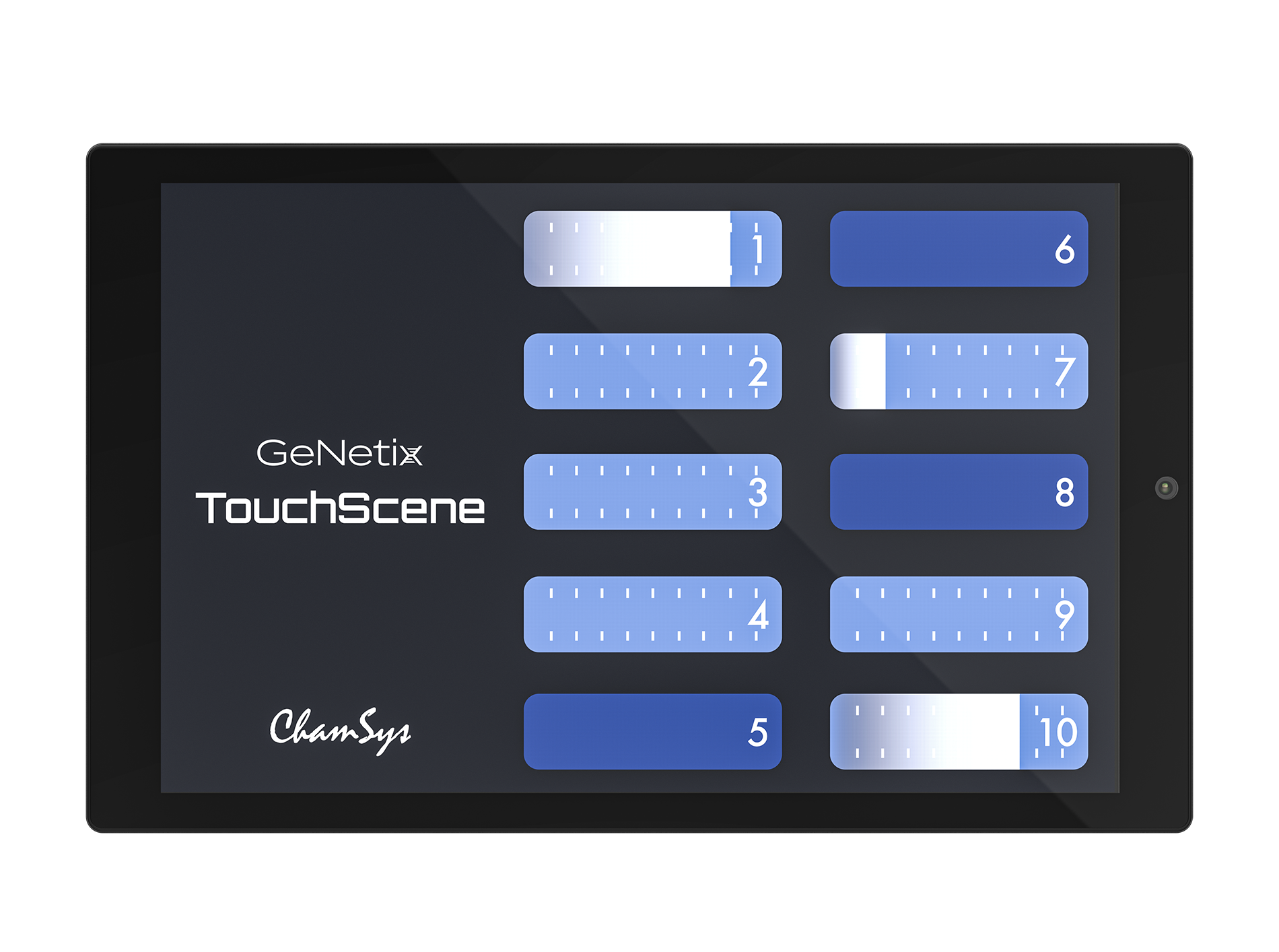

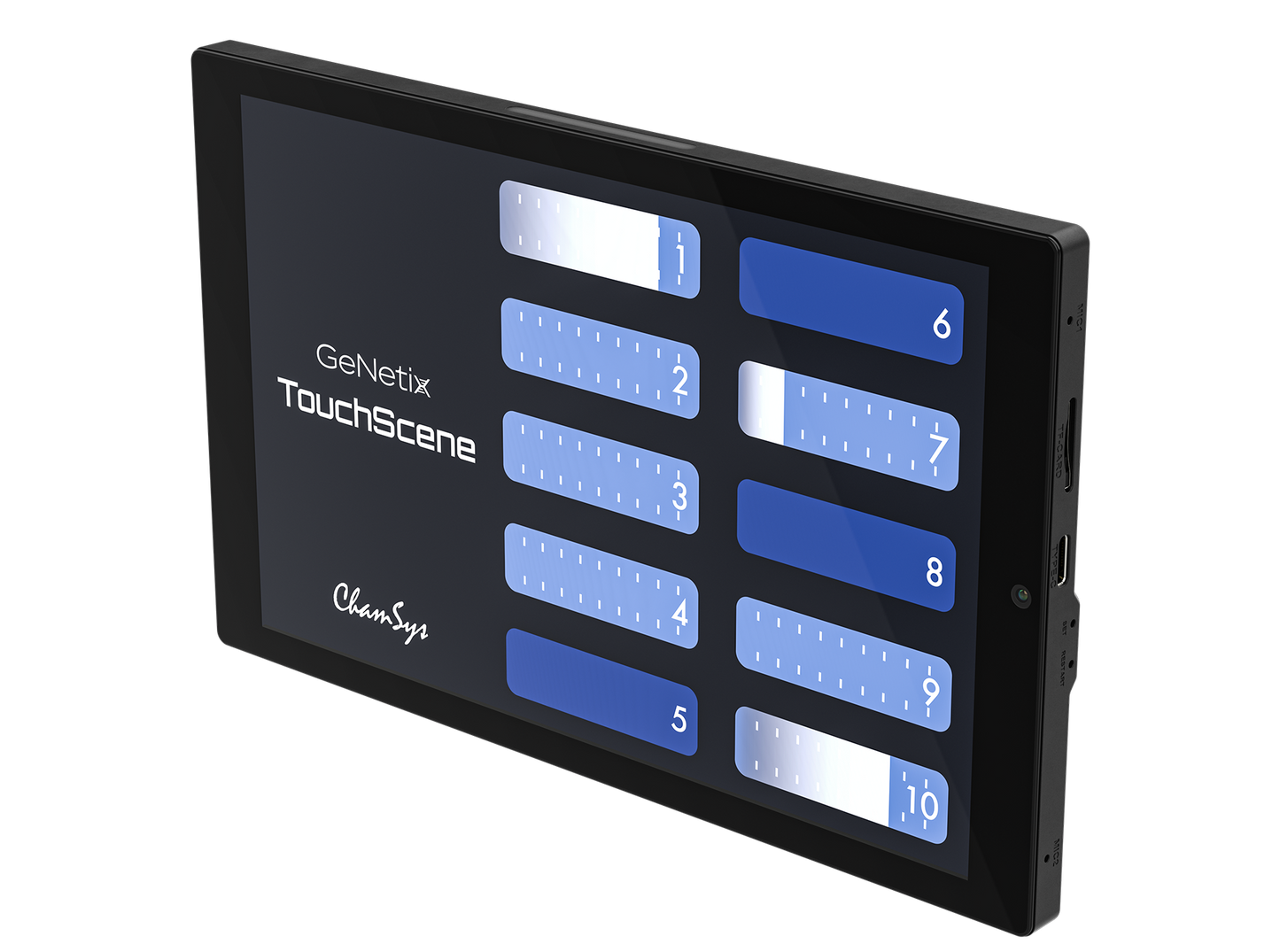

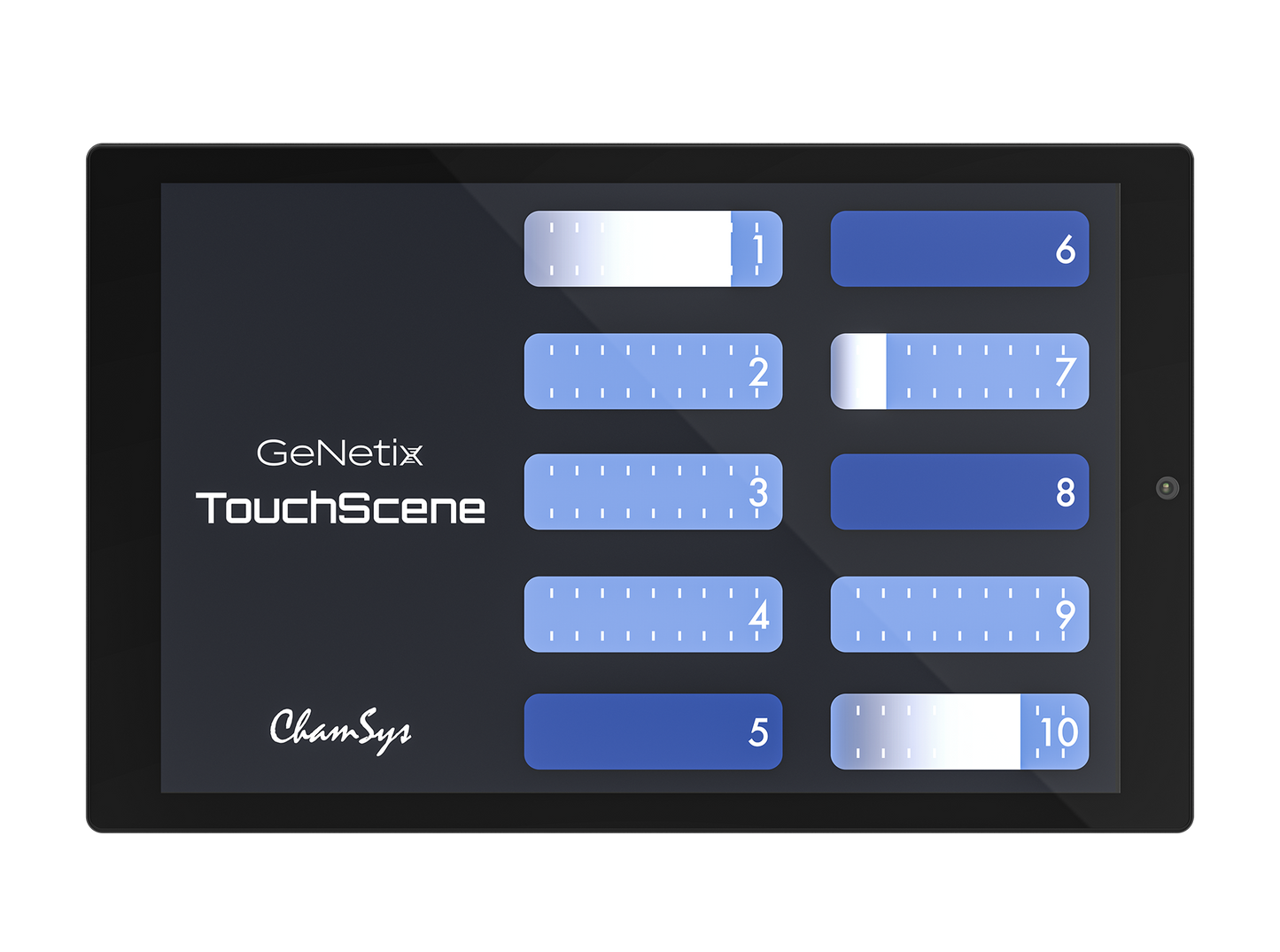

Whether pairing with GeNetix Nodes or ChamSys controllers, TouchScene includes inbuilt layouts that allow its 8″ touchscreen to become a surface suitable for any installation. Along with the practical advantages and aesthetic appeal of graphic display customization, GeNetix TouchScene is PoE-powered, allowing integrators to easily add remote control to installations using standard Ethernet cable for connectivity.

Overview:

• 8″ Touch Screen

• Connects to either MagicQ Systems, QuickQ Consoles or GeNetix Nodes

• PoE Powered

• Features Selectable In-built Layouts

• Customisable Layouts when connected to either MagicQ or QuickQ consoles

• Supports Pin Locking when connected to MagicQ or QuickQ consoles

• Supports Custom Screensavers

Hardware Specifications:

• Screen Size: 8″

• 48v PoE Powered: Yes

• Unlocks MagicQ PC Systems: No*

• Fits EU / UK / US Single Gang Backbox: Yes

• Length: 200mm (7.87 Inches)

• Width (Panel): 11.6mm (0.45 Inches)

• Width (Including Rear Connector): 37.7mm (1.48 Inches)

• Height: 124.59mm (4.90 Inches)

• Weight: 0.4kg (0.88 Lbs)
