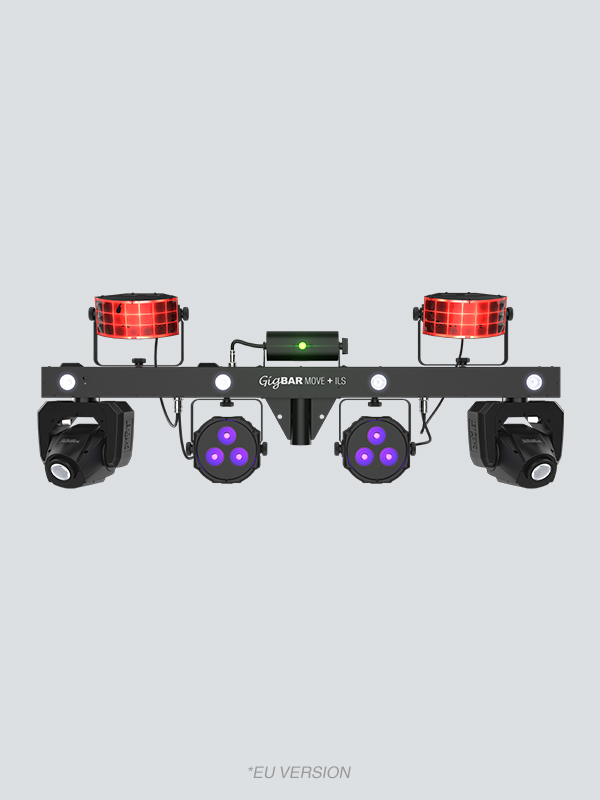

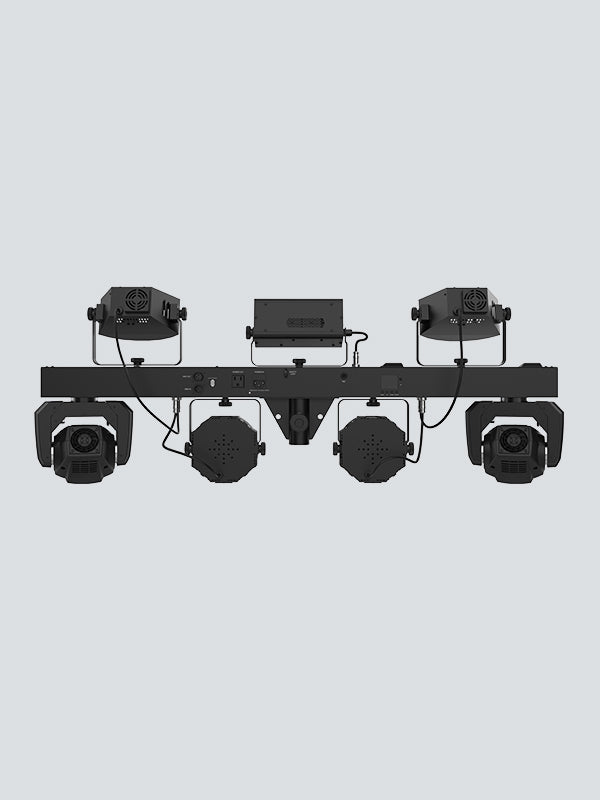

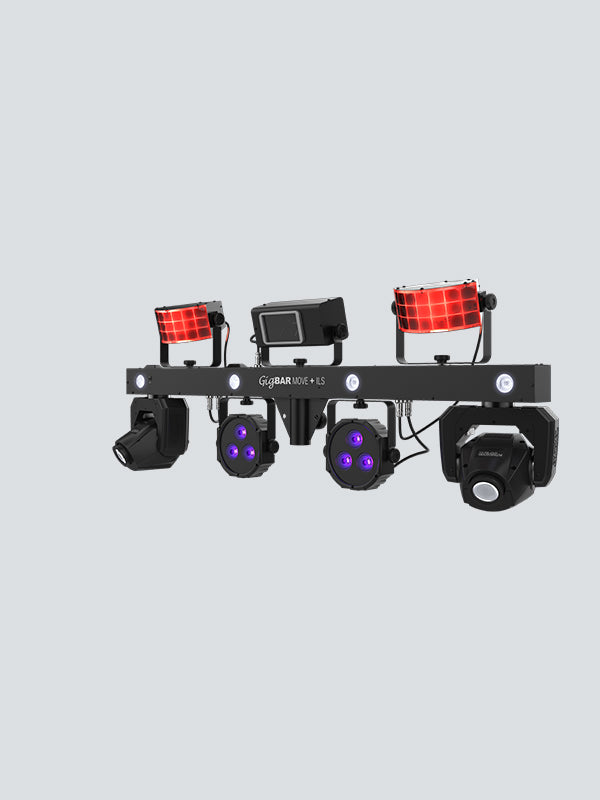

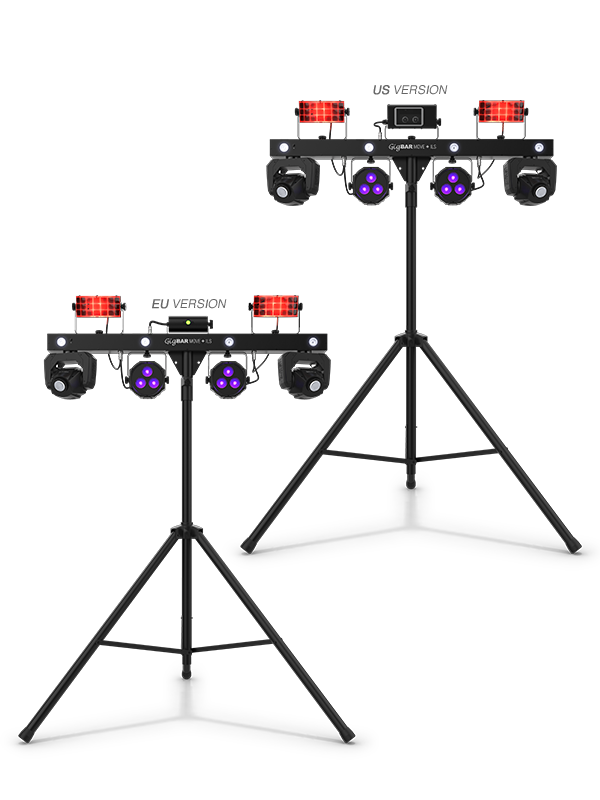

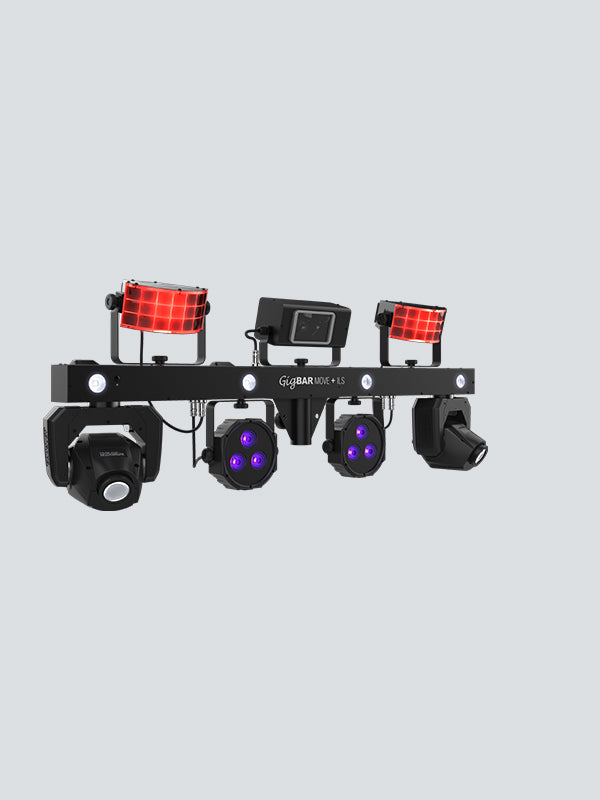

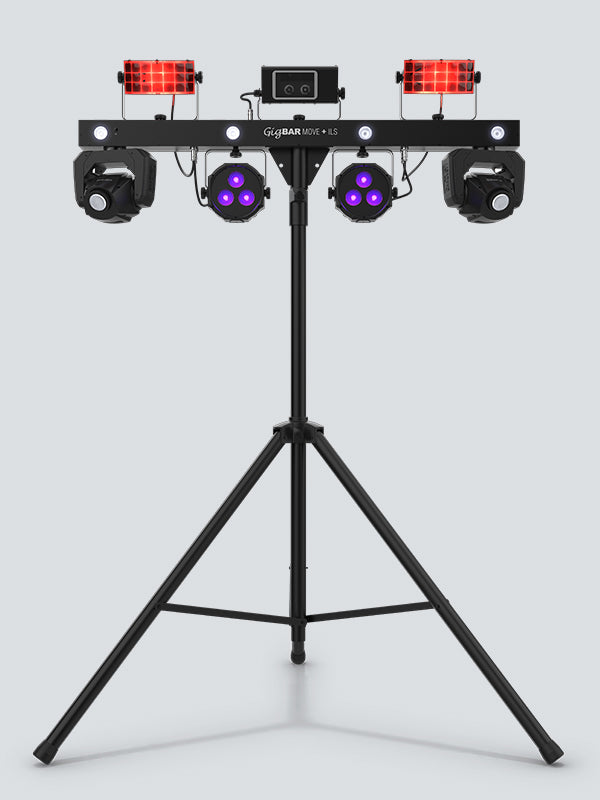

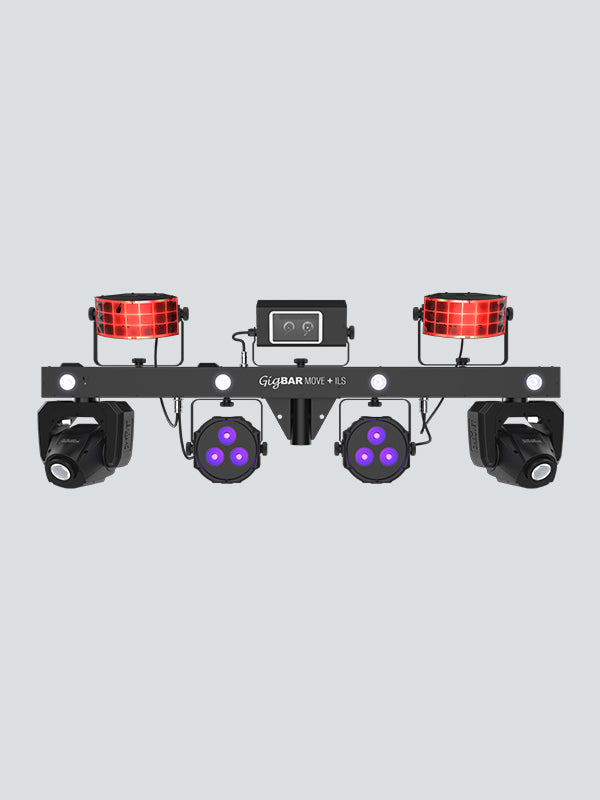

GigBar Move ILS

The Gigbar move is one of the only systems out there where you get a bunch of different types of lights for a DJ setup, all pre-mounted on one bar.

Control it easily with stand-alone, DMX, wireless remote, or footswitch options. Plus, pair it with GigBAR 2 for expanded coverage and dynamic light shows.

From the manufacturer:

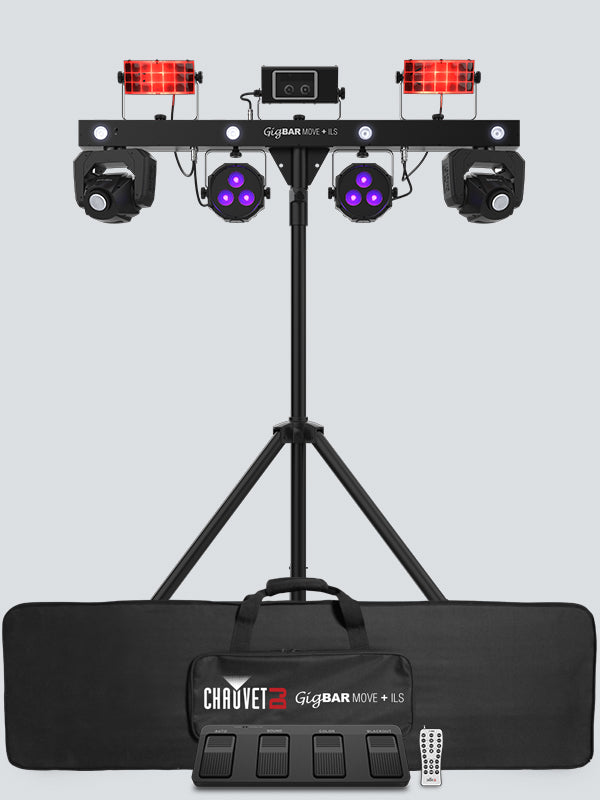

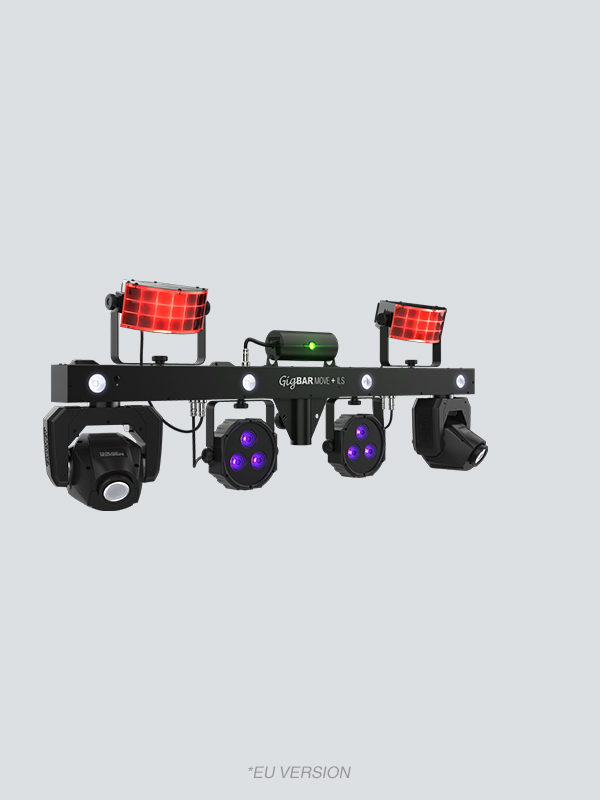

Ultimate gig lighting convenience, versatility and power is packed into GigBAR Move, a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. That means a complete light show is available from this single system that includes a tripod, wireless footswitch and FREE carry bags to ensure quick setup. The moving heads have separate color and gobo wheels to enhance creative programming possibilities, plus built-in Totem Mode to keep the moving heads focused on the dance floor. Individual control of each effect ensures your show looks the way you need it to and events can be energized with dynamic effects like built-in UV LEDs to illuminate fluorescent objects and make them pop. Controlling GigBAR Move is also easy. Stand-alone control, DMX, wireless IRC-6 remote or wireless footswitch options are all on board. GigBAR Move is also compatible with GigBAR 2 in master/slave mode for huge coverage and dynamic light shows.

Specification:

• DMX Channels:3, 29, or 51DMX

• Connectors:3-pin XLR

• Pan and Tilt:540°/180°

• Colors:

• (moving head): 9 + open, split colors, continuous scroll at variable speedsGobos:

• (moving head): 9 + open, continuous scroll at variable speedsLight

• Source:

• (pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy

• (strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy

• (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy

• (moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy

• (Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diodeStrobe Rate:0 to 30 Hz

• Beam Angle:

• (moving head): 17°

• (pars): 22°

• (strobe): 30°

• Field Angle:

• (pars): 33°

• (strobe): 62°

• Coverage Angle:

• (derby): 131°

• (laser): 93°

• Fits Tripod Size:1.5 in (37.4 mm)

• Illuminance:

• (pars): 1,205 lux @ 2 m (per par)

• (moving head): 5,140 lux @ 2 m (per head)

• (strobe): 130 lux @ 2 mPower

• Linking:7 units @ 120 V; 12 units @ 230 VInput Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current:

• 250 W, 3 A @ 120 V, 60 Hz

• 248 W, 1.8 A @ 230 V, 50 Hz

• Approvals:CE, UKCA, RoHS, FCC, FDAStand

• Footswitch Operating Frequency: 433 MHz

• Footswitch Max Unobstructed Distance: 100 ft (30.5 m)

• Max Unobstructed Distance (D-Fi): 600 ft (183 m)Footswitch Battery: 9 V alkalineIncluded Controllers: RF remote, wireless footswitchCable Length: 10 ft (3 m)

• Tripod Thickness: 1.37 in (35 mm)

• Optional Controllers:

• RFRF Remote Battery: 23A, 12 V alkaline

Dimensions:

• Size:43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)

Weight:

• 31 lbs (14 kg)

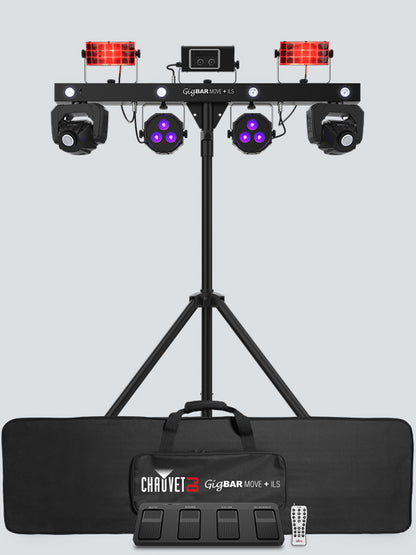

What’s Included:

• GigBar Move Plus ILS

• Power cordRF

• RemoteCarry bag

• Tripod

• Tripod carry bag

• Footswitch

• User Manual
