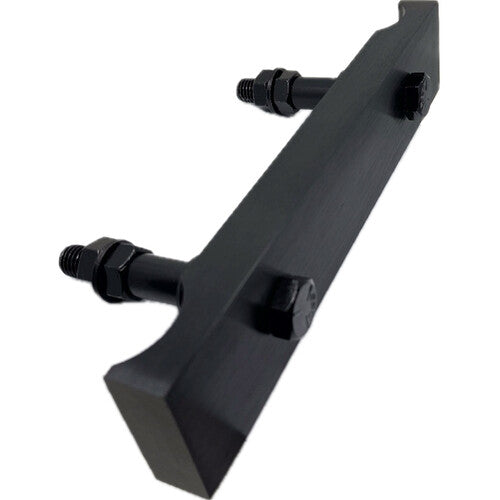

Global Truss DT-GP-GRIP-BLK 12-Inch Black Truss Grapple Bar

The Global Truss DT-GP-GRIP-BLK is a black truss connection accessory designed to connect compatible DT-GP square trusses at 90-degree angles. Its grapple bar design allows perpendicular truss connections at different positions along the primary truss, providing flexibility when constructing professional staging and rigging structures.

From The Manufacturer:

The DT-GP-GRIP simplifies connecting trusses at 90-degree angles perpendicular to one another. It is designed for use with the Global Truss DT-GP truss system and is available in a black finish. The connection has specific load restrictions that must be observed during installation and use.

Key Features:

• Designed for Global Truss DT-GP square trussing.

• Creates perpendicular 90-degree truss connections.

• Allows connections at different positions along the primary truss.

• Black finish for a coordinated appearance with black trussing.

• Aluminum construction.

• Compact 12-inch grapple bar design.

• Sold individually, not in pairs.

• Defined load restrictions for safe installation and operation.

Specifications:

• Brand: Global Truss.

• Model: DT-GP-GRIP-BLK.

• Manufacturer SKU: GP0261.

• Product Type: Truss grapple bar / 90-degree truss connector.

• Compatible Truss System: Global Truss DT-GP.

• Material: Aluminum.

• Finish: Black.

• Nominal Length: 12 inches.

• Connection Angle: 90 degrees.

• Sales Unit: One individual unit.

• Maximum Vertical Load at Connection: 1,250 lb (approximately 567 kg), subject to all manufacturer load restrictions.

• Primary Truss Load Restriction: Truss loads are limited to 75% of the DT-GP allowable loads.

• Side-Connected Truss Load Restriction: Loads are limited to 60% of the DT-GP allowable loads.

• Cantilevering: Prohibited.

Important: The 1,250 lb figure is a manufacturer-stated connection limit, not a general safe working load for every configuration. The allowable load of the complete structure must be assessed using the applicable truss load tables and connection requirements.

Included Accessories:

• One DT-GP-GRIP-BLK truss grapple bar assembly.

Applications:

• Perpendicular truss connections.

• Stage and event structure construction.

• Exhibition and trade-show trussing.

• Entertainment production rigging.

• Compatible DT-GP truss installations.

• Custom truss structures requiring 90-degree connections.

Included Accessories:

• One black truss grapple bar assembly.

Note: The manufacturer specifies that this product is sold individually, not in pairs. Confirm the supplied hardware with your supplier before ordering.

Accessories (Not Included):

• Compatible Global Truss DT-GP trussing.

• Additional connectors required for the overall structure.

• Rigging equipment and accessories not specified in the product package.

Size:

• Nominal Length: 12 inches (30.5 cm).

• Width: Approximately 2.5 inches (6.35 cm).

• Height/Thickness: Approximately 1 inch (2.54 cm).

Dimensions are based on a retailer specification and should be confirmed against the exact product revision.

Weight:

• Manufacturer-Listed Unit Weight: 2 lb (approximately 0.91 kg).
