GN30 M

The DAM+ Series GN30 is a 300 mm (11.8 in) gooseneck module for permanent or mobile installations. It features a rugged, slim design, an integrated switchable LED ring for phantom power status, and a DAM+ Series system connector with gold-plated contacts. Compatible with all DAM+ capsules (CK41, CK43, CK49) via reliable self-cleaning contacts.

From The Manufacturer:

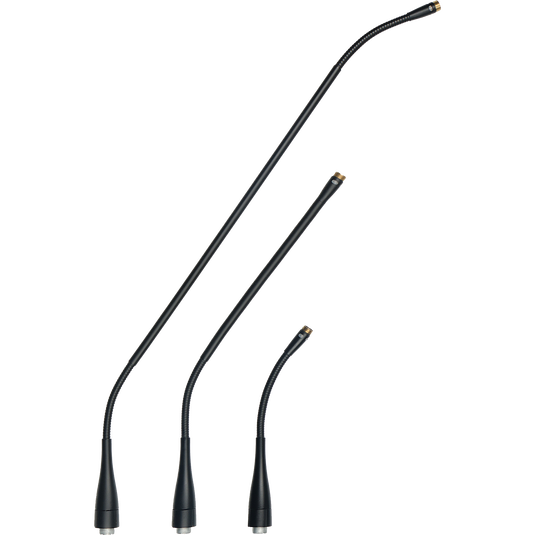

The DAM+ Series reference gooseneck modules for permanent and mobile installation are available in three different lengths: 165mm (6.5in), 300mm (11.8in) or 500mm (19.7in). The extremely slim and rugged gooseneck modules feature an LED ring which indicates whether the phantom power is on or off. A special light-ring expander comes with every DAM+ gooseneck module to improve the visibility of the LED ring if necessary. For quick setup and maximum flexibility all gooseneck modules come with a DAM+ Series system connector. This high quality connector with gold- plated contacts reliably fits all available phantom power modules. The gooseneck module is compatible with all DAM+ Series capsules, CK41, CK43, CK49 via self-cleaning contacts. Their extremely deep thread groove prevents misalignment and ensures a long useful life of all DAM+ components.

Features:

• Extremely rugged gooseneck construction

• Highly Reliable contacts for capsule modules

• Integrated switchable LED ring

• Integrated System Connector

Specification:

• Diameter Gooseneck

• 6 mm (0.24 in)

• Diameter Connector

• 9 mm top (0.35 in) 11,3 mm bottom (0.44 in)

• Total Length

• 300 mm (11.81 in)

• Number of Flexible Parts

• 1

• Net Weight

• 94 g (3.31 oz)

• Finish

• Matte Black

Included:

• 1 x GN30 M Gooseneck Module

• 1 x LED Ring Expander
