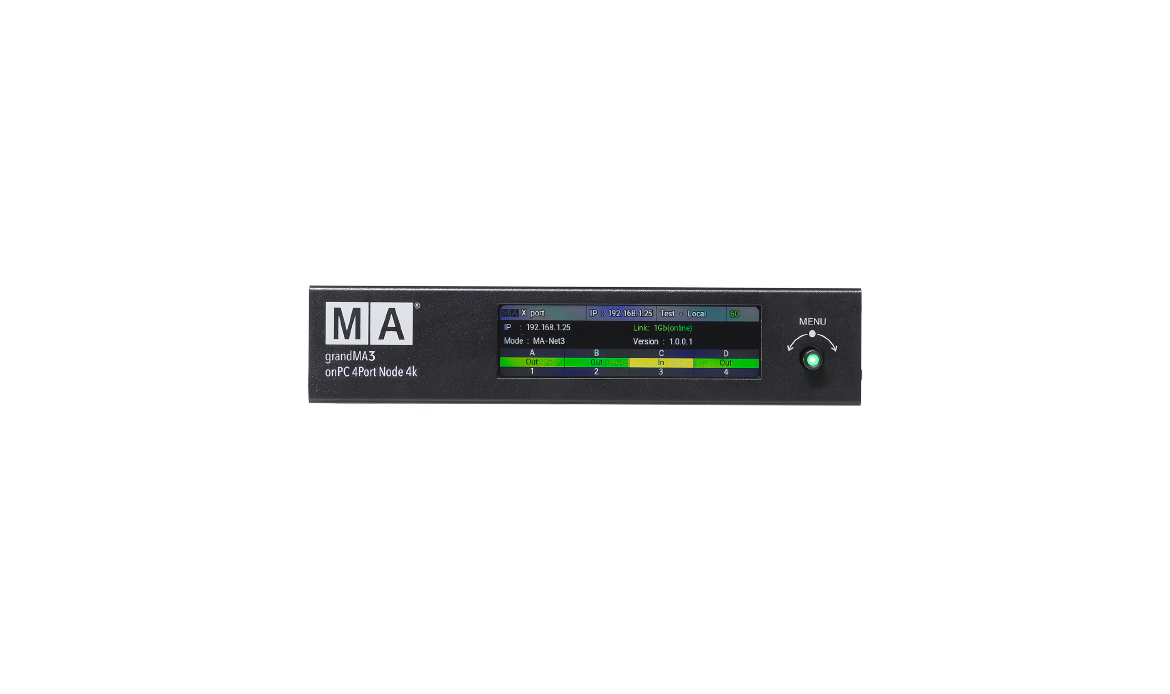

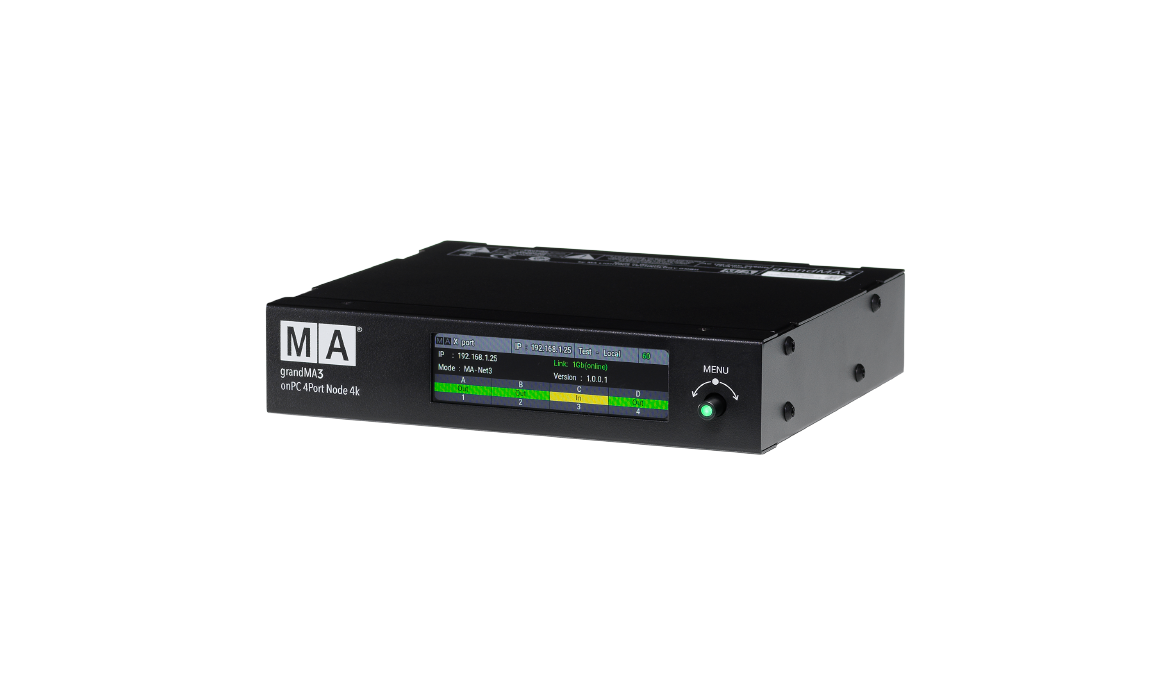

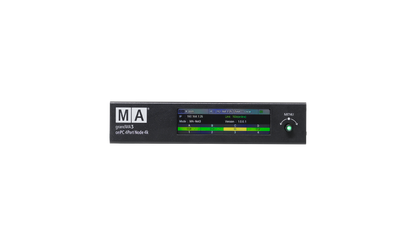

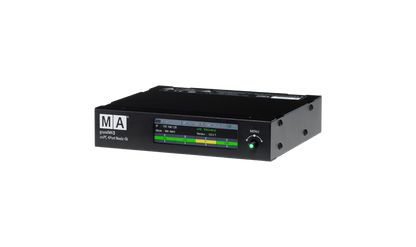

grandMA3 onPC 4Port Node 4k PoE

The MA Lighting grandMA3 onPC 4Port Node 4k PoE is an excellent “all-purpose tool” for distributing DMX lines around your venue, or to use as direct fixture control or additional DMX outputs.

From the Manufacturer:

The grandMA3 onPC 4Port Node 4k PoE is the all-purpose tool within the Nodes from MA Lighting. It is ideal to distribute DMX lines from different places in your venue, from a rack or in the truss. You can also use it for a direct fixture control from your grandMA3 onPC station or as additional DMX outputs in combination with the grandMA3 onPC control devices.

The grandMA3 onPC 4Port Node 4k PoE comes in a 9.5” 1RU housing and is designed to synchronously output four DMX universes in any grandMA3 system. To ensure optimal performance, the Node is equipped with a high-performance processor and a 1 Gb/s Ethernet connection, guaranteeing reliable and stable Ethernet to DMX (and vice versa) conversion. It can be fully powered by PoE (Power over Ethernet) to reduce additional cabling. A wide range of accessories allows for alternative fixing methods and customization if required.

All grandMA3 onPC Nodes enable 4 096 parameters for the grandMA3 onPC software directly. To initiate a compact and cost-effective control system, simply download the grandMA3 onPC software, connect the Node, and you're ready to control your fixtures. As the grandMA3 onPC software offers the same features as the larger consoles of MA Lighting, there will be no compromises on features for your show.

Some more facts to know? All grandMA3 Nodes are remotely configurable from any grandMA3 console or onPC station within the network session. They are capable of handling MA-Net3, MA-Net2, sACN and Art-Net data. They are fully RDM compliant. A 3.9" color display on the front face allows for simple configuration and a quick status overview.

Features:

• Parameters: 4 096 (HTP/LTP)
• Parameters Mode2: 2 048 (HTP/LTP)
• Operating voltage/ Supply voltage:
  • AC 100 - 240 V; 50/60 Hz
  • PoE (IEEE 802.3af; 48 V DC/max. 12 W)
• Power: max. 15 VA
• Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
• Dimensions: 207 x 184 x 43 mm / 9 x 8 x 2 in (width x depth x height)
• Net weight: 2 kg / 5 lbs

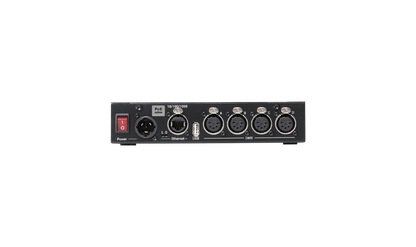

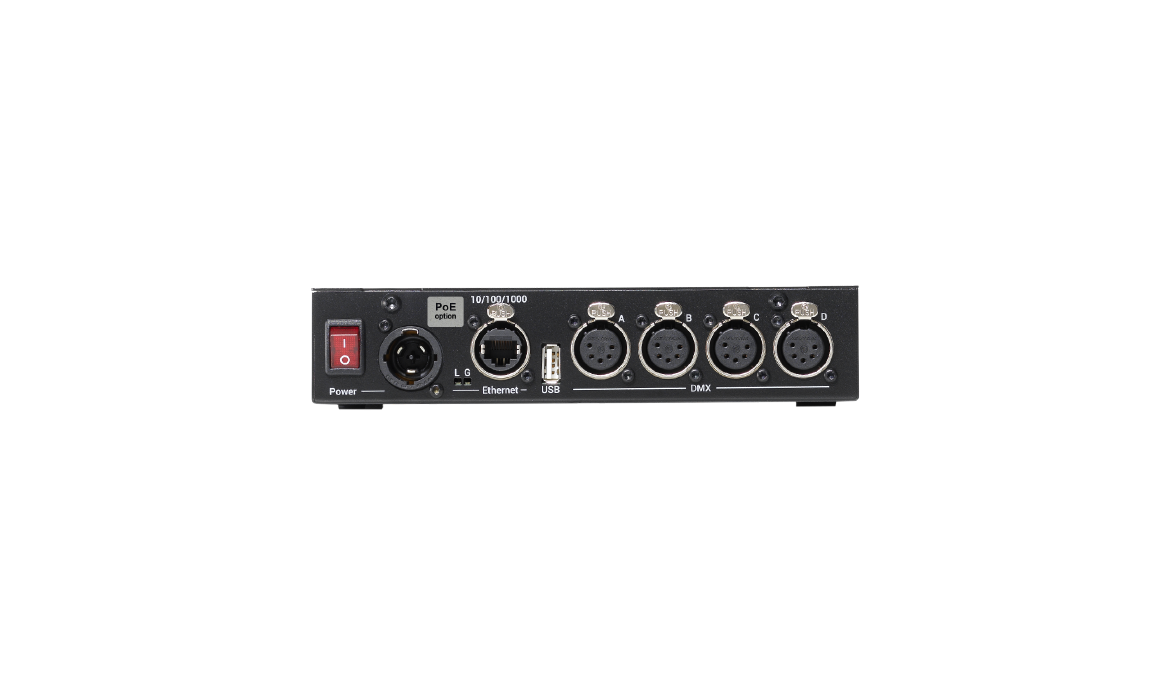

• Connectors: 1 x powerCON TRUE1
  • 1 x etherCON/RJ45
  • 4 x DMX512-A Out (5pin XLR female)
  • 1 x USB 2.0 (type A)
