GSF3

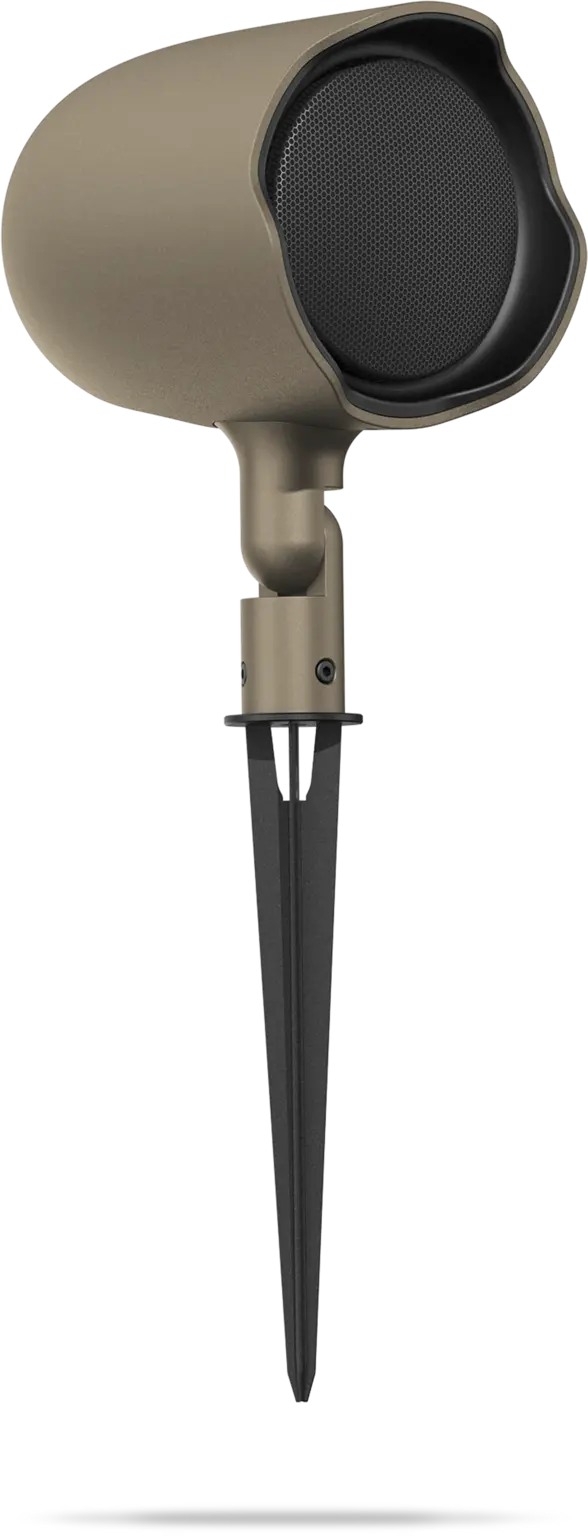

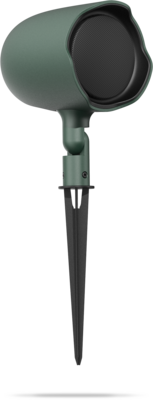

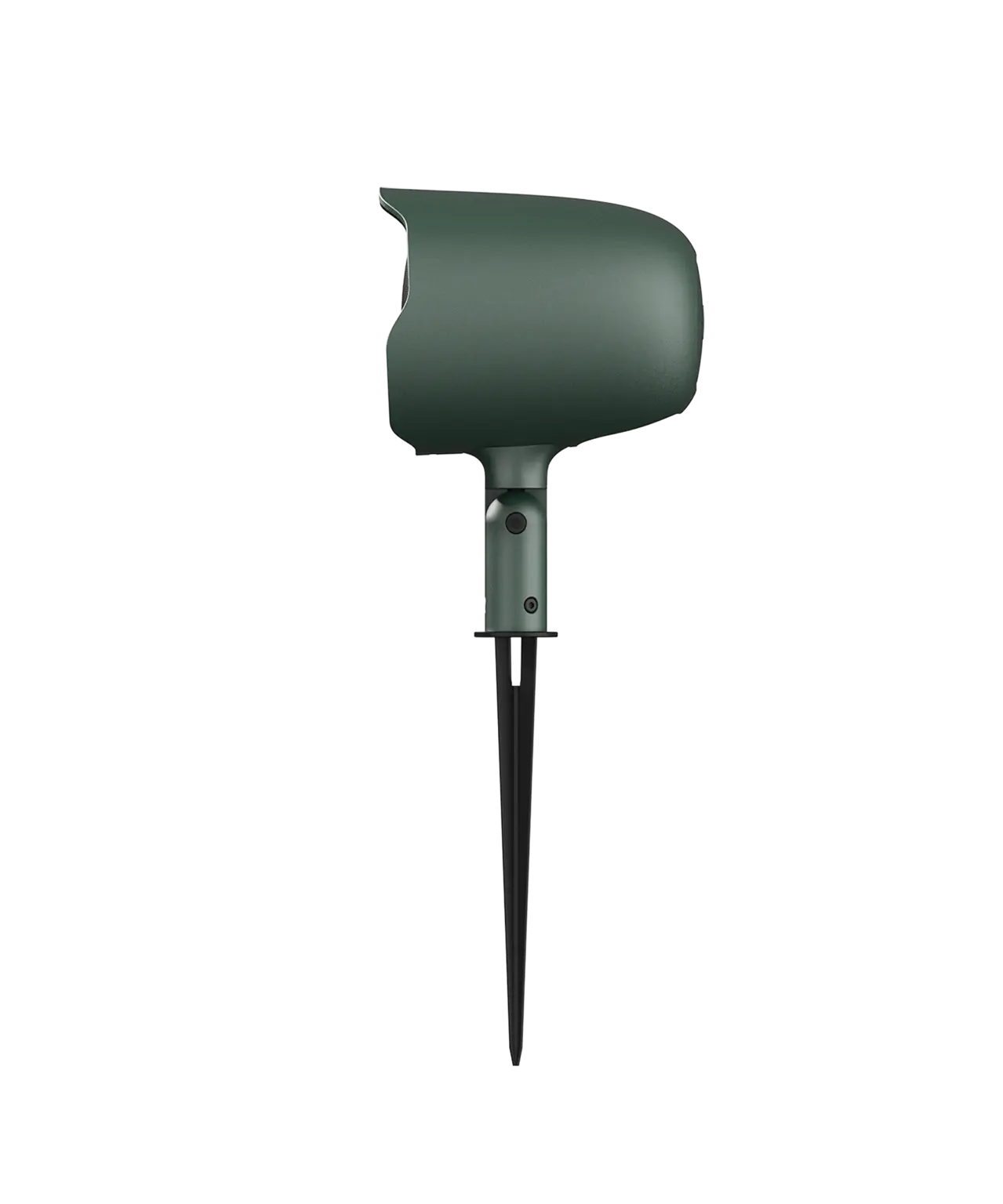

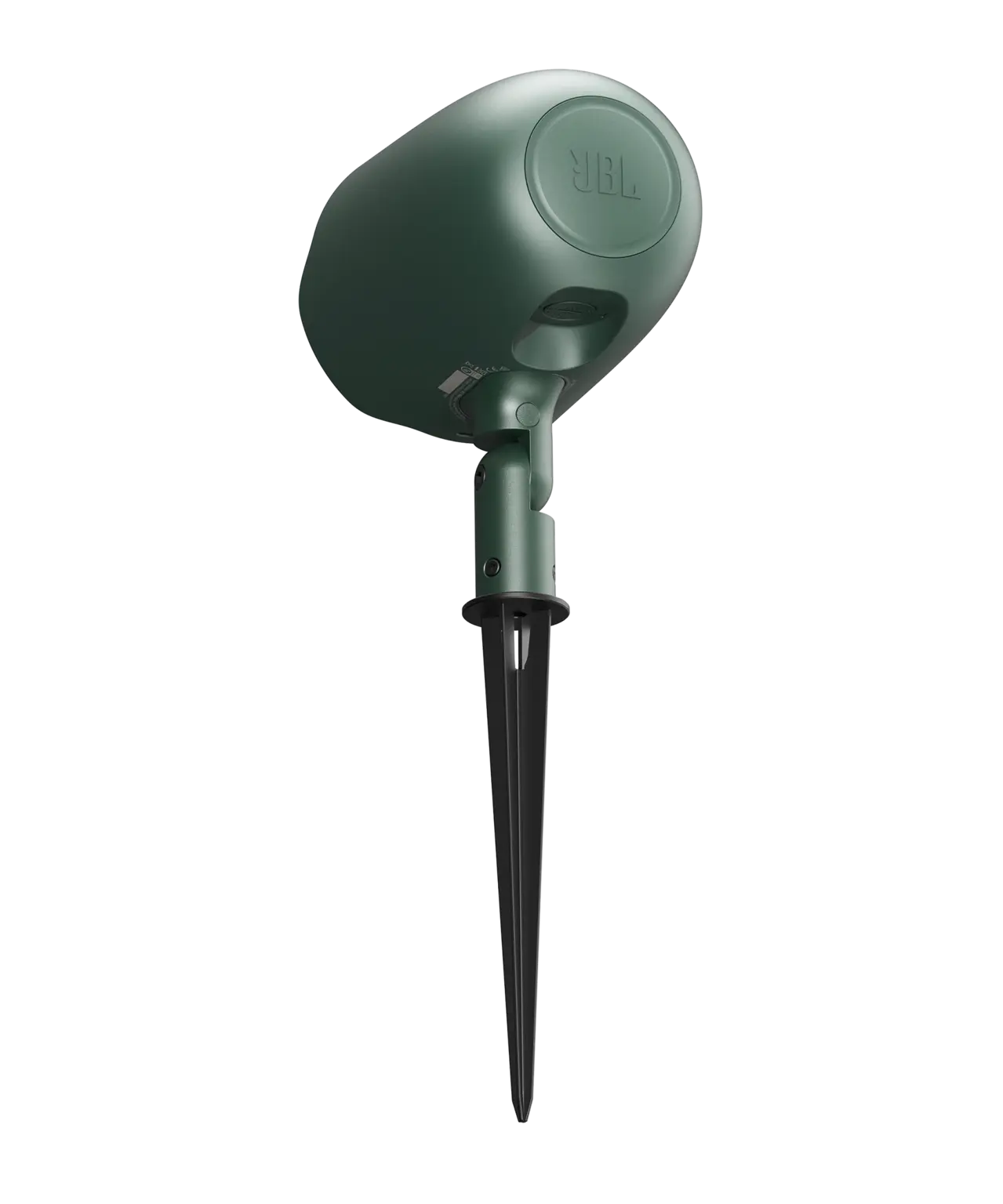

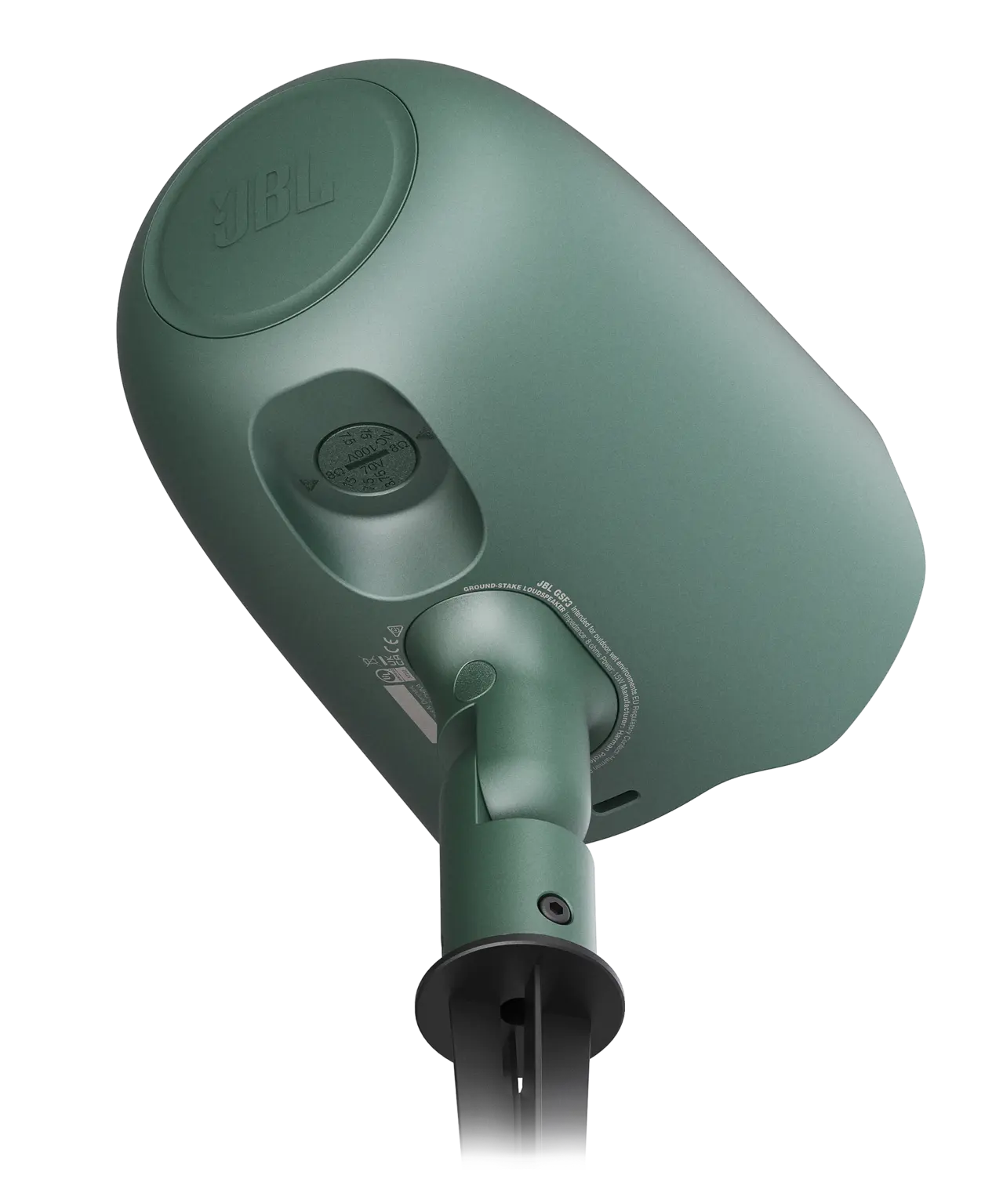

The JBL GSF3 compact landscape loudspeaker is elegant and discreet, perfect for diverse outdoor applications like malls, theme parks, sports or hospitality venues.

From the Manufacturer:

The compact, weather-resistant JBL GSF3 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 3-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 15-watt multi-tap transformer for use on 70V/100V distributed systems, and is switchable for 8-ohm direct operation.

Versatile mounting options include an included ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces. A low-profile, unobtrusive speaker, the GSF3 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

The elegant, discreet GSF3—winner of international design awards for industrial design excellence—is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

Features:

• Transducers: 83 mm (3”) woofer with polypropylene cone and 25 mm (1”) voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former.
• Frequency range: 74 Hz – 20 kHz
• Power handling (at 8Ω setting): 30W continuous pink noise, 60W continuous program
• IP66 rated against water and dust ingress
• Multi-tap 15W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
• Bottom drip hole provides drainage for drivers
• Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
• Aimable via adjustable hinge
• Includes ground stake and L-bracket for surface mounting
• Includes tap selector located on bottom of speaker, away from water incursion
• Available in hunter green or tan finish

Specifications:

• Frequency Range (-10dB): 74 Hz – 20 kHz
• Frequency Response (+/-3 dB): 120 Hz – 15 kHz
• Power Rating:
  • 60 W Continuous Program (2 hrs)
  • 30 W (120 W Peak), Continuous Pink Noise (2 hrs)
  • 20 W (80 W Peak), Continuous Pink Noise (100 hrs)
• Sensitivity: 84 dB (43 Hz - 110 Hz)
• Maximum SPL: 103 dB peak (95 dB continuous, 2 hr) @ 1m
• Coverage Pattern: 90° conical
• Nominal Impedance: 8 Ω (at 8Ω tap)
• Transformer Taps:
  • 70V: 15 W, 7.5 W, 3.75 W
  • 100V: 15 W, 7.5 W
• Drivers:
  • 83 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former
  • 20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former
• Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
• Enclosure Material: Polycarbonate + ABS, UL94V-0 flammability rated
• Color: Pine Green RAL 6028, or Beige Grey RAL 7006
• Dimensions: Cabinet 132 mm diameter x 167 mm deep (5.2 x 6.6 in). Assembly height 289 mm (11.4 in) with L-bracket base (at 90°) and 430 (17.0 in) with ground stake base
• Net Weight: 1.7 kg (3.8 lbs)
• Included Accessories: (1) Ground Stake Bracket; (1) L-Bracket
• Directivity Factor (Q): 7.9
• Directivity Index (dB): 9 dB
