Halo Par HEX 18P

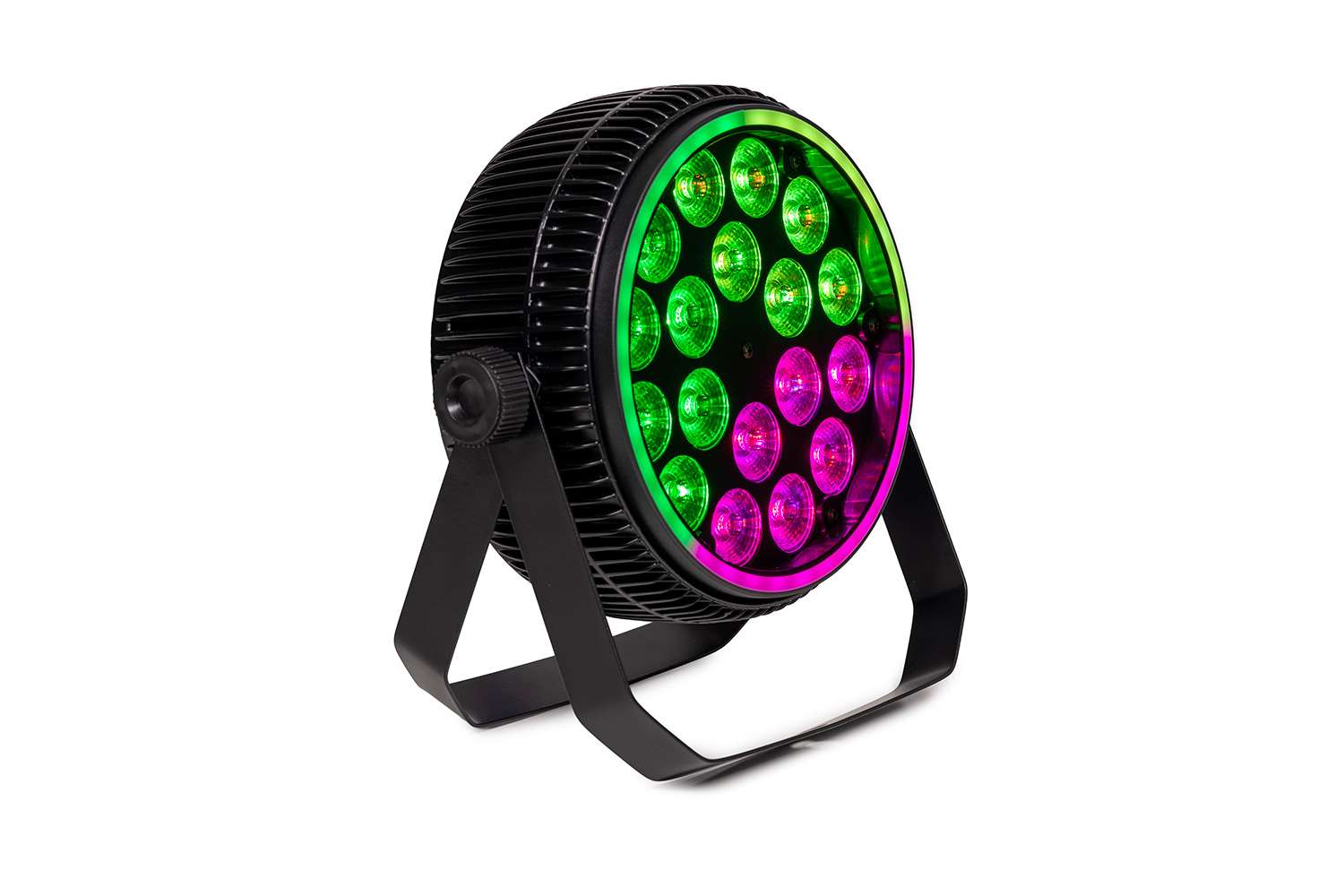

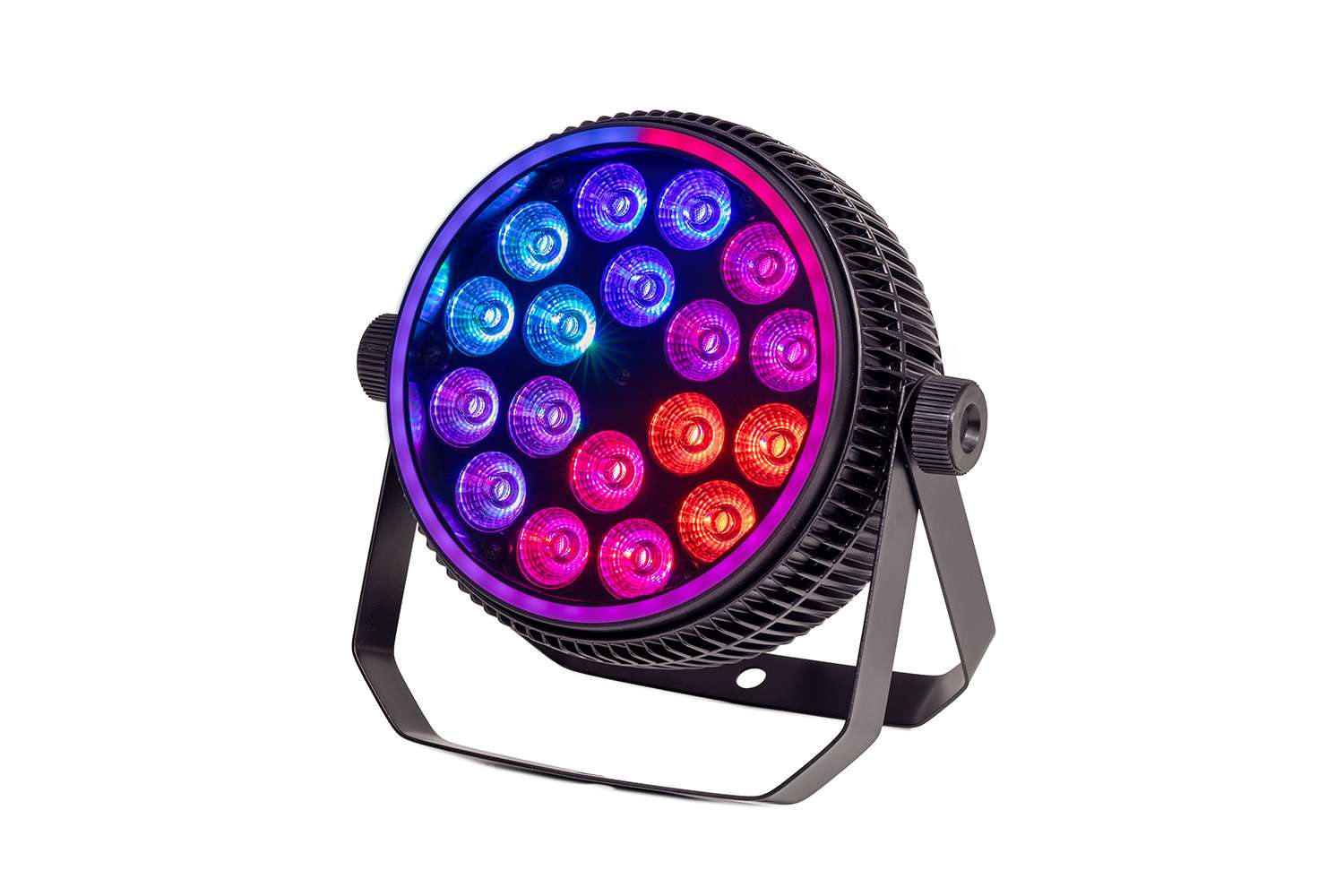

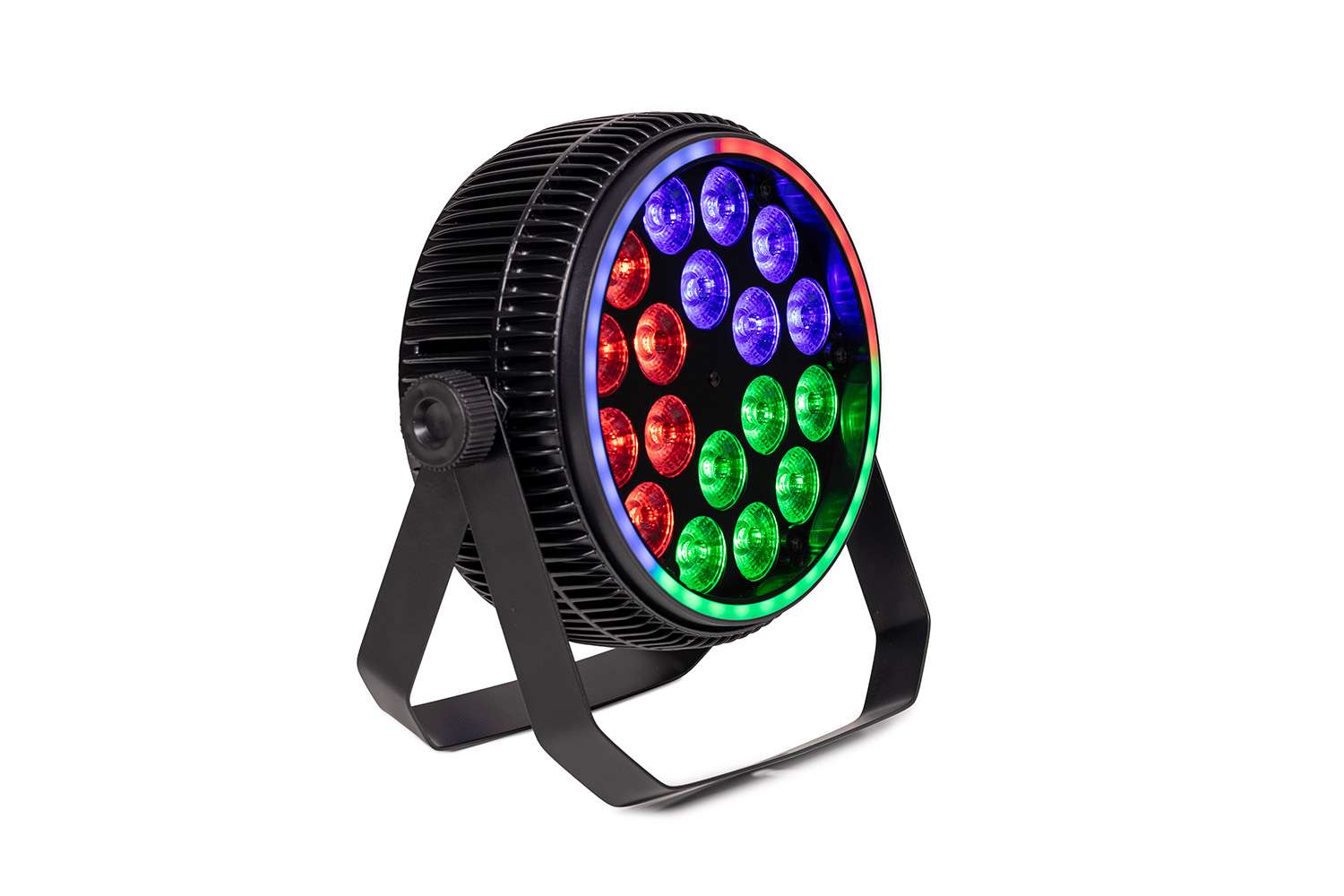

The ColorKey Halo Par HEX 18P is a full-spectrum RGBWA+UV wash par with 6-zone pixel mapping and a 34-zone pixel halo ring for dynamic, high-impact color effects.

From the Manufacturer

From deep saturated washes to crisp UV-driven looks, the ColorKey Halo Par HEX 18P delivers brilliant output and precise color mixing suited for any small venue environment. Built with an all-metal housing for durability on tour, in rentals, and in permanent installs, this is a wash par designed for stages, bars, DJs, and restaurants that demand more than ordinary lighting. Each of the 18 RGBWA+UV LEDs is grouped into 6 independently addressable zones, setting the HEX 18P apart from traditional wash pars with dynamic, captivating color movement — enabling chases, color waves, and segmented effects straight out of the box.

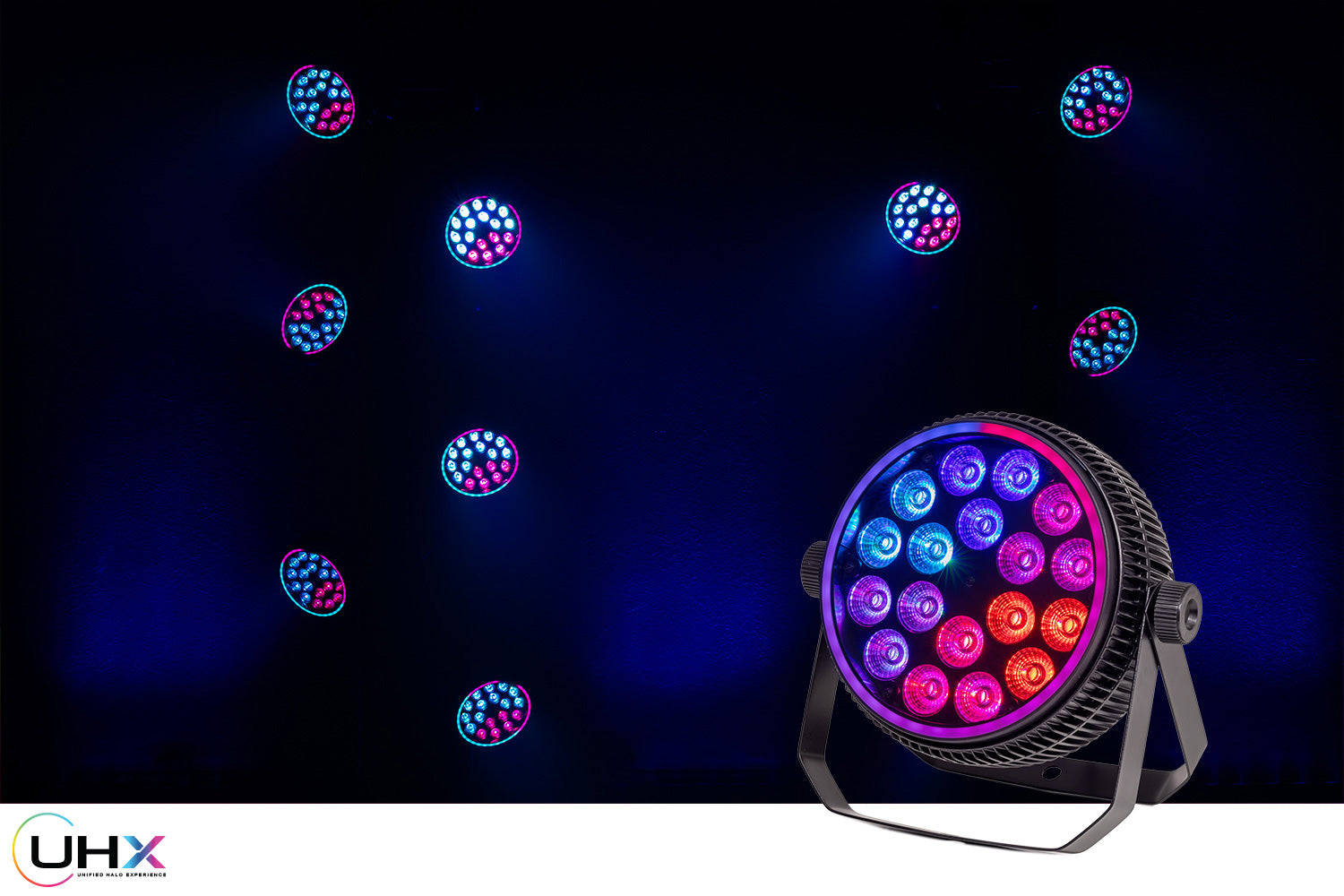

The Halo Par HEX 18P is built to adapt to any user level. The onboard menu handles static washes and auto programs with ease, while 9-channel DMX mode covers simple color mixing and basic halo effects. Step up to the advanced 138-channel mode for fully pixel-mappable control of all six LED zones and the entire 34-zone halo ring for intricate, dynamic programming. As part of ColorKey's UHX™ (Unified Halo Experience) family, the halo synchronizes seamlessly with other UHX-compatible fixtures — including the Creator Series and Halo Spot 100 — delivering consistent control, effects, and visual identity across your entire rig.

Features

• 18 x 10W RGBWA+UV LEDs deliver full-spectrum color mixing with vibrant UV output

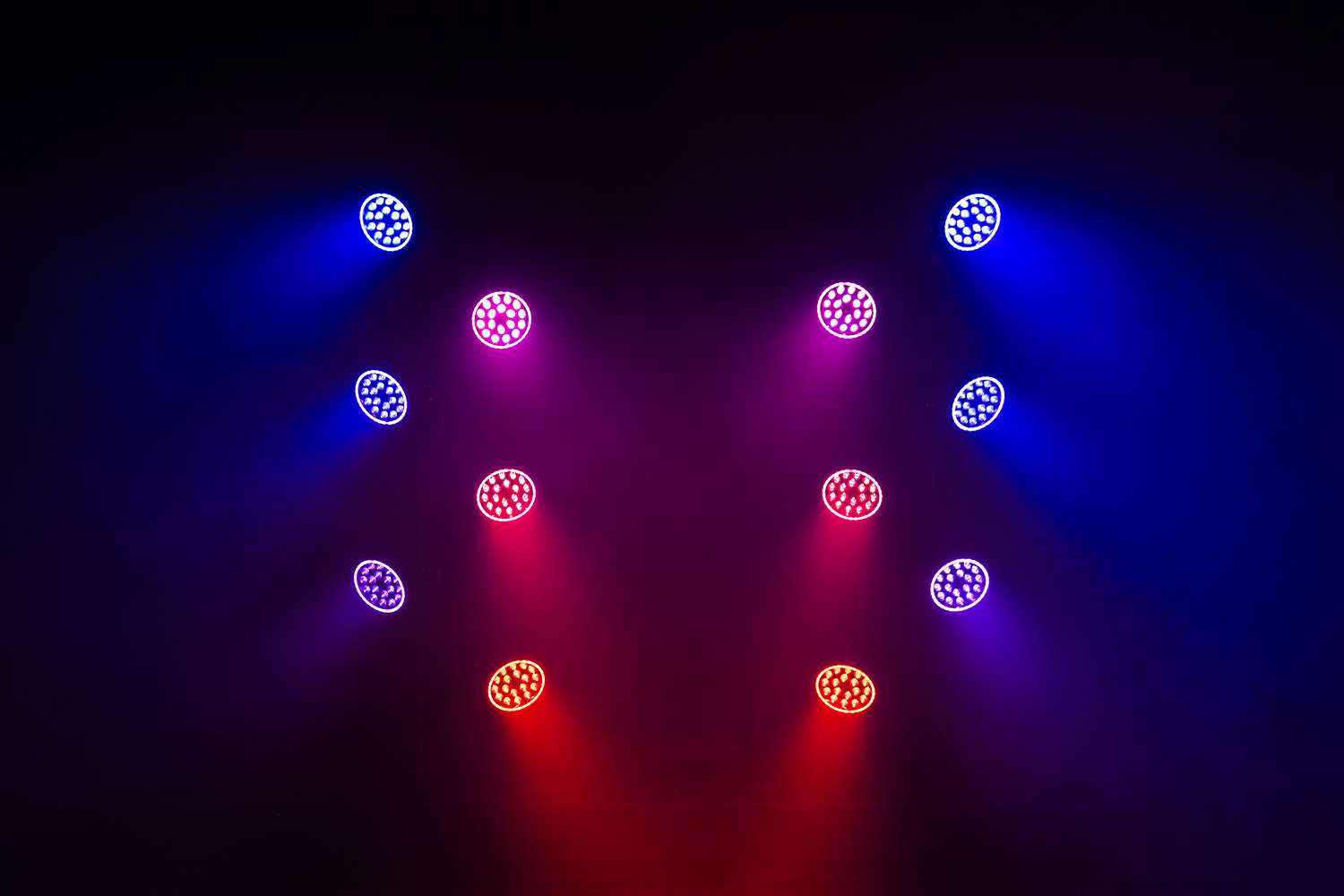

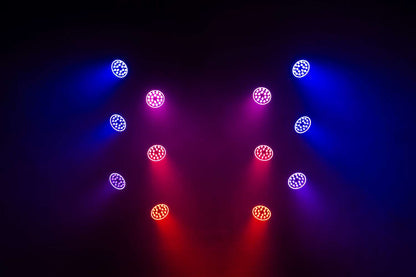

• 6 independently addressable wash zones enable chases, color waves, and segmented pixel effects

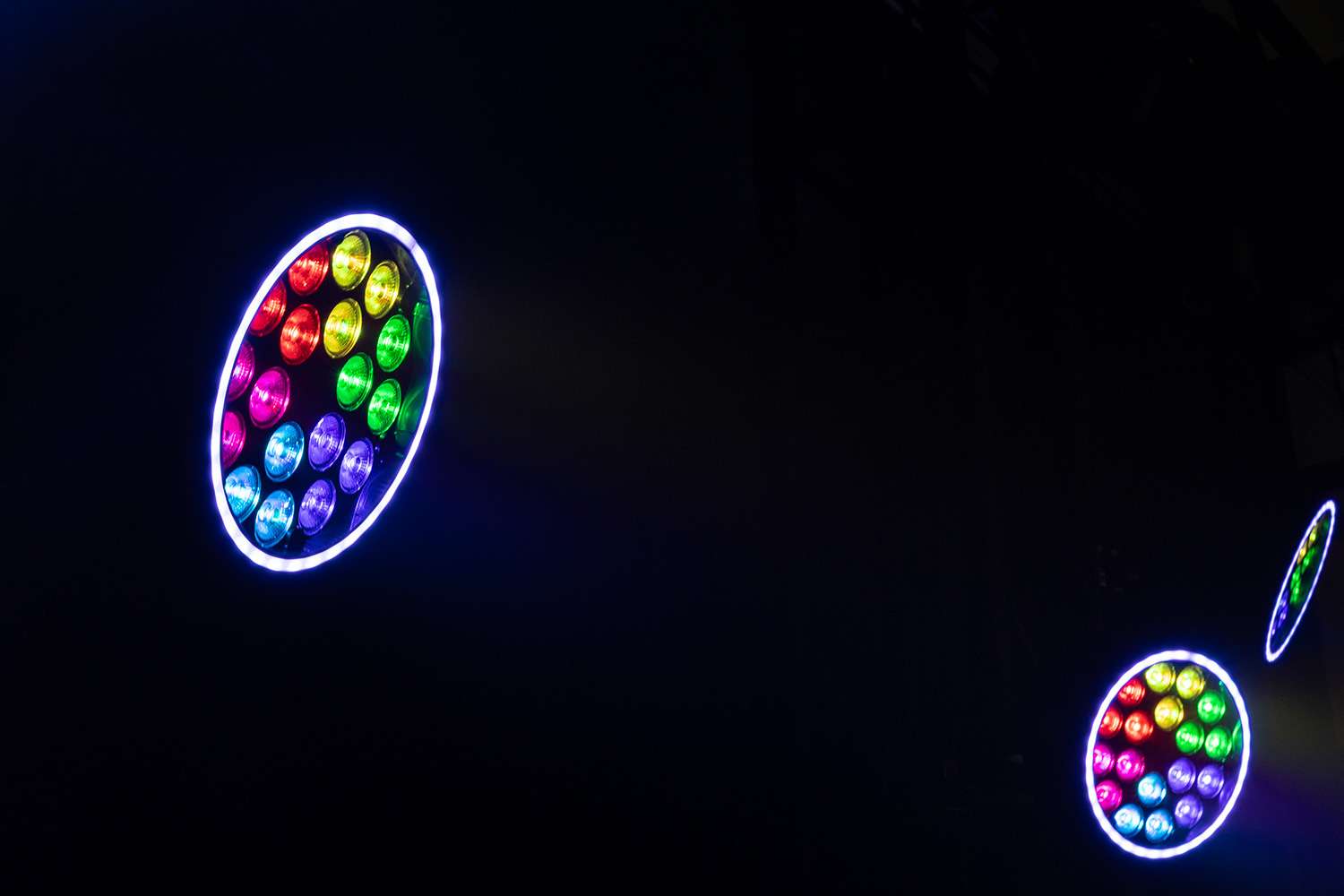

• 34-zone RGB LED halo ring with pre-programmed chases, patterns, and color mixing
• UHX™ (Unified Halo Experience) compatible — halo synchronizes with other Creator Series and UHX™ fixtures for a cohesive multi-fixture visual identity
• Three DMX channel modes: 9 / 20 / 138 channels for simple to full pixel-level control
• Color temperature control from 2,500K to 8,000K
• Auto programs, Sound Active, Master/Slave, DMX512, and RDM control modes

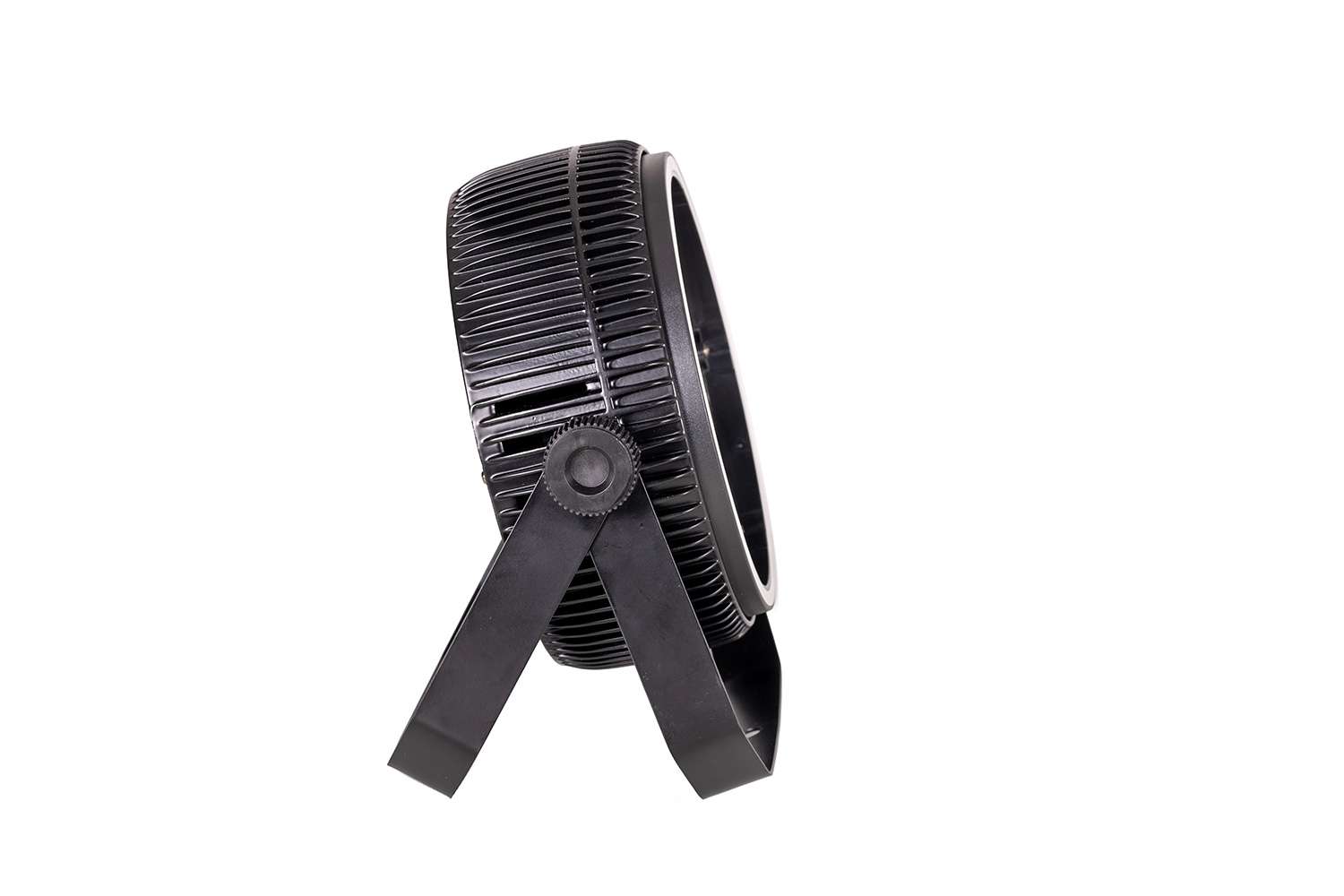

• All-metal housing built for the rigors of touring, rental inventory, and permanent installations
• PowerCon locking in/out for reliable power linking
• Recommended use: DJ performances, club and bar lighting, stage wash, mobile entertainment, small venue permanent installs

Specifications

Optical

• Light Source: 18 x 10W RGBWA+UV LEDs (6 zones)
• Halo: 34-zone RGB LED halo ring
• Beam Angle: 25°
• Field Angle: 45°
• Illuminance: 3,590 lux @ 2 meters

Color

• Color Mixing: RGBWA+UV
• Color Temperature: 2,500K – 8,000K

Control

• Control Protocols: DMX512, RDM, Auto, Sound Active, Master/Slave
• DMX Channel Modes: 9 / 20 / 138

Electrical

• Max Power Consumption: 120W
• Voltage: AC 90–240V, 50/60 Hz

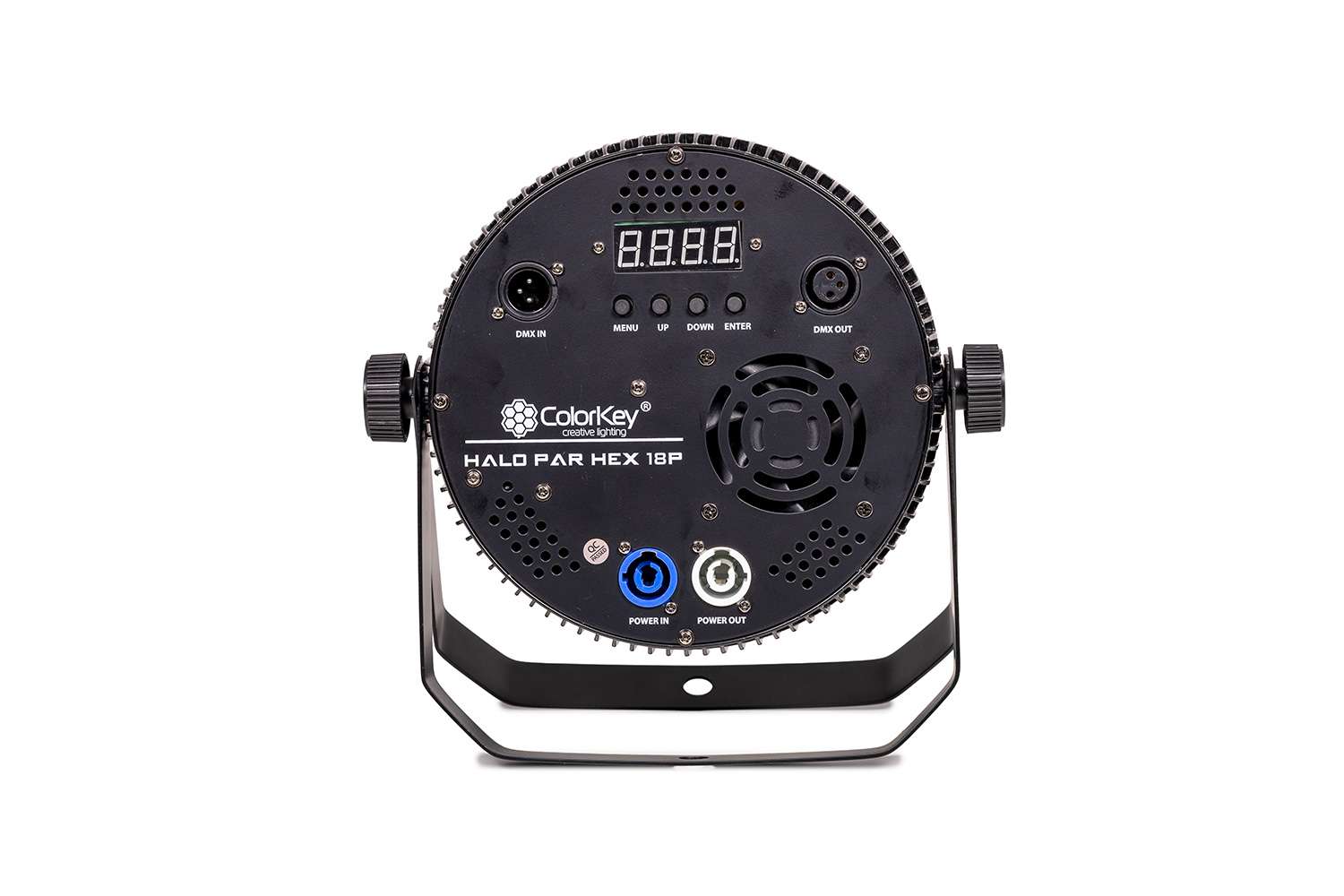

Connections

• Power: PowerCon locking in/out
• DMX: 3-pin in/out

Physical

• Dimensions: 10.24 x 8.27 x 3.54 in (26 x 21 x 9 cm)
• Weight: 5 lbs (2.3 kg)
