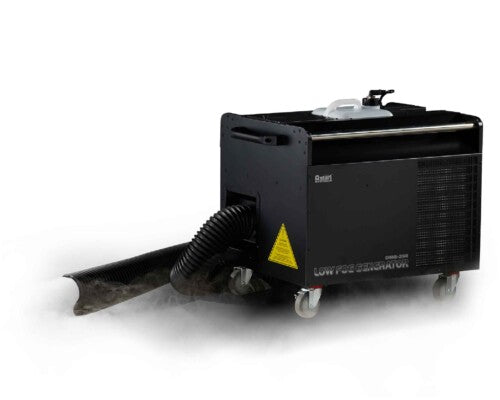

DNG-250 LOW FOG MACHINE

The Antari DNG-250 is a professional high-output low-lying fog generator designed to create dense, ground-hugging fog with little to no residue. Featuring an upgraded 1600 W heating system and efficient refrigeration technology, it produces up to 120 m² of low fog per minute without requiring dry ice or external CO₂ tanks. Manual, timer and DMX512 control make it ideal for theatre, concerts, studios, events and large-scale professional productions.

From The Manufacturer:

Meet Antari’s latest low-lying fog technology: DNG-250.

Compared to its previous version DNG-200, the DNG-250 is upgraded to a more powerful heating element and more efficient refrigeration systems, which enables it to produce higher volume and even better low fog effects.

For best low fog effect, use Antari FLL Low Fog Fluid.

Key Features:

• High-output professional low fog generator

• Produces dense, ground-hugging fog

• Little to no residue

• Self-contained low fog solution

• No dry ice required

• No external CO₂ tanks required

• Powerful 1600 W fog heating system

• Efficient refrigeration system

• Approximately 6-minute warm-up time

• Output coverage up to 120 m²/min

• 10 L fluid tank

• 100 ml/min maximum fluid consumption

• Manual control

• Timer control

• DMX512 control

• 2 DMX channels

• 3-pin and 5-pin XLR DMX connections

• Neutrik powerCON power connection

• Suitable for large professional productions

Specifications:

• Product Type: High-Output Low-Lying Fog Generator

• Manufacturer: Antari

• Model / SKU: DNG-250

• Heating Power: 1600 W

• Refrigeration System: Integrated

• Refrigerant: R-404A

• Refrigerant Capacity: 0.8 kg / 1.76 lb

• Warm-Up Time: Approximately 6 Minutes

• Output: 120 m²/min

• Fluid Consumption: 100 ml/min

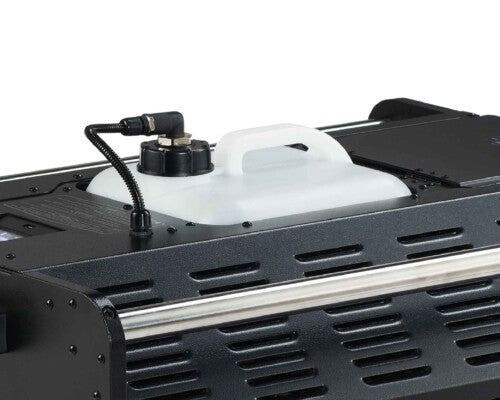

• Fluid Tank Capacity: 10 L / 2.64 gal

• Recommended Fluid: Antari FLL Low Fog Effects Fluid

• Control: Manual / Timer / DMX512

• DMX Channels: 2

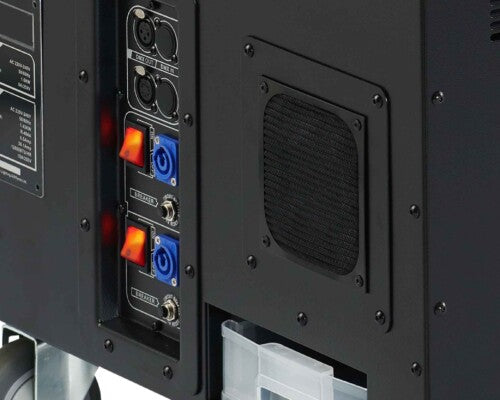

• DMX Connections: 3-Pin and 5-Pin XLR

• Power Connection: Neutrik powerCON

• Ambient Operating Temperature: 5°C–40°C / 41°F–104°F

• Installation Environment: Indoor

Applications:

• Theatre productions

• Concerts

• Touring productions

• Film and television

• Studios

• Live events

• Weddings

• Large stages

• Theme parks

• Corporate events

• Professional special effects

• Ground fog effects

Included Accessories:

• 3 m Fog Conducting Hose

• Power Cords

• Water Collection Tray

• 3 m PU Tube

• User Manual

Optional Accessories:

• FDNG-250 Flight Case

• FTA-200 Fog Conducting Hose Adapter

• Additional Fog Conducting Hose

• Antari FLL Low Fog Effects Fluid

Size:

• 780 × 608 × 715 mm

• 30.7 × 23.93 × 28.15 in

Weight:

• 130 kg

• 286.6 lb

Electrical / Thermal:

• US Input Voltage: AC 100–120 V, 50/60 Hz

• EU Input Voltage: AC 220–240 V, 50/60 Hz

• Fog Power Consumption: 1600 W

• Rated Current @ 120 V: 14.2 A

• Rated Current @ 240 V: 6.5 A

• Starting Current @ 120 V: 77.4 A

• Starting Current @ 240 V: 36.1 A

• Refrigerant: R-404A

• Refrigerant Charge: 0.8 kg / 1.76 lb

• Ambient Operating Temperature: 5°C–40°C / 41°F–104°F

• Indoor Use Only
