HM1000

Professional ceiling‑mounted hanging module with 10 m non‑twisting cable and LED status indicator — ideal for discreetly suspending microphones in large venues.

From The Manufacturer:

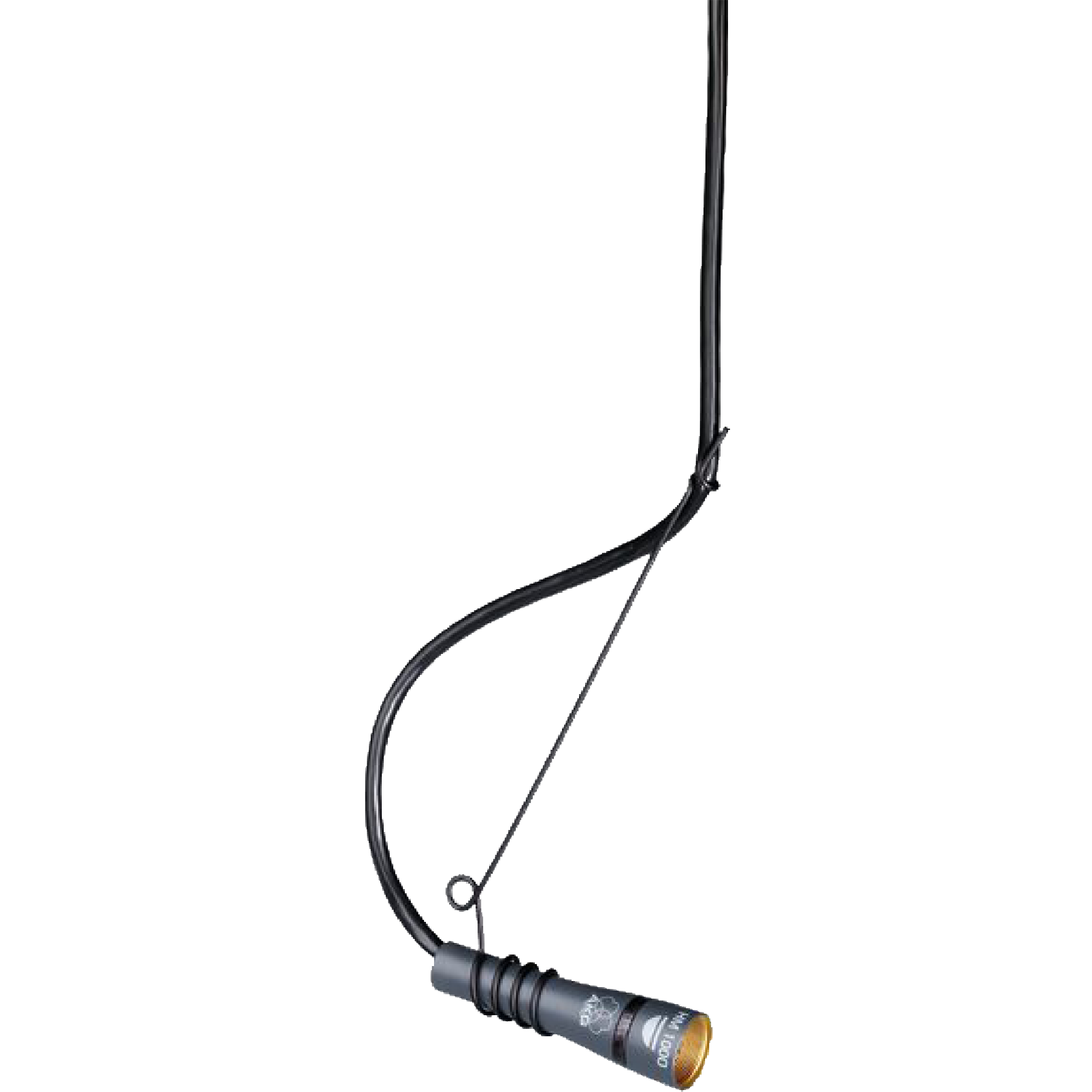

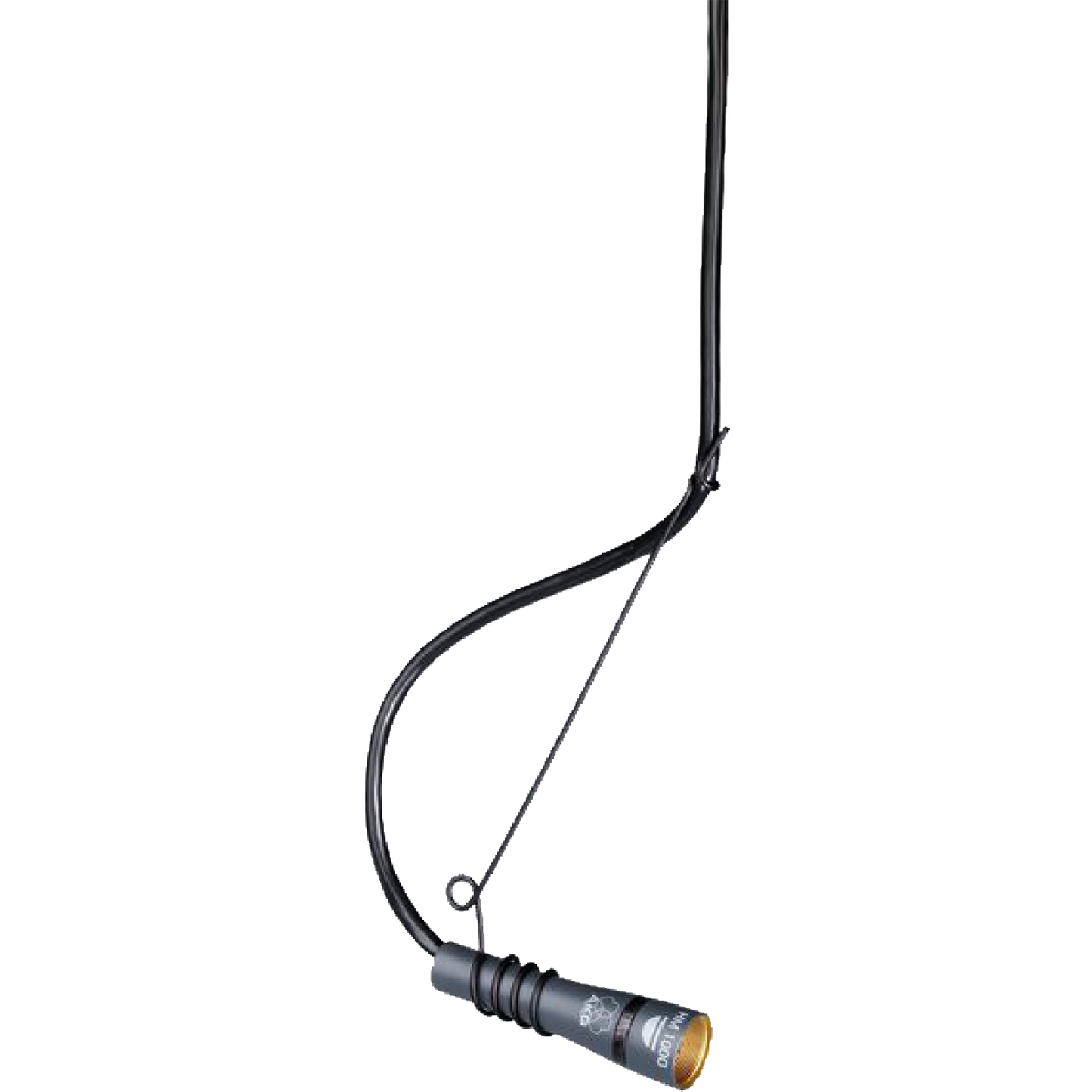

The AKG HM1000 is a rugged and reliable high‑performance hanging module designed to suspend microphone capsules from ceilings in houses of worship, conference rooms, theaters, and other acoustically challenging environments. Featuring a specially treated 10 m (33 ft) cable that resists twisting, a spring steel clamp for precise alignment, and a switchable LED ring for visual system status, the HM1000 ensures secure mounting and dependable operation. It is compatible with AKG DAM Series microphone capsules via highly reliable contact interfaces.

Features:

• Mounting module for hanging microphones in difficult‑to‑reach applications

• Twist‑free 10 m (33 ft) cable included for secure positioning

• Highly reliable capsule contacts for long life

• Special mounting accessories included for flexible installation

• Integrated switchable LED ring indicator for installation status feedback

Specification:

• Cable Length: 10 m (33 ft)

• Bass Cut Filter: 250 Hz

• Recommended Load Impedance: 2000 Ω

• Audio Output: Balanced XLR, 3‑pin, male

• Powering: 9 – 52 V phantom, 2 mA

• Finish: Matte dark gray

• Dimensions: Height approx. 50 mm, Diameter approx. 13.5 mm

Included

• 1 × HM1000 Hanging Module with 10 m cable

• 1 × Hanging Clamp

• 1 × LED Ring Expander
