HUB4000 Q

The AKG HUB4000 Q network concentrator integrates up to eight AKG wireless devices into a HiQnet network.

From the Manufacturer:

The HUB 4000 Q reference HiQnet® ethernet interface allows you to connect up to eight AKG wireless devices to a HiQnet network. HUB 4000 Q connects to the network via a standard CAT-5 cable. For large wireless systems, several HUB 4000 Qs can be cascaded using commercial Ethernet switches (or routers, wireless hubs, etc.), allowing you to configure and monitor complex systems from a single application. HUB 4000 Q connects the wireless system to the applications Harman Audio Architect, AKG Wireless app and VM2. The HUB 4000 Q comes in a rugged half-rack metal housing and provides 10 LEDs with information on the data transfer status as well as 4 DIP switches to set up the IP address. The HUB 4000 Q allows you to integrate DMS 700, WMS 4000/4500 professional wireless microphones, and an IVM 4 professional in-ear monitoring system into any HiQnet ® system. NO power supply included. Power supply sold separately - AC12 PSU12V 500mA Lock EU/US/UK/AU.

Features:

• Connects up to 8 wireless devices to HiQnet network: Enables remote control via Audio Architect, AKG Wireless app and VM2
• Cascadable via standard ethernet switches: For easy setup of large system configurations

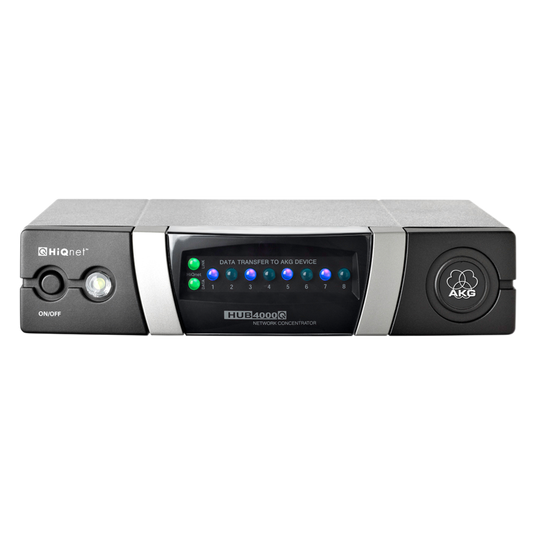

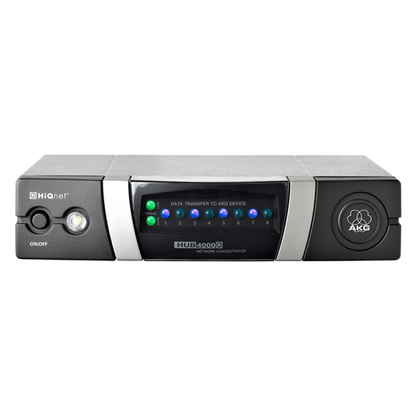

• Central 10 LED operating display: For full control on data transfer status
• Covered DIP switches on front panel: For quick and safe setup of the IP address
• Rugged half-rack metal housing: For flexible, space-efficient system configurations

Specifications:

• Current consumption: 200 mA max
• Ambient temperature: -10°C to +60°C

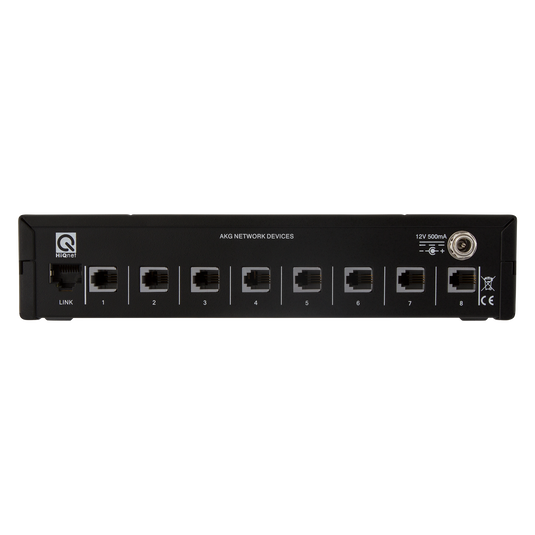

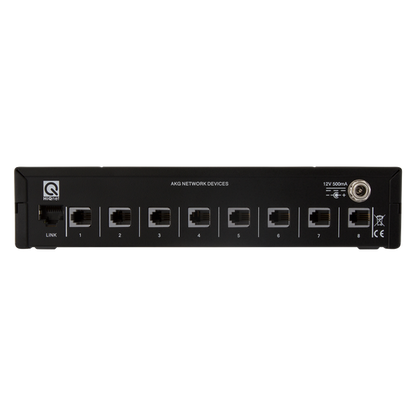

• Connectors for AKG devices: RJ11
• Connector for network card: RJ45
• Dimensions
  • Size: 200 x 190 x 44 mm (7.8 x 7.5 x 1.7 in.)
  • Weight: 970g (2.2 lbs.)
• What’s in the box?
  • 1 x HUB 4000 Q
  • 8 x Data Cables
  • 1 x Rack Mounting Kit
